      Product Information

      Product Describe
      330906-02-12-CC-DD-EE 3/8-24 UNF threads
      10 1.0 meter (39 in)
      12 Miniature coaxial ClickLocconnector
      FluidLoc cable
      05Multiple Approvals

      Technical specifications for 330906-02-12-10-12-05

      • Product Model
        330906-02-12-10-12-05
      • Product Parameters
        3300 NSv Reverse Mount Probe
      • Tariff Code
        8537101190
      • Country of origin
        USA
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        1x0.8x63 cm
      • Manufacturer
        Bently Nevada
      • Weight
        0.02 kg
      • Total Length Option
        1.0 meter (39 in)
      • Connector Option
        Miniature coaxial ClickLocconnector FluidLoc cable
      • Agency Approval Option
        Multiple Approvals
      • Probe CaseMaterial
        AISI 304 stainless steel
      • Outputresistance
        50 Ω
      • SupplySensitivity
        Less than 2 mV change inoutput voltage per voltchange in input voltage.

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is 330906-02-12-10-12-05 ?+

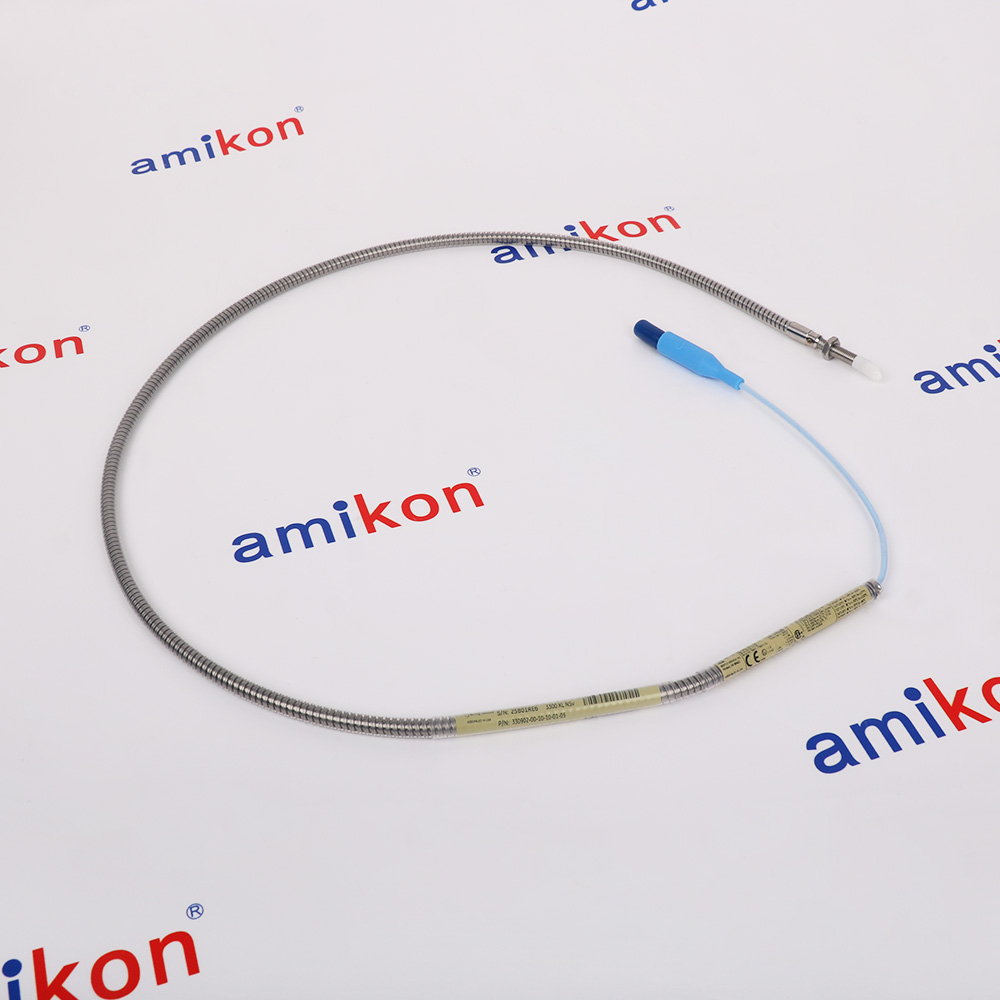

        The Bently Nevada 330906-02-12-10-12-05 is a 3300 XL NSv (Near-surface) proximity probe, for precise vibration and position monitoring in rotating machinery with limited space (small targets, shaft diameters < 51 mm).
      • What are the main applications of 330906-02-12-10-12-05?+
        The NSv series probes are designed for environments where standard probes cannot be used due to limitations imposed by countersunk holes, side views, or back views.
      • Does 330906-02-12-10-12-05 require a special cable?+
        Yes, it uses a 1.0m FluidLoc cable.
      • What does this specific part number represent?+
        It is a 3300 XL NSv proximity probe designed for reverse mount applications.
      • What is the operating temperature range of 330906-02-12-10-12-05?+
        The probe is rated for a temperature range of -51°C to +177°C (-60°F to +351°F).
      Get a quick price fo 330906-02-12-10-12-05
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product

      MORE INFORMATION

      Overview Manuals Technical notes Product Applications Critical Constraints

      Features:

      • 3/8-24 UNF Thread
      • For use in Tight Installation Requirements
      • Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
      • Average Scale Factor of 7.87 V/mm (200 mV/mil)
      The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:Radial vibration and radial position measurementsAxial (thrust) position measurements Tachometer and zero speed measurements Phase reference (Keyphasor) signals.

      The 330906-02-12-10-12-05 Bently Nevada 3300 NSv Reverse Mount Probe may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330906-02-12-10-12-05 3300 NSv Reverse Mount Probe Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3⁄8-24, M8X1 and M10X1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3⁄8-24 orM10X1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada’spatented CableLoc design provides 220 N (50lb) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal
      • Centrifugal Air Compressors:Limited-space industrial plant air systems
      • Refrigeration Compressors:Large-scale cooling & HVAC systems
      • Process Gas Compressors:Oil/gas or chemical plants: handles various gases
      • Fluid-Filmed Bearing Machines:Small shafts/restricted access hydrodynamic bearings
      • Marine Engines:Vibration monitoring in marine engine rooms
      • Food & Beverage Production Lines:Washdown & chemical resistance applications
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      Linear Range: 1.5 mm (60 mils).
      Hazardous Areas: If installed in Zone 0, ensure appropriate earthing and avoid cleaning with dry cloths to prevent electrostatic build-up.
      Target Size: Ideal for shafts smaller than 51 mm (2 in) and flat targets smaller than 15 mm (0.6 in).
