- 3300 XL NSV Proximity Transducer

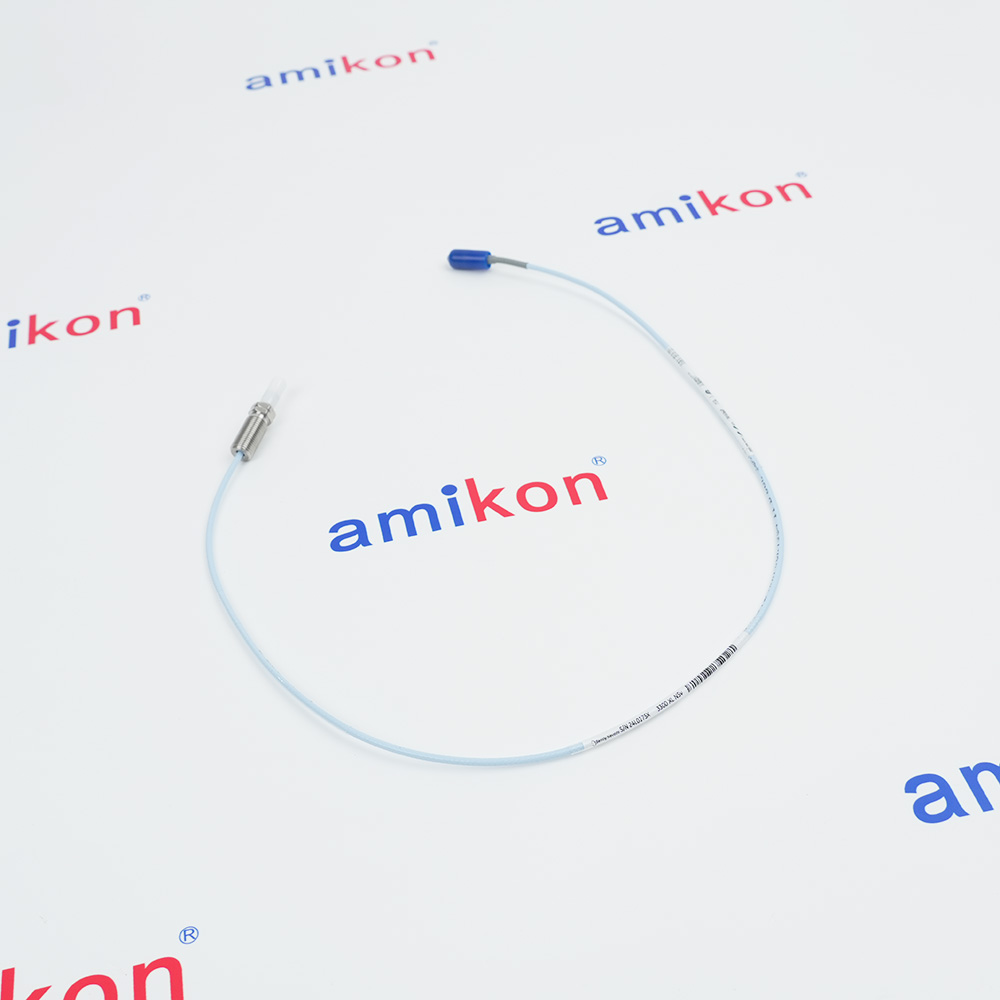

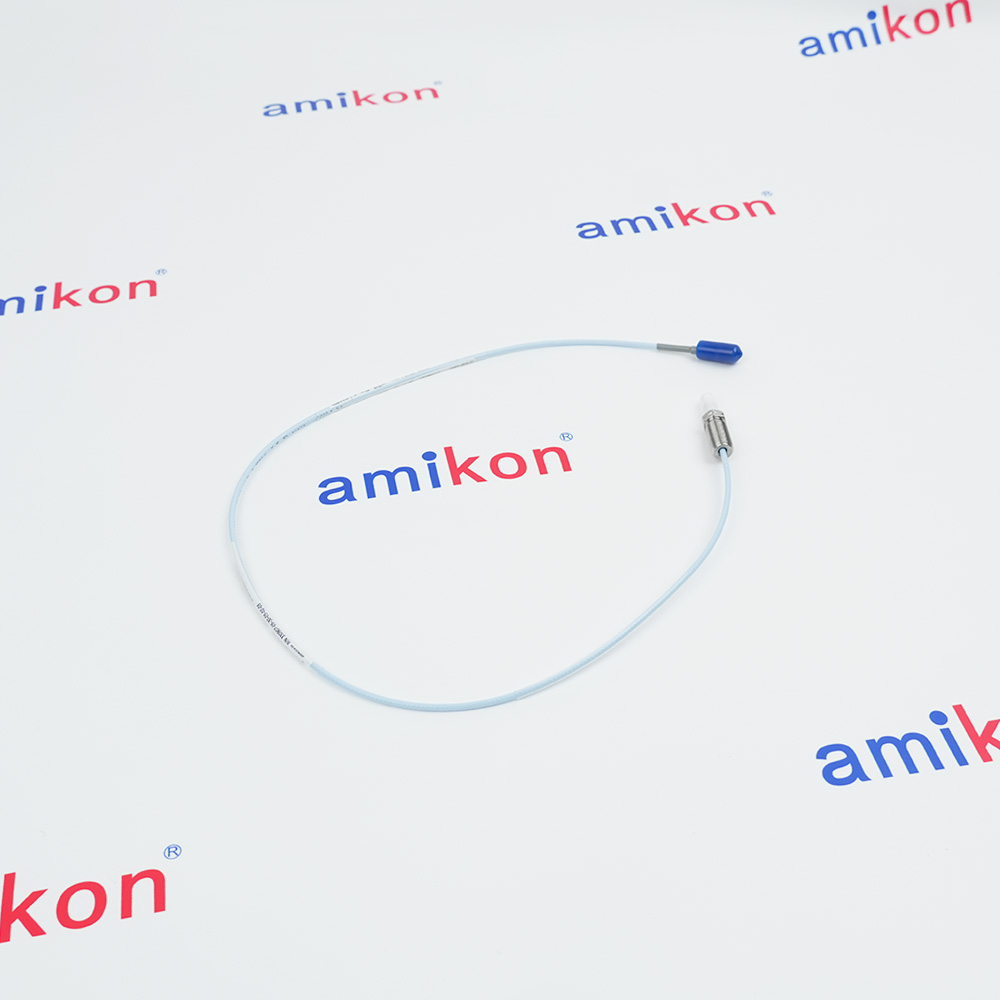

- 330907-05-30-05-02-05
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330907-05-30-05-02-05
-
Product Model330907-05-30-05-02-05
-
Product Parameters3300 NSv Reverse Mount Probe
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen,China
-
Estimated Shipping Size1x0.9x67.5cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Total Length Option0.5 meter (20 in)
-
Connector OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionMultiple Approvals
-
Extension Cable Material75 Ω coaxial, fluoroethylenepropylene (FEP) insulated
-
Output resistance50 Ω
Description
330907-05-30- CC-DD-EE M10X1 threads
05 0.5 meter (20 in)
02 Miniature coaxial ClickLocconnector
standard cable
05Multiple Approvals
05 0.5 meter (20 in)
02 Miniature coaxial ClickLocconnector
standard cable
05Multiple Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System design allows it toreplace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.Upgradesfrom the 3300 RAM system to the 3300 XL NSv system mayuse the existing probe, extension cable, and monitoring 3300 XL NSv Proximity Transducer SystemDatasheet147385 Rev. Rsystem with 3300 XL NSv ProximitorSensor.Upgrades from the 3000-series or7000-series Transducer System must replacethe probe,extension cable, and ProximitorSensor with NSv components.
The 330901-00-90-10-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-90-10-02-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv Transducer System has anAverage Scale Factor of 7.87 V/mm (200mV/mil), which is the most common output foreddy current transducers. Its enhanced sideview and small target characteristics give it ashorter linear range than the Bently Nevada3300 XL-series 5 and 8 mm Transducer System.The 1.5 mm (60 mils) of linear range exceedsthe linear range of the 3000-series 190Transducer System.
The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3⁄8-24, M8X1 and M10X1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3⁄8-24 orM10X1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada’spatented CableLoc design provides 220 N (50lb) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal
- Centrifugal Air Compressors:Internal high-speed shafts where space is at a premium
- Refrigeration Compressors:Large-scale industrial chilling and HVAC units
- Process Gas Compressors:Enhanced chemical resistance vs. older 3300 RAM models
- Small Hydrodynamic Bearing Machines:Precise radial/axial monitoring on small-diameter fluid-film bearings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread Specification: This specific model (330907) uses M10 x 1 metric threads.
Torque Requirements: For M10 x 1 probe cases, the recommended torque is 11.3 N•m (100 in•lb), with a maximum limit of 33.9 N•m (300 in•lb).
Counterbore Clearance: Due to its "Narrow Side View" (NSv) design, it can be mounted in counterbores as small as 13 mm (0.5 in) without signal interference.
FAQs
-
What is the 330907-05-30-05-02-05?+The Bently Nevada 330907-05-30-05-02-05 is a 3300 NSv Reverse Mount Probe designed for measuring radial vibration and axial position, often in small shaft, high-speed compressors
-
What is the function of the 330907-05-30-05-02-05 probe?+It is a reverse mount proximity probe for measuring dynamic and static displacements, designed for small-target applications and hydrodynamic bearing machinery.
-
Is this 330907-05-30-05-02-05 probe chemically resistant?+Yes, the 3300 NSv probe offers greater chemical resistance to turbine oils and similar substances compared to the older 3300 RAM probe.
-
What is the difference between this and the 3300 RAM probe?+The 3300 NSv provides improved side-view characteristics, allowing accurate measurement at closer distances to the probe target, making it ideal for small machinery.
