- 3300 XL NSV Proximity Transducer
- 330908-10-55-05-02-00
In Stock
Ships by Thursday, July 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330908-10-55-05-02-00
-

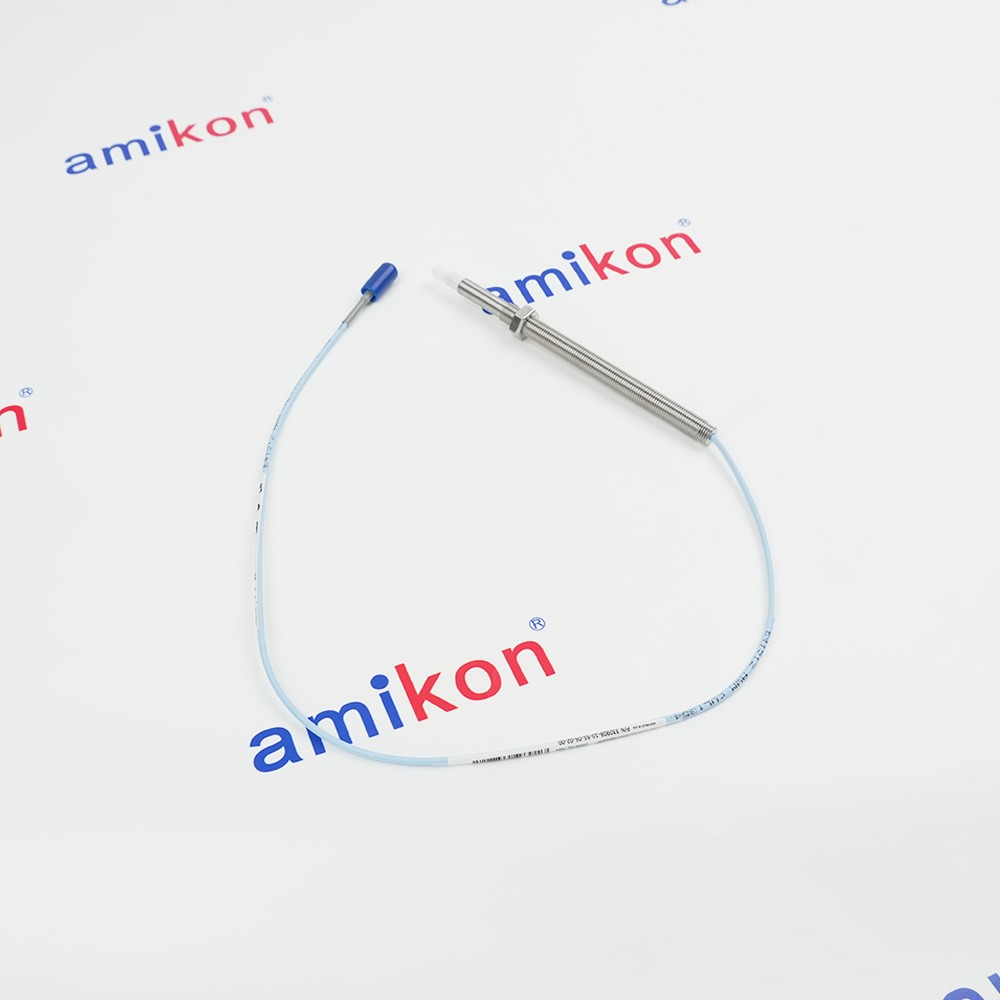

Product Model330908-10-55-05-02-00
-
Product Parameters3300 NSv Probe, 1/4-28 UNF thread,without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size1.6x1.4x66cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option1.0 in
-
Overall Case Length Option5.5 in
-
Total Length Option0.5 meter (20 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionNot required
Description
The Bently Nevada 330908-10-55-05-02-00 is a 3300NSv Proximity Probe with 3/8-24 UNF thread and without armor, as a core component of the 3300XL NSv Proximity Transducer System. The 330908-10-55-05-02-00 is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 330908-10-55-05-02-00 are for areas where counter bore, side view, or rear view restrictions limit the use of standard Bently Nevada 3300 and 3300XL 5mm and 8mm Transducer Systems.
The 330908-10-55-05-02-00 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in). The 330908-10-55-05-02-00 is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals).
The 330908-10-55-05-02-00 has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300XL-series 5mm and 8mm Transducer System. The 1.5mm (60 mils) of linear range of the 330908-10-55-05-02-00 exceeds the linear range of the 3000-series 190 Transducer System.
The 330908-10-55-05-02-00 is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in). The 330908-10-55-05-02-00 is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: radial vibration and radial position measurements, axial (thrust) position measurements, tachometer and zero speed measurements, and phase reference (Keyphasor signals).
The 330908-10-55-05-02-00 has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300XL-series 5mm and 8mm Transducer System. The 1.5mm (60 mils) of linear range of the 330908-10-55-05-02-00 exceeds the linear range of the 3000-series 190 Transducer System.
Alternative Names
330908-10-55-05-02-OO
330908-10-55-05-0Z-00
330908-10-55-05-O2-00
330908-10-55-O5-02-00
330908-1O-55-05-02-00
330908-I0-55-05-02-00
33090B-10-55-05-02-00
3309O8-10-55-05-02-00
33O908-10-55-05-02-00
330908 10 55 05 02 00
330908 10 55 05 02 OO
330908 10 55 05 0Z 00
330908 10 55 05 O2 00
330908 10 55 O5 02 00
330908 1O 55 05 02 00
330908 I0 55 05 02 00
33090B 10 55 05 02 00
3309O8 10 55 05 02 00
33O908 10 55 05 02 00
330908-10-55-05-02-05
330908-10-55-05-02-CN
330908-10-55-05-02-BR
Information
Overview
Manuals
Insertion & Connection
Product Applications
Installation Steps & Guidelines
Features:
- Small Target Optimization
- Integrated Probes with Permanent Mounting
- 0.5 Meter Total Length
- Extended Threaded Length
The 330908-10-55-05-02-00 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330908-10-55-05-02-00 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The mechanical design of the 330908 series focuses on versatility in restricted spaces. With its 1/4-28 UNF threads and adjustable threaded length, it allows for fine-tuning the probe-to-target gap, which is critical for maintaining the linear range of the transducer system. 3300 NSv extension cable to reach the Proximitor sensor. The probe tip and body are designed to handle the high-frequency eddy current fields required to sense small targets with high precision, maintaining a scale factor consistent with the requirements of centrifugal machinery diagnostics.
- Gas Turbines :Exhaust vibration, bearing struts & seal clearance under extreme heat
- Steam Turbines:Thrust position & differential expansion near labyrinth seals
- Centrifugal Compressors:High-speed shaft vibration & eccentricity prevents bearing failure
- Hydroelectric Turbines:Generator radial vibration & overall machinery health
- Large Industrial Motors:Detects rotor imbalance & high-criticality bearing abnormalities
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Probe Installation: Install the 330908 probe into the machine casing, typically using 3/8-24 UNF threads, ensuring the appropriate gap is set between the probe tip and the target (usually centered in its linear range).Cable Routing: Connect the probe to the 3300 NSv extension cable. Ensure proper, protected routing of the coaxial cable from the probe to the Proximitor.Proximitor Mounting: Mount the 3300 XL NSv Proximitor Sensor on a DIN rail or in a panel, using the insulated mounting base.
Technical notes
The 330908-10-55-05-02-00 features gold-plated brass ClickLoc connectors that lock into place and prevent the connection from loosening during operation. Bently Nevada's patented CableLoc design on the 330908-10-55-05-02-00 provides 220N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection of the 330908-10-55-05-02-00 , as well as on the cable-to-Proximitor Sensor connection, to prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal.
FAQs
-
What is 330908-10-55-05-02-00?
+The Bently Nevada 330908-10-55-05-02-00 is a 3300 XL NSv (Narrow Side View) Proximity Probe designed for accurate vibration and position measurements in tight spaces or with small shafts -
What is the primary application of this probe?
+The 3300 NSv is ideal for small shaft radial vibration, axial position (thrust), or speed measurements where standard 3300 XL 5mm/8mm probes have insufficient room. -
Can this replace older Bently Nevada probes?
+Yes, the 3300 NSv probe is mechanically and electrically compatible/interchangeable with previous 3300 RAM proximity probes.. -
What is the operating temperature range?
+The probe operates in temperatures ranging from -34°C to +177°C (-30°F to +351°F).
