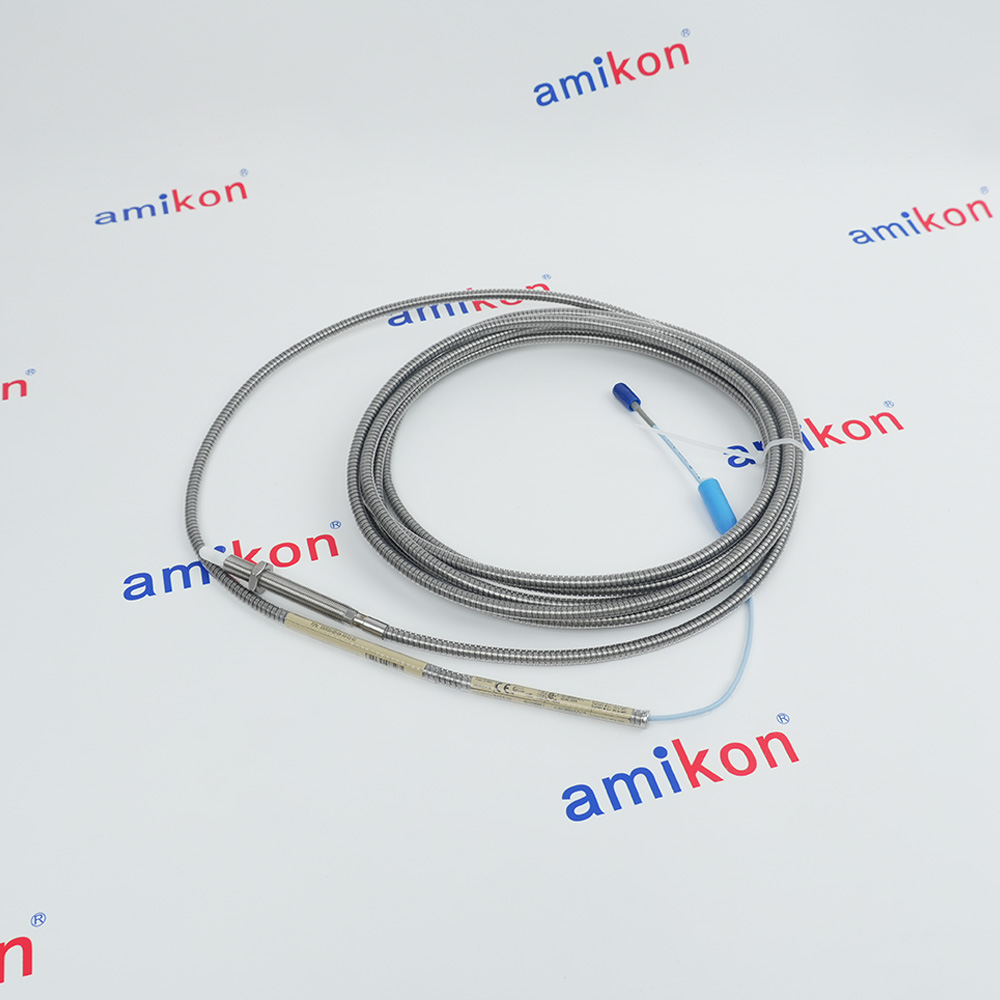

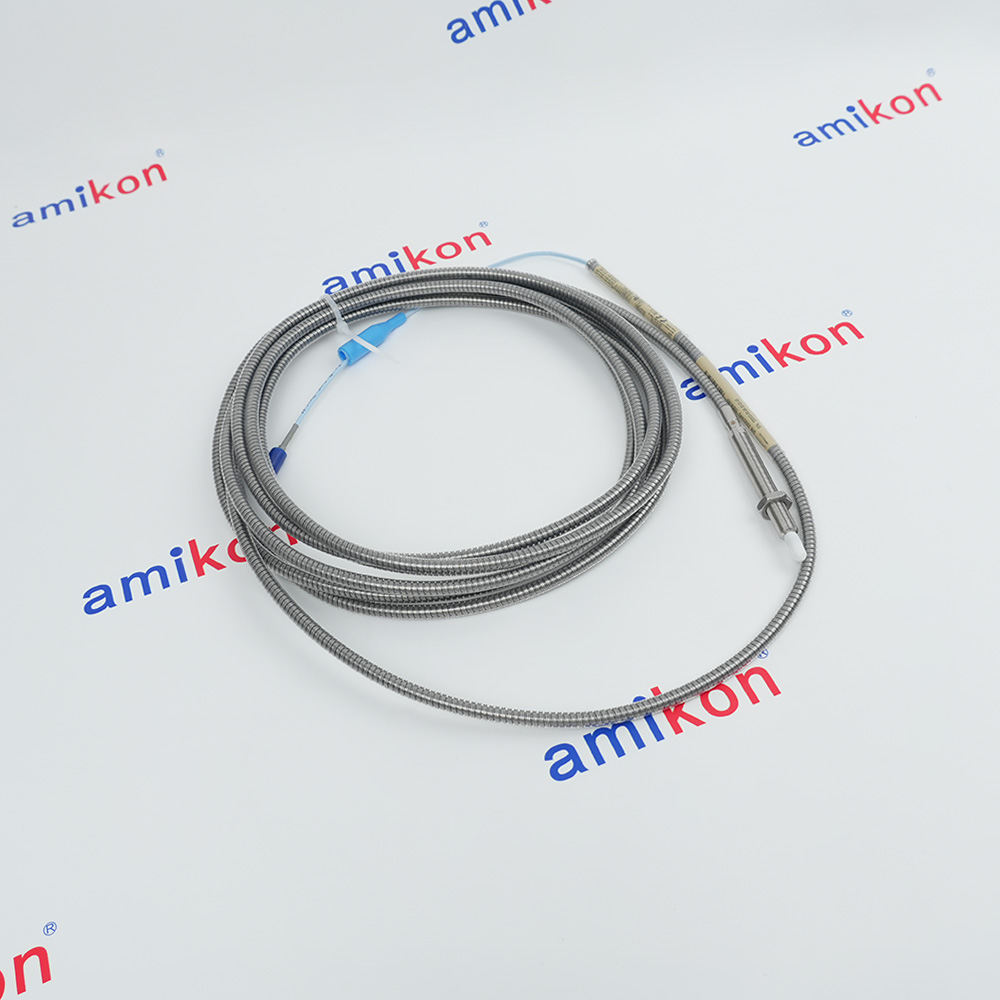

330910-00-08-50-01-05
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
330910 3300 NSv Probe
M10X1 thread, witharmor
Minimum unthreaded length:0 mm
Minimum length: 80 mm
50 5.0 meters (16.4 feet)
01Miniature coaxial ClickLoc connector
with connector protector, standardcable
05 Multiple Approvals
M10X1 thread, witharmor
Minimum unthreaded length:0 mm
Minimum length: 80 mm
50 5.0 meters (16.4 feet)
01Miniature coaxial ClickLoc connector
with connector protector, standardcable
05 Multiple Approvals
Technical specifications for 330910-00-08-50-01-05
-
Product Model330910-00-08-50-01-05
-
Product Parameters3300 NSv Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size109x2x1.5cm
-
ManufacturerBently Nevada
-
Weight0.14 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option80 mm
-
Total Length Option5.0 meters (16.4 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector with connector protector, standardcable
-
Agency Approval OptionMultiple Approvals
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 330910-00-08-50-01-05?+The Bently Nevada 330910-00-08-50-01-05 is a 3300 NSv (Near-surface) Proximity Probe designed to measure industrial equipment vibration and position..
-
What are the primary applications of this probe?+The 3300 NSv is specially designed for small-diameter shafts or high-speed vibration measurements where standard probes fail. Applications include centrifugal air compressors, pumps, and specialized industrial turbines.
-
What is the required, normal gap voltage?+The probe should be installed with a gap voltage generally falling between -8 VDC to -12 VDC for optimal linear output.
-
What type of target is required for calibration?+The system is calibrated specifically for AISI 4140 steel
Get a quick price fo 330910-00-08-50-01-05
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Connectivity & Protection
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
The 330910-00-08-50-01-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330910-00-08-50-01-05 3300 NSv Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3⁄8-24, M8X1 and M10X1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3⁄8-24 orM10X1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada’spatented CableLoc design provides 220 N (50lb) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal
- Centrifugal Air Compressors:Integrally geared designs with limited gear/bearing space
- Refrigeration Compressors:Industrial cooling & HVAC systems
- Process Gas Compressors:Small-bore chemical processing compressors
- Small Steam Turbines:Auxiliary power or mechanical drives
- Fluid-Film Bearing Machines:Small shafts or limited side-view clearance
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
ClickLoc Connectors: These gold-plated connectors are designed to be finger-tight only. They will "click" when properly locked. Do not use tools to tighten them, as this can damage the internal locking mechanism.
Connector Protectors: It is highly recommended to use the factory-installed or separate connector protectors to prevent oil or environmental contaminants from entering the connection.
