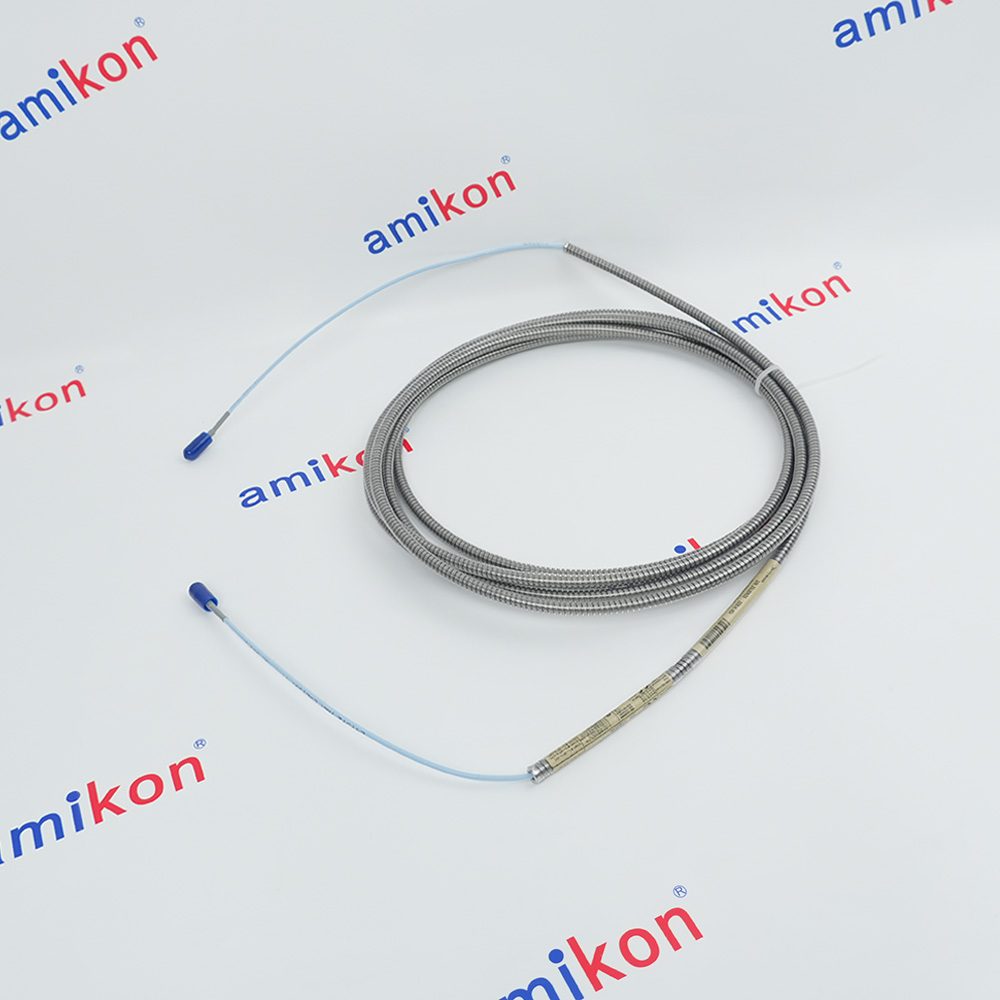

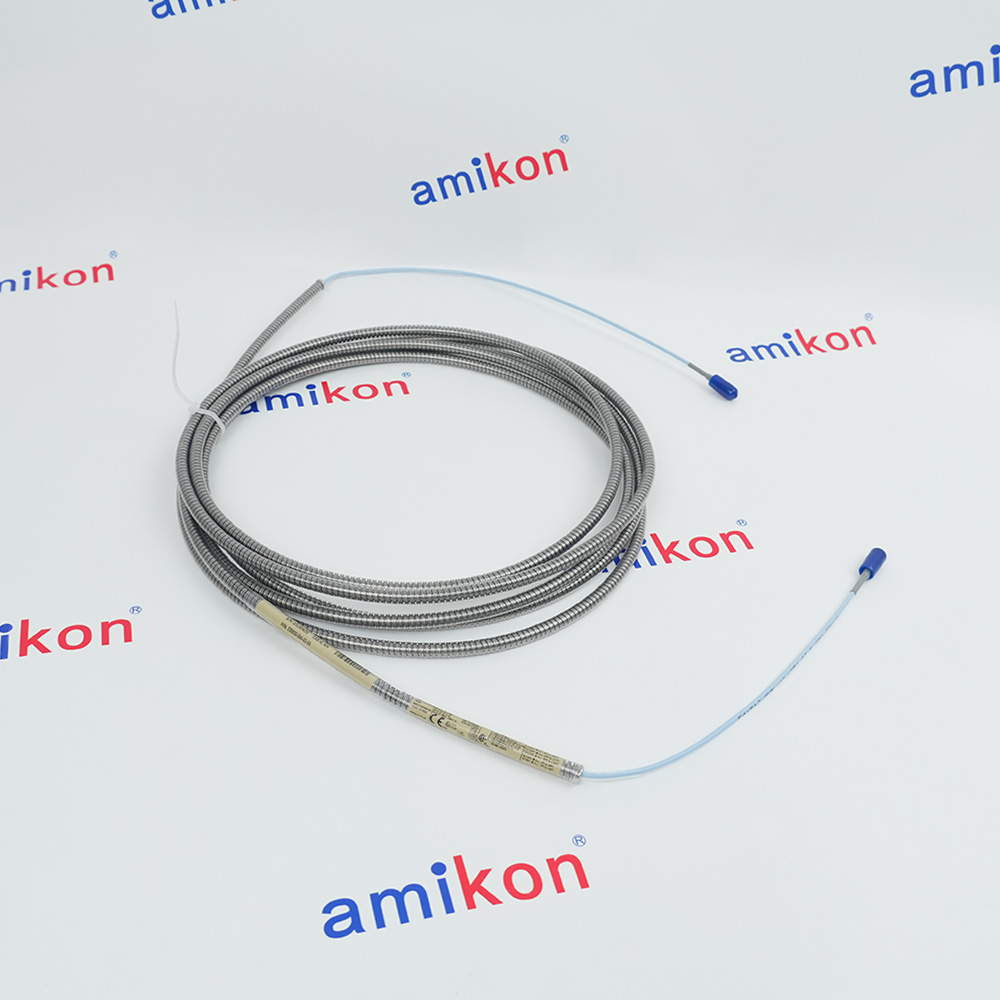

Technical specifications for 330930-045-01-05
-
Product Model330930-045-01-05
-
Product Parameters3300 NSv Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size28x27x3cm
-
ManufacturerBently Nevada
-
Weight0.4 kg
-
Cable Length Option4.5 meters (14.8 feet)
-
Connector and Cable OptionWith stainless steel armor, withFEP jacket
-
Agency Approval OptionMultiple Approvals
-
Output resistance50 Ω
-
Probe Case MaterialAISI 304 stainless steel
Description
045 4.5 meters (14.8 feet)
01 With stainless steel armor, withFEP jacket
05 Multiple Approvals
3300 NSv Extension Cable
01 With stainless steel armor, withFEP jacket
05 Multiple Approvals
3300 NSv Extension Cable
Information
Overview
Manuals
Technical notes
Product Applications
Cable Routing & Mechanical Care
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
The 330930-045-01-05 Bently Nevada 3300 NSv Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330930-045-01-05 3300 NSv Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 NSv probe comes in varying probecase configurations, including armored andunarmored 1/4-28, 3⁄8-24, M8X1 and M10X1probe threads. The reverse mount 3300 NSvprobe comes standard with either 3⁄8-24 orM10X1 threads. All components of thetransducer system have gold-plated brassClickLoc connectors. ClickLoc connectors lockinto place and prevent the connection fromloosening. The patented TipLoc moldingmethod provides a robust bond between theprobe tip and the probe body. Bently Nevada’spatented CableLoc design provides 220 N (50lb) of pull strength and securely attaches theprobe cable to the probe tip. Connectorprotectors are recommended for use on theprobe-to-extension cable connection, as wellas on the cable-to-Proximitor Sensorconnection. Connector protectors prevent mostliquids from entering into the ClickLocconnectors and adversely affecting theelectrical signal
- Centrifugal Air Compressors:Integrally geared designs with limited gear/bearing space
- Refrigeration Compressors:Industrial cooling & HVAC systems
- Process Gas Compressors:Small-bore chemical processing compressors
- Small Steam Turbines:Auxiliary power or mechanical drives
- Fluid-Film Bearing Machines:Small shafts or limited side-view clearance
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Minimum Bend Radius: Avoid sharp kinks. While the 3300 XL NSv is robust, maintaining the minimum bend radius (typically ~25 mm or 1 inch) is critical to prevent impedance changes in the 75 Ω triaxial line.
Armor Handling: This specific model (-01) includes stainless steel armor. Ensure the armor is securely supported with cable clamps to prevent it from rubbing against sharp machine edges, which can lead to mechanical failure.
Isolation: The extension cable should be routed away from high-voltage lines to minimize electromagnetic interference (EMI)
FAQs
-
What is 330930-045-01-05?
+The Bently Nevada 330930-045-01-05 is a 4.5-meter (14.8-foot) 3300 NSv extension cable, featuring stainless steel armor and an FEP jacket. -
What is the length of this cable?
+The 330930-045-01-05 model is 4.5 meters in length. -
Is it compatible with previous models?
+Yes, the 3300 NSv probe and extension cable are mechanically and electrically compatible with previous 3300 RAM proximity systems. -
Is it compatible with other Bently Nevada systems?
+The 3300 NSv system is mechanically and electrically compatible with the older 3300 RAM probes and extension cables. However, it is specifically optimized for the 3300 NSv Proximitor Sensor to ensure accurate calibration.
