330500-01-CN
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
01 1/2-20 UNF
CN Multiple approvals (CSA, ATEX)

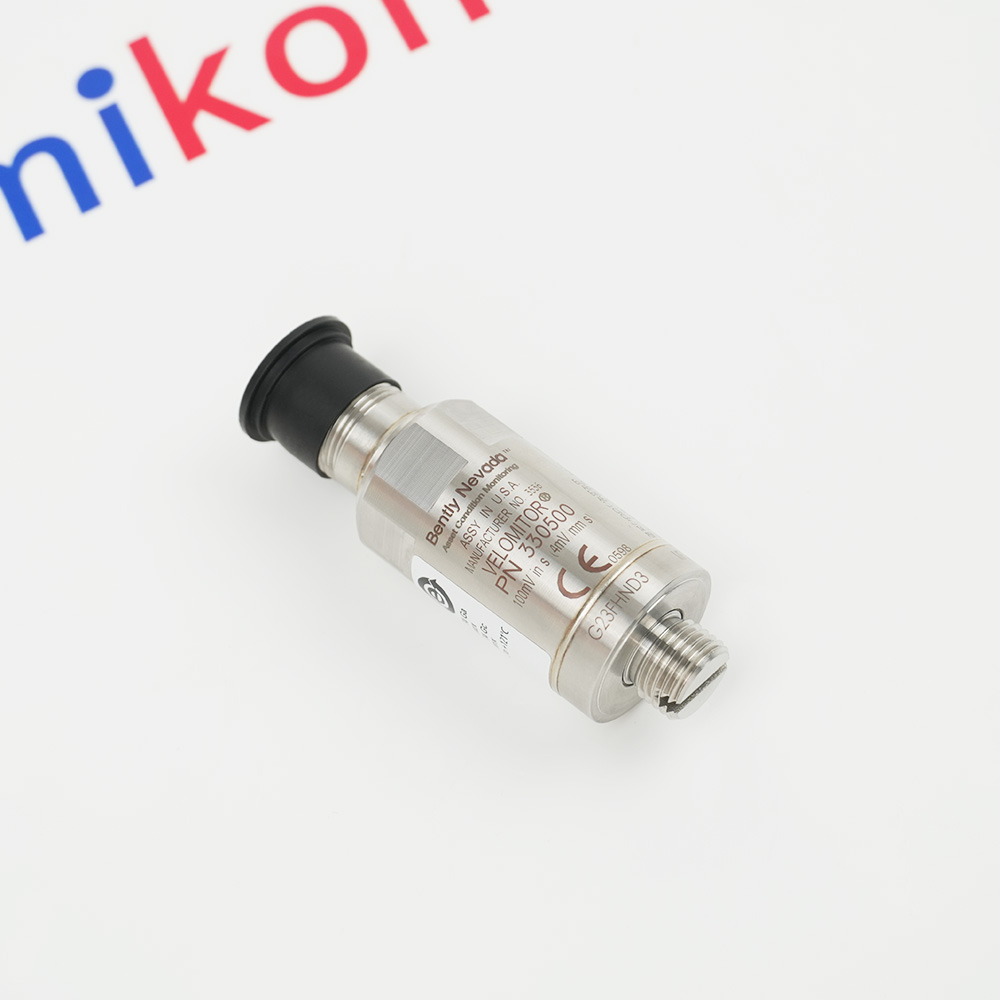

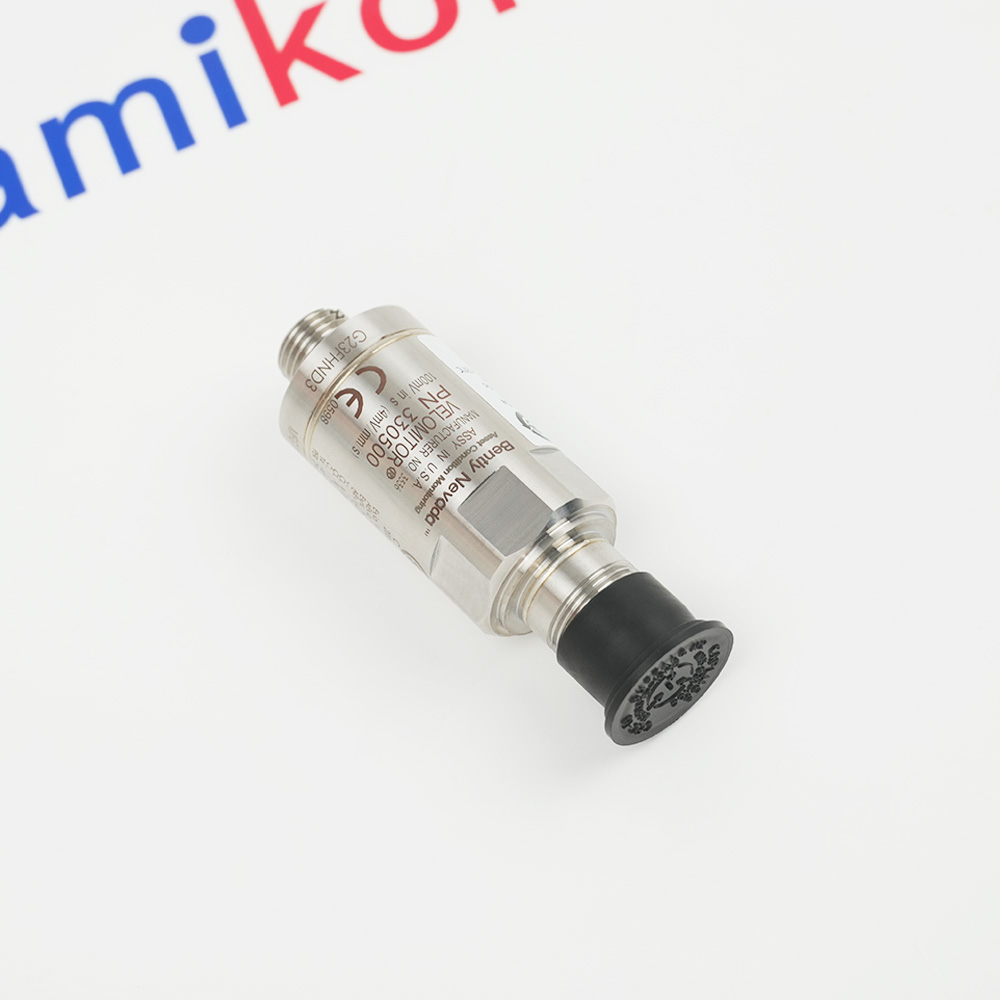

Velomitor Piezo-velocity Sensor
CN Multiple approvals (CSA, ATEX)
Velomitor Piezo-velocity Sensor
Technical specifications for 330500-01-CN
-
Product Model330500-01-CN
-
Product ParametersVelomitor Piezo-velocity Sensors
-
Tariff Code8537101190
-
Country of originusa
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.5x2.5x2.5cm
-
ManufacturerBently Nevada
-
Weight0.15 kg
-
Mounting Thread Adaptor Option1/2-20 UNF
-
Agency Approval OptionMultiple approvals (CSA, ATEX)
-
Sensitivity3.94 mV/mm/s (100mV/in/s) ±5%
-
Velocity Range1270 mm/s (50 in/s) peak
-
Amplitude Linearity±2% to 152 mm/s (6 in/s)peak
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 330425-01-CN？+The Bently Nevada 330500-01-CN is a Velomitor Piezo-velocity Sensor used for measuring absolute vibration in industrial machinery.
-
What does the 330500-01-CN measure?+It measures absolute (relative to free space) bearing housing, casing, or structural vibration in units of velocity.
-
What is it used for?+It is suited for condition monitoring of machines with rolling-element bearings, such as turbines, pumps, motors, and compressors, to detect faults like imbalance, misalignment, or bearing wear.
-
What is the frequency range?+The frequency response is 4.5 Hz to 5 kHz (270 cpm to 300 kcpm) ±3.0 dB, or a tighter tolerance of 6.0 Hz to 2.5 kHz (360 cpm to 150 kcpm) ±0.9 dB.
Get a quick price fo 330500-01-CN
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Incorporates Embedded Electronics
- Specialized Piezoelectronic Accelerometers
- No Moving Parts
- Can be Mounted at Any Angle of Orientation
The 330500-01-CN Bently Nevada Velomitor Piezo-velocity Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330500-01-CN Velomitor Piezo-velocity Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada Velomitor Piezo-velocity Sensors aredesigned to measure absolute (relative to free space)bearing housing, casing, or structural vibration. The 330500 isa specialized piezoelectric accelerometer that incorporatesembedded integrated electronics in a solid-state design.Because the 330500 incorporates solid-state electronics andhas no moving parts, it does not suffer from mechanicaldegradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation
- Rolling-Element Bearing Machines:Monitors high-frequency vibration critical for rolling-element bearing machines.
- Pumps and Compressors:Continuous monitoring to prevent catastrophic failure in fluid-handling equipment.
- Electric Motors and Fans:Tracks vibration levels to schedule predictive maintenance.
- Steam Turbines and Generators:Handles high-heat environments in power generation systems.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The 330525 XA (eXtended Application) is a ruggedized version designed to be mounted without a protective housing. It features a unique weatherproof connector and cable assembly that meets IP65 and NEMA 4X standards.
Trade-off: The 330500 has a superior high-frequency response (up to 5 kHz), making it better for detecting early-stage bearing faults, whereas the 330525 is capped at 2 kHz.
