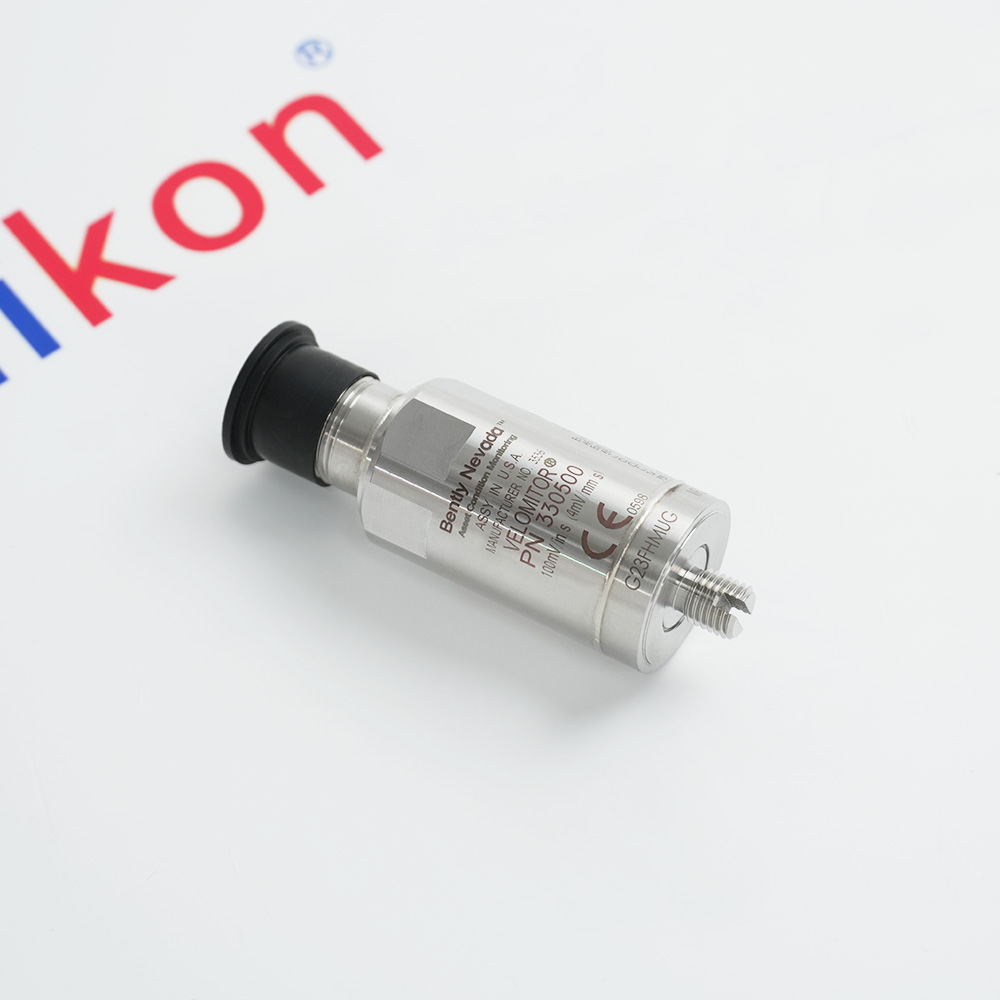

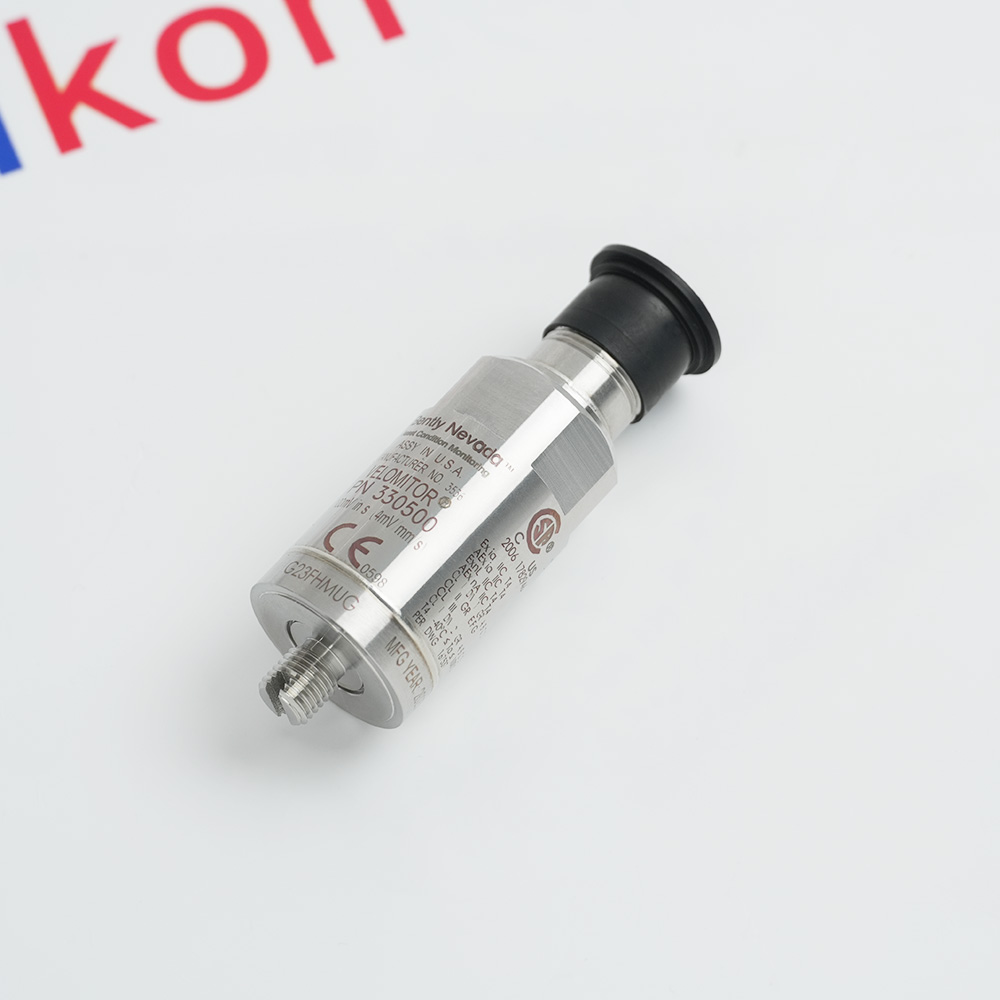

330500-02-04
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
02 M8 x 1
04 Multiple approvals (CSA, ATEX)
Velocity Range:1270 mm/s (50 in/s) peak.
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
Transverse Sensitivity:Less than 5% of sensitivity
Amplitude Linearity:±2% to 152 mm/s (6 in/s)peak
Dynamic Output Impedance:Less than 2400 Ω
04 Multiple approvals (CSA, ATEX)
Velocity Range:1270 mm/s (50 in/s) peak.
Sensitivity:3.94mV/mm/s (100 mV/in/s)±5%
Transverse Sensitivity:Less than 5% of sensitivity
Amplitude Linearity:±2% to 152 mm/s (6 in/s)peak
Dynamic Output Impedance:Less than 2400 Ω
Technical specifications for 330500-02-04
-
Product Model330500-02-04
-
Product ParametersVelomitor Piezo-velocity Sensors
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.3x2.5x2.5cm
-
ManufacturerBently Nevada
-
Weight0.16 kg
-
Mounting Thread Adaptor OptionM8 x 1
-
Agency Approval OptionMultiple approvals (CSA, ATEX)
-
Sensitivity3.94 mV/mm/s (100mV/in/s) ±5%
-
Velocity Range1270 mm/s (50 in/s) peak
-
Amplitude Linearity±2% to 152 mm/s (6 in/s)pea
-
Dynamic Output Impedance2400 Ω
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 330500-02-04？+The Bently Nevada 330500-02-04 is a ruggedized 3300 XL Velomitor Piezo-velocity Sensor designed for harsh industrial environments, featuring a 2-pin connector, M8 x 1 mounting thread, and multiple agency approvals (CSA, ATEX).
-
What are the mounting requirements?+The 330500-02-04 specifically features an M8 x 1 mounting thread adapter, although the base is internally machined with 3/8-24 threads.
-
Can it be mounted at any angle?+Yes. Because it uses solid-state electronics and has no moving parts, it can be mounted vertically, horizontally, or at any other angle.
-
What is the maximum cable length?+It supports a maximum cable length of up to 305 meters (1,000 feet) without signal degradation.
Get a quick price fo 330500-02-04
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Key Instructions & Installation Guidelines
Features:
- Incorporates Embedded Electronics
- Specialized Piezoelectronic Accelerometers
- No Moving Parts
- Can be Mounted at Any Angle of Orientation
The 330500-02-04 Bently Nevada Velomitor Piezo-velocity Sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330500-02-04 Velomitor Piezo-velocity Sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada Velomitor Piezo-velocity Sensors aredesigned to measure absolute (relative to free space)bearing housing, casing, or structural vibration. The 330500 isa specialized piezoelectric accelerometer that incorporatesembedded integrated electronics in a solid-state design.Because the 330500 incorporates solid-state electronics andhas no moving parts, it does not suffer from mechanicaldegradation and wear, and can be mounted vertically,horizontally, or at any other angle of orientation
- Machine Condition Monitoring:Detects imbalance/misalignment in rolling-element bearing machines
- Industrial Automation:Monitors motors, pumps, fans, and compressors
- Bearing Housing Vibration:Measures absolute vibration on casing or housings
- Industrial Sectors:Oil & gas, petrochemicals, power generation, and paper/pulp
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Orientation: The sensor has no moving parts and can be mounted horizontally, vertically, or at any angle.
Torque Specification: When mounting the sensor, the maximum tightening torque is 46 kg-cm (40 in-lb).
Surface Preparation: To obtain high-quality data, ensure the mounting surface is flat and clean. The sensor must be able to detect vibration directly through the bearing housing or machine casing.
