Technical specifications for 9571-99
-
Product Model9571-99
-
Product ParametersStandard Interconnect Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size27x25x3cm
-
ManufacturerBently Nevada
-
Weight0.3 kg
-
Conductors2-conductor twisted pair
-
Length99 ft (30.0 m)
-
Wire Gauge22 AWG (0.382 mm² / 0.5 mm²)
-
ShieldingShielded cable construction
-
InsulationTefzel insulated
-
Operating Temperature−29°C to +121°C (−20°F to +250°F)
-
Minimum Temperature−29°C (−20°F)
-
Maximum Temperature+121°C (+250°F)

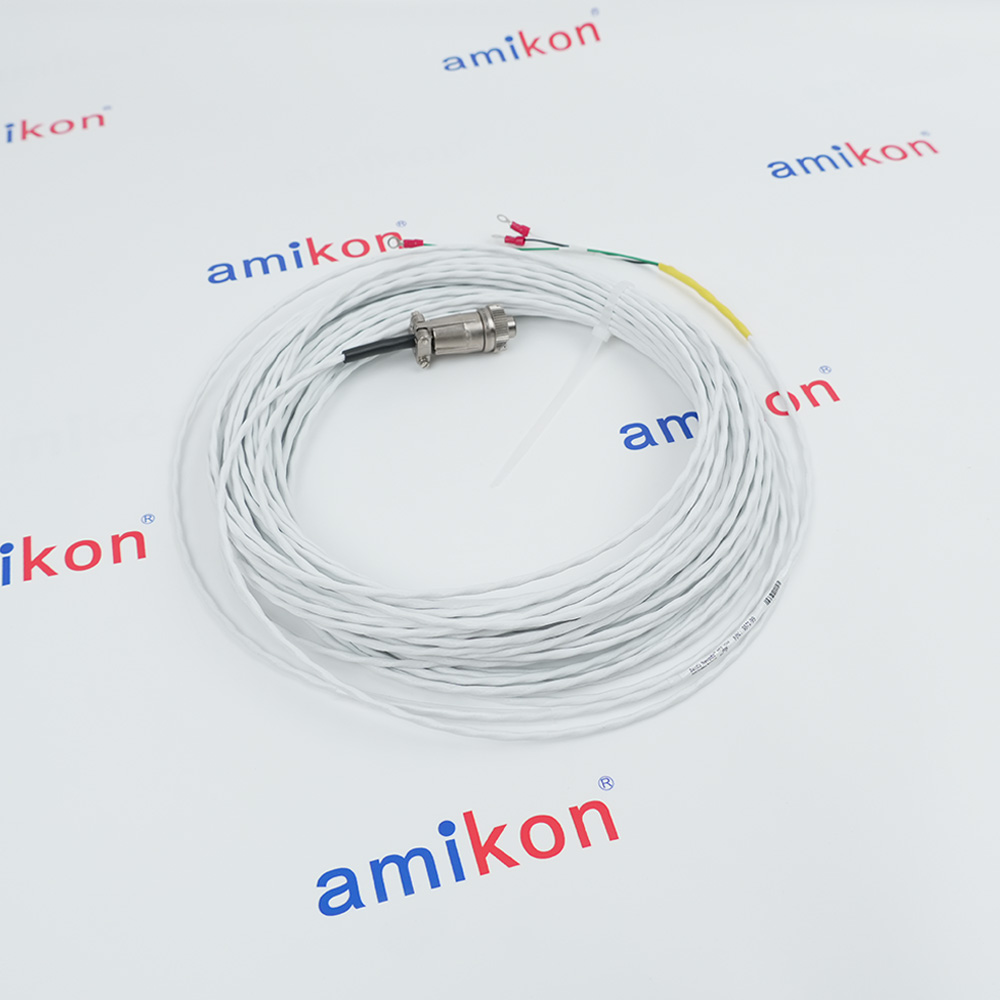

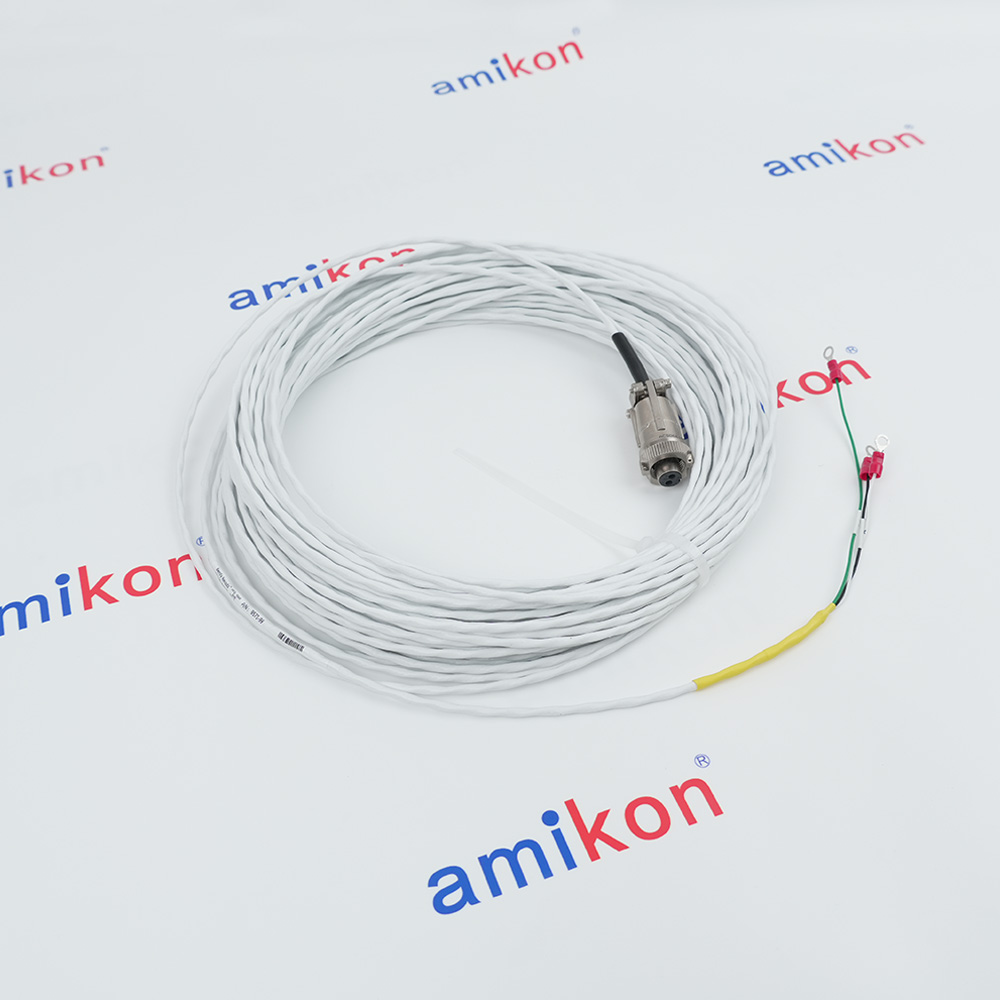

Description
Shielded 0.382 mm2
22AWG cable
with a moistureresistant female connector
atthe transducer end
and ringlugs at the monitor end
Temperature range -29 to121°C (-20 to 250°F)
22AWG cable
with a moistureresistant female connector
atthe transducer end
and ringlugs at the monitor end
Temperature range -29 to121°C (-20 to 250°F)
Information
Overview
Manuals
Technical notes
Product Applications
Pre-Installation Inspection
Features:
- Shielded 0.382 mm2
- 22AWG cable
- with a moistureresistant female connector
- Temperature range -29 to121°C (-20 to 250°F)
The sensor measures absolute vibration within the 0.5Hz to1.0kHz range. Its two-wire design uses moving-coil technologyand embedded signal conditioning circuitry to provide avoltage output directly proportional to the vibration velocity.
Stator core and stator frame vibration can cause fretting anddamage to the winding insulation. To detect these problemsbefore serious damage occurs, mount a 330505 sensor onthe outer diameter of the stator core and frame.
The 9571-99 Bently Nevada Standard Interconnect Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 9571-99 Standard Interconnect Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bearing housing vibration can distort levels of vibrationmeasured by shaft-observing proximity probes. To detectpremature failure of machine components and preventsignificant machine problems, place 330505 sensors inlocations that measure both shaft-relative and bearingabsolute vibration signals. You can mount 330505 sensors tothe bearing housing either as a stand-alone measurementor in the same orientation as existing proximity sensors.The 330505 Transducer connects to the 3500/46M HydroMonitor, meeting the requirements of InternationalOrganization for Standardization (ISO) Standard 10816-5 formechanical vibration on non-rotating parts in hydraulicpower and pumping plants.Due to the nature of high amplitude, low frequency velocityevents, the 330505 Low Frequency Velocity Sensor is notrecommended for automated machinery protection. Due tocapacitance constraints, this sensor is not approved forhazardous areas
- Vibration Monitoring Systems:Connects sensors to 3500 rack or 2300 monitor
- Hydroelectric Turbines:330505 sensor detects absolute vibration in slow-rotating machines
- General Purpose Rotating Machinery:Interfaces 330500 Velomitor for casing vibration on pumps/fans/motorss
- Harsh Industrial Environments:Moisture-resistant connector for oil/gas, power & water plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Visual Check: Inspect the 99-foot cable for cuts, kinks, or insulation damage.
Connector Integrity: Ensure the 2-socket female connector and terminal lugs are clean and free of corrosion.
Compatibility: Confirm the sensor has a 2-pin MIL-C-5015 type plug. Note that this cable is not for use with 21128 velocity transducer housings.
FAQs
-
What is Bently Nevada 9571-99?+The Bently Nevada 9571-99 is a standard 99-foot interconnect cable designed for Velomitor piezoelectric velocity sensors, for harsh industrial vibration monitoring
-
What is the 9571-99 cable used for?+It is used as a standard interconnection cable between Bently Nevada Velomitor vibration sensors and monitoring systems.
-
What is the length of the 9571-99?+The "-99" suffix denotes a length of 99 feet.
-
Which sensors is this cable compatible with?+It is standard for the Bently Nevada 330500 Velomitor Piezo-velocity Sensor, which is used for monitoring rotating equipment in industries like oil and gas, power generation, and mining.
-
Is this cable suitable for hazardous areas?+The sensors it connects to (like the 330500) often carry certifications for Zone 0/1, but you should verify the specific agency approval options for your complete assembly.
