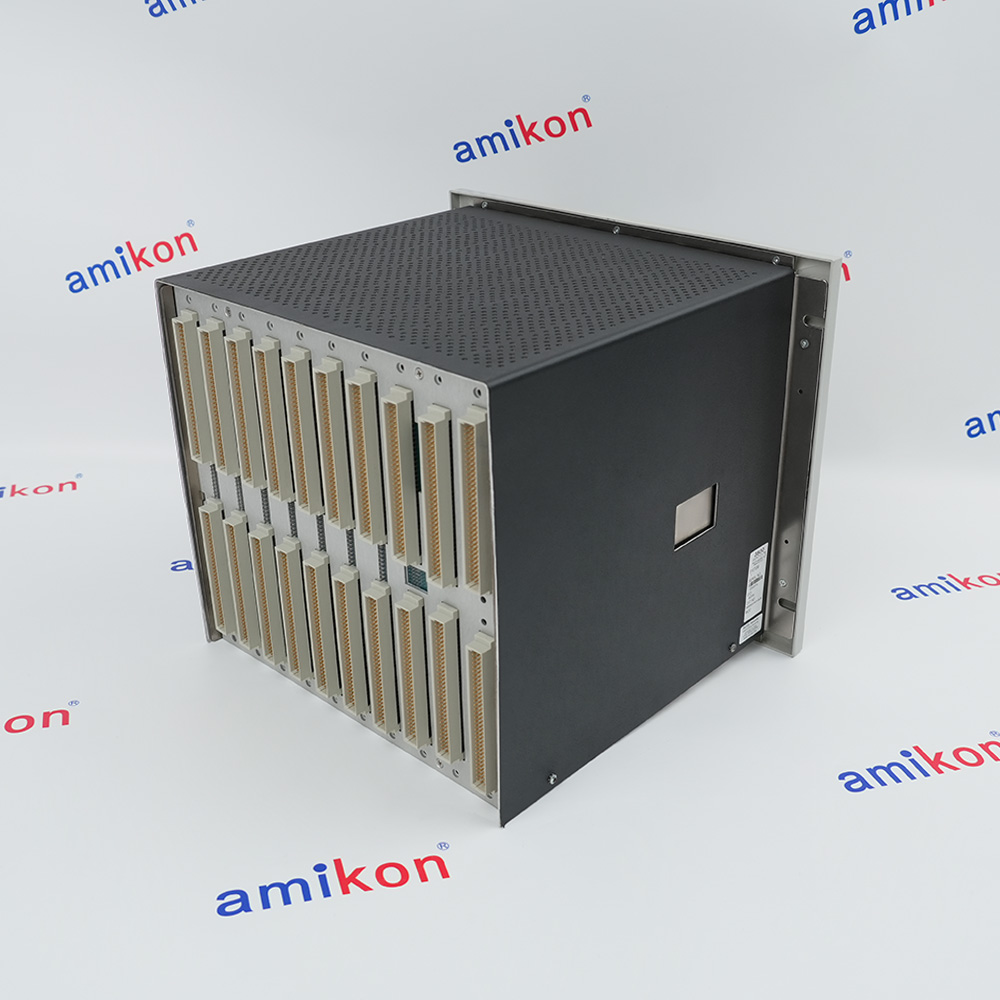

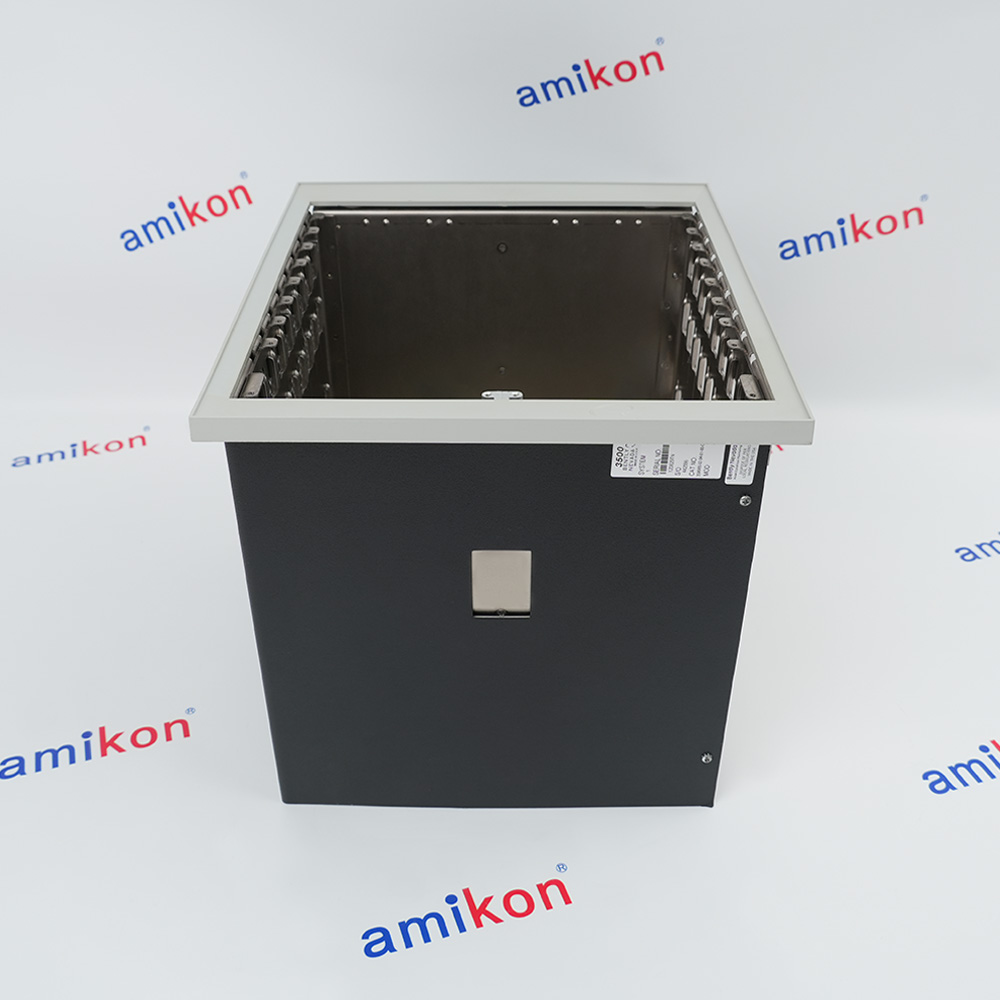

3500/05-02-04-01-00-00
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
02 12-inch Mini-Rack (7 module slots)
04 Panel Mount Option, Mini-Rack
01 CSA/NRTL/C (Class 1, Division 2)
00 None
12-inch rack with seven available module slots
04 Panel Mount Option, Mini-Rack
01 CSA/NRTL/C (Class 1, Division 2)
00 None
12-inch rack with seven available module slots
Technical specifications for 3500/05-02-04-01-00-00
-
Product Model3500/05-02-04-01-00-00
-
Product ParametersMini-Rack
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size26.5x30.4x26.4cm
-
ManufacturerBently Nevada
-
Weight5 kg
-
Rack Size12-inch Mini-Rack (7 module slots)
-
Mounting OptionsPanel Mount Option, Mini-Rack
-
Agency Approval OptionCSA/NRTL/C
-
ReservedNone
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 3500/05-02-04-01-00-00？+The Bently Nevada 3500/05-02-04-01-00-00 is a 12-inch "Mini-Rack" component of the 3500 machinery protection system, designed for panel mounting with CSA-C-US approval.
-
How many modules can the 3500/05-02-04-01-00-00 hold?+It can hold up to 7 modules, including the required Power Supply and Transient Data Interface (TDI) module.
-
Does this rack come with power supplies?+No, a 3500/15 Power Supply module must be purchased separately.
-
What is the difference between this and a full-size rack?+The Mini-Rack (02) is 12 inches (7 slots). The full-size rack is 19 inches, offering 14 slots.
Get a quick price fo 3500/05-02-04-01-00-00
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation Steps
Features:
- 12-inch rack with seven available module slots.
- Panel Mount Format with Rear Wiring Access
- Integrated Backplane Communication & Power Distribution
- CSA/NRTL/C Class I, Division 2 Hazardous Area Approval
- Dedicated Power Supply & Rack Interface Module Positions
The 3500/05-02-04-01-00-00 Bently Nevada 12-inch Mini-Rack may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/05-02-04-01-00-00 12-inch Mini-Rack Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The rack architecture follows a fixed slot discipline: the far-left positions are reserved exclusively for the 3500/15 Power Supply Module(s) and the 3500/22M Rack Interface Module (RIM) or 3500/22 Rack Interface Data Manager (RIDM). These reserved positions ensure proper power sequencing, stable backplane voltage regulation, and reliable communication gateway functionality. The remaining 7 module slots are fully flexible and can accommodate any combination of 3500 monitor modules, 3500/32 or 3500/34 Relay Modules, 3500/93 or 3500/94 Display Modules, 3500/92 Communication Gateway Modules, and 3500/25 Keyphasor Modules, allowing users to tailor the system precisely to their machinery monitoring requirements
- Upstream Production Platforms:Protects offshore/FPSO pumps, compressors & turbines
- Refineries:Monitors FCCU/H2 compressors & crude pumps to prevent leaks
- LNG Liquefaction & Regasification Plants:Safeguards refrigeration/methane compressors & cryo expanders
- Pipeline Pumping & Compressor Stations:Manages remote unmanned booster stations for oil/gas transmission
- Thermal & Combined Cycle Power Plants:Protects turbines, generators, boiler pumps & draft fans
- Hydroelectric Dams:Tracks low-speed alignment, air gap & thrust for hydro-turbines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Select Enclosure: Use an industrial enclosure providing a minimum environmental protection rating of IP54 or NEMA 4 if deploying the rack into a harsh factory or refinery environment.Ensure Orientation: Mount the rack strictly horizontally. Vertical or inverted mounting formats impair convective airflow and void the manufacturer's thermal specification limits.Provide Thermal Clearance: Maintain a minimum structural gap of 50 mm (2.0 inches) above and below the rack assembly to allow unobstructed airflow through the integrated cooling vents.
