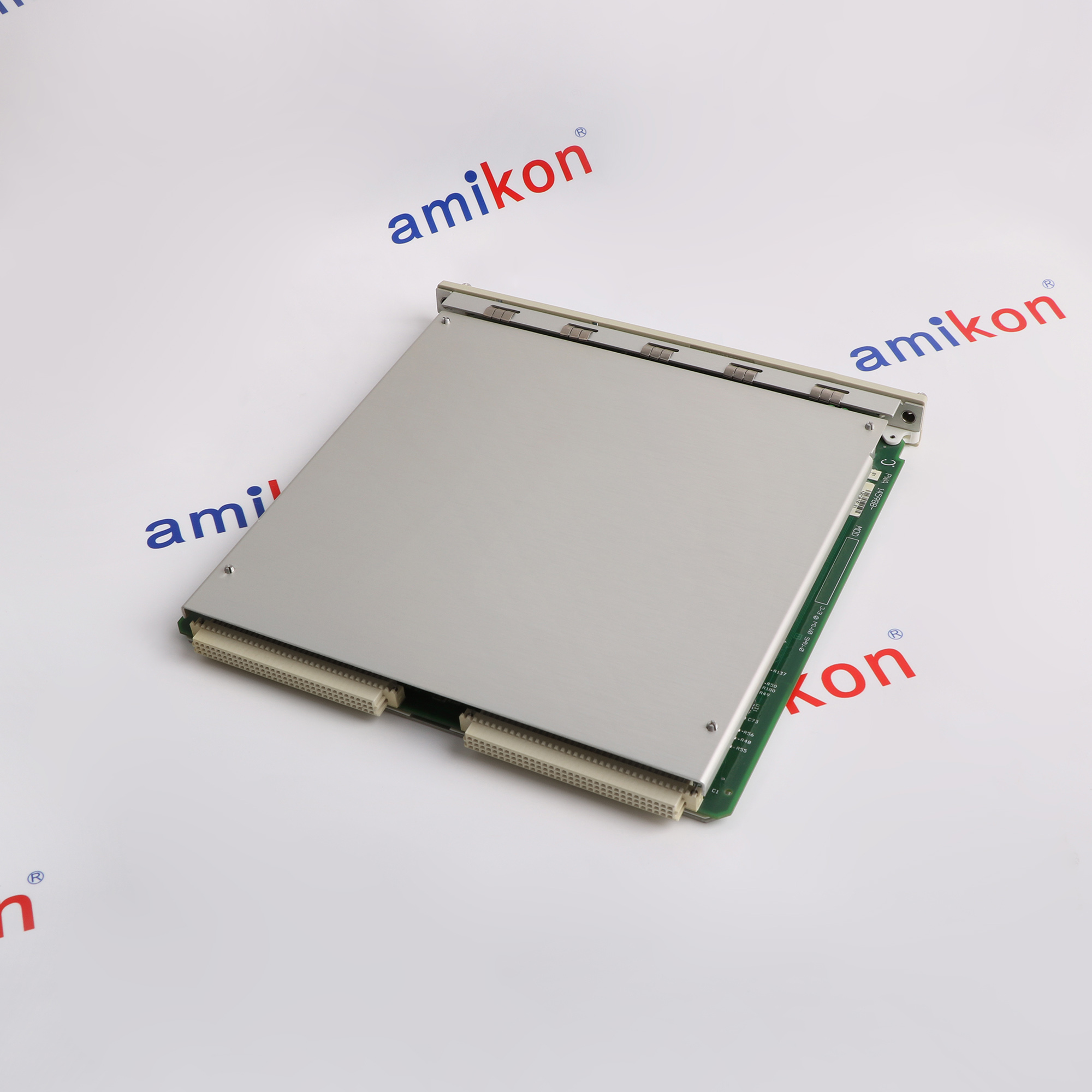

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
VGA display main module
Bently Nevada 3500/94 145988-01 is a VGA display main module. It presents machinery-protection rack data through an approved touchscreen. Operators can review events, module and channel values, and configured views. The main module, rear I/O card and separately powered screen have different roles and must form a compatible arrangement.
The manufacturer lists the supplied spare number as the main module, separately from rear I/O module 147663-01 and the external screen. Verify the installed firmware and display selection. The spare identity alone does not include every component of a complete operator display.
The manufacturer lists the supplied spare number as the main module, separately from rear I/O module 147663-01 and the external screen. Verify the installed firmware and display selection. The spare identity alone does not include every component of a complete operator display.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500 VGA display system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · OPERATOR VIEW
Reviewing machinery-monitoring events
The complete 3500/94 display arrangement presents system and alarm event lists from the protection rack. The main module supports presentation of the selected rack information. -
02 · MACHINE GROUPS
Organizing selected measurement displays
Operators can configure views for measurements such as 1X or Gap, or arrange them by machine train. This is presentation of existing monitor data, not a new measurement function added by the display. -
03 · MULTIPLE RACKS
Switching one screen between monitoring racks
The optional Display Router Box permits a screen to switch between up to four racks, with each rack individually viewed. Every connected rack still requires its own display module and rear I/O card.
Technical specifications for 3500/94 145988-01
-
Product Model3500/94 145988-01
-
Spare Model3500/94
-
Product ParametersVGA display main module
-
In stock8 units
-
ManufacturerBently Nevada
-
Maximum display-unit consumption4.6 W; not the separate screen power
-
Rack data inputHigh-speed network carrying module status and values
-
Local custom screensNine configurable screens
-
Event presentationSystem and alarm event lists
-
Rack display style3300-style bargraph and numerical module view
-
Configuration interface3500 Rack Configuration Software for language and display type
-
OK indicatorModule operation status
-
TX/RX indicatorCommunication with other system modules
-
Display-unit operating range-30 to +65 deg C
-
Display-unit storage range-40 to +85 deg C
-
Humidity limit95%, noncondensing
-
Front module placementOne full-height front slot
-
Required rear I/O module147663-01
-
Multiple-rack viewingOptional router supports four racks, one viewed at a time
-
Screen power requirementSeparate power supply for the chosen display
View all additional
Alternative Names
3500/94 145988 01
3500/94 145988-01 VGA display main module
Bently Nevada 3500/94 145988-01
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
VGA DISPLAY MAIN MODULE
Integrating 3500/94 145988-01
It presents machinery-protection rack data through an approved touchscreen. Operators can review events, module and channel values, and configured views. The main module, rear I/O card and separately powered screen have different roles and must form a compatible arrangement.
Use only a manufacturer-approved display type and configure its touch controller in the rack software. The historical guide requires 3500/94 firmware Rev P or later and minimum software revisions for the stated configuration; this is not evidence of the firmware delivered with this item.
Match the front module to its rear I/O card and route the VGA and serial touch connections correctly. The screen requires separate power, and outdoor displays require a sun hood. The optional KVM extender is for indoor, nonhazardous use and may degrade image quality.
Features:
- Match complete order, installed input and output configuration, wiring and installation instructions
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/94 145988-01 VGA display main module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/94 145988-01 requires comparing complete order, installed input and output configuration, wiring and installation instructions. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
Use only a manufacturer-approved display type and configure its touch controller in the rack software. The historical guide requires 3500/94 firmware Rev P or later and minimum software revisions for the stated configuration; this is not evidence of the firmware delivered with this item.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/94 145988-01 VGA display main module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/94 145988-01 VGA display main module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.5x25x24cm
-
Shipping weight0.74 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS referenceClassification unconfirmed
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/94 145988-01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3500/94 145988-01 identified?
The manufacturer lists the supplied spare number as the main module, separately from rear I/O module 147663-01 and the external screen. Verify the installed firmware and display selection. The spare identity alone does not include every component of a complete operator display. -
What is the function of this component?
It presents machinery-protection rack data through an approved touchscreen. Operators can review events, module and channel values, and configured views. The main module, rear I/O card and separately powered screen have different roles and must form a compatible arrangement. -
Which equipment and settings must match?
Use only a manufacturer-approved display type and configure its touch controller in the rack software. The historical guide requires 3500/94 firmware Rev P or later and minimum software revisions for the stated configuration; this is not evidence of the firmware delivered with this item. -
What application does it support?
The complete 3500/94 display arrangement presents system and alarm event lists from the protection rack. The main module supports presentation of the selected rack information. -
What should be checked during installation?
Match the front module to its rear I/O card and route the VGA and serial touch connections correctly. The screen requires separate power, and outdoor displays require a sun hood. The optional KVM extender is for indoor, nonhazardous use and may degrade image quality. -
Can any VGA monitor be substituted because the plug fits?
No. The guide restricts correct interfacing to its approved display types because touch controllers differ. The software display-type setting and mounting arrangement must also match; Parker and Advantech EIA mounts are not interchangeable. -
Does this require the same power as the external screen?
No. The guide lists 4.6 W for the display unit, while the external screen requires a separate power supply and its own rating. Neither screen consumption nor dimensions should be assigned to a spare main or I/O card.
