In Stock
Ships by Friday, June 26
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 172103-01
-
Product Model172103-01
-
Product ParametersRTD/Isolated Tip TC I/O Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.4x11.8x24.1cm
-
ManufacturerBently Nevada
-
Weight0.45 kg
-
Rack Space Requirements1 full-height rear slot
-
Number of Channels16 channels of temperature monitoring
-
RTD Types3-wire RTD and 4-wire RTD
-
Operating Temperature-30°C to +65°C (-22°F to +150°F)
-
Storage Temperature-40°C to +85°C (-40°F to +185°F)
Description

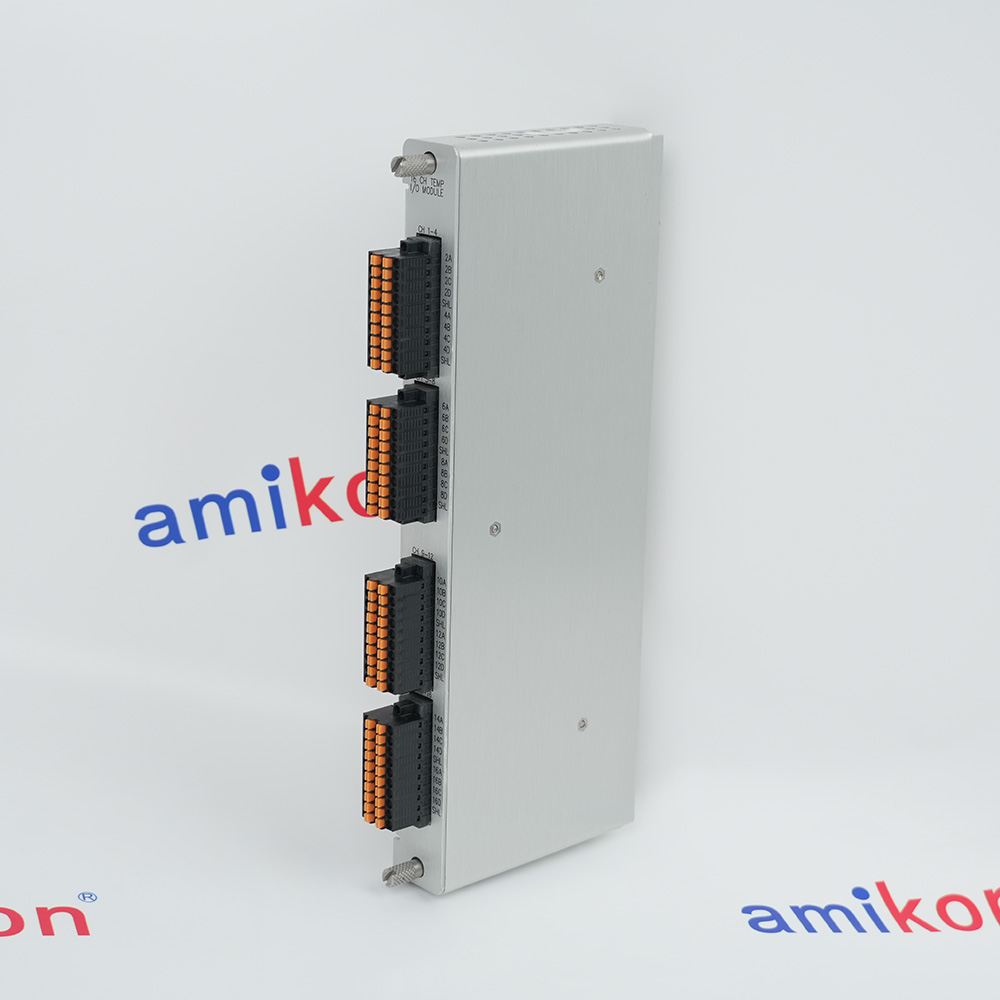

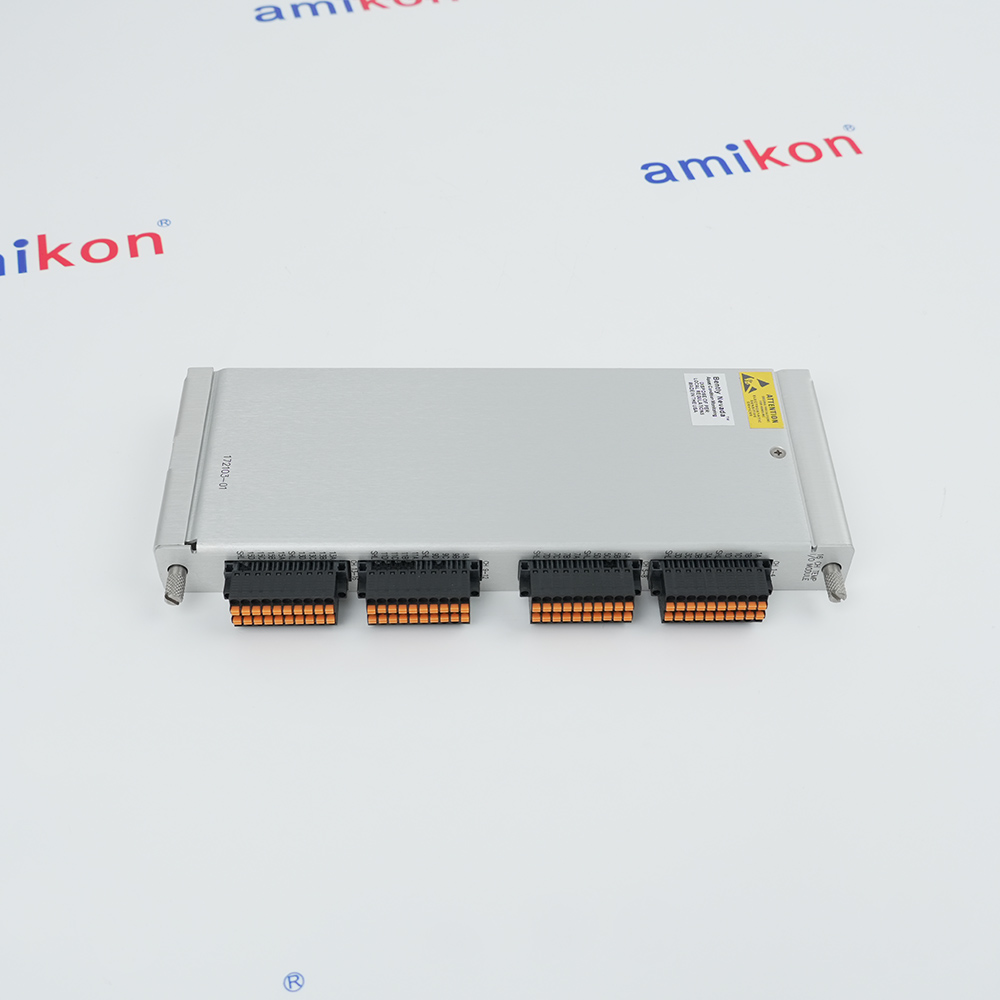

The Bently Nevada 172103-01 is a 16-channel RTD and isolated tip thermocouple I/O module for the 3500/65 Temperature Monitor in the 3500 Series Machinery Protection System. It provides the physical interface between temperature sensors and the 3500/65 monitor module, supporting both resistance temperature detectors (RTD) and isolated tip thermocouples.
The module accepts Pt100 RTD inputs in 3-wire and 4-wire configurations with a measurement range from −200°C to +850°C. For thermocouple inputs, it supports types J, K, T, E, R, S, B, and N with isolated tip (floating) configuration to prevent ground loops. Automatic cold junction compensation is provided internally.
Input signals are converted via a 16-bit ADC with an accuracy of ±0.1% of reading or ±0.5°C, whichever is greater. The module features internal terminations via barrier-type terminal blocks on the front panel, eliminating the need for external termination panels.
The module accepts Pt100 RTD inputs in 3-wire and 4-wire configurations with a measurement range from −200°C to +850°C. For thermocouple inputs, it supports types J, K, T, E, R, S, B, and N with isolated tip (floating) configuration to prevent ground loops. Automatic cold junction compensation is provided internally.
Input signals are converted via a 16-bit ADC with an accuracy of ±0.1% of reading or ±0.5°C, whichever is greater. The module features internal terminations via barrier-type terminal blocks on the front panel, eliminating the need for external termination panels.
Alternative Names
172103 01
172103-o1
172103-0I
1721O3-01
172I03-01
I72103-01
I72I03-0I
1721O3-O1
172103/01
Information
Overview
Manuals
Application Notes
Product Applications
Field Wiring (Internal Terminations)
Features:
- Provides 16 Channels of Temperature Monitoring
- Accepts Both RTD and TC Temperature Inputs
- Configurable to Accept Isolated Tip Thermocouples, 3-Wire RTD, 4-Wire RTD, or a Combination of TC and RTD Inputs
- TN Transmissive Display Technology
- Single CCFL Edge-Lit Backlight
- Generous Effective Display Area
The 172103-01 Bently Nevada 16 Channel Temp I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 172103-01 16 Channel Temp I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 172103-01 is an RTD / Isolated Tip Thermocouple I/O Module with Internal Terminations used in the 3500/65 Temperature Monitoring System. It provides the field wiring interface for temperature measurement applications and supports up to 16 channels of RTD and isolated-tip thermocouple inputs.
Working in conjunction with the 3500/65 Temperature Monitor (145988-02), the module conditions incoming temperature signals and enables continuous monitoring of bearings, winding temperatures, lubrication systems, turbine components, compressors, generators, and other critical machinery assets
- Turbines: Steam, gas, and hydroelectric turbines, including aeroderivative models
- Compressors: Centrifugal, axial, and reciprocating process gas compressors
- Motors and Generators: Large industrial motors and power generation units
- Pumps: Critical high-pressure or high-flow pumps used in refineries and water treatment
- Expanders: Power recovery expanders and other specialized turbo-machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Sensor Leads: The module supports 3-wire RTDs, 4-wire RTDs (with modification 179952-01), and isolated tip thermocouples.Shielding: Use 16 to 22 AWG twisted shielded pair or triad cabling. Shields must be connected to the instrument earth at the barrier ground.Restrictions: Internal termination modules cannot be used with external termination blocks or cables.
Technical notes
The 172103-01 operates in ambient temperatures from -20°C to +65°C (-4°F to +149°F) and complies with FCC Rules Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, and RoHS Directive 2011/65/EU. The 172103-01 is certified for hazardous areas including CSA/NRTL/C Class I, Zone 2, and ATEX/IECEx II 3G Ex nA nC ic IIC T4 Gc. The 172103-01 holds marine certifications from ABS and DNV GL for marine and offshore applications.
FAQs
-
What is 172103-01?
+The Bently Nevada 172103-01 is an RTD/Isolated Tip Thermocouple (TC) I/O Module with internal terminations. -
What is the function of this module?
+It provides the physical I/O connectivity and internal terminations for the 3500/65 16-channel Temperature Monitor. It conditions raw sensor signals and forwards them to the monitor to check against alarm thresholds. -
What sensors are compatible with this I/O module?
+It supports isolated tip thermocouples, 3-wire RTDs, 4-wire RTDs, or any combination of these two sensor types. -
Does this module require an external termination block?
+No. The 172103-01 is specifically designed with internal terminations. Bently Nevada also manufactures an external version (Part #172109-01) which utilizes an External Termination Block (ETB).
