PRODUCT DESCRIPTION
Rack power supply module

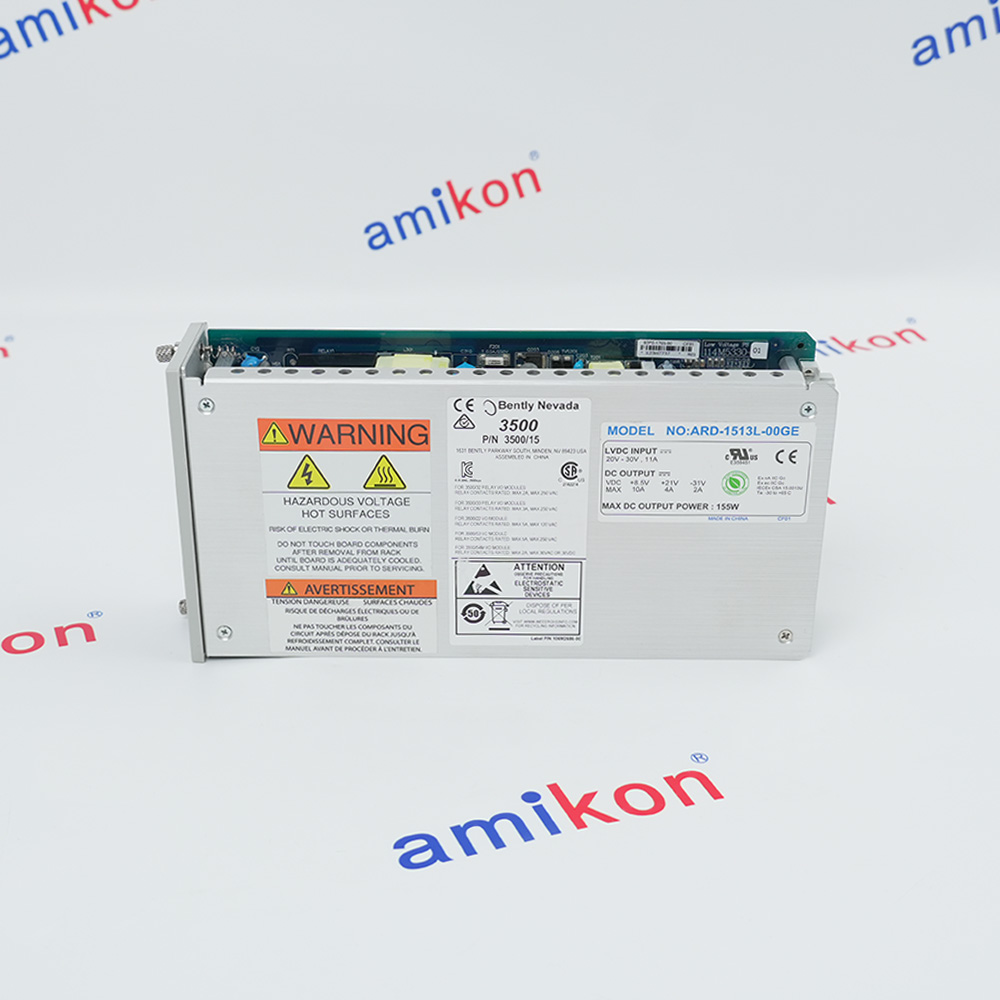

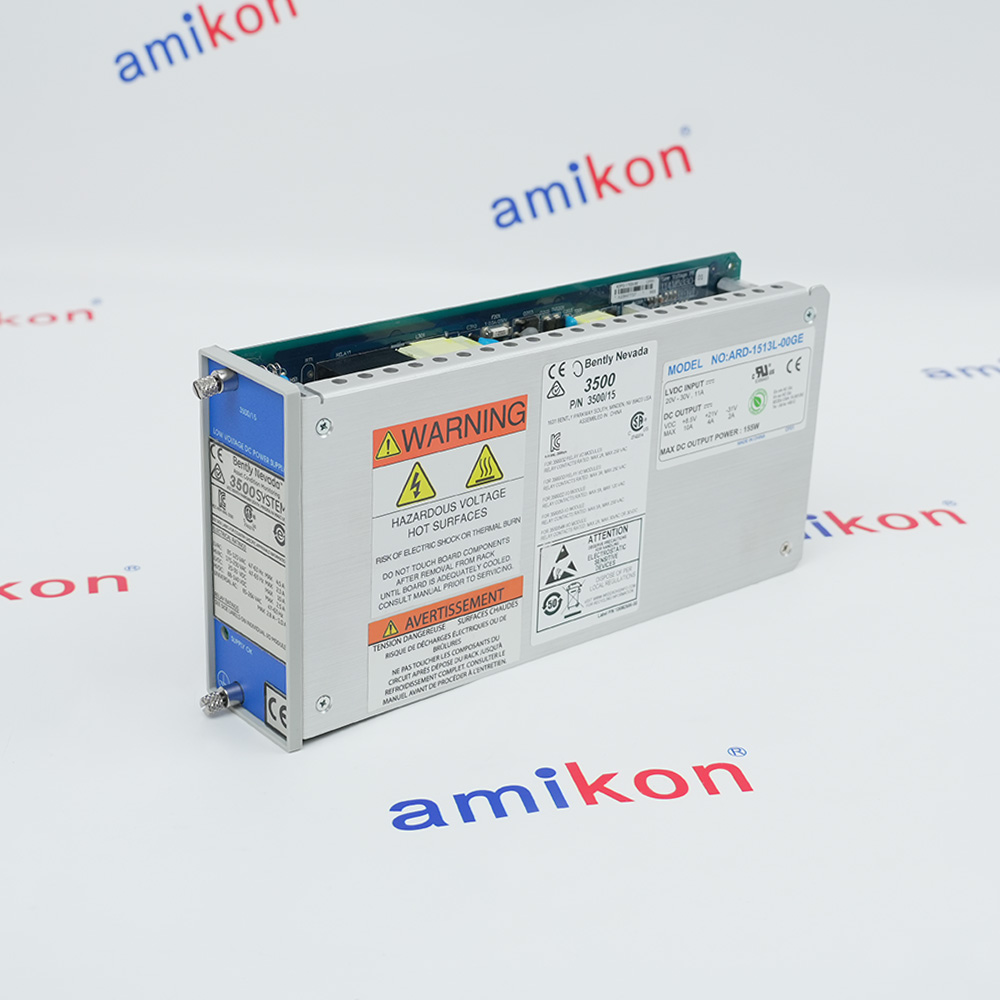

Bently Nevada 3500/15 114M5330-01 is a rack power supply. The supply converts its specified input into voltages used by the 3500 rack modules. One supply can power a full rack, while a second provides an optional backup. The matching power input module remains a separately identified part of the installation.
The manufacturer spare-parts table identifies 114M5330-01 as the Low Voltage DC supply. Match it with 114M5335-01 and verify the complete installed generation. A similar enclosure or shared 3500/15 designation does not establish electrical interchangeability.
The manufacturer spare-parts table identifies 114M5330-01 as the Low Voltage DC supply. Match it with 114M5335-01 and verify the complete installed generation. A similar enclosure or shared 3500/15 designation does not establish electrical interchangeability.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500 machinery monitoring system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · RACK POWER
Power for machinery monitoring
The documented supply/PIM pair feeds the 3500 rack that supports machinery monitoring modules. This component does not itself measure vibration or evaluate alarm setpoints. -
02 · REDUNDANT INSTALLATIONS
Optional backup power path
Two compatible supplies may occupy the dedicated positions. The lower unit is primary and the upper unit is backup; input and generation compatibility still apply to each pair. -
03 · RACK MAINTENANCE
Generation-matched power replacement
The manufacturer distinguishes legacy and newer supply/PIM combinations. Maintenance selection must retain the correct pair or replace both parts in the documented upgrade.
Technical specifications for 3500/15 114M5330-01
-
Product Model3500/15 114M5330-01
-
Spare Model3500/15
-
Product ParametersRack power supply module
-
In stock5 units
-
ManufacturerBently Nevada
-
Documented assemblyLow Voltage DC power supply
-
Required mating assembly114M5335-01
-
Rack installationDedicated left-side power position of a 3500 rack
-
Module formatHalf-height
-
Rack supply capacityOne supply can power a full rack
-
Optional redundancyOne or two AC/DC supplies
-
Primary positionLower slot when two supplies are fitted
-
Backup positionUpper slot when two supplies are fitted
-
Status indicationFront Supply OK LED
-
Minimum rack loadingNo minimum load requirement
-
Operating temperature-30 to +65 deg C
-
Storage temperature-40 to +85 deg C
-
Relative humidity95%, noncondensing
-
Input operating range20-30 Vdc
-
Maximum input current11 A
View all additional
Alternative Names
3500/15 114M5330-01 rack power supply
Bently Nevada 3500/15 114M5330-01
3500/15 114M5330 01 rack power supply
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
RACK POWER SUPPLY MODULE
Integrating 3500/15 114M5330-01
The supply converts its specified input into voltages used by the 3500 rack modules. One supply can power a full rack, while a second provides an optional backup. The matching power input module remains a separately identified part of the installation.
Use the documented 114M5330-01 and 114M5335-01 pairing. The manufacturer does not permit mixing legacy and newer DC supply/PIM generations. A legacy AC upgrade to Universal AC also requires replacement of both the supply and its PIM.
Install in the dedicated rack power positions using the matching input module and applicable installation manual. Supply insertion or removal without interrupting the rack depends on a second functioning supply; do not interpret that feature as permission to service live power-entry wiring.
Features:
- Match complete spare-part identity, module generation, rack position and mating input/output assembly
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/15 114M5330-01 rack power supply requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/15 114M5330-01 requires comparing complete spare-part identity, module generation, rack position and mating input/output assembly. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
Use the documented 114M5330-01 and 114M5335-01 pairing. The manufacturer does not permit mixing legacy and newer DC supply/PIM generations. A legacy AC upgrade to Universal AC also requires replacement of both the supply and its PIM.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/15 114M5330-01 rack power supply requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/15 114M5330-01 rack power supply must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size5x25x12cm
-
Shipping weight1.25 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8504401990
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/15 114M5330-01
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is the exact replacement identified?
The manufacturer spare-parts table identifies 114M5330-01 as the Low Voltage DC supply. Match it with 114M5335-01 and verify the complete installed generation. A similar enclosure or shared 3500/15 designation does not establish electrical interchangeability. -
What is the function of this component?
The supply converts its specified input into voltages used by the 3500 rack modules. One supply can power a full rack, while a second provides an optional backup. The matching power input module remains a separately identified part of the installation. -
Which installed components must be compatible?
Use the documented 114M5330-01 and 114M5335-01 pairing. The manufacturer does not permit mixing legacy and newer DC supply/PIM generations. A legacy AC upgrade to Universal AC also requires replacement of both the supply and its PIM. -
Where is this component used?
The documented supply/PIM pair feeds the 3500 rack that supports machinery monitoring modules. This component does not itself measure vibration or evaluate alarm setpoints. -
What must be checked during installation?
Install in the dedicated rack power positions using the matching input module and applicable installation manual. Supply insertion or removal without interrupting the rack depends on a second functioning supply; do not interpret that feature as permission to service live power-entry wiring. -
Does the rack power supply require a minimum load?
No. The official power-supply specification states that there is no minimum rack-load requirement. This does not remove the need to select the correct input voltage, supply generation and matching power input module. -
Does removing either supply always keep the rack running?
No. Continued rack operation during supply removal requires two installed supplies with the other supply functioning correctly. Follow the manufacturer procedure and site electrical-safety requirements.
