- 3500/32M 149986-02

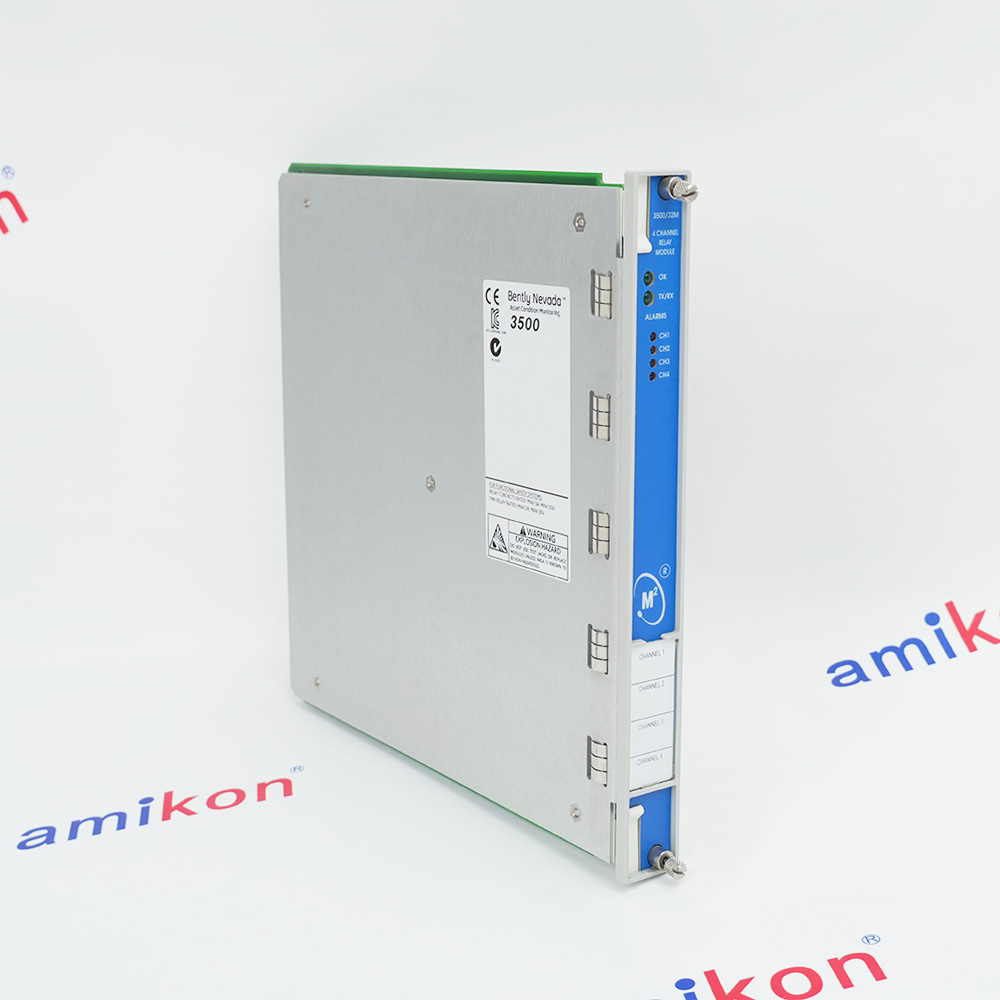

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3500/32M 149986-02
-
Product Model3500/32M 149986-02
-
Spare Model149986-02
-
Product Parameters4-Channel Relay Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.5x25.5x24cm
-
ManufacturerBently Nevada
-
Weight0.75 kg
-
Power Consumption5.8 Watts typical
-
TypeSingle-pole, double-throw(SPDT) relays
-
Environmental SealingEpoxy-sealed
-
Arc Suppressor250 Vrms, installed asstandard
-
Contact Life100,000 cycles @ 5 A, 24 Vdcor 240 Vac
-
Maximum switched voltage250 Vac
-
Maximum switched current2 A
-
Operating Temperature-30°C to +65°C(-22°F to +150°F)
-
Storage Temperature-40°C to +85°C(-40°F to +185°F)
Description
50032
RELAY MODULE
4 CHANNEL
ASSET CONDITION MONITORING
3500/32M
250 VAC / 30 VDC MAX SWITCHED
6 W
RELAY MODULE
4 CHANNEL
ASSET CONDITION MONITORING
3500/32M
250 VAC / 30 VDC MAX SWITCHED
6 W
Information
Overview
Manuals
Technical notes
Product Applications
Field Wiring & Safety
Features:
- Full-Height Module
- Provides Four Relay Outputs
- Each Output can be Independently Programmed
- Includes "Alarm Drive Logic"
This 4-channel relay module is a full-height module providing four relay outputs. Any number of four-channel relay modules can be installed in any slot on the right side of the Transient Data Interface module. Each output of the four-channel relay module can be independently programmed to execute voting logic.
The 3500/32M 149986-02 Bently Nevada Four-Channel Relay Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/32M 149986-02 Four-Channel Relay Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Each relay used on the four-channel relay module includes alarm-driven logic. The alarm driver logic is programmed using AND and OR gates and can utilize alarm inputs (alarms and hazards), abnormal states, or a single PPL from any monitoring channel or combination of monitoring channels in the rack. You can program the alarm driver to suit your application requirements using Bently Nevada™ 3500 rack configuration software.
- Electric power industry: Steam turbine generators, gas turbines and large water pumps.
- Petroleum and natural gas: Centrifugal/ reciprocating compressors, turbine-driven pumps and power systems for offshore platforms.
- Petrochemicals: Ethylene cracking gas compressors, ammonia compressors in fertilizer plants.
- Steel and metallurgy: Blast furnace blowers, large-scale sintering blowers and main motors of rolling mills.
- Shipping and maritime: Main propellers of large ships and monitoring systems for auxiliary power generation units.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Shock Hazard: Use caution when connecting high-voltage field wiring to the relay contacts. Ensure no conductors are exposed to potential human contact.
Voltage Limits: If used in Functional Safety (SIL) or hazardous area systems, the switched voltage must be restricted (typically to 30 Vdc/Vac) to maintain certification.
Contact Capacity: Verify that the external actuator's load does not exceed the relay's contact rating (typically 2 A for standard resistive loads).
FAQs
-
What is 3500/32M 149986-02?
+The Bently Nevada 3500/32M (part number 149986-02) is a 4-channel, full-height relay module for the 3500 Monitoring System. -
What is the function of the 3500/32M 149986-02 module?
+It is a spare control module that provides four programmable relay outputs used to trigger alarms or machinery shutdowns based on monitor channel statuses. -
Where can this module be installed in the 3500 rack?
+It can be placed in any available slot to the right of the 3500/22 Transient Data Interface (TDI) module -
Does the 3500/32M 149986-02 support voting logic?
+Yes. Each relay output can be independently programmed to execute voting logic (e.g., two out of three) to determine whether the machine should trip. -
What is the difference between 149986-01 and 149986-02?
+The 149986-02 is specifically listed as the Spare 4-Channel Relay Control Module for the 3500/32M. The "-02" designation often refers to modules with specific agency approvals (like ATEX/IECEx for Zone 2 hazardous areas).
