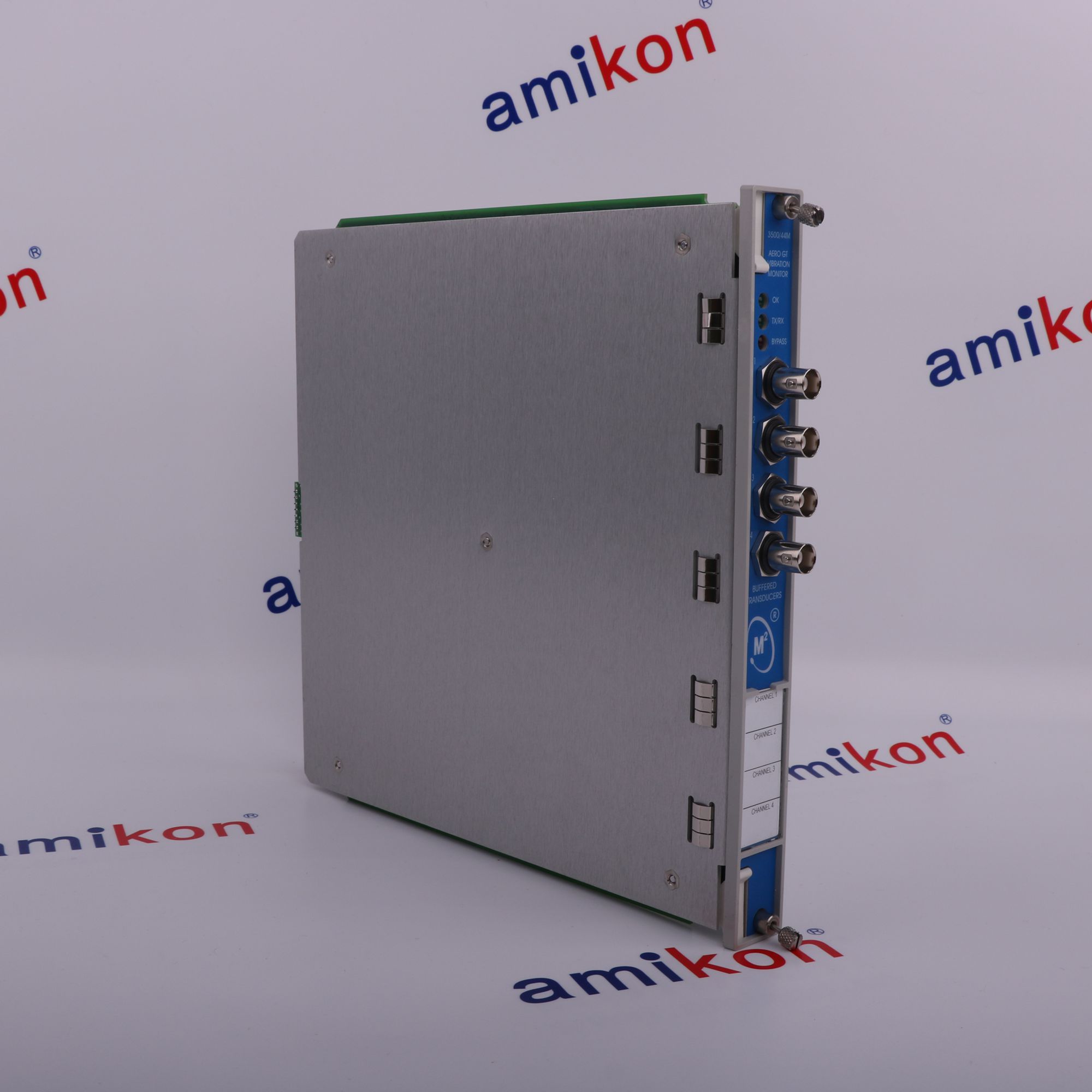

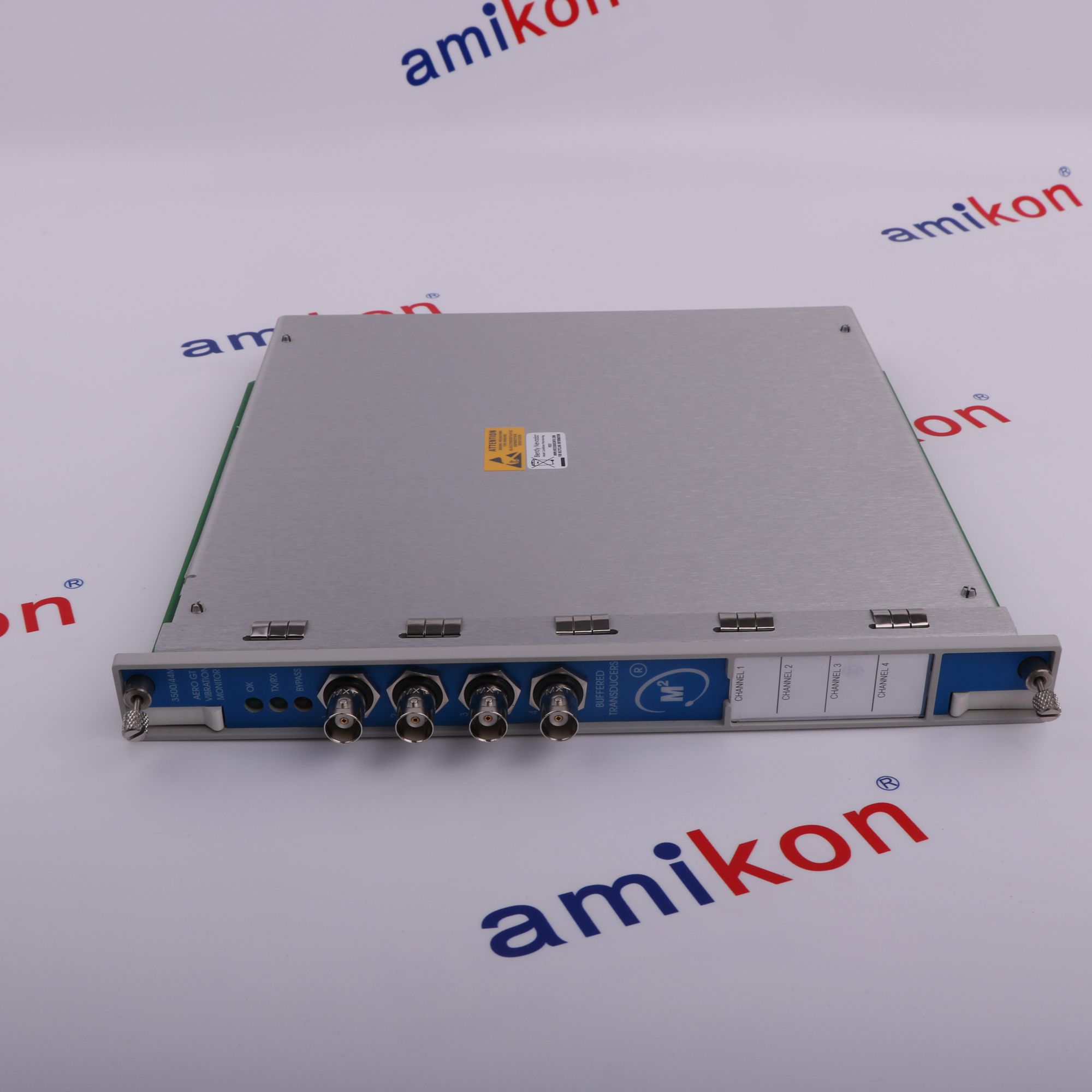

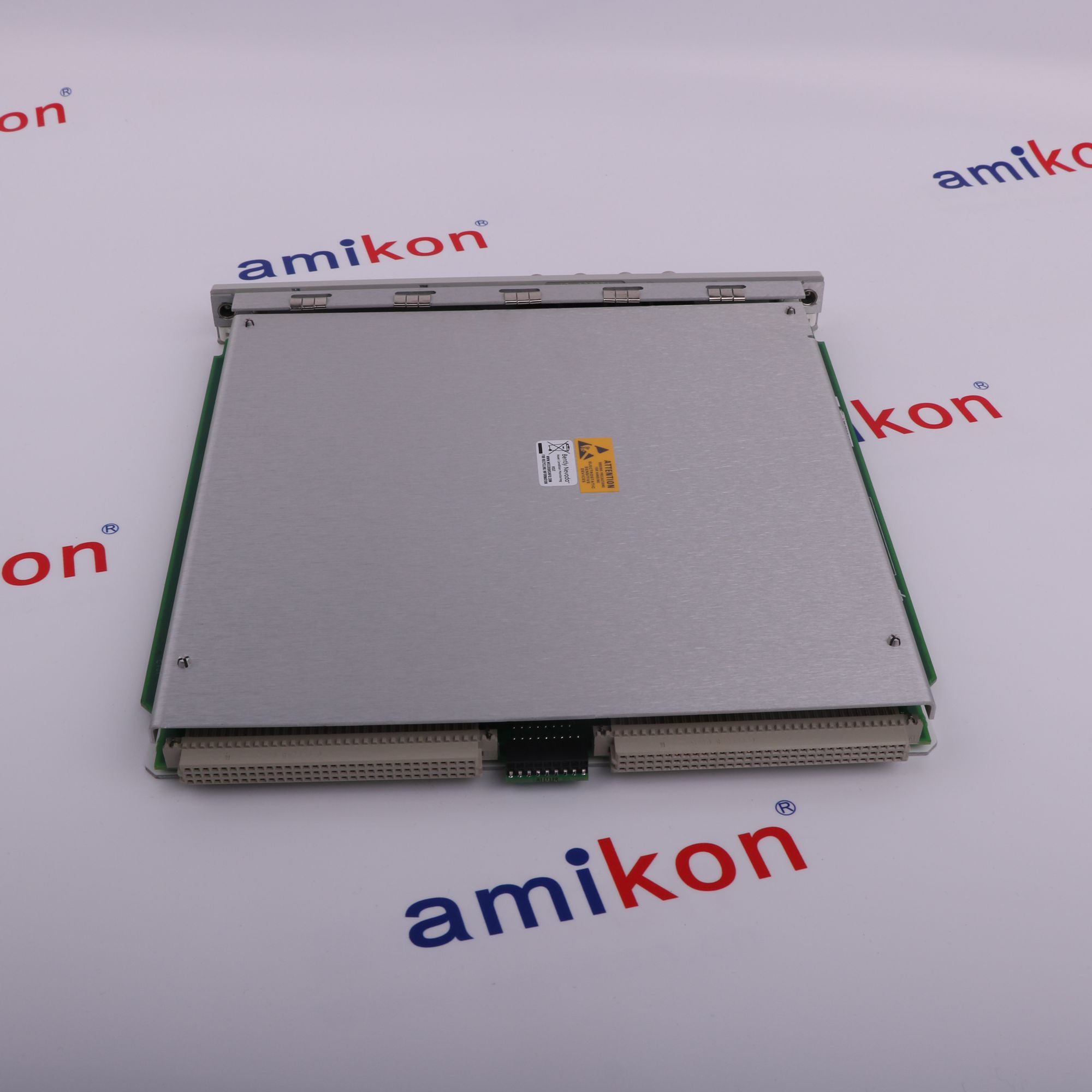

- 3500/44M 176449-03
In Stock
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
Aeroderivative turbine vibration monitor
Bently Nevada 3500/44M 176449-03 is a aeroderivative vibration monitor. The monitor evaluates vibration signals for aeroderivative gas turbines. Configured tracking and bandpass functions compare measurements with programmed alarm limits. Two Keyphasor references support separate channel-pair tracking, while multimode hardware and software can select alarm settings for different operating conditions.
The official spare table identifies 176449-03 as the 3500/44M Aeroderivative GT Vibration Monitor. Match the rear I/O, sensor system and selected measurement. The bare front-module identity does not confirm a supplied multimode I/O or delivered firmware revision.
The official spare table identifies 176449-03 as the 3500/44M Aeroderivative GT Vibration Monitor. Match the rear I/O, sensor system and selected measurement. The bare front-module identity does not confirm a supplied multimode I/O or delivered firmware revision.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500/44M aeroderivative gas turbine monitoring system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · AERODERIVATIVE TURBINES
Continuous turbine vibration monitoring
The manufacturer designs this family for aeroderivative gas turbine applications. The chosen I/O connects compatible transducers or documented interface modules to the configured vibration channels. -
02 · TRACKING FILTERS
Speed-related vibration measurements
Separate Keyphasor signals allow channel pairs to use different tracking references. Correct speed input and filter setup are essential to meaningful speed-related measurements. -
03 · MULTIMODE OPERATION
Alarms appropriate to machine state
Supported multimode I/O and configuration can select different alarm sets as operating modes change. A standard interface should not be assumed to provide those contact inputs.
Technical specifications for 3500/44M 176449-03
-
Product Model3500/44M 176449-03
-
Spare Model176449-03
-
Product ParametersAeroderivative turbine vibration monitor
-
In stock3 units
-
ManufacturerBently Nevada
-
Monitoring channelsFour
-
Typical power consumption7.7 W
-
Supported measurementsAeroderivative vibration, integration, 1X tracking and bandpass
-
Mode-specific alarm setsUp to eight with supported multimode arrangement
-
Prox/Accel input impedance10 kohm with Prox/Velom I/O
-
Velomitor input impedance3.5 Mohm with Prox/Velom I/O
-
Buffered output impedance550 ohm
-
Recorder outputs4-20 mA per channel
-
Recorder load0-600 ohm
-
Recorder update100 ms or less
-
Front status indicationOK, TX/RX and Bypass
-
Rack allocationOne full-height front slot
-
Speed reference inputsTwo Keyphasor references for separate channel-pair tracking
View all additional
Alternative Names
3500/44M 176449 03
3500/44M 176449-03 aeroderivative vibration monitor
Bently Nevada 3500/44M 176449-03
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
AERODERIVATIVE TURBINE VIBRATION MONITOR
Integrating 3500/44M 176449-03
The monitor evaluates vibration signals for aeroderivative gas turbines. Configured tracking and bandpass functions compare measurements with programmed alarm limits. Two Keyphasor references support separate channel-pair tracking, while multimode hardware and software can select alarm settings for different operating conditions.
Match Aero GT, Prox/Velom or multimode I/O to the sensor system and selected channel type. Aero GT inputs include the documented 86517 and 86497 interface arrangements. Similar physical rack placement does not make all sensor interfaces or multimode options interchangeable.
Select the documented front monitor, rear I/O and transducer wiring. External-termination versions require separately ordered blocks and cables, while internal-termination I/O cannot use those blocks. Verify channel type, sensitivity, speed reference and required mode-change logic before commissioning.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/44M 176449-03 aeroderivative vibration monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/44M 176449-03 requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
Match Aero GT, Prox/Velom or multimode I/O to the sensor system and selected channel type. Aero GT inputs include the documented 86517 and 86497 interface arrangements. Similar physical rack placement does not make all sensor interfaces or multimode options interchangeable.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/44M 176449-03 aeroderivative vibration monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/44M 176449-03 aeroderivative vibration monitor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.6x25.8x24cm
-
Shipping weight0.8 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031900090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/44M 176449-03
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3500/44M 176449-03 identified?
The official spare table identifies 176449-03 as the 3500/44M Aeroderivative GT Vibration Monitor. Match the rear I/O, sensor system and selected measurement. The bare front-module identity does not confirm a supplied multimode I/O or delivered firmware revision. -
What is the function of this component?
The monitor evaluates vibration signals for aeroderivative gas turbines. Configured tracking and bandpass functions compare measurements with programmed alarm limits. Two Keyphasor references support separate channel-pair tracking, while multimode hardware and software can select alarm settings for different operating conditions. -
Which installed equipment must be matched?
Match Aero GT, Prox/Velom or multimode I/O to the sensor system and selected channel type. Aero GT inputs include the documented 86517 and 86497 interface arrangements. Similar physical rack placement does not make all sensor interfaces or multimode options interchangeable. -
Where is this component used?
The manufacturer designs this family for aeroderivative gas turbine applications. The chosen I/O connects compatible transducers or documented interface modules to the configured vibration channels. -
What must be checked during installation?
Select the documented front monitor, rear I/O and transducer wiring. External-termination versions require separately ordered blocks and cables, while internal-termination I/O cannot use those blocks. Verify channel type, sensitivity, speed reference and required mode-change logic before commissioning. -
Why are two Keyphasor references supported?
They let each channel pair use a separate tracking filter reference, supporting the documented turbine monitoring arrangement. -
Can mode-specific alarms work with any rear I/O?
No. Contact-driven mode selection requires an appropriate multimode I/O arrangement. Software-driven switching uses the documented gateway and configuration support; verify the complete installed combination.
