Technical specifications for 172109-01
-
Product Model172109-01
-
Product ParametersRTD/ Isolated Tip TC I/OModule, External Terminations
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2.4x11x24.1cm
-
ManufacturerBently Nevada
-
Weight0.4 kg
-
Common Mode Rejection>120dB @ 50/60Hz
-
Measurement Range-200°C to +1800°C (varies by TC type)
-
Accuracy±1°C or ±0.25% of reading (whichever is greater)
-
Operating Temperature-40°C to +85°C
-
Storage Temperature-50°C to +100°C
-
Humidity5-95% non-condensing
-
Vibration5g (10-2000Hz)
Description

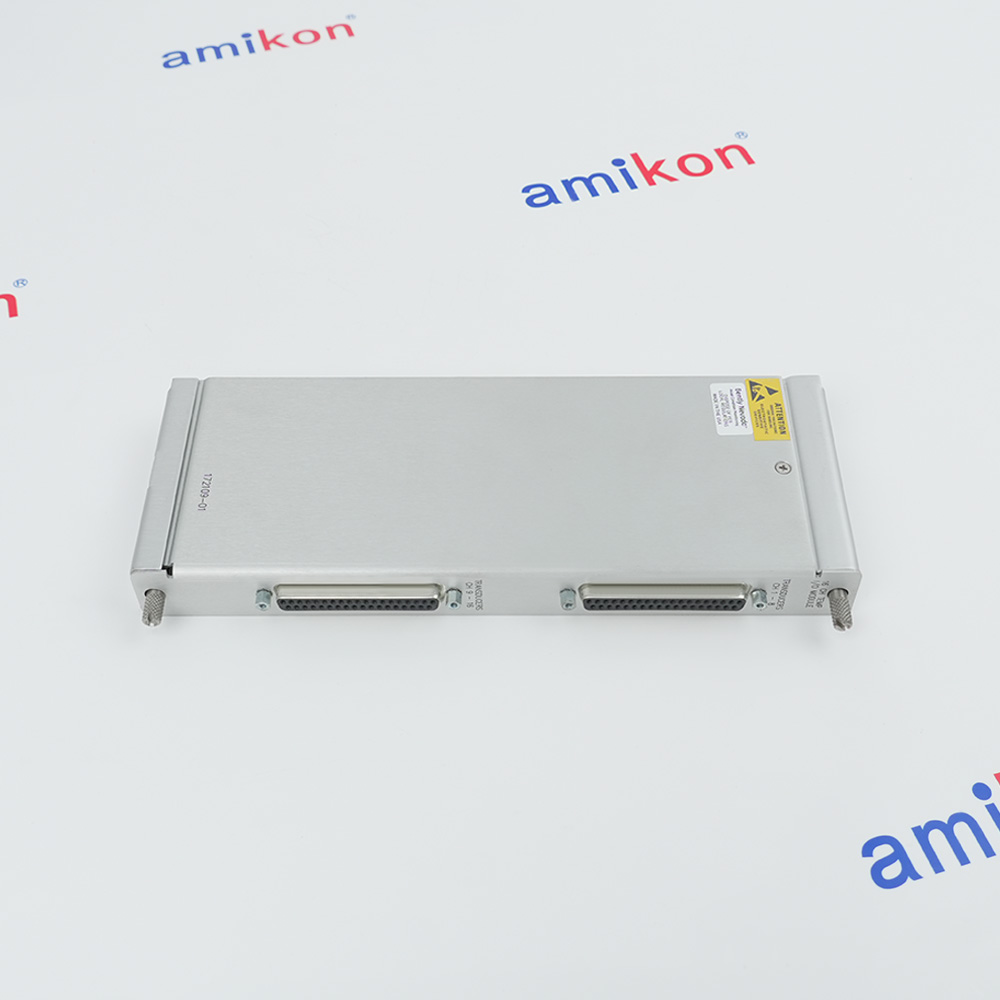

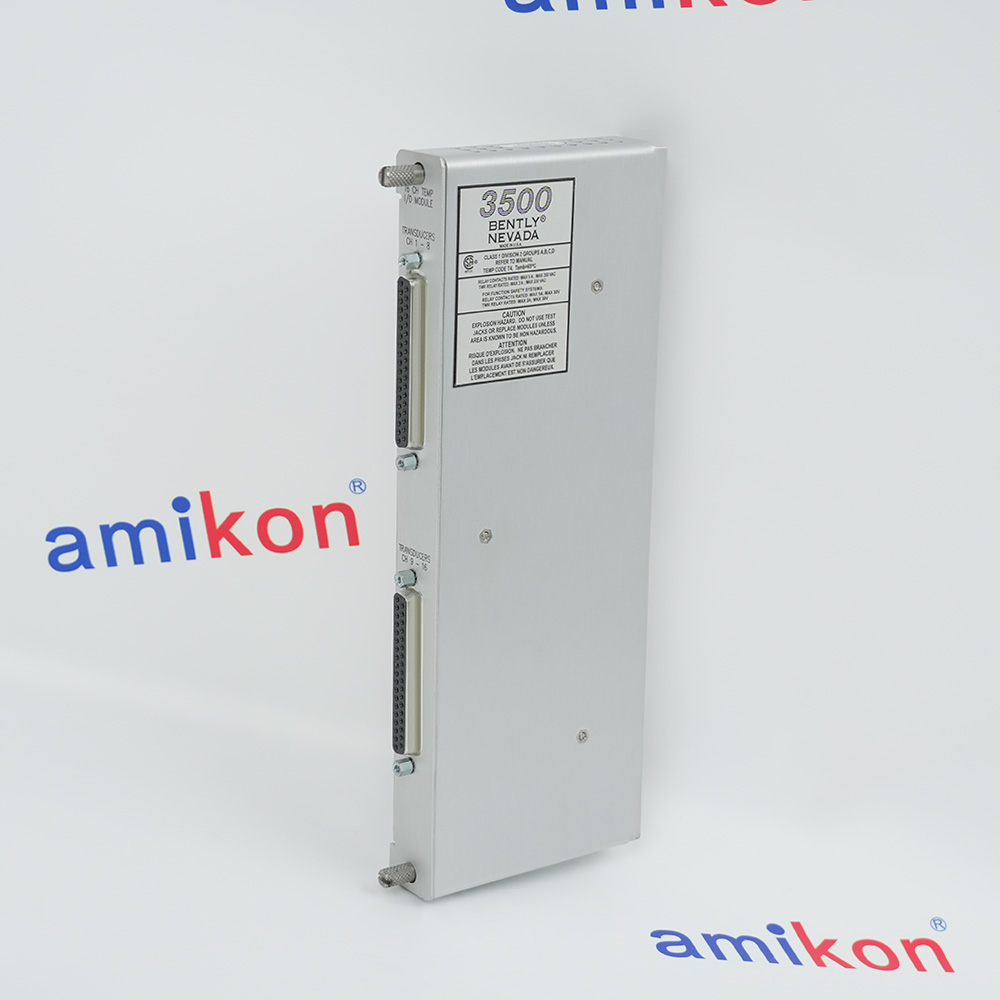

The 172109-01 is a Bently Nevada 3500/65 RTD/Isolated Tip TC I/O Module with external terminations, designed for 16-channel temperature monitoring in machinery condition monitoring systems. The 172109-01 accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs, conditioning these signals and comparing them against user-programmable alarm setpoints.
The 172109-01 can be configured to accept isolated tip thermocouples, 3-wire RTDs, 4-wire RTDs, or a combination of TC and RTD inputs, offering maximum flexibility for different temperature sensing requirements. The 172109-01 features external terminations, allowing field wiring to be connected through external terminal blocks rather than directly to the module, providing flexibility for installation and maintenance.
The 172109-01 is programmed using the 3500 Rack Configuration Software, with full-scale range for each channel set in the field via software and no calibration required. The 172109-01 supports Triple Modular Redundant (TMR) configurations when temperature monitors are installed in groups of 3 adjacent monitors, using 2 types of voting to ensure accurate operation and avoid single point failures.
The 172109-01 can be configured to accept isolated tip thermocouples, 3-wire RTDs, 4-wire RTDs, or a combination of TC and RTD inputs, offering maximum flexibility for different temperature sensing requirements. The 172109-01 features external terminations, allowing field wiring to be connected through external terminal blocks rather than directly to the module, providing flexibility for installation and maintenance.
The 172109-01 is programmed using the 3500 Rack Configuration Software, with full-scale range for each channel set in the field via software and no calibration required. The 172109-01 supports Triple Modular Redundant (TMR) configurations when temperature monitors are installed in groups of 3 adjacent monitors, using 2 types of voting to ensure accurate operation and avoid single point failures.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Installation
Features:
- Provides 16 Channels of Temperature Monitoring
- Accepts Both RTD and TC Temperature Inputs
- Configurable to Accept Isolated Tip Thermocouples, 3-Wire RTD, 4-Wire RTD, or a Combination of TC and RTD Inputs
The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
The 172109-01 Bently Nevada RTD/ Isolated Tip TC I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 172109-01 RTD/ Isolated Tip TC I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid single-point failures.
When replacing an older I/O modulewith a newer one,172109-01 Rev D,172103-01 Rev F, 172115-01 Rev E, orfuture revisions; it is necessary toupgrade the firmware to the monitorwith the latest released version. Youmust remove the I/O module beforeupgrading the monitor to the latestfirmware. Failure to do this will resultin an I/O Module Mismatch and 562ADC Failure in the System Event List.
- Turbines:Bearing, casing & exhaust temps for gas/steam turbines
- Compressors:Cylinder head, lubricant & bearing temps for centrifugal/recip
- Motors & Generators:Stator winding & bearing temp monitoring for large motors/generators
- Pumps:Seal/bearing frictional heat detection for high-pressure pumps
- Gearboxes:Thermal state: gear mesh or lubrication failure indicators
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Slot Alignment: The 172109-01 I/O module must be installed in the rear slot of the 3500 rack, directly behind the corresponding 3500/65 main monitor module.Insertion: Slide the module into the guide rails and press firmly to seat the connector into the rack backplane. Secure it using the two captive thumb screws on the module faceplate.TMR Requirements: If used in a Triple Modular Redundant (TMR) setup, you must install the modules in groups of three adjacent slots to enable system voting.
Alternative Names
172109-0I
172109-O1
1721O9-01
172I09-01
I72109-01
172109-OI
I72IO9-01
Technical notes
The 172109-01 operates in ambient temperatures from -20°C to +65°C (-4°F to +149°F) and complies with FCC Rules Part 15, EMC Directive 2014/30/EU, LV Directive 2014/35/EU, and RoHS Directive 2011/65/EU. The 172109-01 is certified for hazardous areas including CSA/NRTL/C Class I, Zone 2, and ATEX/IECEx II 3G Ex nA nC ic IIC T4 Gc.
