PRODUCT DESCRIPTION
Standard transient data interface

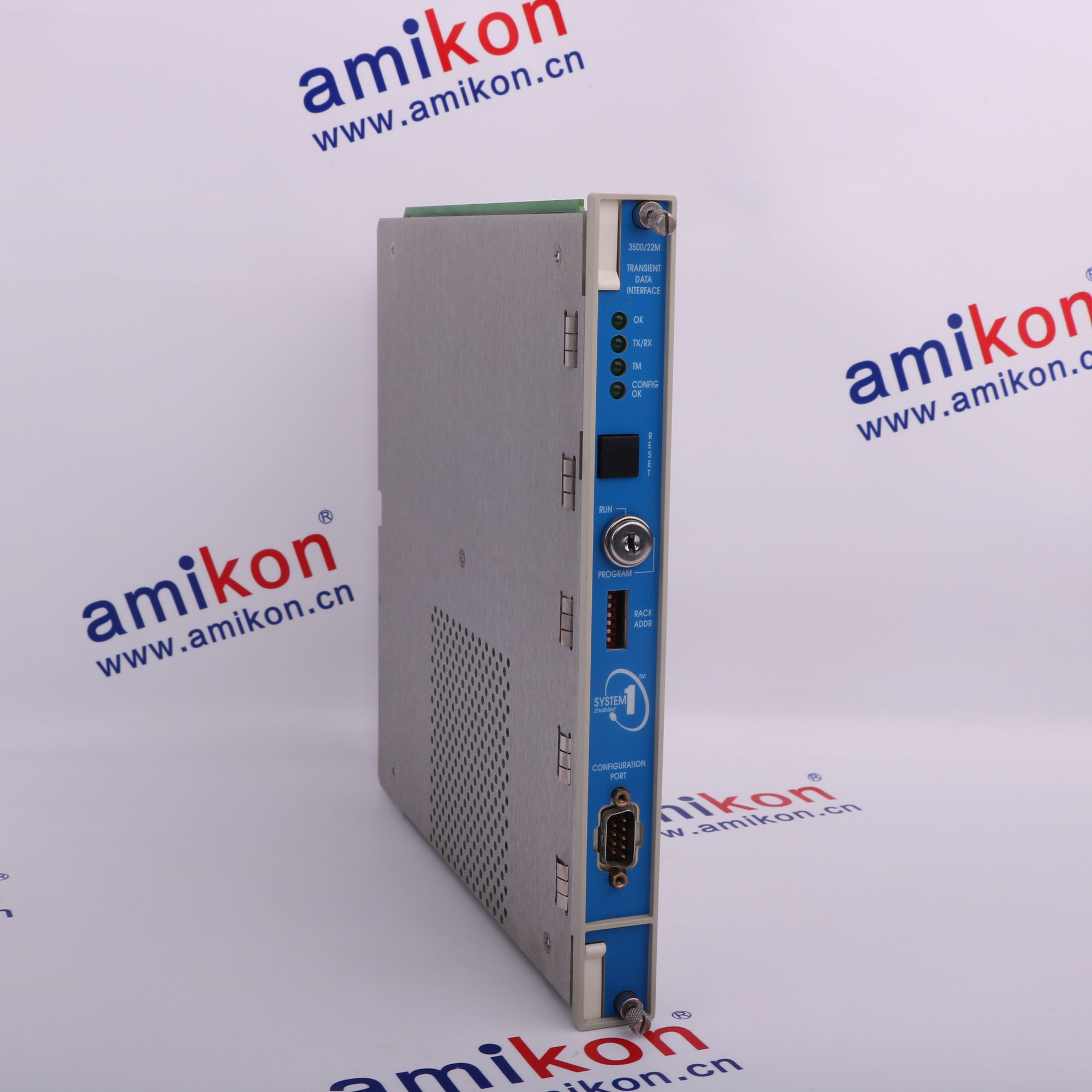

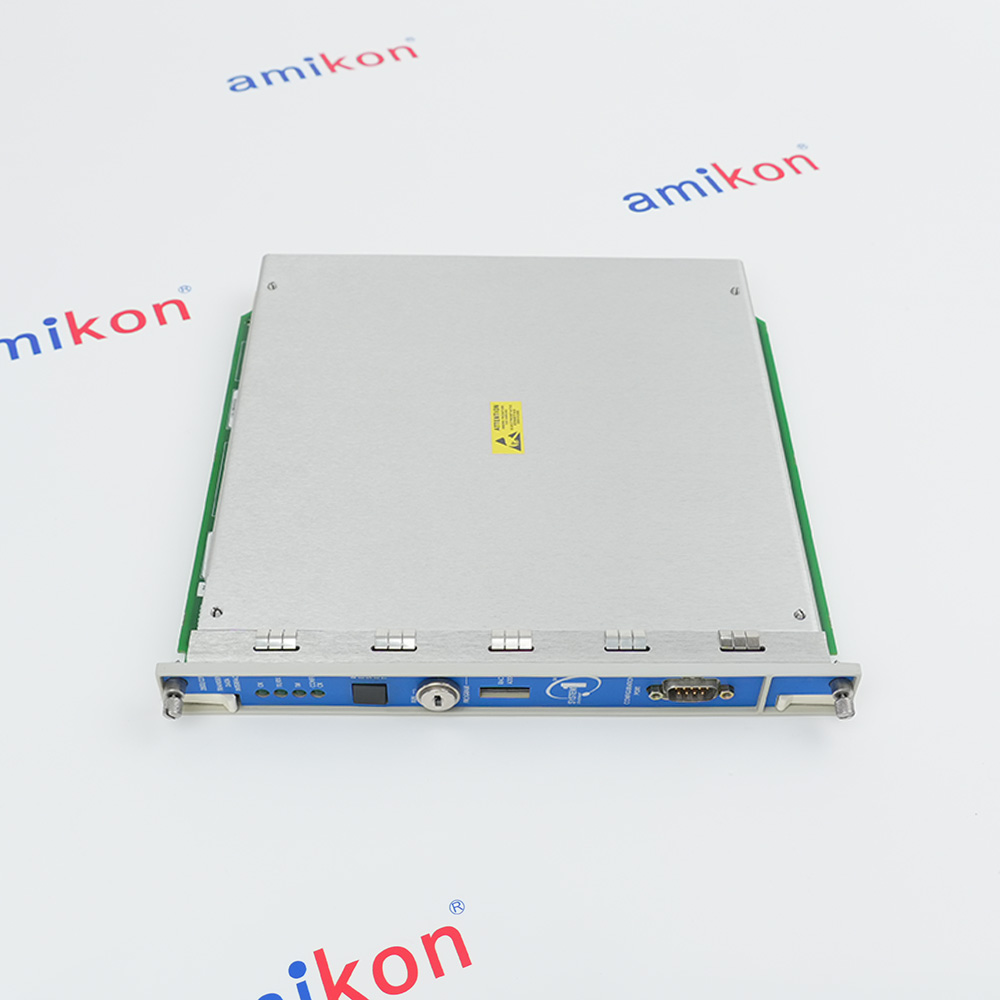

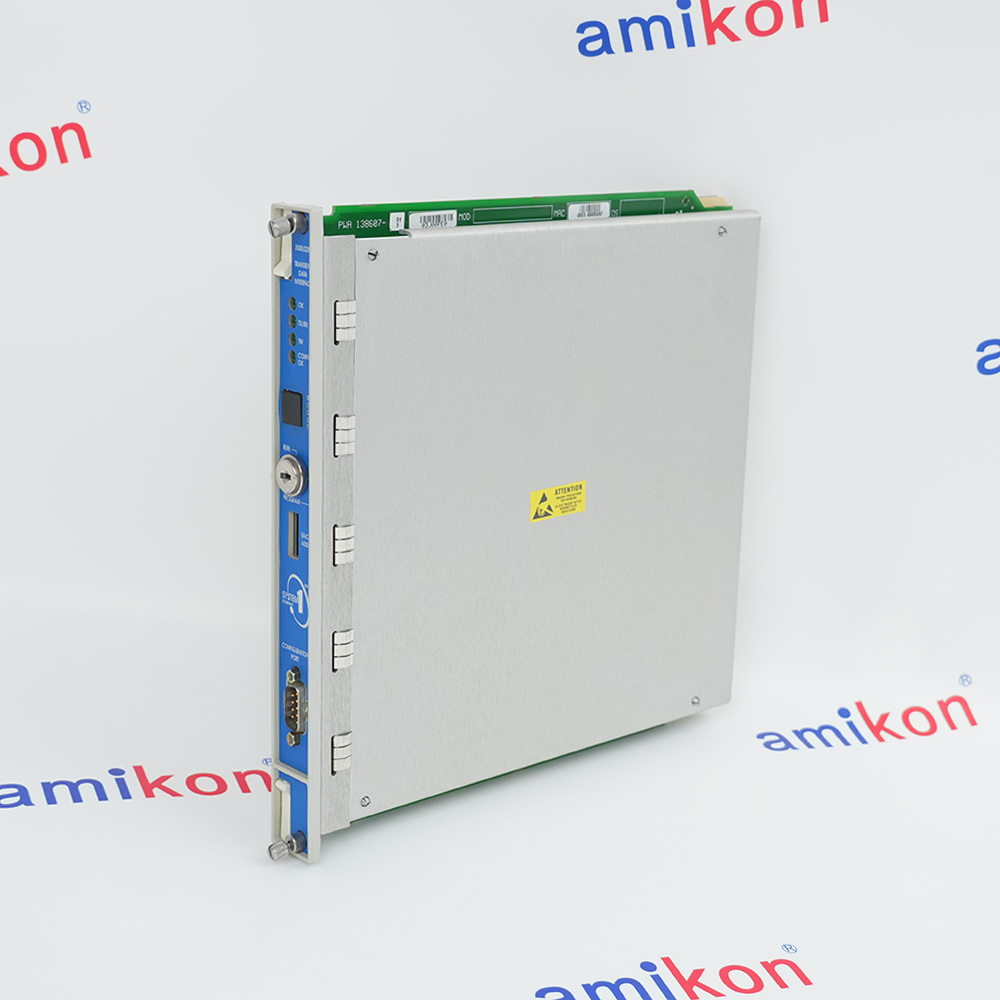

Bently Nevada 3500/22M 138607-01 is a standard transient data interface. The interface connects a 3500 monitoring rack with the documented machinery-management software. It collects steady-state and enabled waveform data from compatible M-series monitors. It occupies the interface slot but is not part of the critical monitoring path of the rack.
The historical spare table identifies 138607-01 as the standard Transient Data Interface, not the 138607-02 TMR version. The matched rear Ethernet I/O is a separate component. Confirm the installed monitor generation, software and dynamic-data enabling before specifying a replacement.
The historical spare table identifies 138607-01 as the standard Transient Data Interface, not the 138607-02 TMR version. The matched rear Ethernet I/O is a separate component. Confirm the installed monitor generation, software and dynamic-data enabling before specifying a replacement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500/22M transient data interface system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · STEADY-STATE DATA
Measurements to machinery software
The TDI collects static values from compatible rack monitors and passes data to the host. It is a rack communication and acquisition interface, not a replacement for each measurement module. -
02 · STARTUP AND COASTDOWN
Enabled transient waveform collection
The documented option captures waveforms using configured speed or time intervals. Transient capability depends on the enabling selection and channel configuration, not the spare number alone. -
03 · EVENT REVIEW
Data before and after alarms
The manufacturer describes pre-alarm and post-alarm data collection for investigating machine events. Dynamic-data enabling and the installed configuration determine the waveform information available.
Technical specifications for 3500/22M 138607-01
-
Product Model3500/22M 138607-01
-
Spare Model138607-01
-
Product ParametersStandard transient data interface
-
In stock3 units
-
ManufacturerBently Nevada
-
TDI configurationStandard, not TMR
-
Power consumption10.5 W
-
Rack positionSlot 1, beside the power supplies
-
Front communicationsRS232, up to 115.2 kbaud
-
Front serial connector9-pin DSUB
-
Serial cable limit30 m
-
Rack address settings127 possible addresses
-
Waveform channel capacity48, subject to dynamic-data enabling
-
Keyphasor supportFour system signals
-
Asynchronous spectrum800 lines; anti-alias filtered
-
Configuration controlRUN / PROGRAM keylock
-
Operating temperature-30 to +65 deg C
-
Storage temperature-40 to +85 deg C
-
Humidity95%, noncondensing
View all additional
Revisions
Revision Part #
Also known as
Alternative Names
3500/22M 138607 01
3500/22M 138607-01 standard transient data interface
Bently Nevada 3500/22M 138607-01
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
STANDARD TRANSIENT DATA INTERFACE
Integrating 3500/22M 138607-01
The interface connects a 3500 monitoring rack with the documented machinery-management software. It collects steady-state and enabled waveform data from compatible M-series monitors. It occupies the interface slot but is not part of the critical monitoring path of the rack.
The reference describes operation with M-series monitors such as 3500/40M and 3500/42M. Static capture is standard; dynamic or transient waveform collection requires the applicable enabling option. TMR applications require the separate TMR TDI, not this standard module.
Install the TDI in Slot 1 next to the supplies and match the rear Ethernet I/O and software configuration. Use the RUN/PROGRAM keylock as documented. Verify enabled channels and keep the front serial connection within its 30 m maximum length.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/22M 138607-01 standard transient data interface requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/22M 138607-01 requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
The reference describes operation with M-series monitors such as 3500/40M and 3500/42M. Static capture is standard; dynamic or transient waveform collection requires the applicable enabling option. TMR applications require the separate TMR TDI, not this standard module.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/22M 138607-01 standard transient data interface requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/22M 138607-01 standard transient data interface must be checked for document applicability before installation or commissioning.
