PRODUCT DESCRIPTION

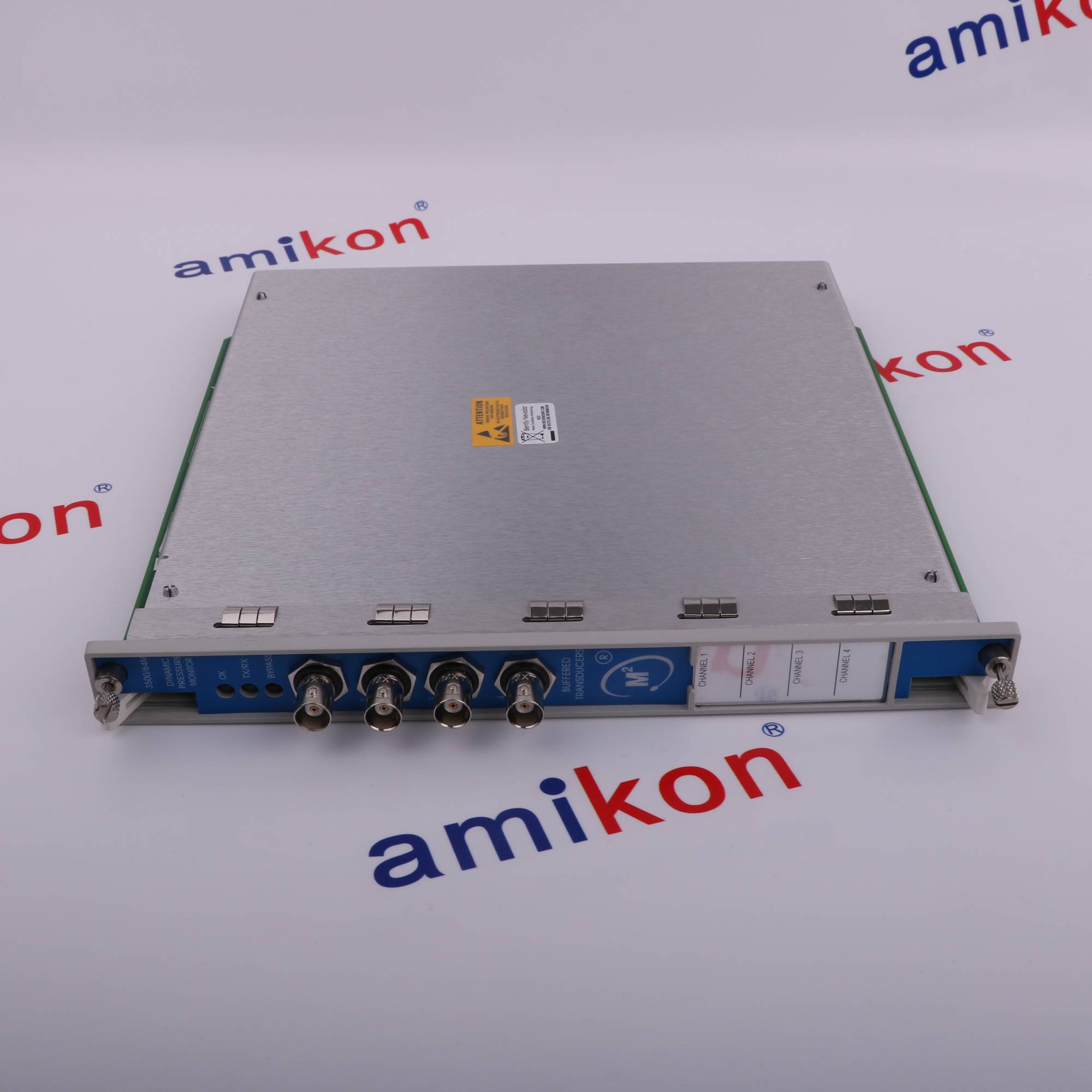

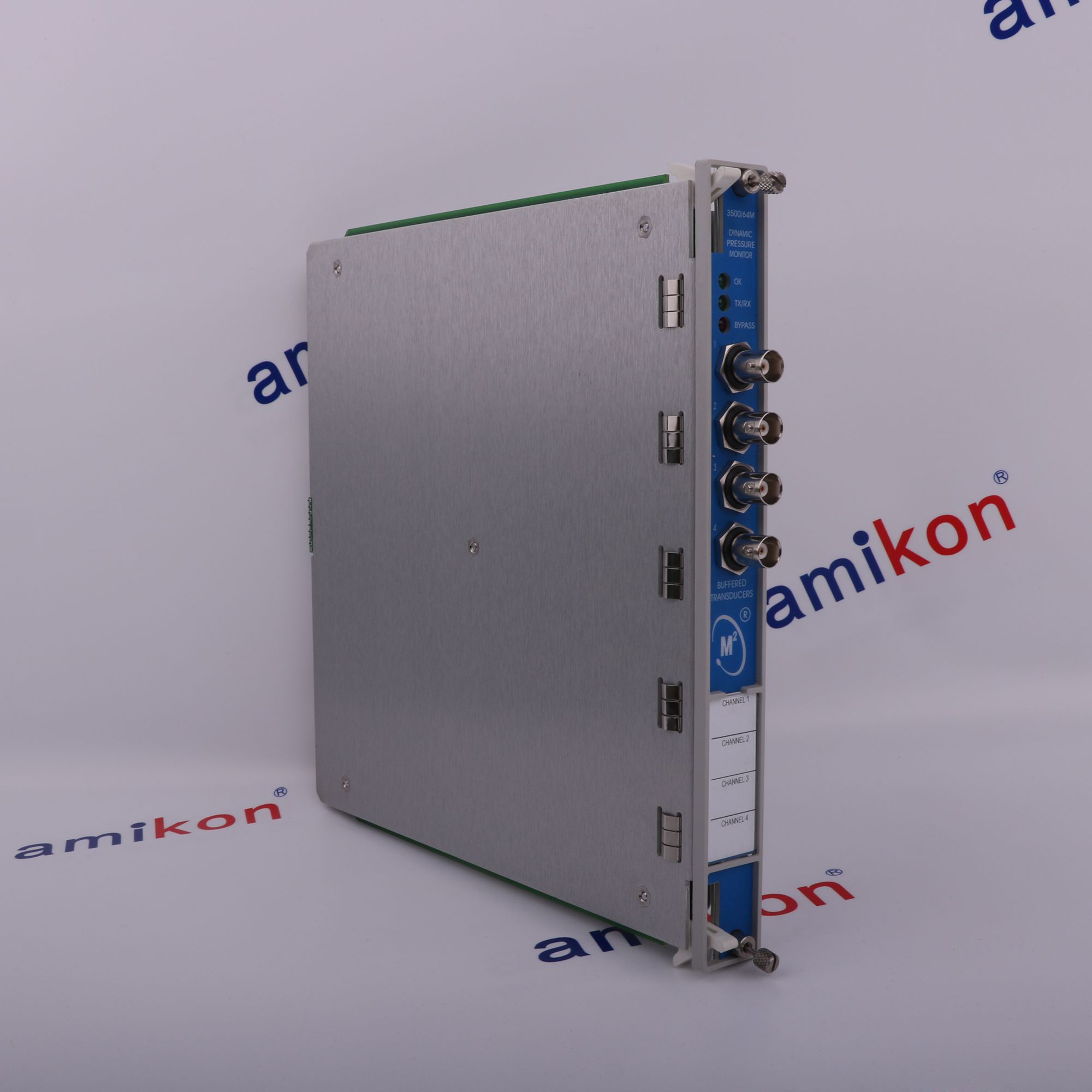

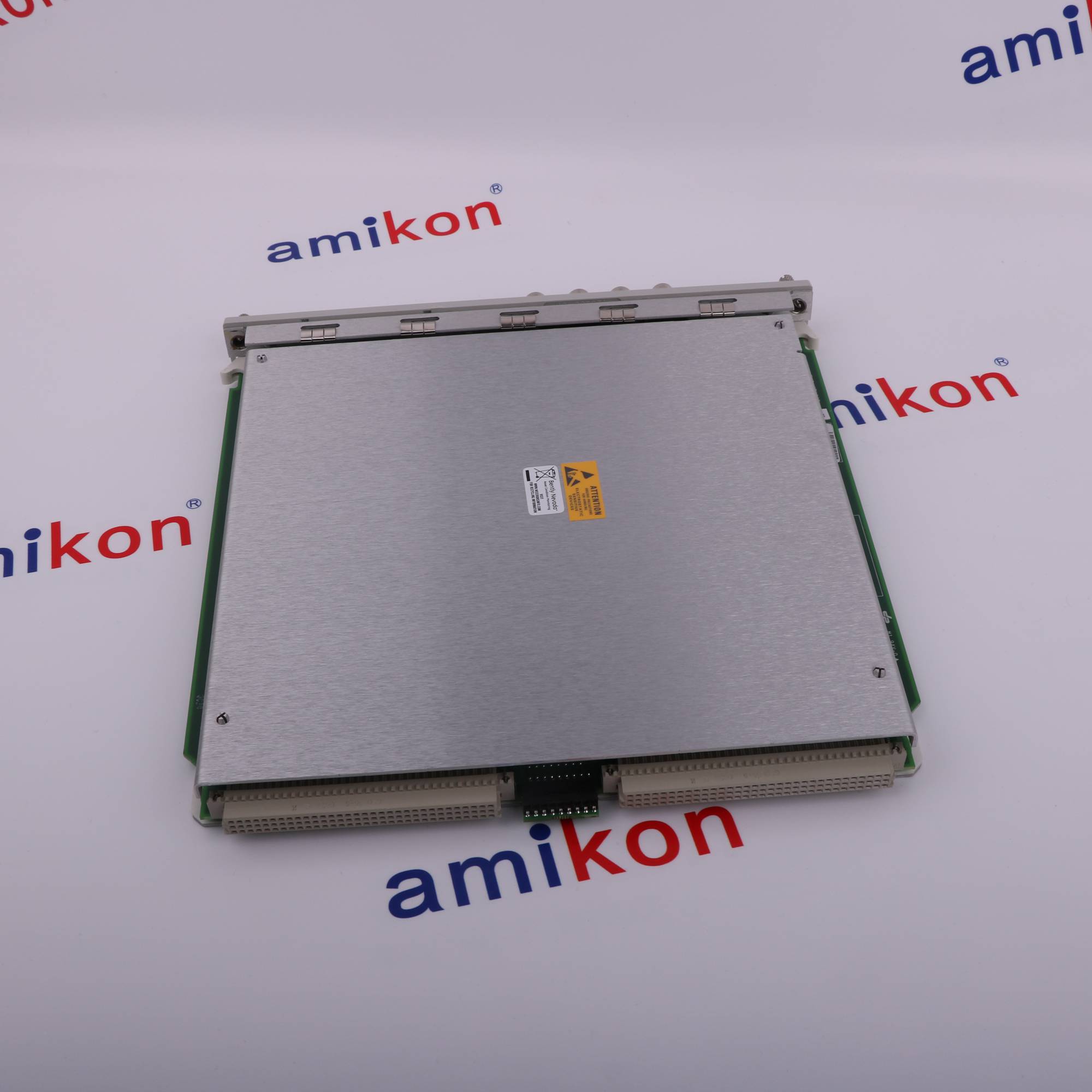

Four channel pressure monitor
Bently Nevada 3500/64M is a dynamic pressure monitor. The monitor processes signals from suitable dynamic-pressure transducers and compares band-limited measurements with configured alarms. Each channel provides a dynamic-pressure value and recorder interface. Filter modes, sensitivity and sensor excitation must match the selected pressure measurement rather than a generic process-variable input.
The 3500/64M family provides four monitoring channels in one front slot. The reviewed spare list identifies front module 176449-05. This family-only record does not establish the supplied termination option, approval selection, hardware revision or individual pressure transducer.
The 3500/64M family provides four monitoring channels in one front slot. The reviewed spare list identifies front module 176449-05. This family-only record does not establish the supplied termination option, approval selection, hardware revision or individual pressure transducer.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500 dynamic pressure monitoring system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · DYNAMIC PRESSURE
Band-limited pressure measurements
The monitor accepts suitable high-temperature pressure-transducer signals and calculates bandpass dynamic pressure. Sensor excitation and sensitivity must match the selected channel interface. -
02 · FREQUENCY ANALYSIS
Several bands from one pressure signal
Cascade Mode can process a single transducer through four separately configured channel bands. This is a signal-processing function, not duplication of the physical buffered outputs. -
03 · MACHINERY ALARMS
Pressure limits and recorded values
Configured Alert and Danger limits provide machine-condition annunciation, while proportional recorder values support the control-system interface. Settings must remain within the actual transducer range.
Technical specifications for 3500/64M
-
Product Model3500/64M
-
Spare Model176449-05
-
Product ParametersFour channel pressure monitor
-
In stock7 units
-
ManufacturerBently Nevada
-
Pressure channelsOne to four
-
Measured quantityBandpass dynamic pressure
-
Three-wire input impedance10 kohm
-
Two-wire input impedance1.5-3.5 Mohm typical
-
Nominal sensitivity100 mV/psi
-
Three-wire transducer supply-24 Vdc
-
Two-wire transducer excitation3.3 mA at 22 Vdc nominal
-
Buffered output impedance550 ohm
-
Recorder outputs4-20 mA per channel
-
Recorder load0-600 ohm
-
Recorder updateApproximately 100 ms or less
-
Low filtering mode5 Hz-4 kHz; about 5.285 kHz without selected LP filter
-
High filtering mode10 Hz-14.75 kHz
-
Line rejection filterSelectable 50 or 60 Hz notch
-
Alarm setpoint accuracyWithin 0.13% of desired value
View all additional
Alternative Names
3500/64M
3500/64M dynamic pressure monitor
Bently Nevada 3500/64M
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
FOUR CHANNEL PRESSURE MONITOR
Integrating 3500/64M
The monitor processes signals from suitable dynamic-pressure transducers and compares band-limited measurements with configured alarms. Each channel provides a dynamic-pressure value and recorder interface. Filter modes, sensitivity and sensor excitation must match the selected pressure measurement rather than a generic process-variable input.
Choose the documented two- or three-wire pressure-transducer interface. Channels 1-2 and 3-4 are paired for low or high filtering modes. Different bandpass options are possible within a pair, but both channels in the pair must use the same filtering mode.
Use the matched front monitor and rear I/O in corresponding full-height rack positions. External terminations require the separately selected block and cable; they cannot be added to an internal-termination I/O. Follow the applicable channel wiring, sensor and barrier instructions before commissioning.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/64M dynamic pressure monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/64M requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
Choose the documented two- or three-wire pressure-transducer interface. Channels 1-2 and 3-4 are paired for low or high filtering modes. Different bandpass options are possible within a pair, but both channels in the pair must use the same filtering mode.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/64M dynamic pressure monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/64M dynamic pressure monitor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size2.6x25.8x24cm
-
Shipping weight0.8 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031900090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 3500/64M
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is 3500/64M identified?
The 3500/64M family provides four monitoring channels in one front slot. The reviewed spare list identifies front module 176449-05. This family-only record does not establish the supplied termination option, approval selection, hardware revision or individual pressure transducer. -
What is the function of this component?
The monitor processes signals from suitable dynamic-pressure transducers and compares band-limited measurements with configured alarms. Each channel provides a dynamic-pressure value and recorder interface. Filter modes, sensitivity and sensor excitation must match the selected pressure measurement rather than a generic process-variable input. -
Which installed equipment must be matched?
Choose the documented two- or three-wire pressure-transducer interface. Channels 1-2 and 3-4 are paired for low or high filtering modes. Different bandpass options are possible within a pair, but both channels in the pair must use the same filtering mode. -
Where is this component used?
The monitor accepts suitable high-temperature pressure-transducer signals and calculates bandpass dynamic pressure. Sensor excitation and sensitivity must match the selected channel interface. -
What must be checked during installation?
Use the matched front monitor and rear I/O in corresponding full-height rack positions. External terminations require the separately selected block and cable; they cannot be added to an internal-termination I/O. Follow the applicable channel wiring, sensor and barrier instructions before commissioning. -
What does Cascade Mode do?
It feeds channel 1 into the processing for all four channels, allowing four bandpass and full-scale selections from one transducer. It does not cascade the physical buffered transducer outputs. -
Can a channel pair mix high and low filtering modes?
No. The two channels of a pair must use the same filtering mode, although their bandpass selections can differ. Channels 1-2 and 3-4 form the two pairs.
