PRODUCT DESCRIPTION

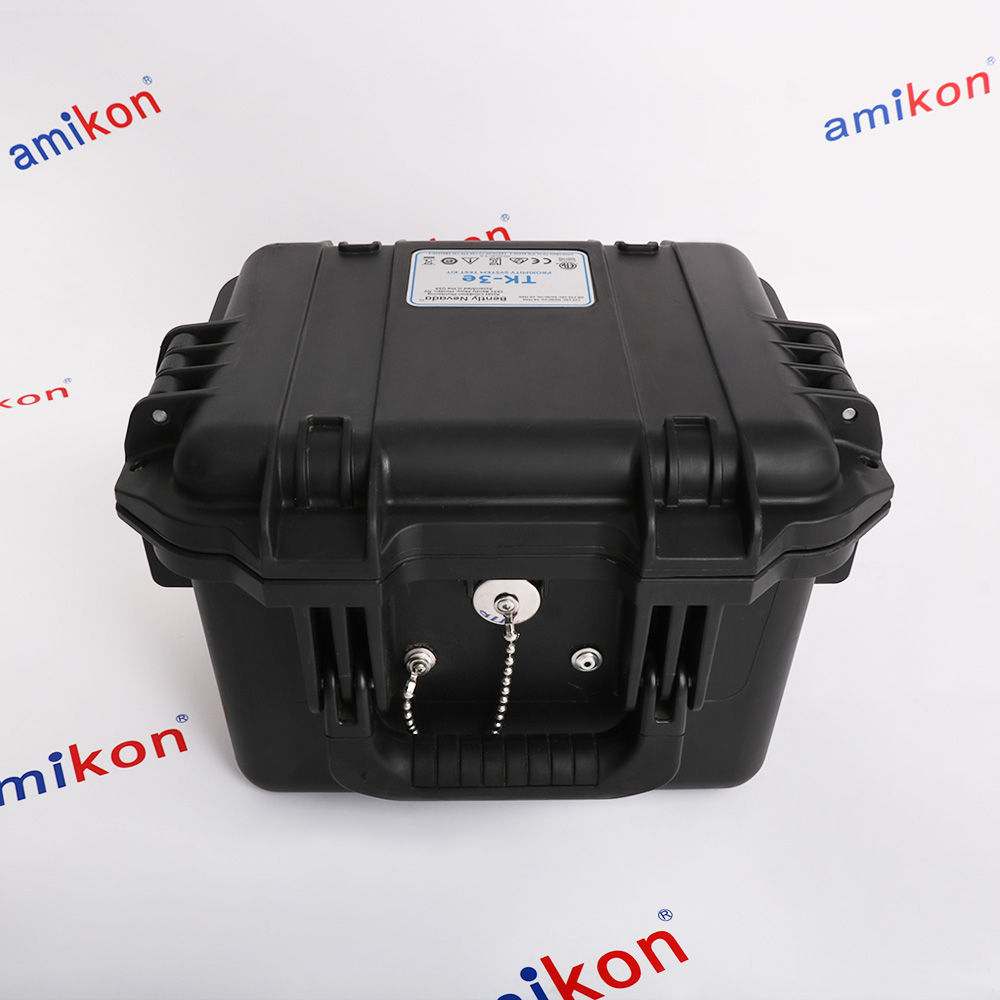

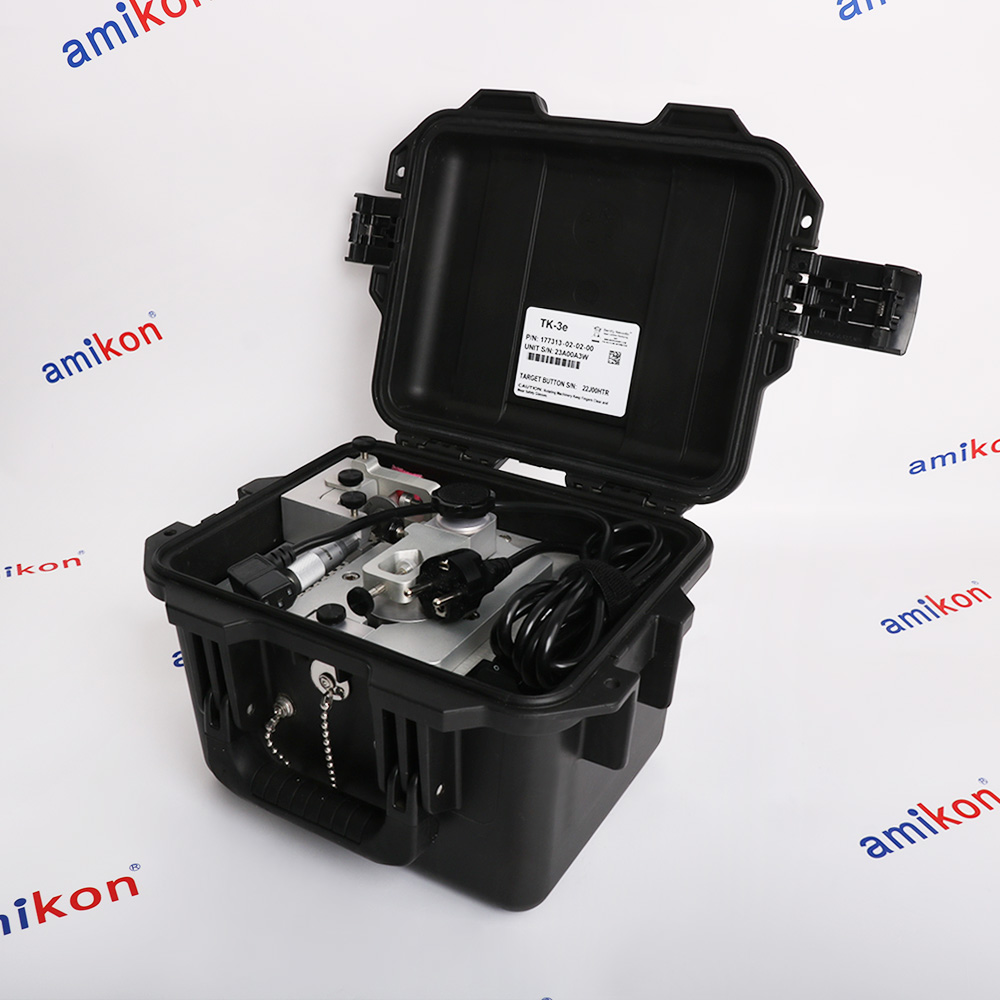

177313-02-02-00 - Proximity System Test Kit
Bently Nevada 177313-02-02-00 is an electric TK-3e proximity-system test kit with metric scale units and a European power cord. Its micrometer and motor-driven wobble plate simulate position and vibration for checking a proximity transducer chain and monitor readout.
The selected approval field is 00, meaning none. The removable spindle assembly accepts 5 to 19 mm probes, while the documented vibration signal spans 50 to 254 micrometres peak-to-peak. Use the rotating-machinery precautions and the correct electrical configuration for the supplied unit.
The selected approval field is 00, meaning none. The removable spindle assembly accepts 5 to 19 mm probes, while the documented vibration signal spans 50 to 254 micrometres peak-to-peak. Use the rotating-machinery precautions and the correct electrical configuration for the supplied unit.
BEFORE YOU BUY
Check the complete ordered configuration
ACTUAL APPLICATIONS
Where 177313-02-02-00 supports measurement tasks
Manufacturer literature supports the following measurement arrangements. Confirm the complete installed system and the exact ordered configuration before selecting this component.
-
01 · STATIC CALIBRATION
Check a transducer against known movement
Hold the proximity probe in the universal spindle mount and move the target in calibrated increments. Record the compatible Proximitor output with a voltmeter to check the transducer response. The metric scale helps relate target movement to the measured voltage. -
02 · POSITION READOUT
Compare a position monitor with the reference
Use the removable spindle micrometer assembly to supply known position changes to the connected measurement chain. Compare the monitor indication with the reference movement. Its magnetic base supports field use where the mounting location is suitable and stable. -
03 · DYNAMIC CALIBRATION
Exercise a vibration channel mechanically
Use the motor-driven wobble plate and swing-arm probe holder to establish a known mechanical vibration input. Compare the monitor reading with the documented signal. Keep clear of the rotating plate and use the prescribed guards, eye protection and secure mounting.
Technical specifications for 177313-02-02-00
-
Product Model177313-02-02-00
-
Product ParametersProximity System Test Kit
-
In stock1 unit
-
ManufacturerBently Nevada
-
Drive configuration177313: electric TK-3e
-
Scale units option02: metric
-
Power cord option02: European
-
Agency approval option00: none
-
Electric supply specification95-125 or 190-250 V AC; 50/60 Hz; 1 A minimum; verify unit configuration
-
Vibration amplitude range50-254 micrometres peak-to-peak
-
Spindle micrometer range0-25.4 mm
-
Accepted probe diameter5-19 mm
-
Target and wobble plate materialAISI 4140 alloy steel
-
Operating environmentIndoor use; altitude up to 2000 m
-
Operating temperature0-50 deg C; maximum 40 deg C for extended continuous use
-
Closed enclosure protectionDesigned to meet IP54
View all additional
Alternative Names
177313-02-02-00
Bently Nevada 177313-02-02-00
Proximity System Test Kit 177313-02-02-00
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM CONFIGURATION
Match the installed measurement arrangement
Bently Nevada 177313-02-02-00 is an electric TK-3e proximity-system test kit with metric scale units and a European power cord. Its micrometer and motor-driven wobble plate simulate position and vibration for checking a proximity transducer chain and monitor readout.
The selected approval field is 00, meaning none. The removable spindle assembly accepts 5 to 19 mm probes, while the documented vibration signal spans 50 to 254 micrometres peak-to-peak. Use the rotating-machinery precautions and the correct electrical configuration for the supplied unit.
Use the complete manufacturer installation and system instructions. The supplied technical-data extract identifies the documented configuration but is not a substitute for a controlled commissioning procedure.
Features:
- Electric TK-3e drive
- Metric scale configuration
- European power cord
The 177313-02-02-00 requires exact configuration and installation checks before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the complete product identity and all selected option fields before accepting a replacement. Do not substitute a similar-looking family without an engineering review.
The selected approval field is 00, meaning none. The removable spindle assembly accepts 5 to 19 mm probes, while the documented vibration signal spans 50 to 254 micrometres peak-to-peak. Use the rotating-machinery precautions and the correct electrical configuration for the supplied unit.
Inspect the supplied nameplate, mechanical fit and connection arrangement. Retain the applicable manufacturer instructions and verify the installed measurement chain before returning it to service.
Features:
- Electric TK-3e drive
- European power cord
- AISI 4140 reference targets
The 177313-02-02-00 requires replacement verification of the complete ordered configuration and installed measurement system before commissioning.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The Manufacturer's Manual download is a manufacturer technical-data extract, not a complete operation manual. The installation guide contains only source-supported checks. Specifications of other configurations shown on source pages must not be applied to this exact order.
Features:
- Sources: Bently Nevada 178087 Rev. G
- Use complete equipment instructions for installation and commissioning.
- Accessories are supplied only when listed in the quotation
Documentation for the 177313-02-02-00 is supplied here as a technical-data extract; confirm manual availability in the written quotation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size20.5 × 22.4 × 3.3 cm
-
Shipping weight0.10 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference9031809090
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 177313-02-02-00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Will a European cord prove that the unit automatically selects its supply voltage?
No. Cord code 02 identifies the European cord. The datasheet lists two AC supply ranges but does not establish automatic voltage selection. Verify the actual unit configuration before energizing it. -
Can the spindle mount accept a 25 mm probe without an adapter review?
The documented universal mount range is 5 to 19 mm. A 25 mm probe is outside that stated range; obtain an approved fixture arrangement rather than assuming it fits. -
Which alloy is used for the calibration target supplied as standard?
The target button and wobble plate are AISI 4140 alloy steel. The manufacturer directs users to its sales representative for special target materials; they are not implied by the metric scale option. -
Must MRO staff bring an oscilloscope for the stated wobble-plate method?
The datasheet describes using the probe scale factor and a multimeter and states that an oscilloscope is not needed for that method. Follow the controlled calibration procedure for the actual monitor. -
Is the 50-degree operating limit appropriate for extended continuous testing?
No. Although the general operating range reaches 50 degrees C, the manufacturer limits extended continuous operation to a maximum of 40 degrees C. -
Does IP54 describe protection while the case is open and the plate is rotating?
No. The datasheet qualifies the IP54 design rating as closed. Do not apply it to an open operating setup or use it to waive the indoor-use requirement. -
What immediate precautions accompany motor-driven calibration?
Keep clear of moving components, avoid loose clothing or objects, use safety glasses and guards, and check the mounting screws. The manufacturer specifically warns about debris and contact with the wobble plate. -
Is a compressed-air supply required for this 177313 order?
No. The 177313 family is the electric TK-3e. Air-driven TK-3g units use the separate 177314 ordering family; do not copy their pneumatic supply specification onto this model.
