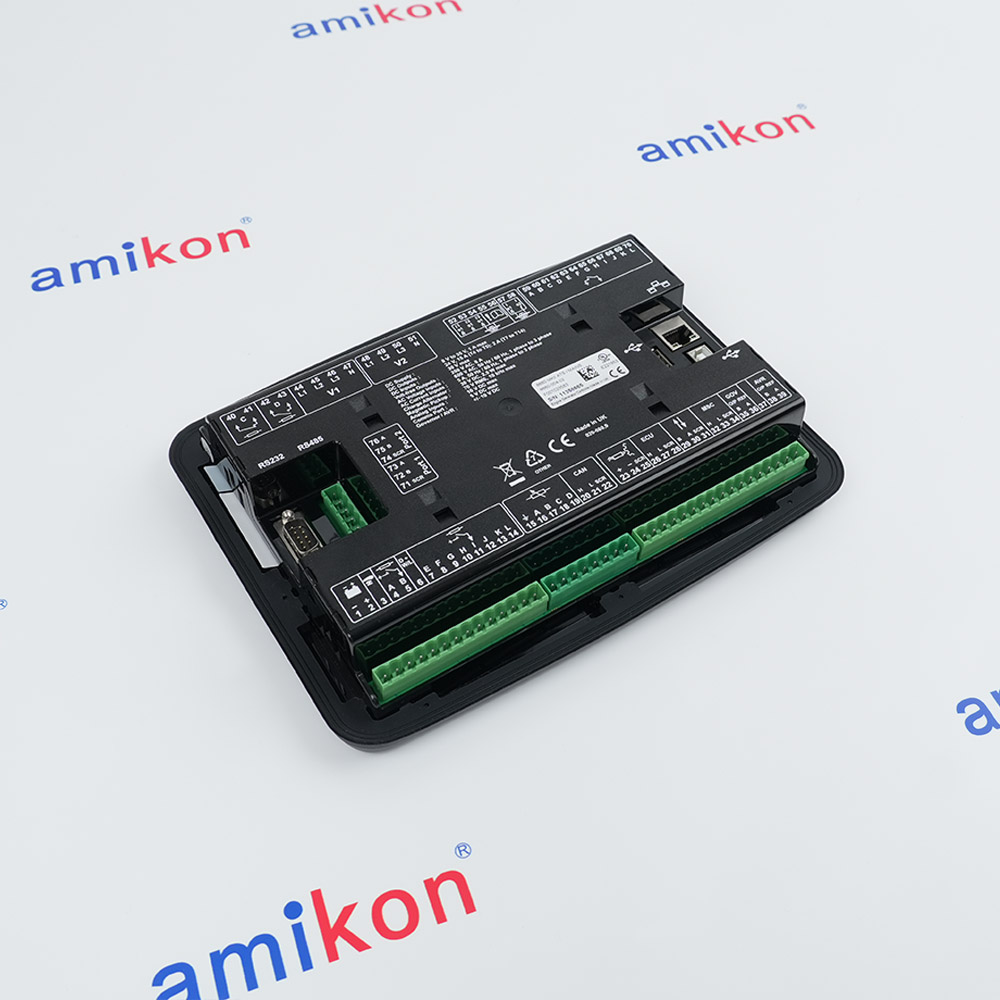

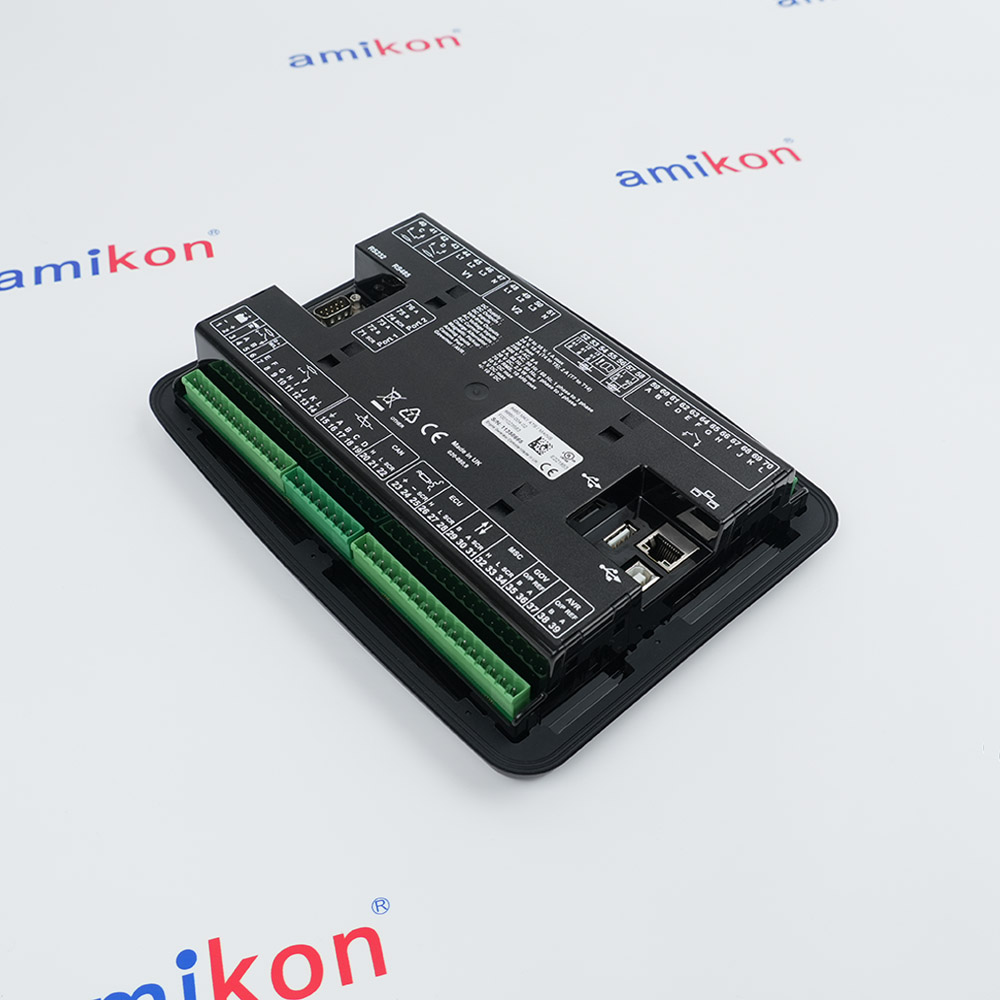

- DSE8660 MKII 8660-004-02
In Stock
Ships by Tuesday, June 23
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DSE8660 MKII 8660-004-02
-
Product ModelDSE8660 MKII 8660-004-02
-
Spare ModelDSE8660 MKII
-
Product ParametersAuto Transfer Switch & Mains (Utility) Control Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size25x19x5cm
-
ManufacturerDEEP SEA ELECTRONICS
-
Weight0.75 kg
-
CONTINUOUS VOLTAGE RATING5 V to 35 V Continuous
-
MAXIMUM OPERATING CURRENT530 mA at 12 V, 280 mA at 24 V
-
MAXIMUM STANDBY CURRENT320 mA at 12 V, 160 mA at 24 V
-
VOLTAGE RANGE15 V to 415 V AC (Ph to N)26 V to 719 V AC (Ph to Ph)
-
FREQUENCY RANGE3.5 Hz to 75 Hz
-
DIGITAL INPUTS A TO LNegative Switching
-
OUTPUTS C & D8 A at 250 V AC (Volt free)
-
AUXILIARY OUTPUTS E TO J2 A DC at supply voltage
-
STORAGE TEMPERATURE RANGE-40 °C to +85 °C - -40 °F to +185 °F
-
OPERATING TEMPERATURE RANGE-30 °C to +70 °C-22 °F to +158 °F
Description
The DSE8660 MKII 8660-004-02 is a high-performance synchronising and load-sharing control module designed to manage complex generator and mains power systems. It operates as a central controller for automatic transfer switch (ATS) functions while coordinating multiple generator sets through communication with DSE8610 MKII controllers.
The unit continuously monitors electrical parameters such as voltage, frequency, and phase angle across both generator and utility supplies. Before connecting power sources, it ensures full synchronisation to enable smooth, no-break transfers. This capability is critical in environments where power interruptions cannot be tolerated.
In multi-generator installations, the module manages load distribution by dynamically balancing kW and kVAr across all connected generating sets. It also supports advanced operational strategies such as peak shaving and peak lopping, allowing systems to optimize fuel consumption and reduce grid dependency.
The unit continuously monitors electrical parameters such as voltage, frequency, and phase angle across both generator and utility supplies. Before connecting power sources, it ensures full synchronisation to enable smooth, no-break transfers. This capability is critical in environments where power interruptions cannot be tolerated.
In multi-generator installations, the module manages load distribution by dynamically balancing kW and kVAr across all connected generating sets. It also supports advanced operational strategies such as peak shaving and peak lopping, allowing systems to optimize fuel consumption and reduce grid dependency.
Alternative Names
DSE8660MKII8660-004-02
DSE866O MKII 866O-OO4-O2
DSE8660 MKII 8660 004 02
DSE8660 MK II 8660-004-02
Information
Overview
Manuals
Technical notes
Product Applications
Electrical Wiring Requirements
Features:
- Mains (utility) failure detection
- Mains (utility) power monitoring(kW, kV Ar, kV A and pf)
- Peak lopping & shavingfunctionality
- Mains (utility) kW exportprotection
- Comprehensive synchronisingand loadsharing capabilities
- Base load (kW export)functionality
- Positive & negative kVAr exportcontrol
- Mains (utility) and Bus Positive,Negative and Zero Sequencevoltage alarms
The module can indicateoperational status and faultconditions on the LCD screen(multiple languages available), byilluminated LED, audible sounderand SMS messaging.Comprehensive communicationsare also available via RS232,RS485 & Ethernet for remote PCcontrol and monitoring, andintegration into buildingmanagement systems.The comprehensive event log willrecord up to 250 events to facilitatemaintenance.An extensive number of fixed andflexible monitoring and protectionfeatures are included. Easyalteration of the sequences, timersand alarms can be made using theDSE PC Configuration SuiteSoftware. Selected configuration isalso available via the module’s frontpanel.
The DSE8660 MKII Deep Sea DSE Auto Transfer Switch & Mains (Utility) Control Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Deep Sea DSE DSE8660 MKII Auto Transfer Switch & Mains (Utility) Control Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module can indicate operational status and fault conditions on the LCD screen (multiple languages available), by illuminated LED, audible sounder and SMS messaging.Comprehensive communications are also available via RS232, RS485 & Ethernet for remote PC control and monitoring, and integration into building management systems. The comprehensive event log will record up to 250 events to facilitate maintenance. An extensive number of fixed and flexible monitoring and protection features are included. Easy alteration of the sequences, timers and alarms can be made using the DSE PC Configuration Suite Software. Selected configuration is also available via the module’s front panel. With all communication ports capable of being active at the same time, the DSE8xxx MKII Series is ideal for a wide variety of demanding load share applications.
- Grid-Tied Power Plants:Large-scale stationary systems for grid peak lopping
- Building Management Systems (BMS):RS232/485/Ethernet remote monitoring of facility power
- Multi-Mains Infrastructure:Monitors/switches between multiple utility supplies for redundant machinery
- Water and Wastewater:Pump control, level monitoring & chlorination
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Terminals: Suitable for conductors ranging from 13 AWG to 20 AWG
Mains & Bus Sensing: Requires voltage sensing from both the utility mains and the generator bus for synchronisation.
MSC Link: Connects to other DSE modules (like the DSE8610 MKII) via a screened twisted pair cable for load sharing.
Digital I/O: Includes 12 configurable digital inputs and 8 configurable outputs (including volt-free relays for breaker control)
Technical notes
The DSE8660 MKII monitors mains (utility) and generator bus supplies across a voltage range of 15 V to 415 V AC phase-to-neutral (25 V to 719 V AC phase-to-phase) and a frequency range of 3.5 Hz to 75 Hz. It provides comprehensive mains failure detection, power monitoring (kW, kVAr, kVA, power factor), and advanced protection functions including R.O.C.O.F. (Rate of Change of Frequency) and vector shift detection for mains failure identification during parallel operation.
FAQs
-
What is the DSE8660 MKII?
+It is an advanced mains (utility) controller for multi-generator load-sharing systems, designed to manage complex systems and connect to DSE8610 MKII load-sharing controllers. -
What is the voltage and frequency range?
+The module handles 15 V to 333 V AC (L-N) and a frequency range of 3.5 Hz to 75 Hz. -
What is the primary function of the DSE8660 MKII?
+It synchronizes single or multiple DSE8610 MKII generators with mains supplies to provide no-break power, peak lopping, and peak shaving. -
Can it be used on both 12V and 24V systems?
+Yes. The module operates on a DC supply range of 8 V to 35 V, making it compatible with both voltages. -
What happens if the DC supply drops during cranking?
+The unit can survive 0 V for 50 ms, provided the supply was at least 10 V before the drop and recovers to at least 5 V.
