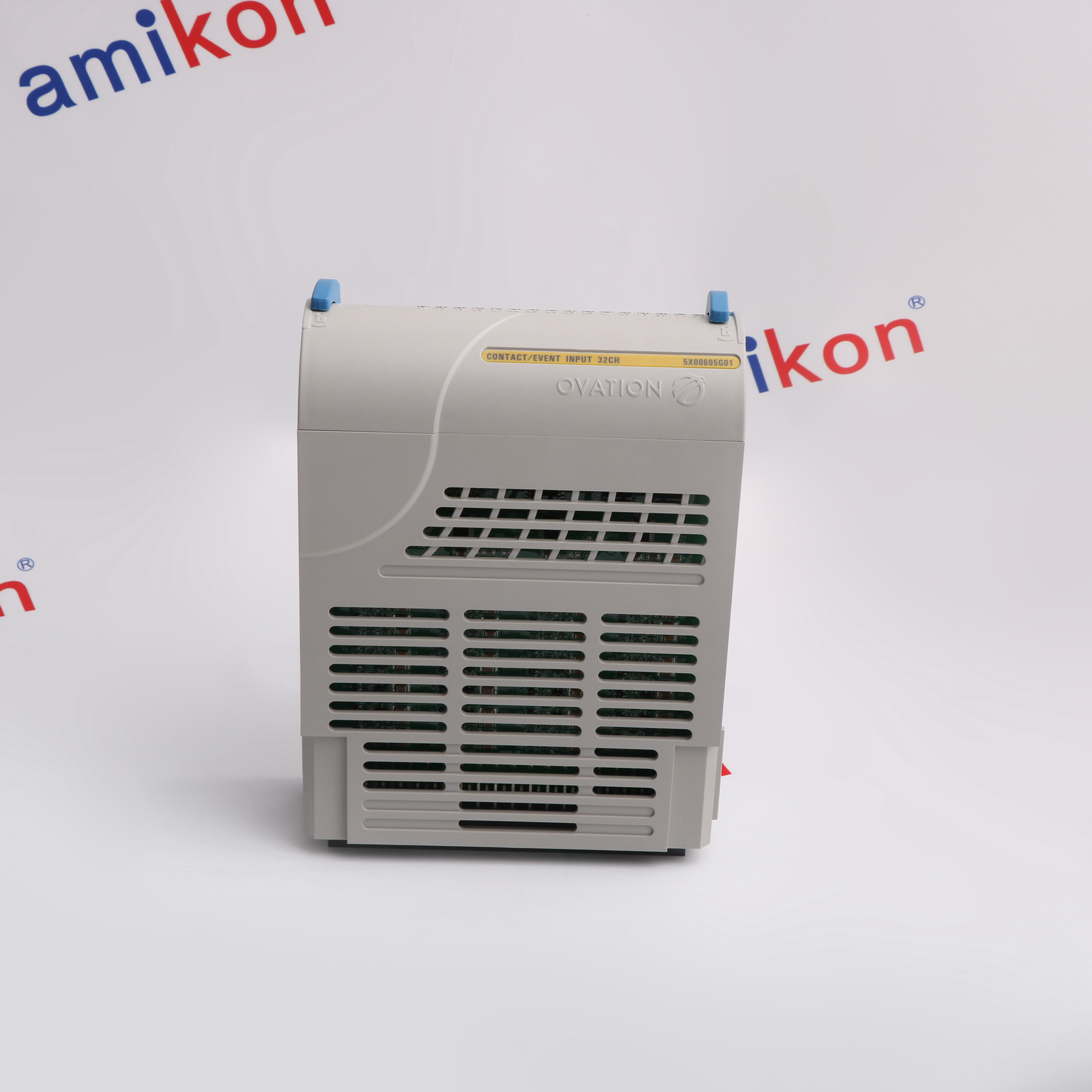

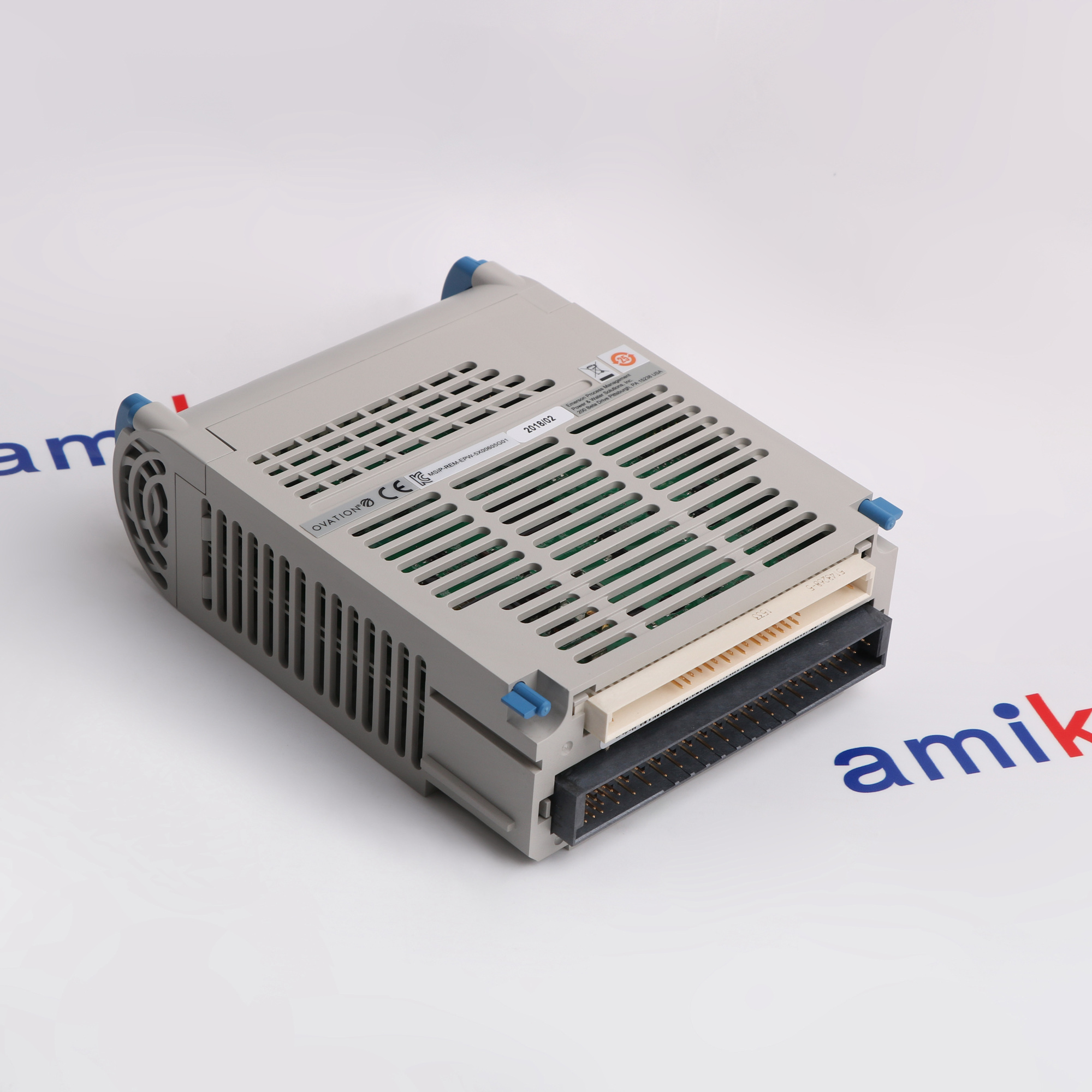

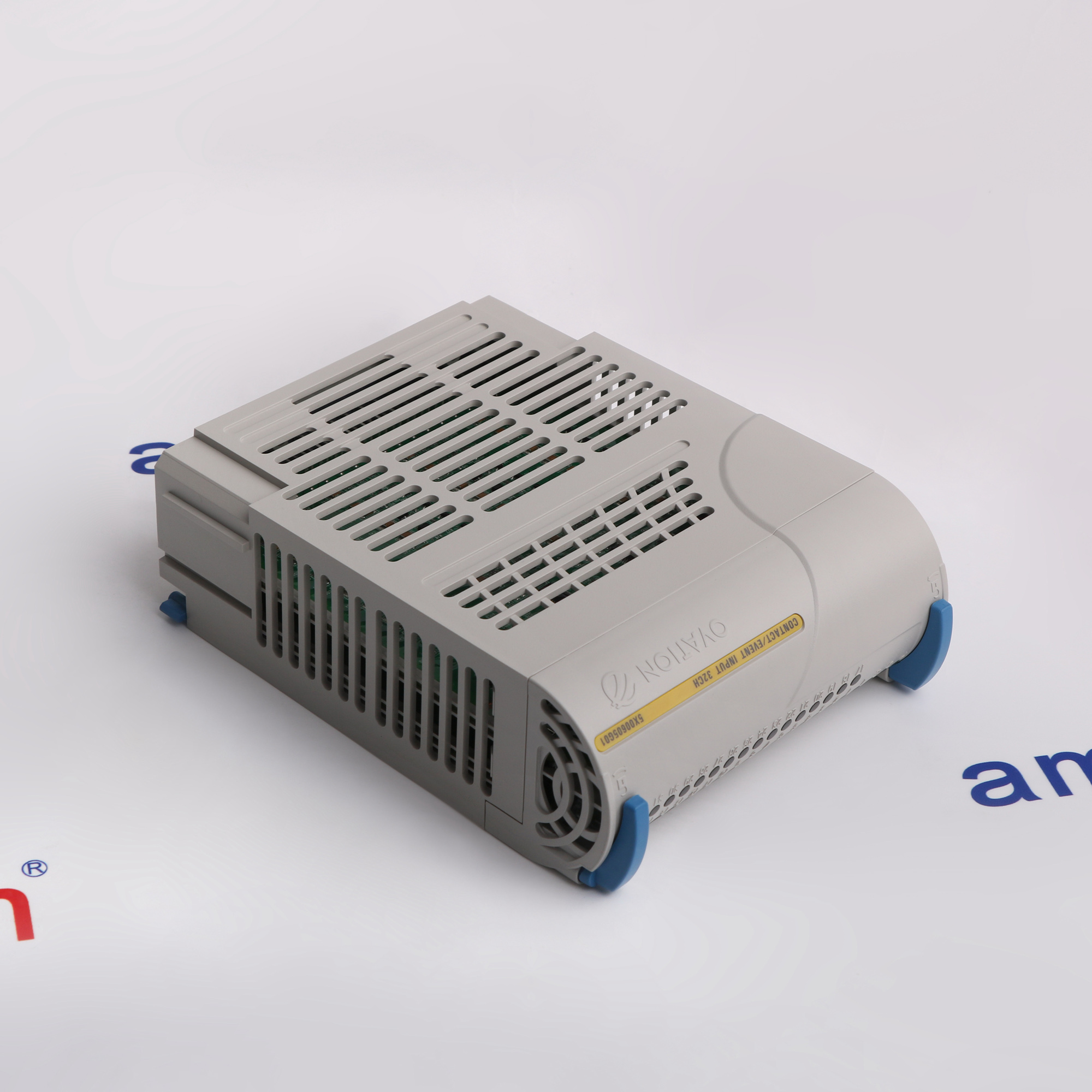

      Emerson 5X00605G01
      Emerson 5X00605G01
      Emerson 5X00605G01
      Emerson 5X00605G01
      Emerson 5X00605G01
      Emerson 5X00605G01
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Thursday, November 12

      5X00605G01

      32-channel contact input electronics module

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          5X00605G01 32-channel contact input electronics module

          Emerson 5X00605G01 is the Ovation high-density sequence-of-events electronics module with thirty-two 48 V DC single-ended contact inputs. It detects contact transitions and supplies the event information used by the controller to establish the order of state changes.

          The module is installed on a four-position high-density Ovation I/O base and uses cavity insert 1X00884H01 without a separate personality module. It registers both high-to-low and low-to-high transitions. Its current-sourcing contact-input construction is different from an analog input card or an externally driven digital-voltage input.
          BEFORE YOU BUY

          Confirm the complete 32-channel contact input electronics module

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for 5X00605G01

          5X00605G01 is used in the following application areas within compatible Ovation high-density sequence of events configurations.
          • 01 · HYDROPOWER

            Hydroelectric Generation and Grid Energy Storage

            Run-of-River HydropowerReservoir Hydropower Development
          • 02 · FOSSIL FUEL POWER

            Thermal Electricity Production and Regional Heat Supply

            Gas-Fired Power GenerationIndustrial Cogeneration
          • 03 · WATER & WASTEWATER

            Municipal Water Supply and Industrial Wastewater Treatment

            Drinking Water TreatmentWastewater Resource Recovery

          Technical specifications for 5X00605G01

          • Product Model
            5X00605G01
          • Product Parameters
            32-channel contact input electronics module
          • In stock
            1 unit
          • Manufacturer
            Emerson
          • Contact input channels
            32
          • Contact wetting voltage
            48 V DC
          • Input circuit arrangement
            Single-ended, current-sourcing contact inputs
          • Transition capture
            Both high-to-low and low-to-high transitions
          • Base requirement
            Four-position high-density Ovation base; not two-slot
          • Cavity insert
            1X00884H01; no separate personality module required
          • Associated field terminals
            53 positions in rows A, B and C
          • Base terminal-wire range
            22 to 12 AWG for one conductor
          • Field-terminal tightening torque
            3 to 4 lbf·in; 0.33 to 0.45 N·m
          • DIN-rail base fixing torque
            33 to 35 lbf·in; 3.73 to 3.95 N·m
          • Common strip capacity
            16 positions per module, 2 terminations each
          • Documented module compliance
            CE Mark compliant combination
          View all additional
          Ask for Quote

          Alternative Names

          5X00605G01 Ovation 32-channel contact-input SOE module Westinghouse high-density event-input electronics
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate 5X00605G01 32-channel contact input electronics module

          Plan the thirty-two contact inputs on the required high-density base and use cavity insert 1X00884H01. The manufacturer reference explicitly excludes the standard two-slot base for this module. Preserve the controller event assignments as well as the steady-state digital input mapping.
          Contact inputs use the module wetting source, so field wiring must match the current-sourcing arrangement rather than an externally applied-voltage input circuit. The event records for different points are independent, allowing both transition directions to be represented in the sequence-of-events data.
          The module is installed on a four-position high-density Ovation I/O base and uses cavity insert 1X00884H01 without a separate personality module. It registers both high-to-low and low-to-high transitions. Its current-sourcing contact-input construction is different from an analog input card or an externally driven digital-voltage input.

          Features:

          • Thirty-two 48 V contact inputs
          • Both transition directions represented
          • 1X00884H01 cavity-insert arrangement
          The 5X00605G01 32-channel contact input electronics module requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify 5X00605G01 32-channel contact input electronics module

          Check that the replacement is 5X00605G01 contact-input SOE electronics, not a similarly named ordinary digital input or analog module. Record the cavity insert, base, channel numbering and event configuration before disconnection.
          After reconnection, exercise both contact transitions on representative channels and compare the resulting state and event records. Check common-strip wiring and terminal tightening against the applicable base instructions; a valid static state alone does not verify event capture.
          Correct steady-state input values do not by themselves prove that the intended transition events and channel assignments have been preserved.

          Features:

          • Exclude standard two-slot bases
          • Retain event and channel assignments
          • Prove transition capture as well as static state
          The 5X00605G01 32-channel contact input electronics module requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Verify document identity before procurement or installation
          • Match the complete order to the manufacturer document scope
          • Accessories are supplied only when listed in the quotation
          Documentation for the 5X00605G01 32-channel contact input electronics module must be checked for document applicability before installation or commissioning.

          Also searched as

          1C31197G01 5X00790G01 5X00501G01 1C31199G01 1C31204G01

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            12.0 x 5.0 x 16.5 cm
            Shipping weight
            0.34 kg
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8538909100
            Origin
            United States
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 5X00605G01

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Is 5X00605G01 an analog input card?

            No. Emerson identifies it as thirty-two-channel contact-input sequence-of-events electronics.

          • Does this SOE module need a separate personality module?

            The documented combination uses cavity insert 1X00884H01 and does not require a separate personality module.

          • Can the module be fitted to a standard Ovation two-slot base?

            No. It requires the four-position high-density base.

          • Are only rising contact transitions included in event capture?

            No. The reference describes both high-to-low and low-to-high transitions.

          • What does current-sourcing mean for these contact inputs?

            The contact-input arrangement supplies the wetting source; the field circuit must follow that documented input arrangement.

          • Why should a replacement be checked for events as well as ON/OFF values?

            Correct steady-state input values do not by themselves prove that the intended transition events and channel assignments have been preserved.

          • How should an MRO order identify the high-density input assembly?

            State 5X00605G01 electronics and identify the four-position base and 1X00884H01 cavity insert.

          • Can the base and insert be supplied with the SOE electronics?

            List them as separate requested items so the quotation confirms exactly which components are included.
