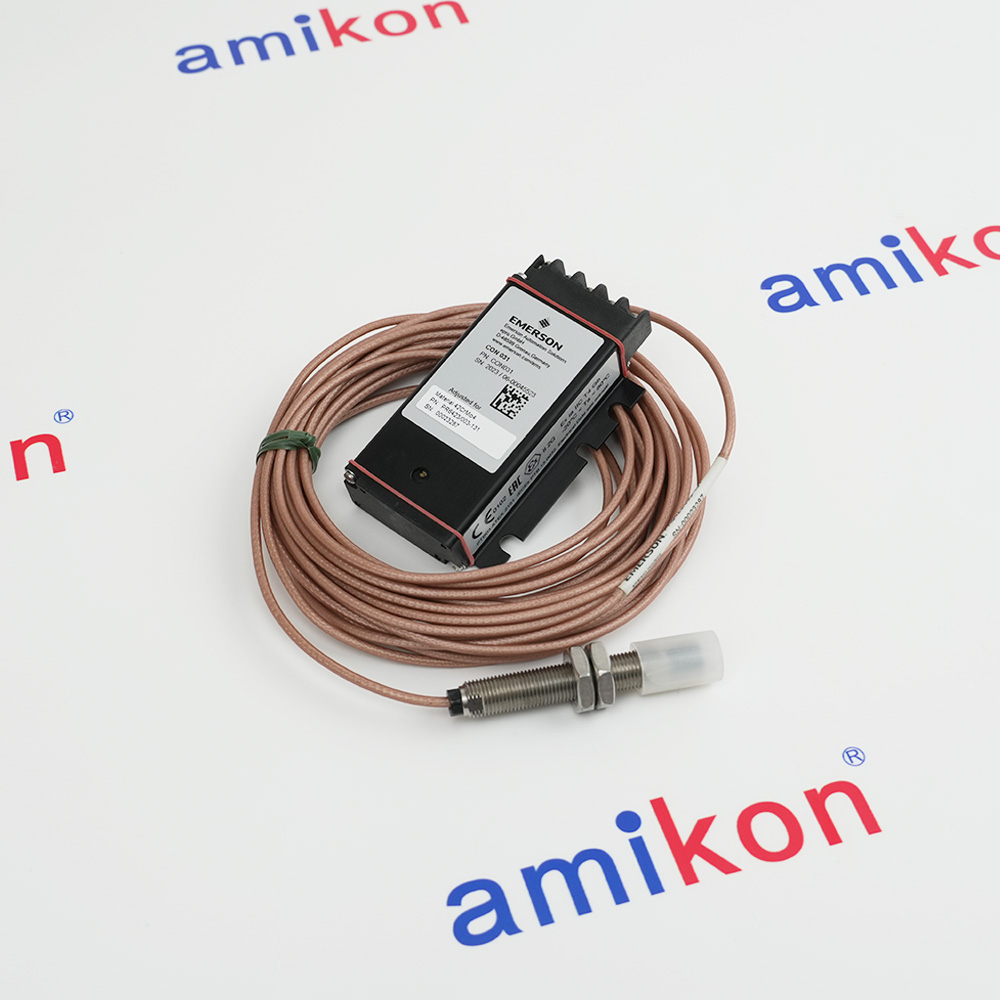

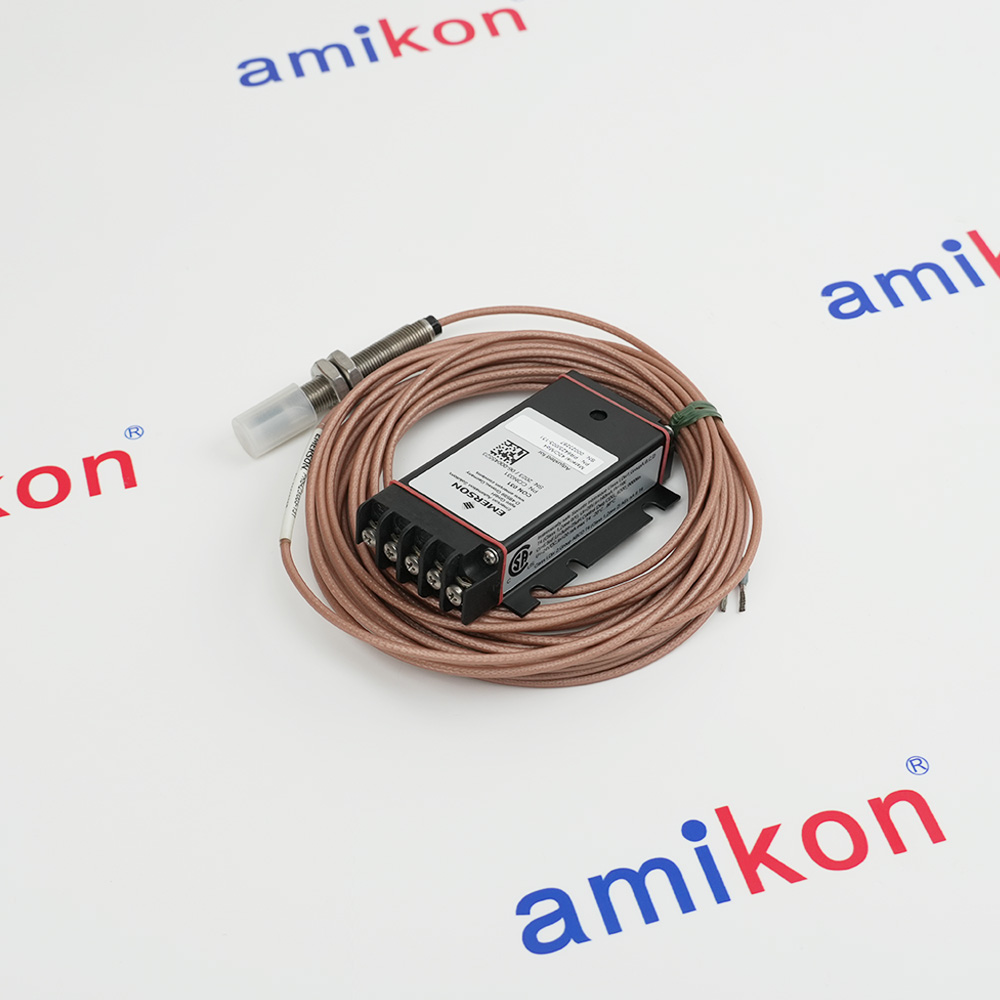

- PR6423/003-131 CON031
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for PR6423/003-131 CON031
-
Product ModelPR6423/003-131 CON031
-
Spare ModelPR6423/003-131
-
Product Parameters8mm Eddy Current sensor
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size17x15x4cm
-
ManufacturerEpro
-
Weight0.25 kg
-
Linear Measurement Range2 mm (80 mils)
-
Initial Air Gap0.5 mm (20 mils)
-
Deviation from best fit straight line± 0.025 mm (± 1 mil)@ temperature range 0 to 45°C(+32 to +113°F)
-
Minimum Shaft Diameter25 mm (0.79”)
-
Target Material42CrMo4
-
Sensor incl. 1m Cable-35 to +180°C (-31 to 356°F)
-
Cable & Connector-35 to +150°C (-31 to 302°F)
Description
Eddy Current sensor
8 MM EDDY CURRENT
2 MM RANGE
0.5 MM AIR GAP
25 MM SHAFT DIAMETER
1 M CABLE LENGTH
-35 TO +150 DEGREE C
8 MM EDDY CURRENT
2 MM RANGE
0.5 MM AIR GAP
25 MM SHAFT DIAMETER
1 M CABLE LENGTH
-35 TO +150 DEGREE C
Information
Overview
Manuals
Technical notes
Product Applications
Step-by-Step Installation
Features:
- Non-Contact 8 mm Eddy Current Sensing with ±1.0 mm Measurement Range
- High Sensitivity of 8 V/mm with Wide 0–20 kHz Frequency Response
- CON031 Signal Converter with <15 µs Rise Time & Screw-Terminal Connectivity
- Extreme Temperature Resilience
- Stainless Steel Construction with 2 Bar Pressure Rating & Flexible Mounting
- Full International Standards Compliance
At the core of the system is the PR6423 probe, which features an 8.0 mm tip diameter and employs the eddy current principle to detect minute changes in the gap between the probe tip and a conductive target surface (typically a steel shaft or measuring collar). The probe generates a high-frequency electromagnetic field that induces eddy currents in the target; variations in the gap distance alter the field's impedance, which is then precisely measured and converted into a proportional voltage signal.
The PR6423/003-131 CON031 EPRO 8mm Eddy Current sensor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
EPRO PR6423/003-131 CON031 8mm Eddy Current sensor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PR6423/003-131 variant is configured with an M10 × 1 thread (code "0" in the ordering matrix), no armored cable, a 55 mm sleeve length, an adapter plug at 1 m from the probe tip, a total cable length of 30 m, and an open (blunt cut) cable end for direct connection to the CON031 converter. The probe delivers a linear measuring range of ±1.0 mm for static position measurements and 0 to 500 μm peak-to-peak for dynamic vibration monitoring. Its calibrated sensitivity is 8 V/mm (203.2 mV/mil) with ±1.0% accuracy, and when combined with the CON031 converter, the system achieves a frequency response from DC (0 Hz) to 20,000 Hz (–3 dB), ensuring that both slow-roll rotor bow and high-frequency blade-pass vibrations are faithfully reproduced. The probe's nominal gap (center of measuring range) is 1.5 mm, with a linearity error of ≤±1% and a temperature drift of <<2% per 100 K on sensitivity and 200 mV per 100 K on zero point.
- Turbomachinery Monitoring:Steam/gas/hydro turbines, compressors, pumps & blowers
- Radial Shaft Vibration:Dynamic shaft motion in sleeve bearing machines
- Axial Shaft Position (Thrust):Monitors thrust to prevent bearing damage
- Shaft Eccentricity:Detects eccentricity during start-up or shutdown
- Differential Expansion:Rotor-casing expansion difference
- Speed/Key Phasor:Speed & key signal monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the Target Surface: Ensure the shaft measuring area complies with minimum width and tangential offset limits. The area must be clean, free of scratches, and machined smoothly to avoid electrical runout errors.
Mount the Bracket: Install a compatible probe holder or mounting bracket, such as the Emerson Model PMB021 Bracket, securely through or inside the bearing case.
Set the Initial Air Gap: Thread the sensor into the bracket until the physical distance between the PEEK sensor tip and the shaft target is exactly 0.5 mm. Use a non-magnetic feeler gauge or monitor the voltage output using a connected converter to set this reference point.
FAQs
-
What is the PR6423/003-131？
+The EPRO PR6423/003-131 is a 8mm Eddy Current sensor for measuring vibration, shaft displacement, and speed in high-temperature, radioactive, or hazardous environments -
What is the required target material?
+Ferromagnetic steel (standard is 42CrMo4, AISI/SAE 4140). -
What approvals does it have?
+CE, ATEX, IEC-Ex, and CSA for hazardous areas (Intrinsic Safety). -
What is the typical measurement range?
+Most configurations have a 2.0 mm to 3.0 mm linear range. Variants like the PR6423/10R support specialized spans up to 5mm. -
Which signal converters match this sensor?
+The transducer pairs with the CON021, CON031, or CON041 eddy current signal converters.
