What is the function of the 5136-PFB-VME?

It acts as a master or slave interface on a Profibus-DP network, allowing VMEbus systems to control Profibus devices.

What VME addressing modes are supported?

The card provides 8-bit access to the short address space and 8-bit/16-bit access to the standard address space.

The card is typically powered directly via the VMEbus backplane.

How much memory does it have?

The card has 512 Kbytes of local RAM and 512 Kbytes of sectored flash memory for storing programs and configuration data

Get Parts Quote

Name

Company *

Phone *

Email *

Address

City

State / Province / Region

Zipcode

Country

Quantity *

Part Number *

Manufacturer

Preferred Condition

Additional Information

Cancel

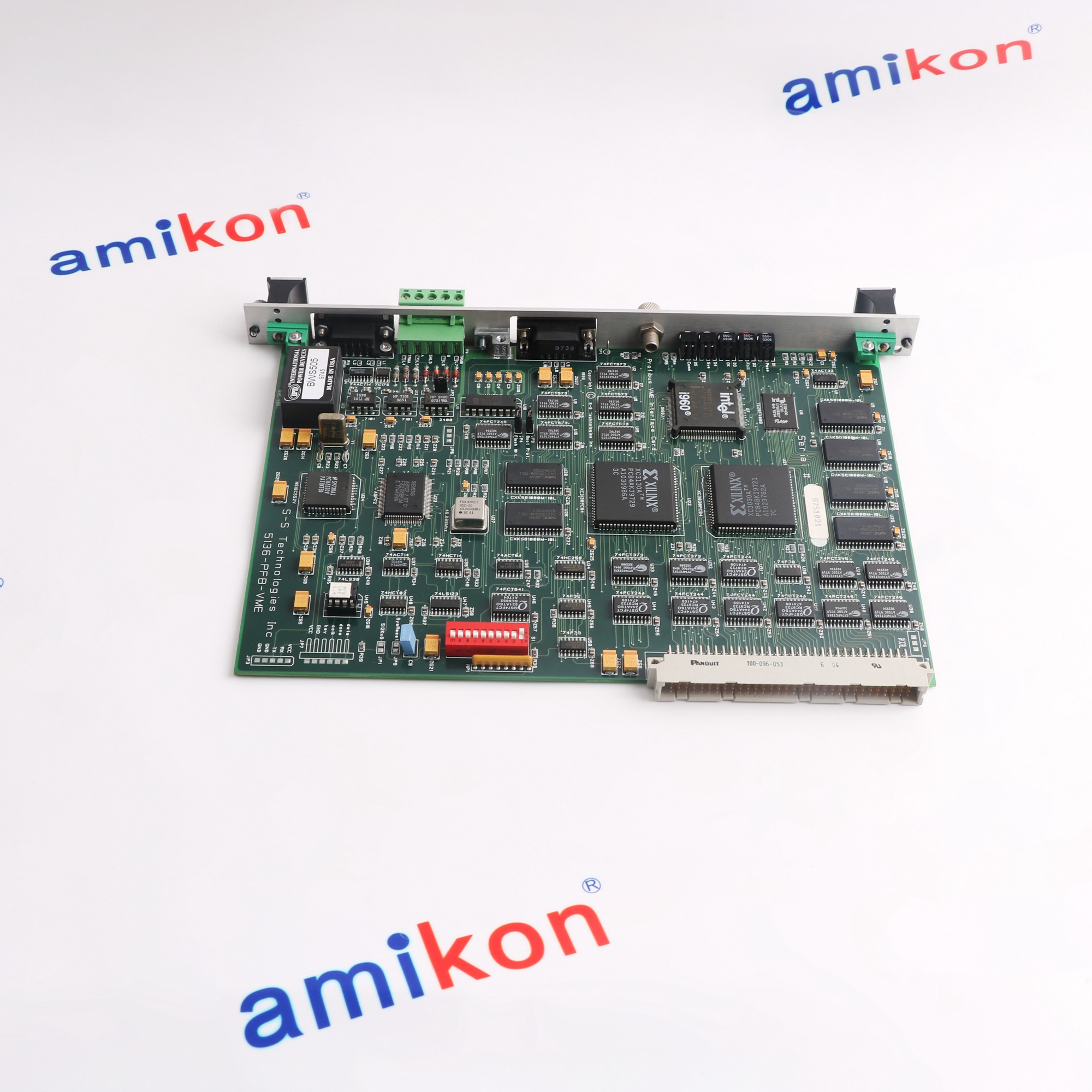

5136-PFB-VME

Name: 5136-PFB-VME
Brand: General Electric

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Information

Product Describe

5136PFBVME
PROFIBUS INTERFACE CARD
INTEL 32-BIT I960 RISC PROCESSOR
512 KB OF FLASH MEMORY
LED STATUS INDICATORS
SUPPORTS AL STANDARD PROFIBUS BAUD RATES
9.6 KBAUD TO 12 MBAUD

Technical specifications for 5136-PFB-VME

Product Model

5136-PFB-VME
Product Parameters

Profibus Interface Card
Tariff Code

8537101190
Country of origin

USA
Place of shipment

Xiamen, China
Estimated Shipping Size

2x18.7x26.1cm
Manufacturer

General Electric
Weight

0.3 kg
Physical Layer

RS-485
Connector Type

9-pin D-sub
Baud Rates Supported

9.6 kbit/s to 12 Mbit/s
Supported PROFIBUS Classes

DP-V0, DP-V1
Max Nodes on Network

Up to 126 devices
Power Requirements

+5V DC typical
Temperature Range

0°C to 70°C operating

Factory New

These are new and current items that are procured from the manufacturer.
New No Package

These parts are new. They have not been used, but their original packaging is no longer available.
New In Opened Package

These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.
New In Sealed Package

Parts are new. They have not been used and still have their original package seal intact.
New in Original Package

These parts are new. The packages were not originally sealed by their original manufacturer.

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is the function of the 5136-PFB-VME?+

It acts as a master or slave interface on a Profibus-DP network, allowing VMEbus systems to control Profibus devices.
What VME addressing modes are supported?+

The card provides 8-bit access to the short address space and 8-bit/16-bit access to the standard address space.
How is it powered?+

The card is typically powered directly via the VMEbus backplane.
How much memory does it have?+

The card has 512 Kbytes of local RAM and 512 Kbytes of sectored flash memory for storing programs and configuration data

Get a quick price fo 5136-PFB-VME

*Quantity

*E-mail

Company

*Mobile

*Content

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Amikong please read our privacy policy.

Inquiry

Control system parts

Required delivery time

ask

Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

Product

MORE INFORMATION

Overview Manuals Technical notes Product Applications Hardware Setup & Jumper Settings

Features:

act as a DP slave
act as a DP master
send and receive FDL (layer 2) messages

The 5136-PFB-VME can communicate as a DP master to control up to 126DP slaves. Each slave can have up to 244 bytes of input data and 244 bytes ofoutput data. The supported total for all slaves is 16 Kbytes of input data and16 Kbytes of output data. The host application can configure the slaves using a configuration fileexported from the SST ProfiBus Configuration Tool or the Siemens COMPROFIBUS software or it can configure the slaves itself.We recommend that you configure the card using the SST ProfiBusConfiguration Tool or COM PROFIBUS. Otherwise, you need detailedknowledge of all the slaves you are scanning, of the parameters that apply tothe entire scan, and of parameters that apply to the network itself.One page of shared memory on the card reserved for the master controlblocks. A second page is reserved for input data from the slaves and a thirdpage is reserved for output data to the slaves. The card writes the pagenumbers for these pages in the PROFI_USR structure. This structure alsocontains global control and status registers for the master.

The 5136-PFB-VME GE PROFIBUS INTERFACE CARD may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

GE 5136-PFB-VME PROFIBUS INTERFACE CARD Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

The card has an additional 256 Kbytes of RAM which is shared with the hostas either a single block of 256 Kbytes (linear addressing mode) or as one ofsixteen, 16 Kbyte pages (paged mode). In paged mode, the host determineswhich page of this shared RAM is mapped into the host memory by writing toa register on the card. This block of memory contains all the tables andbuffers that are used to pass information between the interface card and theapplication software running in the host computer. This approach ensures afast and simple connection between the host computer and the card software.In addition, the card has 512 Kbytes of sectored flash memory, for storage ofprograms and configuration data. ProfiBus configuration information mayalso be stored in flash.

Automotive Assembly Plants:High-speed robotics, paint lines & body assembly via PROFIBUS
Petrochemical & Oil Refineries:Precise monitoring of remote sensors, valves & pumps
Steel & Metal Processing Mills:Deterministic control for rollers, furnaces & metal cutters
Pharmaceutical & Food Processing:Automated filling, centrifuges & packaging with multi-node PROFIBUS
Heavy Industry:Chemical plants, steel mills & industrial manufacturing

This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

Transmit Enable (JP2): Used to enable or disable the network transmitter.

Flash Write Enable (JP4): Must be set to "Enable" if you plan to download the firmware or configuration directly into the onboard flash memory.

Boot Protect (JP9): Protects the boot code from being accidentally overwritten.

Address Space: The card utilizes 5 registers in the VME short address space for control and 256 KB of shared RAM (linear or paged mode) for data exchange with the host.
