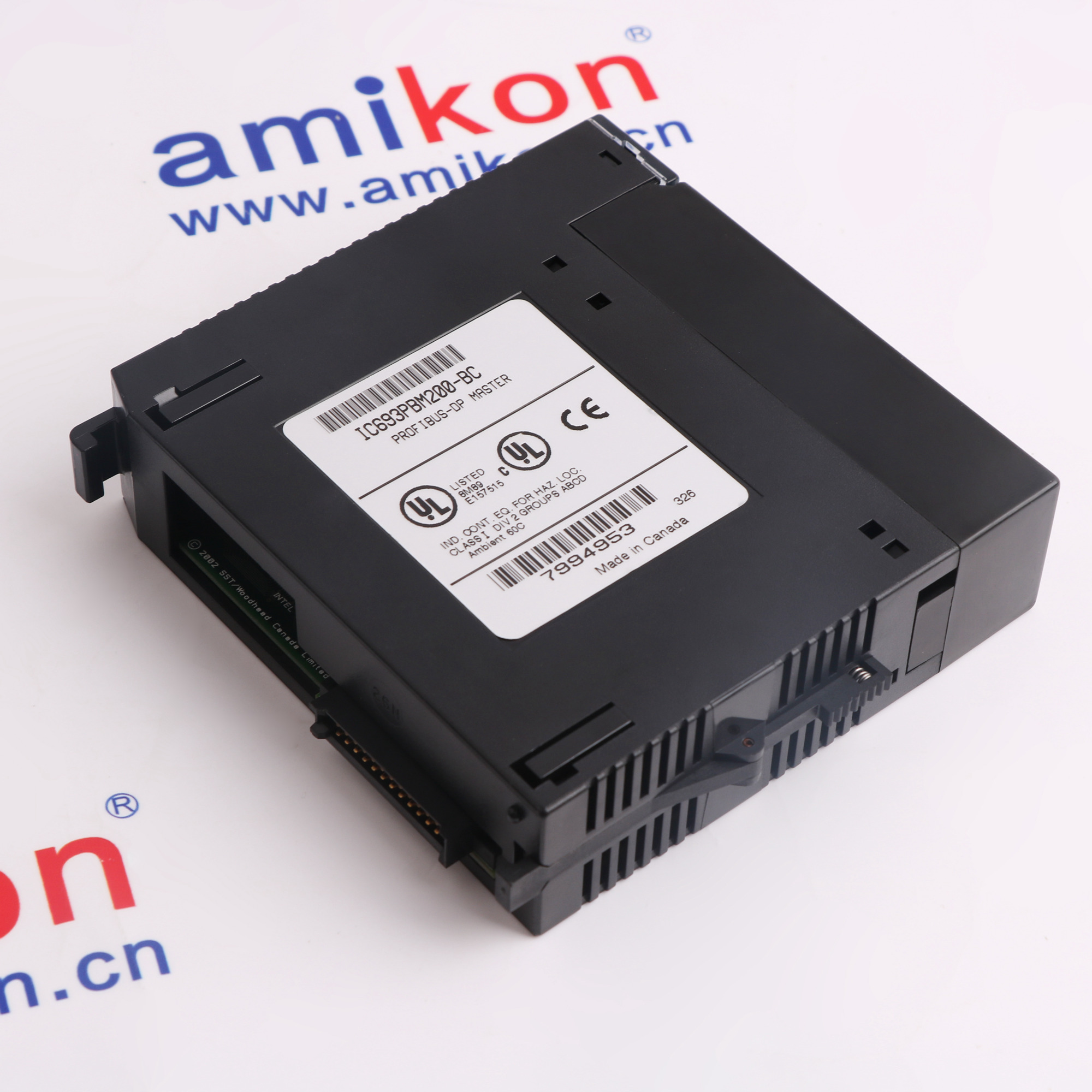

Technical specifications for IC693PBM200
-
Product ModelIC693PBM200
-
Product ParametersPROFIBUS DP MASTER MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x13.5x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.2 kg
-
Backplane Current Consumption450 mA at 5VDC (typical)
-
Mounting LocationAny Series 90-30 Baseplate
-
Climate ControlRecommended in Extreme Temperatures
-
Baud rates9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M and 12M Baud
-
Status informationSlave Status Bit Array table; Network diagnostic counters; DP master diagnostic counters; Slave Diagnostic Address
Description
IC693PBM200
PROFIBUS DP MASTER MODULE
SERIES 90-30
SUPPORTS UP TO 125 DP SLAVES
244 BYTES OF INPUT AND 24 BYTES
OF OUTPUT FOR EACH SLAVE
PROFIBUS DP MASTER MODULE
SERIES 90-30
SUPPORTS UP TO 125 DP SLAVES
244 BYTES OF INPUT AND 24 BYTES
OF OUTPUT FOR EACH SLAVE
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Installation Requirements
Features:
- Series 90-30
- Profibus Master Module
- One (1) RS232 Service port; One (1) Profibus Master Port
The IC693PBM200 GE Profibus Master Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693PBM200 Profibus Master Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

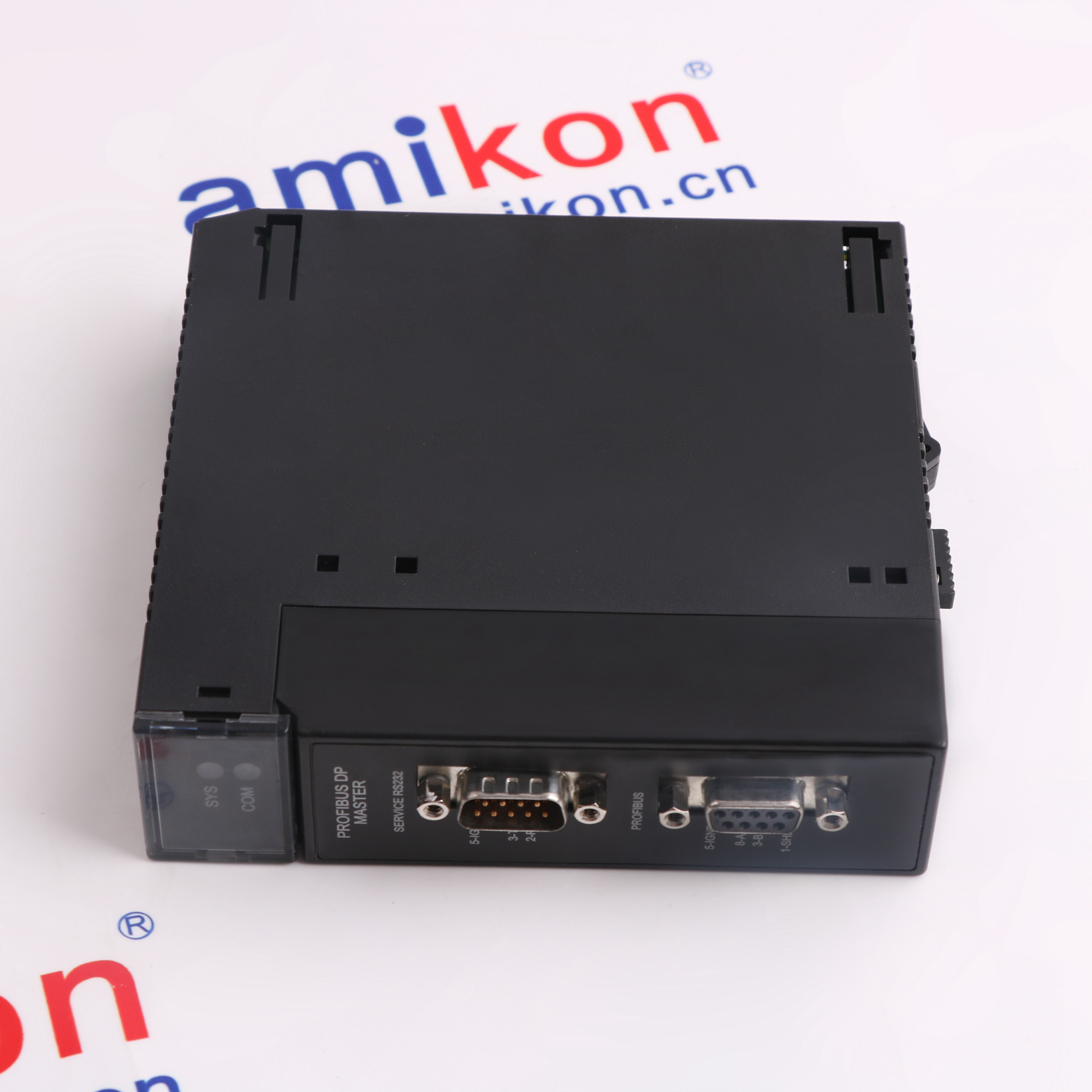

The IC693BPM200 is a Profibus Master Module that is part of the Series 90-30 controller platform previously from GE Fanuc, now acquired by Emerson Automation. This module is an option communications module that support Profibus communication protocol. It comes with One (1) Profibus Master port that supports communication to Profibus network in daisy chain topology and another RS232 service port that can be used for downloading configuration and firmware upgrade.
The IC693BPM200 is a single slot module that installs to the CPU baseplate, expansion or remote baseplate. It supports communication of up to 125 Profibus DP slaves, enabling implementation of Remote I/O architecture and communication to other devices such as gateways, HMI, SCADA and other devices. For Remote I/O functionality, each Profibus slave is able to receive 244 Bytes of input data and send 244 Bytes of output data. It supports Synch and Freeze configuration and configurable to all Profibus standard transmission rates ranging from 9600 Kbaud to 12MBaud. It follows Daisy-chain topology as this protocol is derived from RS485 electrical standard with both ends, specifically, node 1 and the last node of the network, closed by means of a terminating resistor. It also comes with SYS and COM status LEDs depicting active communication and device operation.
- Automotive & Heavy Industry:Coordinates VFDs & starters for conveyors & robotic arms
- Food & Beverage Processing:High-speed (12 Mbps) I/O for synchronized packaging/sorting
- Steel & Chemical Plants:Remote monitoring of sensors & delivery in harsh environments
- Plastic & Injection Molding:Precision molding with 3rd-party modules in GE Fanuc ecosystem
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Install the module in any Series 90-30 baseplate slot (CPU, expansion, or remote) except Slot 1 of a modular CPU baseplate, which is reserved for the CPU itself.
Power: Always turn off power to the PLC rack before inserting or removing the module to prevent electrical damage.
Shielding: Use continuous shielded PROFIBUS cable and ensure a high-frequency ground is within 18 inches of the module for noise immunity.
FAQs
-
What is the IC693PBM200?
+It is a PROFIBUS Master module that allows a Series 90-30 CPU to communicate with a PROFIBUS-DP network to send and receive I/O data. -
How many slave devices does it support?
+It can communicate with a maximum of 125 PROFIBUS DP slaves. -
What software is needed to configure IC693PBM200?
+Proficy Machine Edition Logic Developer, version 2.6 or later. -
What do the LEDs indicate?
+The module has COM and SYS LED indicators to show Profibus communication and system status. -
How does it compare to the older HE693PBM101?
+The IC693PBM200 has a default slave status area of 128 points (larger than the HE693PBM101) and arranges slave status bits by bus address rather than order of appearance.
