PRODUCT DESCRIPTION

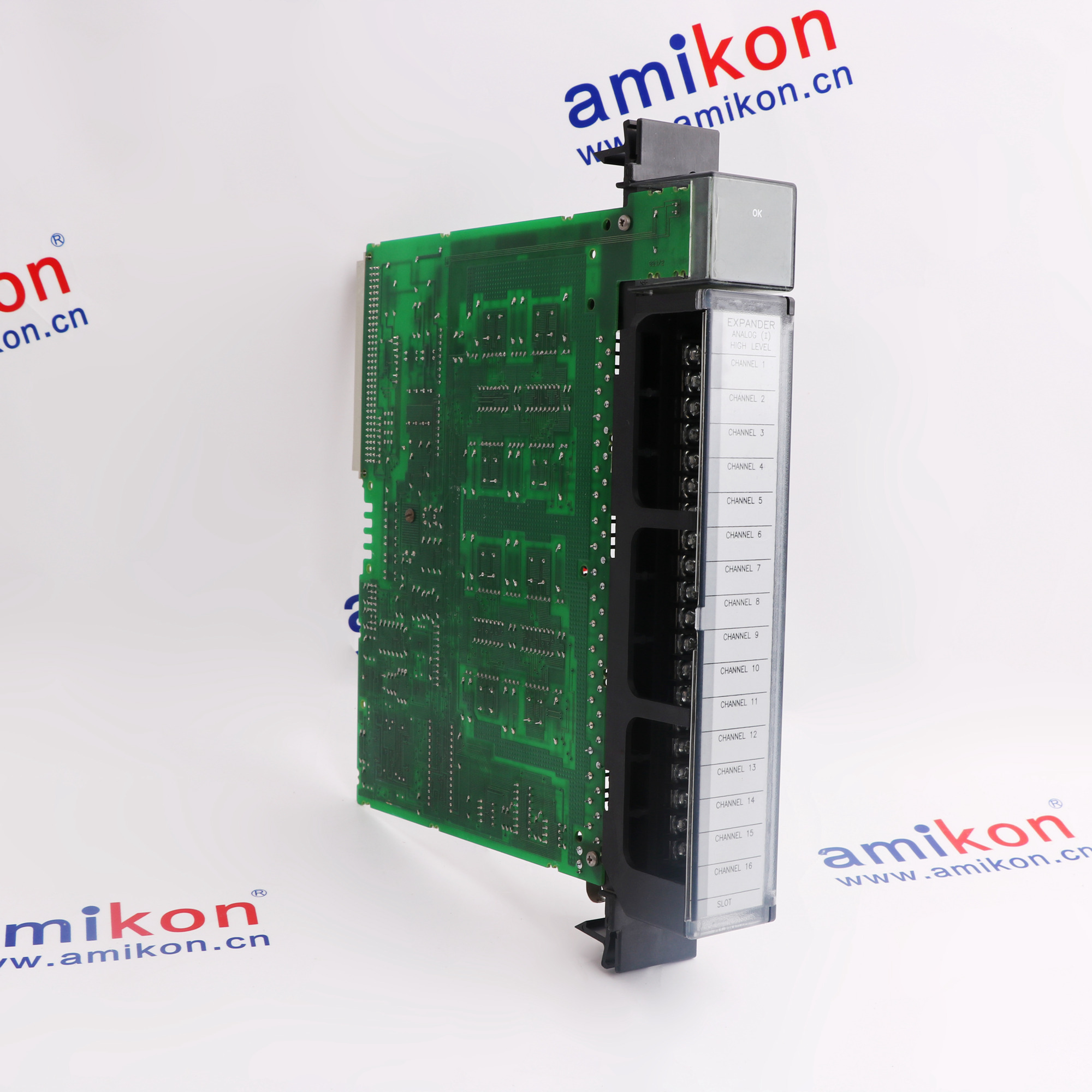

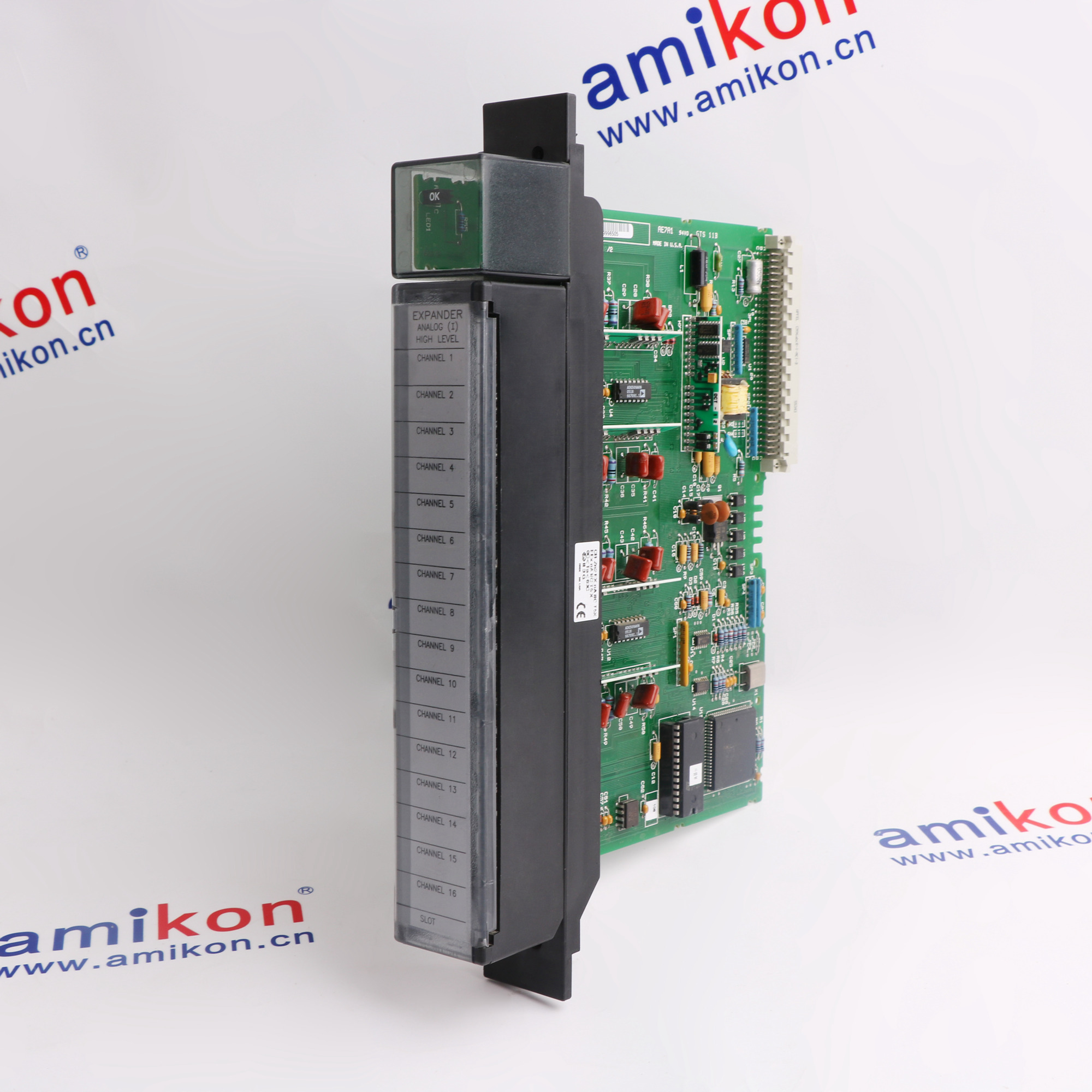

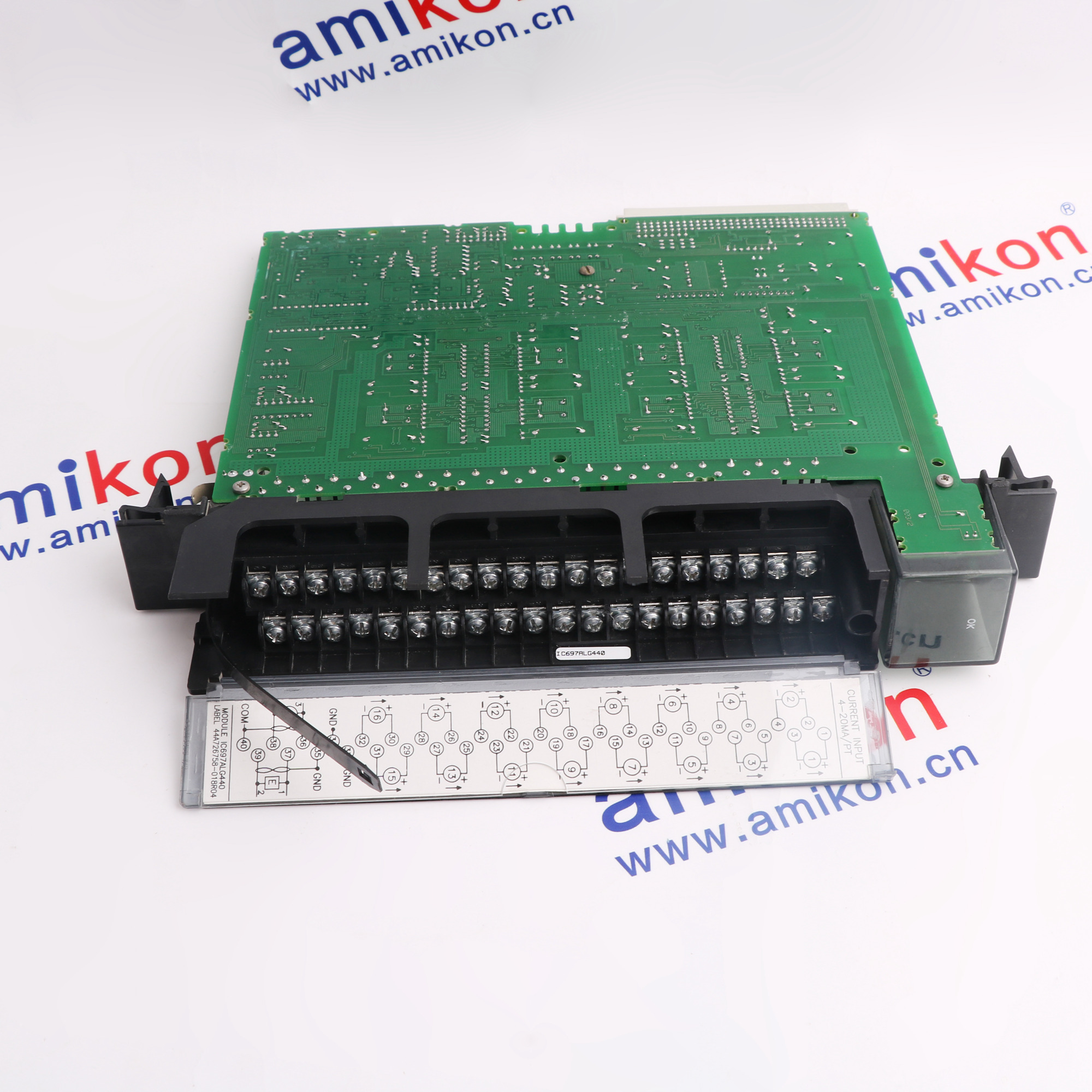

IC697ALG440 Series 90-70 sixteen-channel current input expander
GE IC697ALG440 is a Series 90-70 sixteen-channel current input expander in the GE 90-70 Series PLC range. Module role: Current-input analog expander. Input channels: 16. Input signal: 4–20 mA.
The manufacturer's document records its interface and service limits. Required base converter: IC697ALG230. Maximum expanders: Seven per base converter. Before installation, compare the complete catalog code, installed connections and controller configuration.
The manufacturer's document records its interface and service limits. Required base converter: IC697ALG230. Maximum expanders: Seven per base converter. Before installation, compare the complete catalog code, installed connections and controller configuration.
BEFORE YOU BUY
Confirm the complete series 90-70 sixteen-channel current input expander
ACTUAL APPLICATIONS
Application context for IC697ALG440
IC697ALG440 serves the documented GE 90-70 Series PLC role in the industry areas below. The manufacturer's guide describes module role as Current-input analog expander and input channels as 16. Verify the installed configuration for the particular application.
-
01 · METALS & MINING
Mineral Separation and Refining
Mining and Mineral IndustriesOre and Metals Industries -
02 · ENVIRONMENTAL SERVICES
Industrial Waste and Resource Recovery
Industrial Waste ManagementResource Recovery Services -
03 · FOOD & BEVERAGE
Food Ingredient and Beverage Processing
Food Ingredient ManufacturingBeverage Ingredient Industries
Technical specifications for IC697ALG440
-
Product ModelIC697ALG440
-
Product ParametersSeries 90-70 sixteen-channel current input expander
-
In stock1 unit
-
ManufacturerGeneral Electric
-
Module roleCurrent-input analog expander
-
Input channels16
-
Input signal4–20 mA
-
Required base converterIC697ALG230
-
Maximum expandersSeven per base converter
-
Complete subsystem capacityUp to 120 analog inputs
-
ScalingPer expander module
-
Current step0.5 μA per LSB with default scaling
-
Current conversion codes14-bit, no missing codes
-
Expander current accuracy±0.07% full scale ±0.1% value at 25 °C
-
Current temperature coefficient±30 ppm per °C maximum
-
Current input shunt250 Ω, 0.1% precision
-
Channel interactionNo measurable expander-channel crosstalk
-
Input update interval44.8 × N ms, N = number of expanders
-
Backplane draw5 V at 0.4 A per expander
View all additional
Alternative Names
IC697ALG440
GE 90-70 Series PLC Series 90-70 sixteen-channel current input expander
IC697ALG440 Series 90-70 sixteen-channel current input expander
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate IC697ALG440 series 90-70 sixteen-channel current input expander
The manufacturer source documents IC697ALG440 for GE 90-70 Series PLC. It describes module role as Current-input analog expander. Match the controller assembly, slot or network identity and available power before connection.
Use the documented interface and connection arrangement. Input channels is 16; input signal is 4–20 mA. Check all field conductors, configuration and external supply against the installed project.
At startup, review power and status indications, test every affected channel, port or function in sequence, then record the verified settings and exact installed revision for future maintenance.
Features:
- 16 current-input channels
- 4–20 mA loop signals
- IC697ALG230 base converter
The IC697ALG440 series 90-70 sixteen-channel current input expander requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify IC697ALG440 series 90-70 sixteen-channel current input expander
Verify the full IC697ALG440 marking, including its suffix, before removing the installed unit. A base manual for IC697ALG440 must be read with any applicable revision information and the current hardware configuration.
Preserve the project and photograph wiring, connector assignments, slot position and indicators. Compare the replacement's module role (Current-input analog expander) and input channels (16) with the service record.
After the change, restore the approved setup, confirm controller recognition and test affected signals or communications. Record the final nameplate and validation results.
Features:
- Up to seven expanders per base
- 16 current-input channels
- IC697ALG230 base converter
The IC697ALG440 series 90-70 sixteen-channel current input expander requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the IC697ALG440 series 90-70 sixteen-channel current input expander must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size4 × 21.8 × 29.2 cm
-
Shipping weight0.60 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about IC697ALG440
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How should IC697ALG440 be checked before ordering?
Compare the full catalog and suffix with the installed label, GE 90-70 Series PLC assembly and manufacturer document. -
Can another revision of IC697ALG440 replace IC697ALG440?
Do not infer interchangeability from the shared base number. Check applicable release notes, firmware and project compatibility. -
What should engineers record before exchanging IC697ALG440?
Save the approved project and record the slot, full nameplate, connector or terminal assignments, supply and current diagnostics. -
How should IC697ALG440 be tested after installation?
Confirm controller recognition and status, exercise each affected function with a known condition, and archive the measured outcome. -
Which manual covers IC697ALG440?
The linked manufacturer document covers base article IC697ALG440. Verify the particular IC697ALG440 suffix against the delivered module. -
What does a distributor need to quote IC697ALG440?
Send the complete order code, quantity, condition, delivery country and a legible label photo if revision matching is critical. -
How should incoming IC697ALG440 be inspected?
Compare the full label and condition against the quotation; inspect contacts, housing and included accessories before installation. -
What should be checked if IC697ALG440 is not recognized?
Confirm the correct slot or network position, supply, bus or firmware compatibility and project configuration before replacing other hardware.
