Technical specifications for IC697ALG230
-
Product ModelIC697ALG230
-
Spare ModelIC697ALG230J
-
Product ParametersAnalog Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x21.8x29.2cm
-
ManufacturerGeneral Electric
-
Weight0.66 kg
-
CalibrationBase Converter Voltage: ±.01% of full scale, ±.02% of value Base Converter Current: ±.05% of full scale, ±.1% of value
-
Temperature Coefficient±5 PPM per °C typical ±15 PPM per °C maximum, voltage ±30 PPM per °C maximum, current
-
Voltage Accuracy+/- 0.01% of full scale, +/- 0.02% of value
-
CalibrationFactory set at 10 Volts +/- 2 mV
-
Compatible expander modulesIC697ALG440 Voltage Expander Module; IC697ALG441Current expander modules
-
Current Accuracy+/- 0.05% of full scale, +/- 0.1% of value
-
Power Requirement0.8 Amps (4 watts) at +5 Volts
-
Linearity±.02% of full scale over entire negative to positive range
-
ManufacturerGE Fanuc (Formerly); Emerson Automation (Current)
-
Response times5.0% 30 milliseconds; 1.0% 42 milliseconds; 0.5% 51 milliseconds; 0.1% 67 milliseconds
-
Input rangesVoltage: –10 volts to +10 volts (default) Current: 0.0 mA to 22.5 mA (4 to 20 mA default)
Description

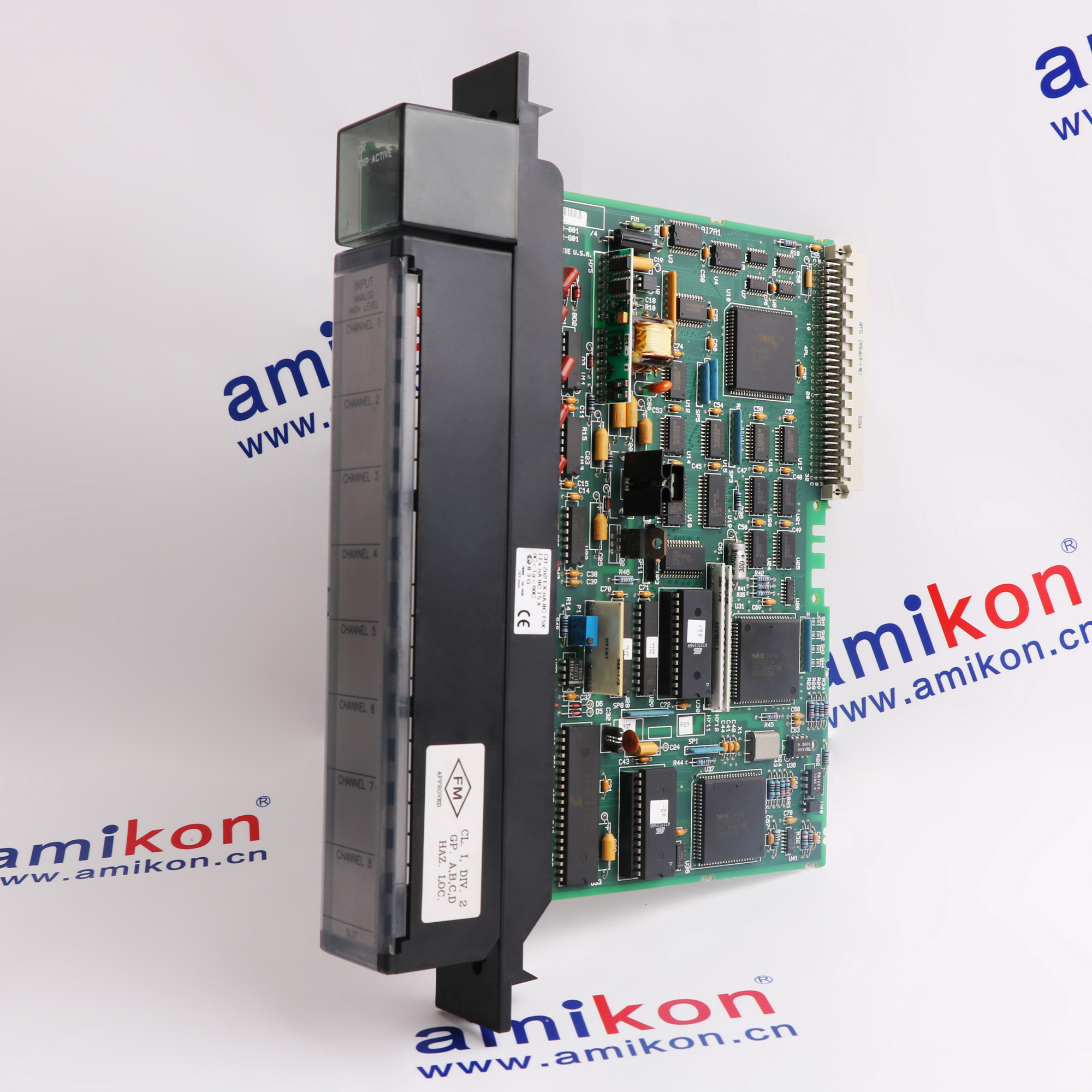

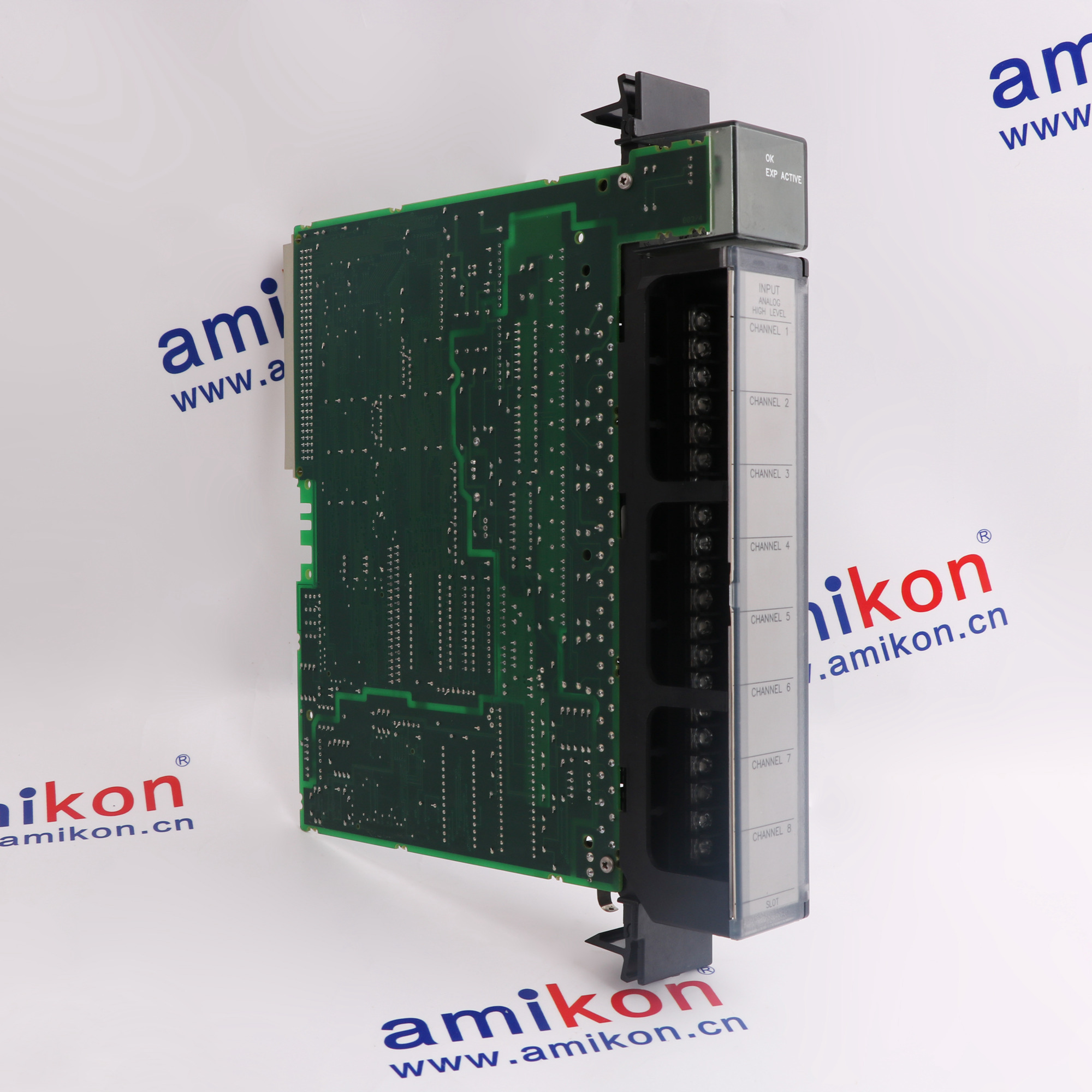

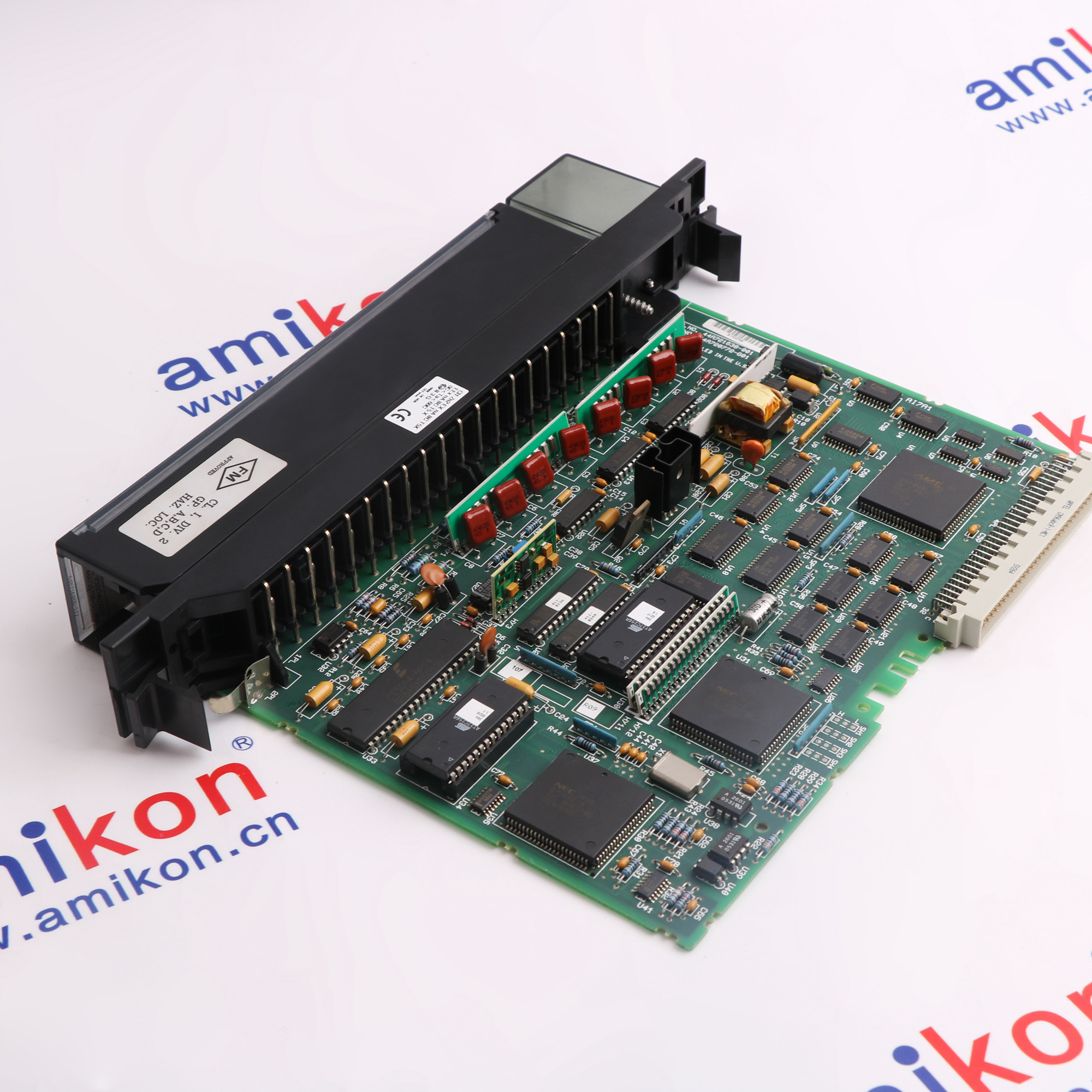

IC697ALG230
BASE CONVERTER MODULE
4-20 MA
VOLTAGE/CURRENT
8 CHANNELS
INDIVIDUALLY CONFIGURABLE FOR VOLTAGE OR CURRENT INPUTS
INDIVIDUAL USER SCALING ON EACH INPUT CHANNEL
BASE CONVERTER MODULE
4-20 MA
VOLTAGE/CURRENT
8 CHANNELS
INDIVIDUALLY CONFIGURABLE FOR VOLTAGE OR CURRENT INPUTS
INDIVIDUAL USER SCALING ON EACH INPUT CHANNEL
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Quick Configuration & Setup
Features:
- Base Converter + Expander modules
- 8 differential inputs
- Unipolar/bipolar inputs up to ±10V.
- Accepts 4-20 mA current loops
- Per-channel scaling on Base; per-module on Expander
- Fast Base Converter update rate
The High Level Analog Input subsystem for the Programmable Logic Controller (PLC) accepts analog inputs of up to Ç 10 volts full scale, or 4 to 20 milliampcurrent loop signals. These inputs are converted todigital form for use by the CPU or other controllersaccessing analog inputs via the VME backplane.Converted data is presented as 2’s complement (sign+ 15 bits). The basic converter is 14 bits resolution (1part in 16384); an oversampling and averaging technique further enhances this resolution. Inputs areprotected against transient and steady-state overvoltage conditions.
The IC697ALG230 GE Base Converter Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC697ALG230 Base Converter Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Analog inputs use %AI references in the programmable controller. A maximum of 8K words of %AImemory is currently available in the programmablecontroller. Each input channel uses one word (16 bits)of %AI memory.Field wiring is made to a removable terminal boardand the module is mechanically keyed to ensure correct replacement with a similar module type in thefield. I/O references are user configurable without theuse of jumpers or DIP switches on the module. Configuration is done using the configuration function of the MS-DOS or Windowsprogramming software running on Windows 95 or Windows NT overEthernet TCP/IP or through the SNP port. The Programming Software configuration function is installedon the programming device. The programming device can be an IBM XT, AT, PS/2 or compatible Personal Computer.
- Process Monitoring:Captures data from temp, pressure & flow sensors
- Manufacturing:Precise motion control for CNC & robotics
- Water and Power Facilities:Manages flow, pressure & chemical levels
- Naval Automation:For industrial & naval automation systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Software Configuration: Use Proficy Machine Edition (or legacy Logicmaster/VersaPro) to define each channel's input type, scaling, and %AI reference address.
Addressing: Each channel occupies one word (16 bits) of %AI memory.
Mechanical Keying: The module is mechanically keyed to its rack slot to prevent incorrect replacement in the field.
FAQs
-
What is the IC697ALG230?
+The IC697ALG230 is an 8-channel analog input module for the GE Fanuc Series 90-70 PLC system. It acts as a base converter module, which can operate alone or with expansion modules. -
What are the compatible expander modules?
+The IC697ALG230 supports voltage and current expander modules to increase input capacity, specifically the IC697ALG440 (Voltage Expander) and IC697ALG441 (Current Expander). -
Does it support expansion?
+Yes, it can connect to up to 7 expander modules (such as the IC697ALG440 or IC697ALG441) through its expansion port to support up to 120 total inputs. -
What are the specifications of the IC697ALG230?
+It features 8 differential input channels, supports ±10VDC or 4-20mA, provides 16-bit resolution and a 2.4 ms update rate. -
How are 4-20mA inputs handled?
+Channels are configured via software, requiring precision resistors across terminal points
