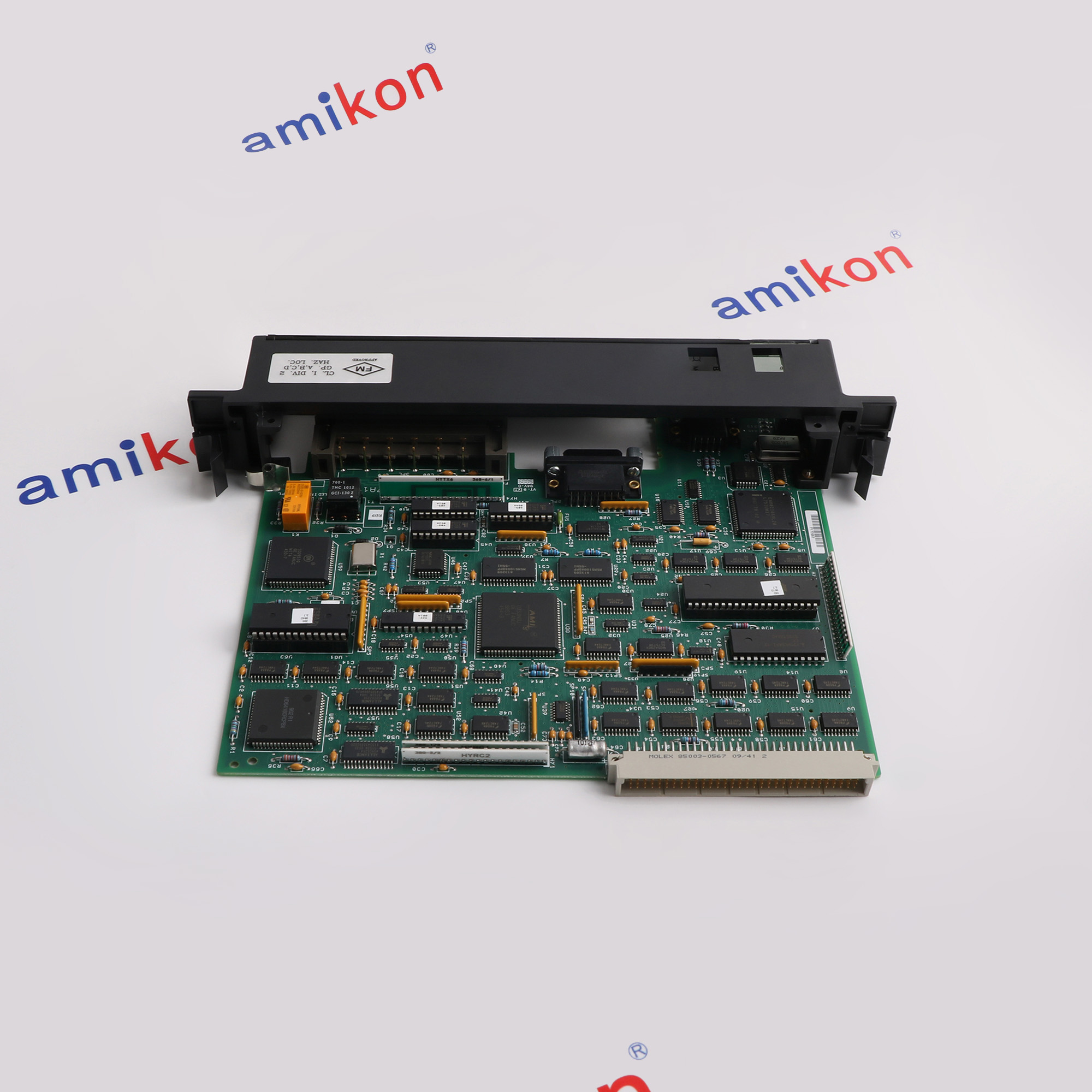

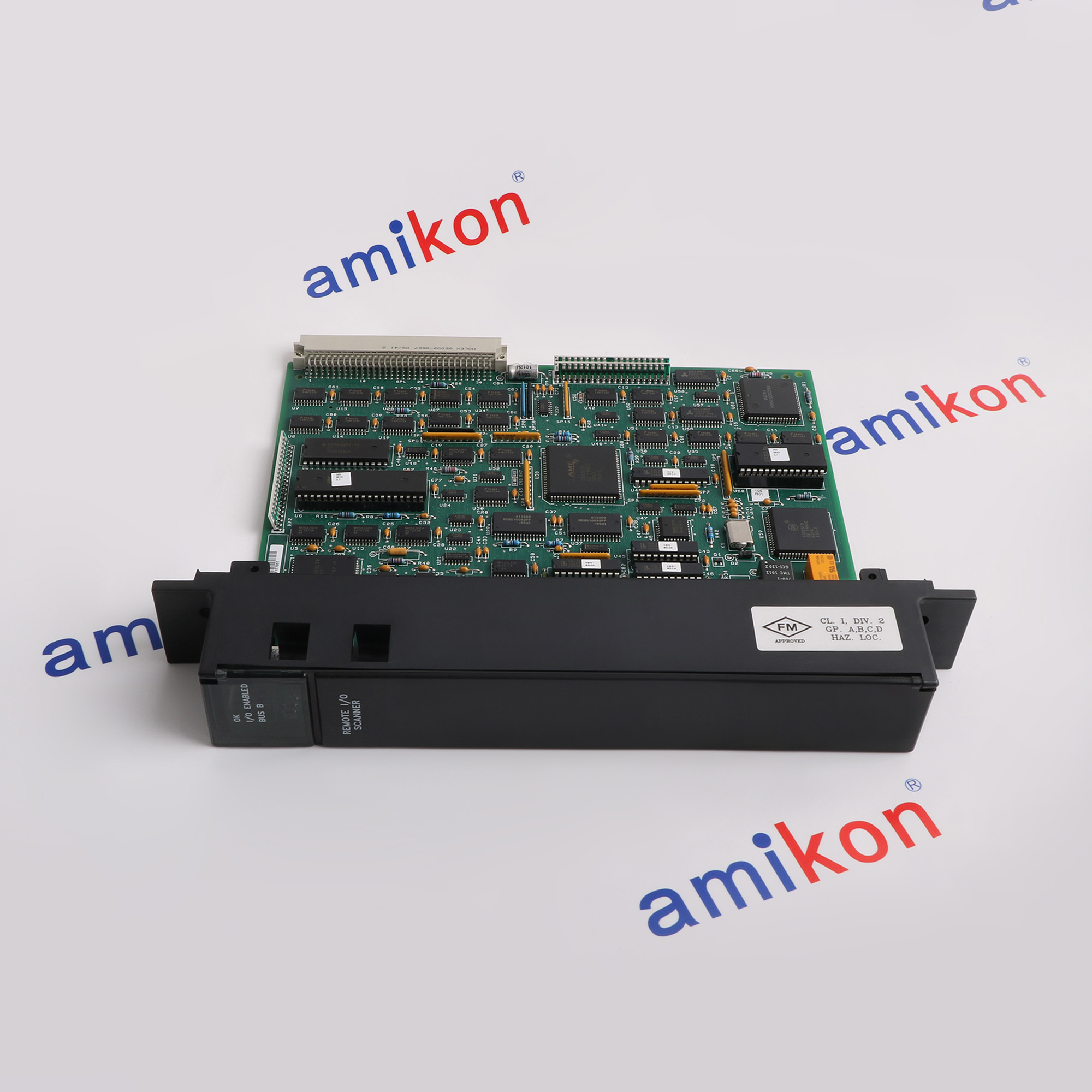

Technical specifications for IC697BEM733
-
Product ModelIC697BEM733
-
Product ParametersRemote I/O scanner module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x21.7x29.1cm
-
ManufacturerGeneral Electric
-
Weight0.52 kg
-
I/O Capacity1024 Discrete I/O or 64 Analog I/O
-
Transmission speed153.6 Kbaud standardard and extended; 76.8 Kbaud; 38.4 Kbaud
-
Bus TopologyDaisy-chained bus cable; single twisted pair plus shield or Twinax
-
Maximum no. of drop stationUp to 32 devices
-
Status LED indicatorsModule OK; I/O Enabled; Bus B Active;
-
No. of PortsOne 15-pin RS-422/485 compatible serial port; One (1) 9-pin IC66 Hand-held Monitor port; One IC66 Bus terminal
-
DescriptionGenius Remote I/O Scanner
-
ConnectorsRS-422/RS-485 Serial Port and a 9-Pin Hand Held Monitor Connector
Description
IC697BEM733
BUS EXPANSION MODULE
REMOTE I/O SCANNER
128 BYTES OF INPUTS
128 BYTES OF OUTPUTS PER REMOTE DROP
1024 DISCRETE INPUTS
1024 DISCRETE OUTPUTS
OR 64 ANALOG INPUTS AND 64 ANALOG OUTPUT
BUS EXPANSION MODULE
REMOTE I/O SCANNER
128 BYTES OF INPUTS
128 BYTES OF OUTPUTS PER REMOTE DROP
1024 DISCRETE INPUTS
1024 DISCRETE OUTPUTS
OR 64 ANALOG INPUTS AND 64 ANALOG OUTPUT
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Can be located up to 7500 feet (2275 meters) fromcontroller
- Supports standard IC697 discrete and analog I/Omodulesr
- Supports PCM, ADS, and analog expander module
- Handles up to 128 bytes of inputs and 128 bytes ofoutputs per remote drop
- Compatible with all types of IC66* host
- Supports both CPU and IC66* bus redundancy
- Each remote drop can include up to eight racks,with a Remote I/O Scanner located in rack 0
The IC697BEM733 GE Bus Expansion Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC697BEM733 Bus Expansion Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Together, a Remote I/O Scanner and the modules itserves make up a remote drop on the IC66* bus. A remote drop can consist of up to eight racks, linked byBus Transmitter and Bus Receiver modules. 9-slotand/or 5-slot IC697 racks can be used. The maximumdistance from the first rack to the last rack in a remotedrop is 50 feet (15 meters).
The Remote I/O Scanner is ideally suited for use in anIC697 PLC system. However, any type of PLC orcomputer capable of controlling an IC66* bus can beused as the host. Suitable hosts include IC660 PLCs,IC655 PLCs, and computers equipped with a PCIM(Personal Computer Interface Module), QBIM (Q-BusInterface Module), or a third-party GENI-based interface.
- Packaging & Material Handling:Monitors sensors & coordinates conveyors for high-speed packaging
- Water & Waste Management:Monitors pump status & tank level alarms in water treatment
- Manufacturing Processes:Handles AC signaling for injection molding, food & mining
- Building Infrastructure:Elevator control & large-scale HVAC monitoring
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The IC697BEM733 is a Genius Remote I/O Scanner module designed for the GE Fanuc Series 90-70 PLC system. It allows a remote rack of Series 90-70 I/O modules to communicate with a host PLC (such as another 90-70 or a 90-30 with a bus controller) over the Genius network, supporting up to 128 bytes of input and 128 bytes of output data per drop.
Remote Scanner vs. Bus Controller: The IC697BEM733 is a "slave" to a master controller (like a CPU running a 731 or 735), meant to report remote I/O data back to that master, rather than initiating bus communications itself.
Distance and Capacity: Like the 735, the 733 supports high-distance, robust communication over standard Genius network cabling.
FAQs
-
What is the IC697BEM733?
+The GE IC697BEM733 is a Remote I/O Scanner for the GE Fanuc Series 90-70 PLC. It acts as a gateway, allowing a Series 90-70 CPU to control I/O modules located in remote racks via a Genius Bus. -
How many drops (remote racks) does it support?
+Up to 30 drops can be established on a single bus. -
What is the data transfer rate of the IC697BEM733?
+It supports 153.6K baud rate (standard or extended) and 76.8K baud rate (up to 30 devices), as well as 38.4K baud rate (up to 16 devices). -
How much I/O can it handle per drop?
+It handles up to 128 bytes of inputs and 128 bytes of outputs per remote drop.
