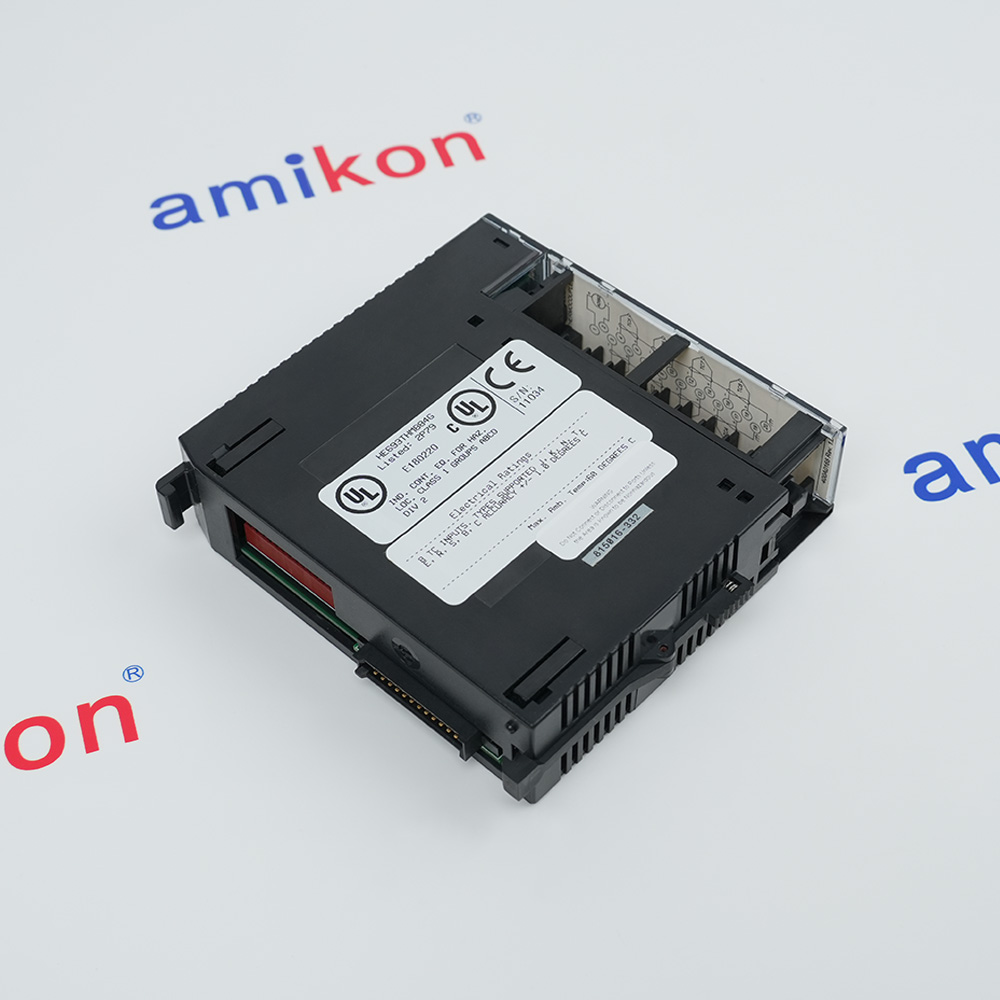

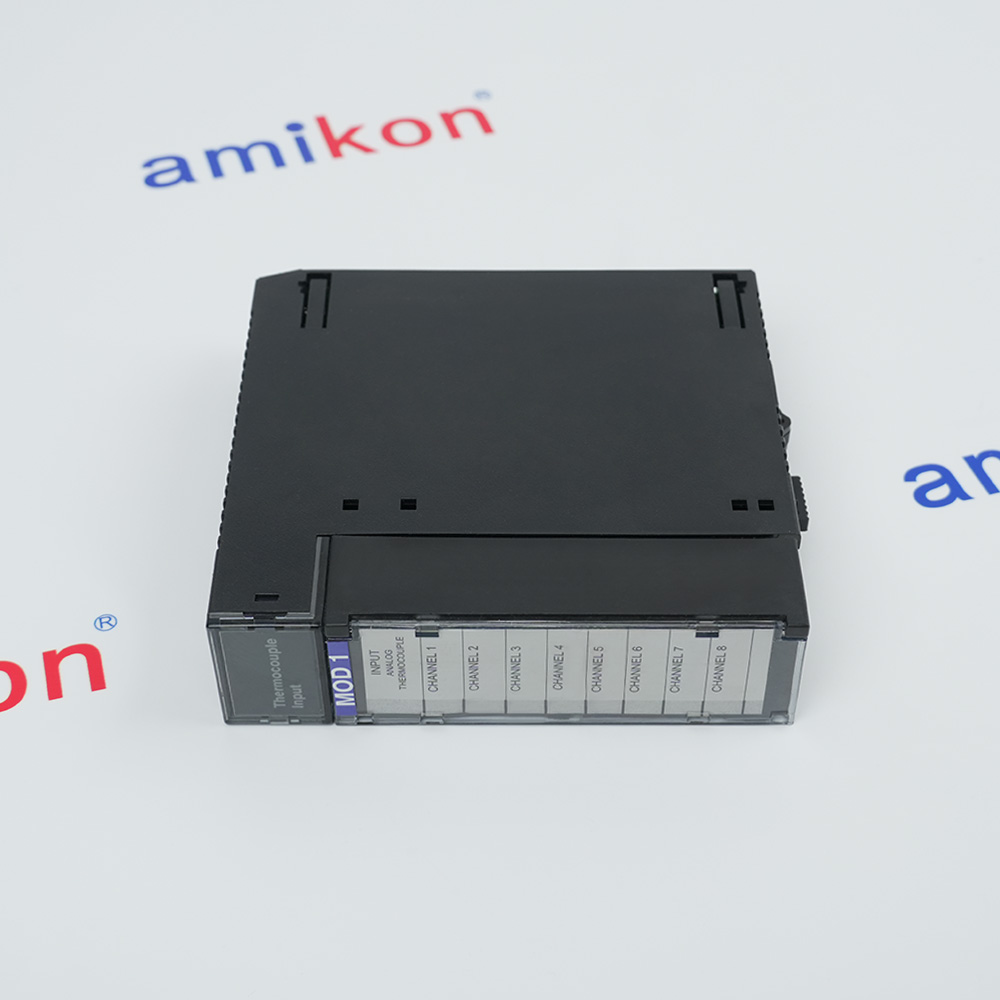

      Product Information

      Product Describe
      HE693THM884
      THERMOCOUPLE INPUT MODULE
      8 CHANNEL
      FOR SERIES 90-30
      W/ 0.1°C RESOLUTION

      Technical specifications for HE693THM884G

      • Product Model
        HE693THM884G
      • Product Parameters
        THERMOCOUPLE INPUT MODULE
      • Tariff Code
        8537101190
      • Country of origin
        USA
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        3.5x13x13.5cm
      • Manufacturer
        General Electric
      • Weight
        0.36 kg
      • Power Consumption
        100mA @ 5VDC
      • Number of channels
        8
      • Types Supported
        J, K
      • Resolution
        0.1°C
      • I/O Points Required
        8%AI, 8%AQ, 16%I
      • Input Impedance
        >20Mohms
      • Maximum Sustained O/L
        +/- 35V
      • Common Mode Rejection
        >100dB
      • A/D Conversion Type
        18-Bit Integrating
      • A/D Conversion Time
        5 ms
      • Scan Rate
        40 Channels per second
      • Operating Temperature
        0 to 60°C (32 to 140°F)
      • Relative Humidity
        5% to 95% non-condensing

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • What is the HE693THM884?+
        It is a module that allows thermocouple temperature sensors to connect directly to the PLC. This eliminates the need for external signal processing hardware like transducers or transmitters.
      • What is the main power supply requirement?+
        The module uses 100mA @ 5VDC, which it draws directly from the PLC backplane.
      • How do I minimize noise and capacitive loading?+
        It is recommended to use shielded, twisted-pair extension wiring, as this provides the best immunity against electrical noise.
      • What are the specifications of the A/D conversion?+
        The module uses an 18-bit integrating A/D converter with a scan rate of 40 channels per second.
      Get a quick price fo HE693THM884G
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product

      MORE INFORMATION

      Overview Manuals Technical notes Product Applications Hardware Installation

      Features:

      • Horner APG High Resolution Thermocouple Input Module
      • Discrete and Analog I/O Modules
      • Simple Relay Replacement to Sophisticated Mid-Range Automation
      The Horner APG High Resolution Thermocouple Input Module allows thermocouple temperature sensorsto be directly connected to the PLC without external signal processing (transducers, transmitters, etc.).All analog and digital processing of the thermocouple signal is performed on the module. This highresolution module (0.1°C), can report values to the PLC I/O table in 0.5°C, 0.5°F, 0.1°C, or 0.1°Fincrements. The module features eight thermocouple channels assigned to 8 %AI input registers. Thereare 16 %I Alarm Bits, one open circuit alarm and one setpoint alarm for each channel. Alarm setpointsare set for each channel through 8 %AQ registers. Open circuit alarm bits for each channel correspondto the first eight successive %I bits, and the alarm setpoints for each channel correspond to the secondeight successive %I bits.

      The HE693THM884G GE THERMOCOUPLE INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      GE HE693THM884G THERMOCOUPLE INPUT MODULE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      The Horner Electric HE693THM884 is a sophisticated thermocouple input module tailored for accurate temperature measurements. It supports both J and K type thermocouples, eliminating the necessity for external transducers or transmitters. This unit provides eight input channels, ensuring that multiple temperature points can be monitored simultaneously.With a resolution of 0.1 degrees Celsius, this high-resolution module guarantees precise readings. The device employs both analog and digital signal processing, optimizing performance in various applications. It features an 18-bit integrating A/D conversion type, with a remarkably swift conversion time of 5 milliseconds, contributing to its efficiency in dynamic settings.
      • Heat Treatment & Metal Processing:Furnaces/kilns/ovens: precise thermal profiles for hardening/tempering
      • Food & Beverage Production:Pasteurization, baking ovens & cold storage safety standards
      • Chemical & Pharmaceutical Manufacturing:Reactor vessel temperature control for sensitive processing/storage
      • Plastics & Injection Molding:Melt temp management to prevent material degradation
      • Energy & Power Generation:Boiler/exhaust temp monitoring for fuel efficiency & safety
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      Rack Mounting: Insert the module into any available I/O slot of a GE Fanuc Series 90-30 PLC baseplate. Ensure the PLC power is OFF during installation.
      Power Supply: The module draws its power (100mA @ 5VDC) directly from the PLC backplane, so no external power source is required for the module itself.
      Cold Junction Compensation (CJC): Ensure the Removable Terminal Board (RTB) is firmly attached, as it often contains the CJC sensors required for accurate temperature conversion.
