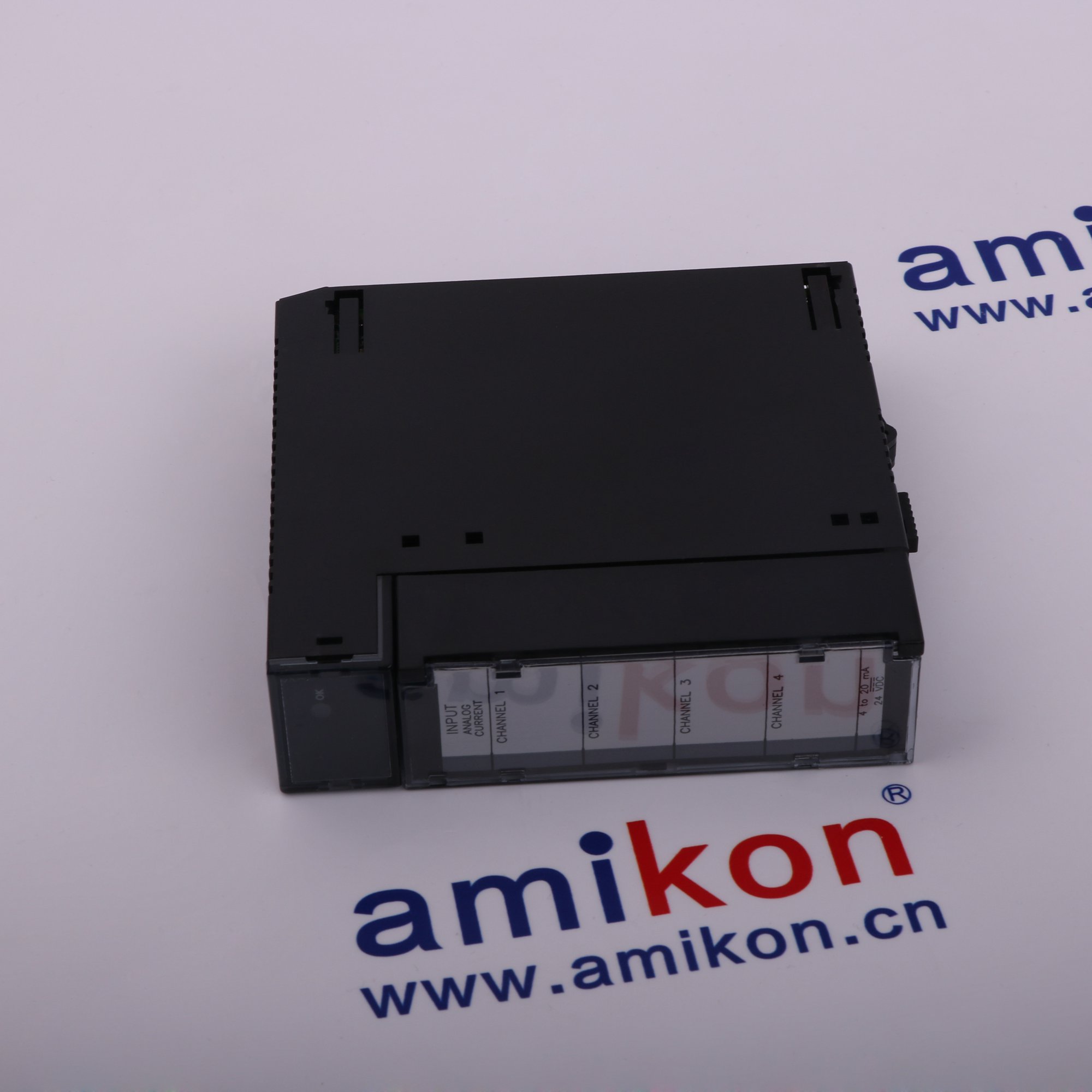

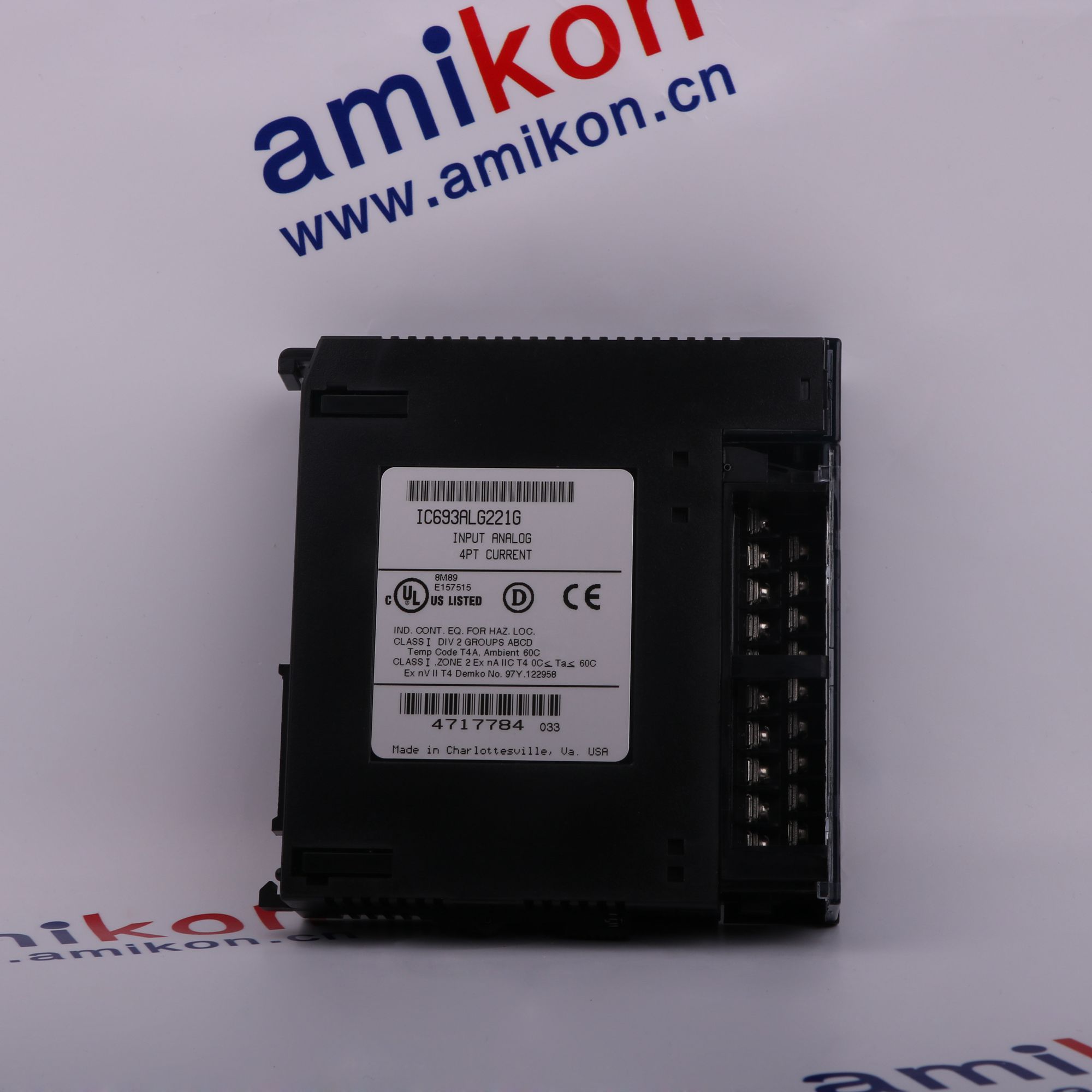

Technical specifications for IC693ALG221
-
Product ModelIC693ALG221
-
Product ParametersANALOG INPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Input Current Ranges4 to 20 mA and 0 to 20 mA
-
CalibrationFactory calibrated to 4 µA per count
-
Update Rate2 msec
-
Resolution at 4-20 mA4 µA (1 LSB = 4 µA)
-
Resolution at 0-20 mA5 µA (1 LSB = 5 µA)
-
Absolute Accuracy0.1% full scale + 0.1% reading
-
Common Mode Voltage200 volts
-
Linearity< 1 Least Significant Bit
-
Isolation1500 volts between field side and logic side
-
Common Mode Rejection> 70 db at DC; >70 db at 60 Hz
-
Cross-Channel Rejection> 80 db from DC to 1 kHz
-
Input Impedance250 ohms
-
Input Filter Response325 Hz
Description
IC693ALG221
INPUT MODULE
4 POINT
ANALOG
4-20 MA
INPUT MODULE
4 POINT
ANALOG
4-20 MA
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Core Protection Features
Features:
- Four input channels
- 4-20mA/0-20mA selectable
- 12-bit resolution (1/4096)
- 0.5ms conversion speed
The IC693ALG221 GE Analog Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693ALG221 Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Input protection for the module is sufficient to guarantee operation with reduced performancewith up to 200V common-mode. The module provides electrical isolation of externallygenerated noise between field wiring and the backplane through the use of optical isolation.To minimize the capacitive loading and noise, all field connections to the module should bewired using a good grade of twisted, shielded instrumentation cable.
The shields can beconnected to either COM or GND. The COM connection provides access to the common of theanalog circuitry in the module. The GND connection provides access to the baseplate (frameground).An LED at the top of the faceplate is ON when the module’s power supply is operating. The mainpower source for the module is the isolated +24 VDC power supplied by the PLC power supply.This voltage is routed through an inverter/regulator to provide the operating voltage for the module.
This module also consumes power from the +5 VDC output of the PLC power supply to drive theisolation circuitry. This module can be installed in any I/O slot of a 5 or 10-slot baseplate in aSeries 90-30 PLC system. See page 3-11 to determine the number of Analog Current Inputmodules that can be installed in a system.
- Industrial Process Control:High-speed analog inputs for process management
- Process Variable Monitoring:Monitors flow, pressure, temperature & level sensors
- Energy Management Systems:Accurate data for energy usage measurement & control
- Machine Diagnostics & Automation:Integrates to monitor machinery performance metrics
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Common Mode Voltage Protection: The module is designed to withstand up to 200V of common-mode voltage. While it can operate at this level, performance may be reduced under these conditions
Reverse Polarity Handling: If a current source is accidentally reversed into the input, the module will output a data word that corresponds to the low end of the range rather than being damaged or providing erratic data.
FAQs
-
What is the IC693ALG221 module?
+The GE Fanuc IC693ALG221 is a 4-channel analog current input module for the Series 90-30 PLC, designed to convert 4-20 mA or 0-20 mA signals into 12-bit digital data. -
How is IC693ALG221 configured?
+It is usually configured using PLC software, and no external jumpers are required for the default 4-20mA range, although they may be needed for 0-20mA. -
How many input channels does the IC693ALG221 have?
+The IC693ALG221 has Four (4) input channels. -
What are the IC693ALG221 power requirements?
+The module uses 25 mA from the +5V bus and 100 mA from the isolated +24 VDC supply. -
What is the IC693ALG221 resolution?
+The module provides a 12-bit resolution, translating to 4 A per count in 4-20 mA mode.
