Technical specifications for IC693MDL740
-
Product ModelIC693MDL740
-
Product ParametersProcessor module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.3 kg
-
No. of channels per groupEight (8) channels
-
Output current per channel0.5 Amperes
-
Output Current per common2 Amperes for 10 ms
-
Storage temperature-40 to 85 degrees Celsius
-
Operating Temperature0 to 60 degrees Celsius
-
Output Voltage Range12 to 24 volts DC (+20%, –15%)
Description

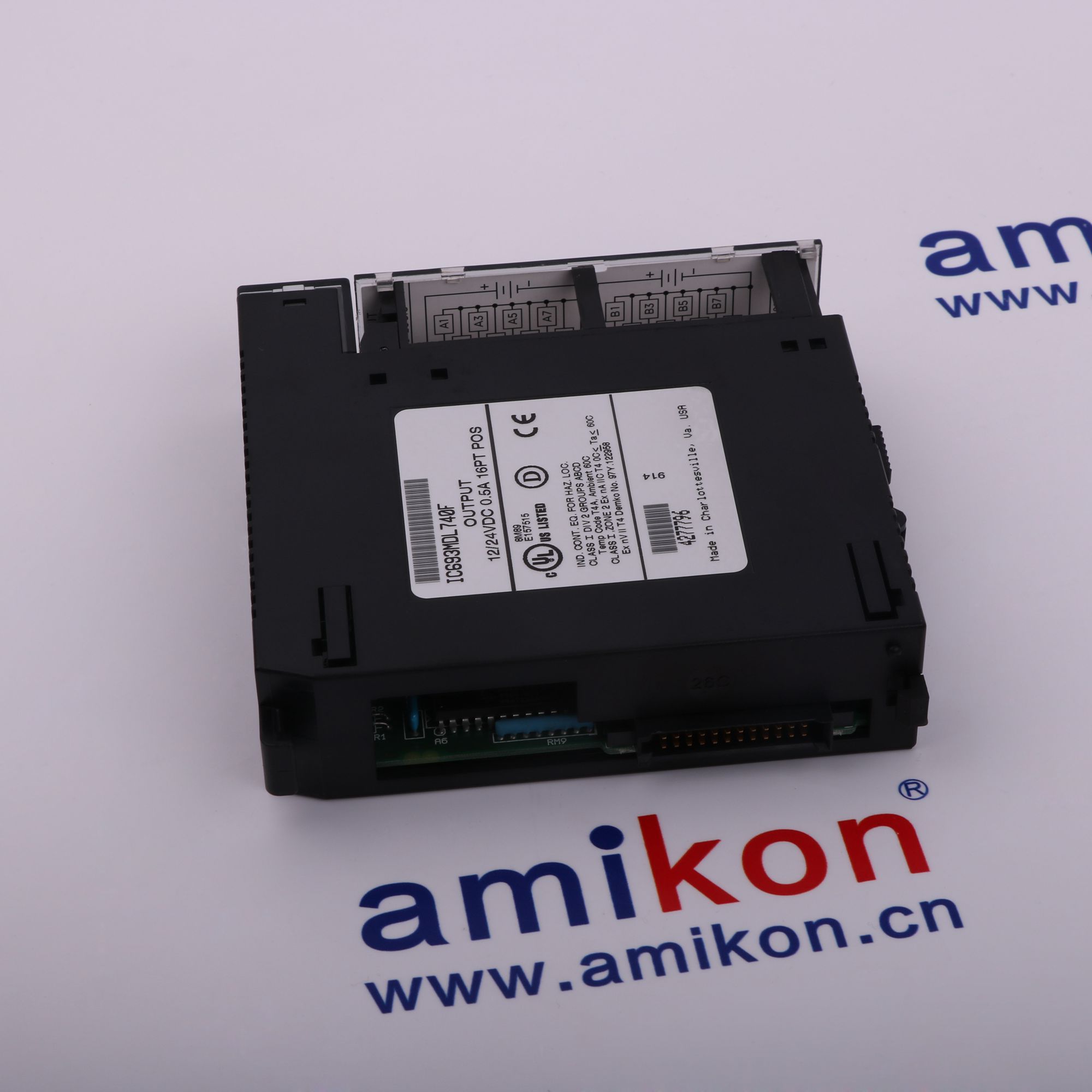

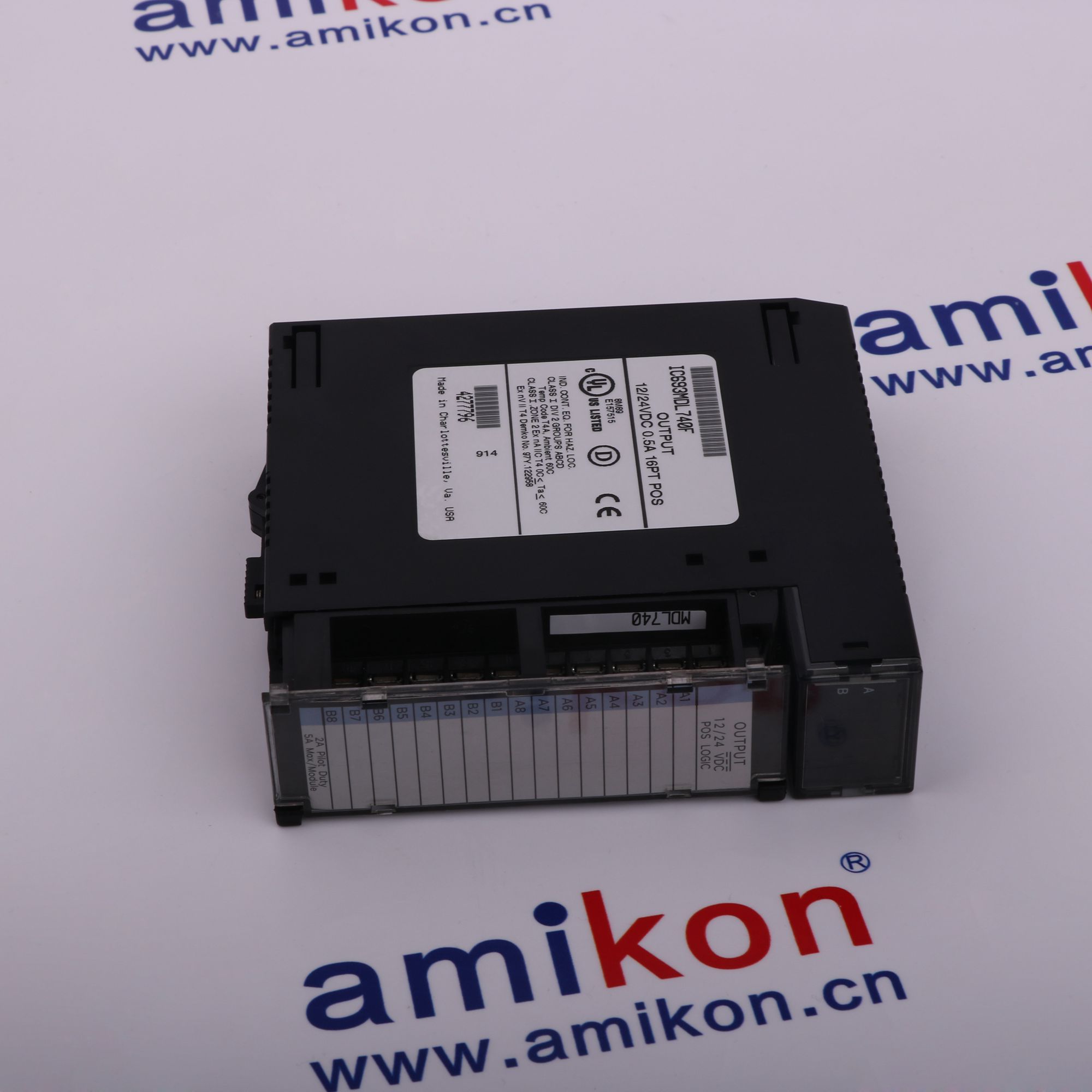

IC693MDL740
OUTPUT MODULE
90-30 SERIES
POSITIVE LOGIC
16 POINT
2 GROUPS OF OUTPUT
2 CHANNELS PER GROUP
12/24 VDC
0.5 AMPS PER POINT
2 AMPS PER COMMON
SCREW TERMINALS
OUTPUT MODULE
90-30 SERIES
POSITIVE LOGIC
16 POINT
2 GROUPS OF OUTPUT
2 CHANNELS PER GROUP
12/24 VDC
0.5 AMPS PER POINT
2 AMPS PER COMMON
SCREW TERMINALS
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Safety Requirements
Features:
- Series 90-30
- 12/24 Volt DC Positive Logic Output
- 0.5 Amp, 16 Point
The IC693CPU374 GE Processor module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693CPU374 Processor module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693CPU374 CPU features a processor speed of 133 Megahertz and a total user memory of 240 KB. The program memory can be configured according to the application requirements and it includes a register memory that is configurable within a range of 128 to 32,640 words, and a configurable memory for analog inputs and analog outputs. The memory for system registers supports up to 28 words and the users can set up around 2000 timers and counters. The IC693CPU374 CPU features the 80386EX processor of the AMD SC520 type and it has 2 built-in Ethernet ports that allow 10/100 base-T/TX communication. The featured Ethernet ports are connected through RJ-45 connectors. The unit also supports an RS-485 port on the power supply and it allows for communication through the SNP and SNPX protocols. In addition to that, the unit supports several program storage devices that are often used.
- Power Generation & Utilities:Substation & turbine/cooling regulation
- Paper & Pulp Mills:Manages roller speed & chemical pulping flow
- Automotive Manufacturing:Paint shop: robot positioning & fluid dispensing
- Oil & Gas Refineries:ESD & fire/gas detection for safety-critical systems
- Chemical & Pharmaceutical Plants:Precise temp/pressure for batch consistency
- Water Treatment Facilities:Modulates pumps/valves for consistent flow/pressure
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Current Limits: Protection is maintained by adhering to the maximum output current ratings of 0.5 amps per point and 2.0 amps per common (group). Exceeding these limits without external protection can permanently damage the module.
Voltage Tolerance: It is rated for an operating range of 12 to 24 VDC (+20%, -15%), and staying within these bounds is necessary for stable operation.
FAQs
-
What is the IC693MDL740 ?
+The GE Fanuc/Emerson IC693MDL740 is a 16-point, 12/24V DC positive logic (sourcing) output module for the Series 90-30 Programmable Logic Controller (PLC) system. -
Does the IC693MDL740 module have a built-in fuse?
+No, the IC693MDL740 does not have a built-in fuse. An external fuse is recommended to protect the output circuitry. -
Where can this IC693MDL740 be installed?
+The IC693MDL740 can be installed in any available I/O slot of a 5-slot or 10-slot baseplate in a Series 90-30 PLC system. -
What is the difference between IC693MDL740 and other modules?
+The MDL742 is a 16-point, 12/24V DC negative logic (sinking) output module, The IC693MDL740 blue color coding on the left side of the insert indicates that it is a low-voltage DC module. -
What do the LED indicators show?
+There are two rows of green LEDs (A1–8 and B1–8) that indicate the ON/OFF status of each output point.
