Technical specifications for IC693ALG223
-
Product ModelIC693ALG223
-
Product ParametersAnalog input module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Range4-20 mA, 0-20 mA
-
External Power24 VDC
-
Product DescriptionAnalog Current Input
-
No of Channels16
-
Update Rate13 ms all channels
-
Resolution at 4-20 mA4 microamps
-
Resolution at 0-20 mA5 microamps
-
Input Impedance250 ohms
-
Input Filter Response200 Hertz
Description
INPUT ANALOG MODULE
16 CHANNEL
4-20 MA
24 VDC
16 CHANNEL
4-20 MA
24 VDC
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Electrical & Hardware Protection
Features:
- 16-Channel Analog Current Input
- 4 to 20 mA
- Series 90-30
The IC693ALG223 GE Analog Current Input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693ALG223 Analog Current Input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

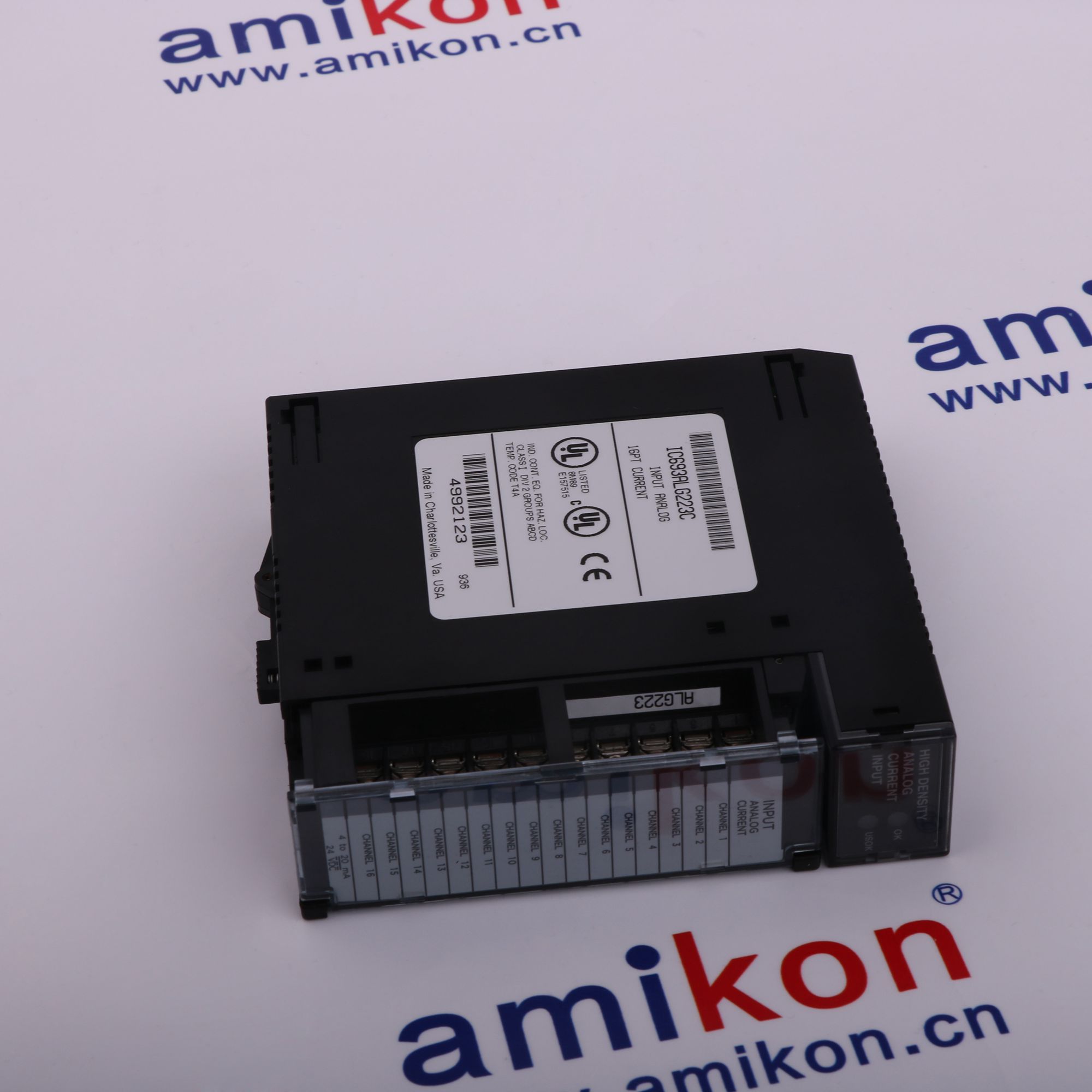

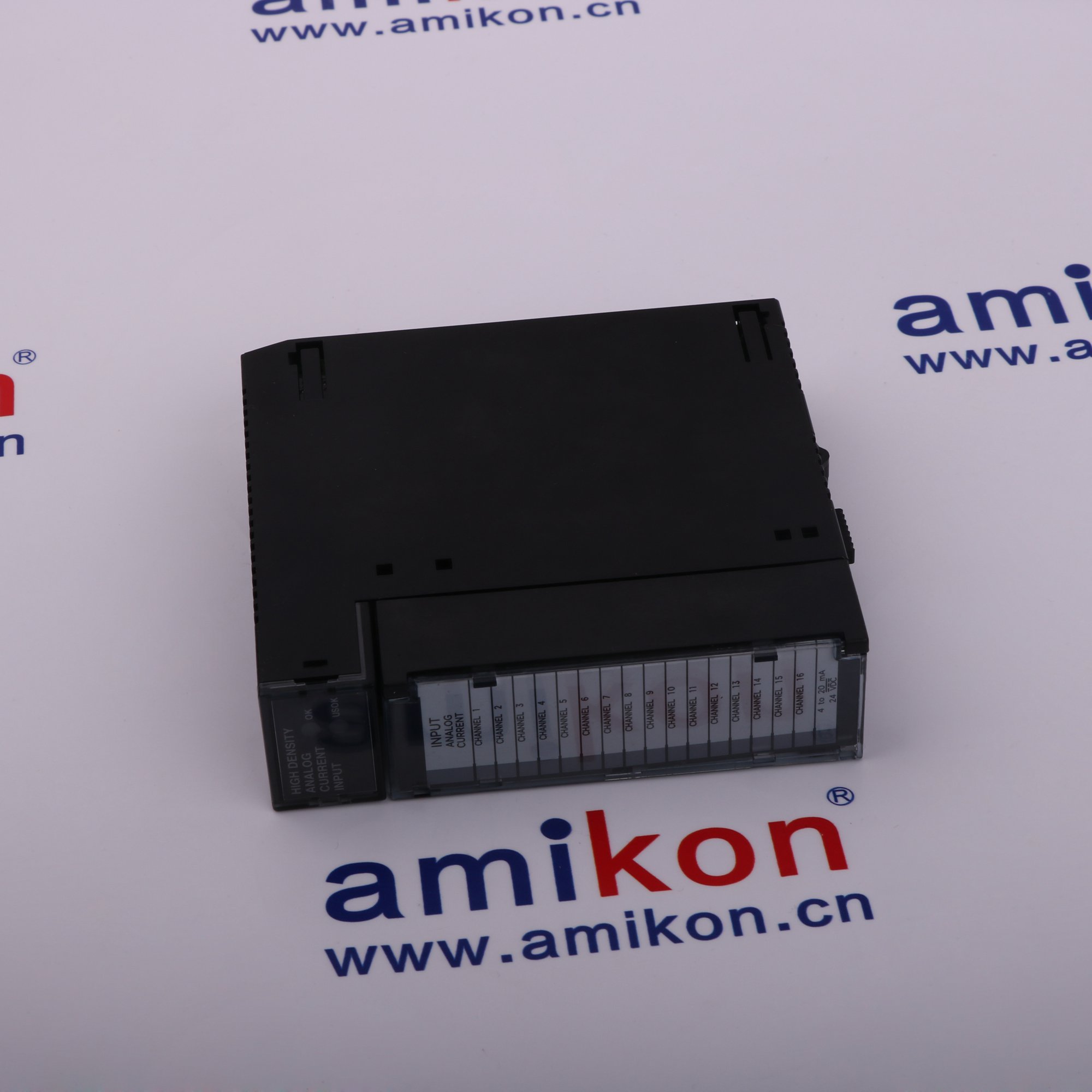

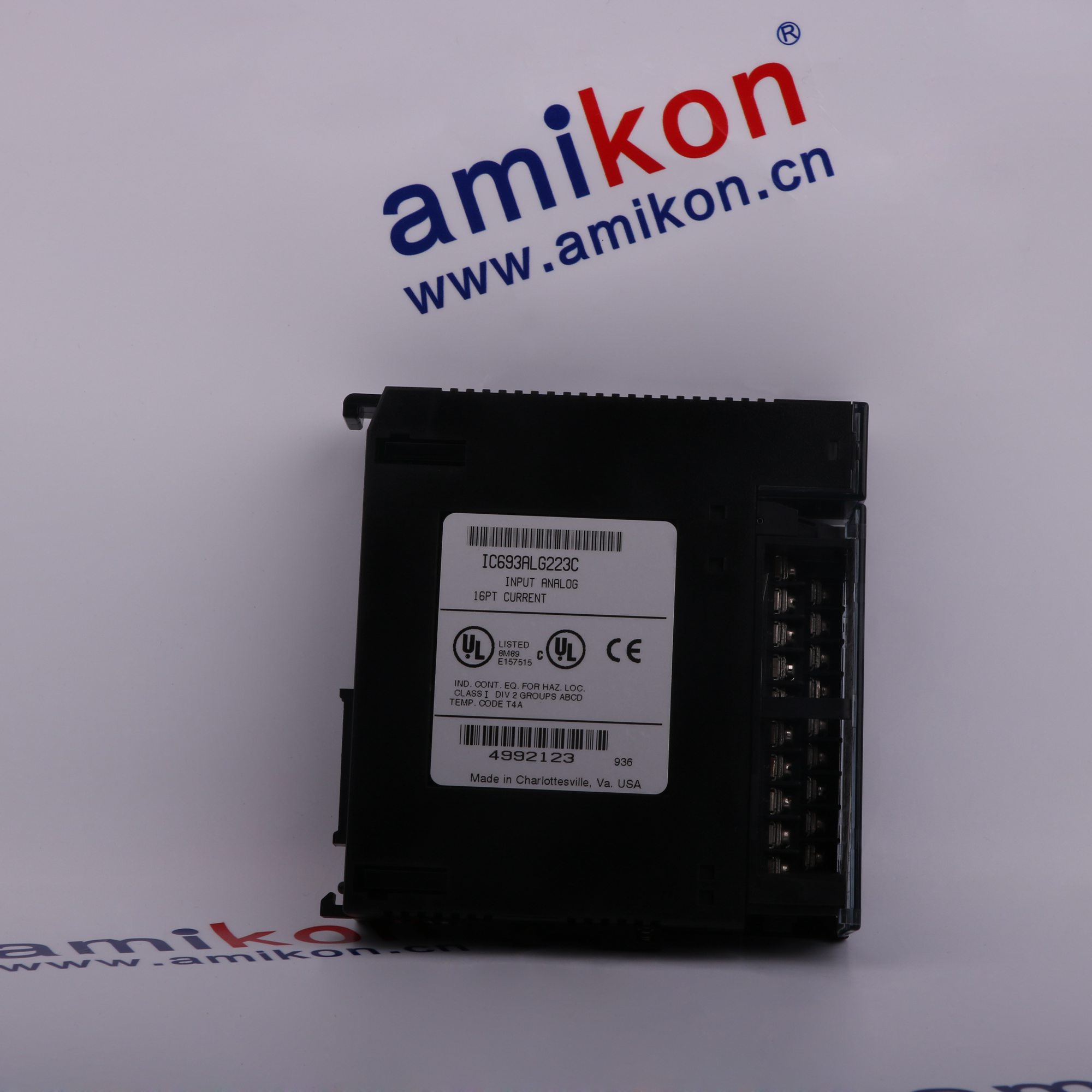

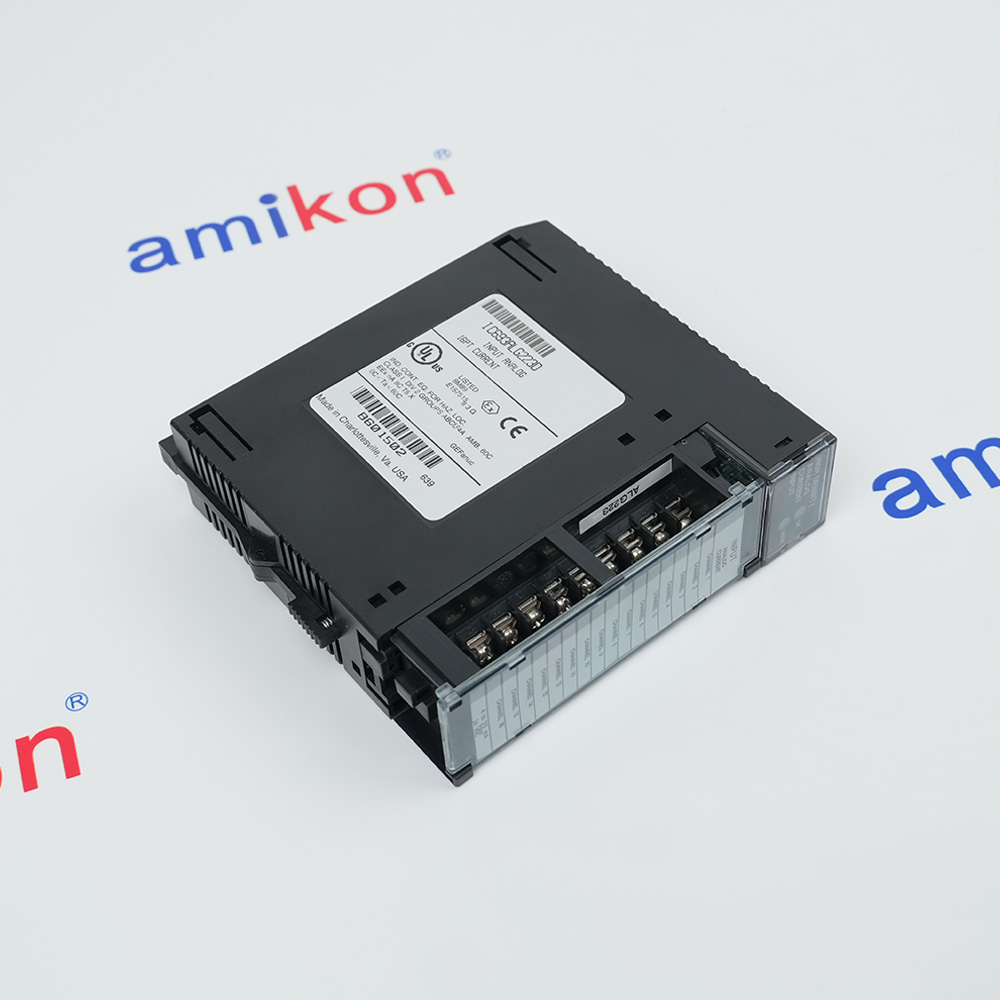

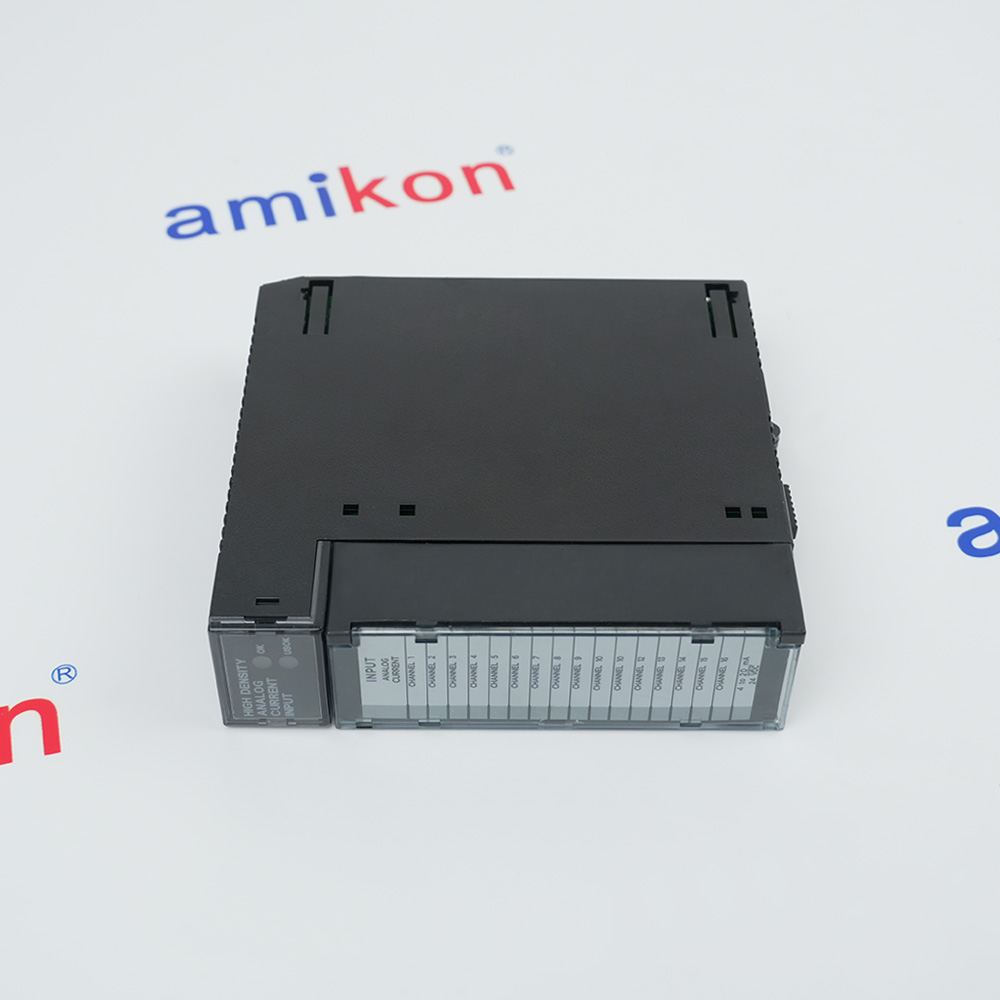

The GE Fanuc Series 90-30 Programmable Logic Controller (PLC) module with catalog number IC693ALG223 is a Sixteen (16) channels, single ended, analog input module that is used to interface field devices and instrument that provide analog signals as representation to measurement of process variable. Specifically, each channel of the IC693ALG223 is configurable of receiving 0-20 mA, 4-20 mA and 4-20 mA enhanced signals. Some of the devices that are capable of providing these signals are Transmitters, Variable Frequency Drive’s (VFD) speed feedback, data loggers, panel meters and other devices.
The IC693ALG223 is a single slot module that is installed to any slot of a Series 90-30 5-slot or 10-slot baseplate. Depending on the controller installed, the number of allowed instances of the IC693ALG223 varies. For Model 311, Model 313, and Model 323 system, up to Four (4) module instances is compatible. For Model 331 system, Eight (8) modules, Twelve (12) with Model 340 and 341 system and 51 in Model 351 and 352 systems.
- Oil and gas: Monitoring pressure and temperature signals from oil and gas pipelines
- Water treatment: Monitoring inlet and outlet water pressure and dissolved oxygen concentration at pumping stations
- New energy generation: Collection of environmental parameters for wind power generation or photovoltaic systems
- Building automation: Centralized collection of sensor signals in HVAC systems (Heating, Ventilation, and Air Conditioning)
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
High Voltage Isolation: According to PetroSpare and GE Fanuc technical documentation, the module provides 1500 V RMS isolation between the field side and the logic side (backplane) to protect sensitive controller circuitry from external surges.
Input Filtering: The module features a 200 Hz input filter to reduce signal noise and provide stable digital values for processing.
LED Diagnostics: A "MODULE OK" LED provides real-time status. A slow blink followed by an "OFF" state indicates a failed power-up diagnostic or a code execution error, while rapid blinking indicates a configuration error.
Fail-to-Full Scaling: In some failure modes, the reading may fail at a full value of 32,000 counts, which can be used as a software-level diagnostic to trigger safety routines.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is the IC693ALG223 ？
+The GE Fanuc IC693ALG223 is a 16-channel analog current input module designed for the Series 90-30 PLC system -
What is the difference between the IC693ALG223 and IC693ALG222?
+Both are 16-channel analog input modules, but the IC693ALG223 is for current inputs (mA), while the IC693ALG222 is for voltage inputs (VDC). -
What are the IC693ALG223 input ranges?
+It supports 0 to 20 mA, 4 to 20 mA, and a "4 to 20 mA Enhanced" range. The enhanced range allows for open-wire fault detection, where 4 mA corresponds to a count of 0, 20 mA to 32000, and 0 mA to -8000. -
What is the IC693ALG223 required external power?
+The module requires 120 mA from the +5 VDC backplane and 65 mA from a 24 VDC external user supply. -
What are the IC693ALG223 LED indicators for?
+The module has LED status lights for "OK" (module health), and "User Supply" (24V power status). -
What is the IC693ALG223 input impedance?
+The input impedance is 250 ohms.
