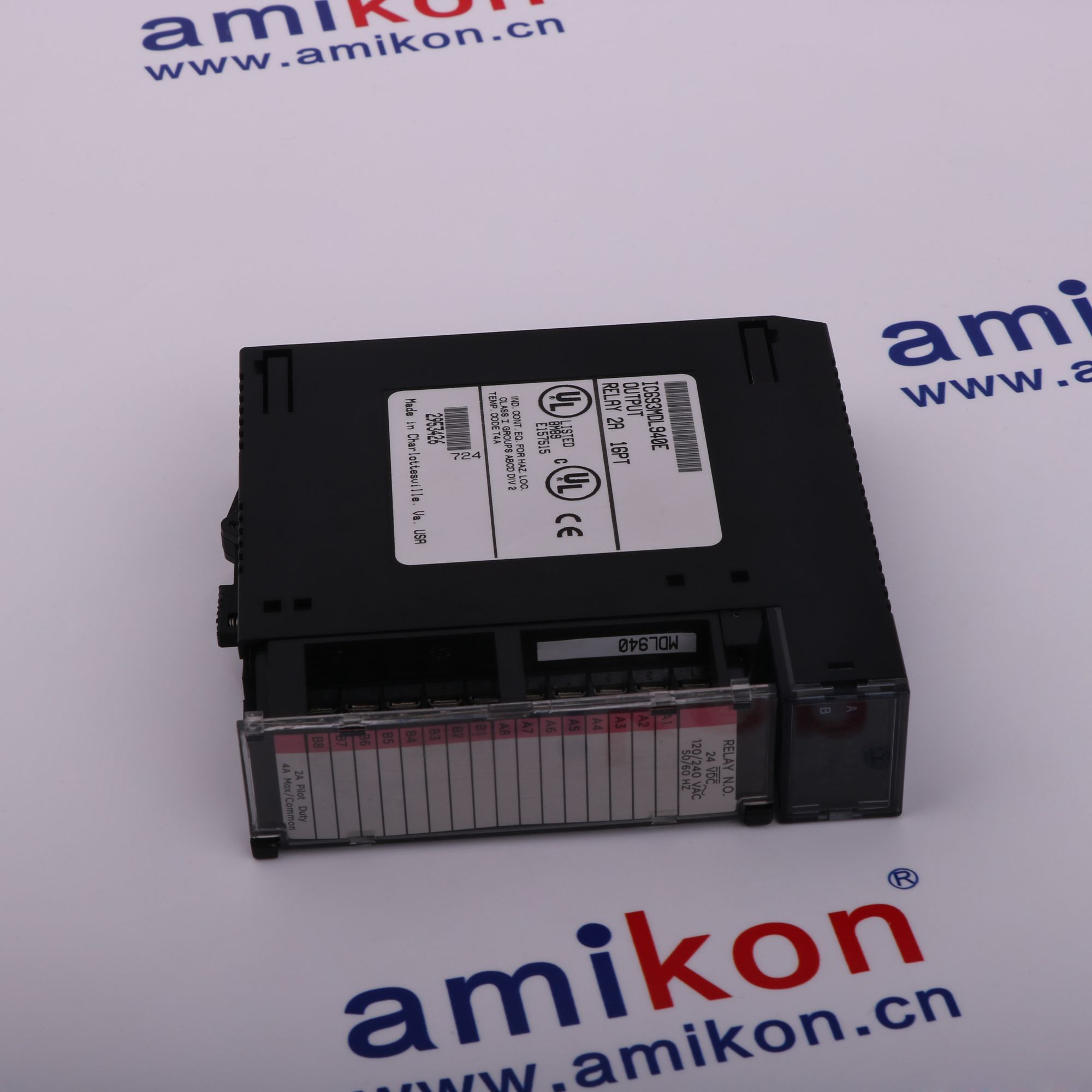

Technical specifications for IC693MDL940
-
Product ModelIC693MDL940
-
Product Parametersrelay output module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Rated Voltage24 volts DC, 120/240 volts AC
-
Operating Voltage5 to 30 volts DC 5 to 250 volts AC, 50/60 Hz
-
Outputs per Module16 (four groups of four outputs each)
-
Isolation1500 volts between field side and logic side500 volts between groups
-
Maximum Load2 amps pilot duty maximum per output4 amps maximum per common
-
Minimum Load10 mA
-
Maximum Inrush5 amps
-
On Response Time15 ms maximum
-
Int. Power Consumption7 mA (all outputs on) from 5 volt bus on backplane
Description
IC693MDL940
OUTPUT MODULE
16 POINT
AC/DC RELAY OUTPUT
0-125 VDC
120/240 VAC
OUTPUT MODULE
16 POINT
AC/DC RELAY OUTPUT
0-125 VDC
120/240 VAC
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Key Differences & Related Models
Features:
- 2 Amp Relay Output module
- Series 90-30 Programmable Logic Controller
- Provides 16 normally-open relay circuits
The IC693MDL940 GE Relay Output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693MDL940 Relay Output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
LED indicators which provide the ON/OFF status of each point are located at the top of themodule. The LEDs are arranged in two horizontal rows with eight green LEDs in each row; the toprow labeled A1 through 8 (points 1 through 8) and the bottom row labeled B1 through 8 (points 9through 16). An insert goes between the inside and outside surface of the hinged door. The surfacetowards the inside of the module (when the hinged door is closed) has circuit wiring information,and circuit identification information can be recorded on the outside surface. The outside left edgeof the insert is color-coded red to indicate a high-voltage module. This module can be installed inany I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
- Injection Molding Machines:Cincinnati Milacron Roboshot: robot I/O & auxiliary control
- Material Handling Equipment:Activates starters/solenoids for conveyors, sorters & palletizers
- Packaging Machinery:Triggers actuators & time-critical movements for bottling/wrapping
- Water & Wastewater Systems:Operates gate valves & pumps with reliable high-voltage AC switching
- HVAC & Environmental Control Units:Manages fans, dampers & heaters for industrial climate systems
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The IC693MDL940 and IC693MDL930 are both relay output modules for the GE Fanuc Series 90-30 PLC, but they differ significantly in point density, output current capacity, and isolation structure.
Isolation Strategy: The IC693MDL930 provides individual point-to-point isolation (500V group-to-group), meaning every relay has its own independent common terminal. In contrast, the IC693MDL940 shares one common for every four outputs, which requires less wiring but offers less electrical separation between channels in the same group.
Heavy Duty Switching (MDL931): For high-power applications, the IC693MDL931 is the related model to choose. It handles 8 Amps per circuit—four times the capacity of the MDL940—and features specialized Form C (SPDT) and Normally Closed (N.C.) contacts.
FAQs
-
What is the GE IC693MDL940 ？
+The GE Fanuc IC693MDL940 is a 16-point, 2-amp normally-open (N.O.) relay output module for the Series 90-30 Programmable Logic Controller (PLC) family. -
How many output points does the IC693MDL940 have?
+It has 16 relay outputs, divided into 4 independent groups, with 4 channels in each group. -
What is the maximum current capacity of the IC693MDL940?
+Maximum current handling capacity is 2 amps per channel and 4 amps per common terminal. -
Can different voltage types be used on the same module?
+Yes, provided that different voltage types are kept in separate isolated groups. -
What can these relays control?
+They are typically used for motor starters, solenoids, indicators, and other user-supplied load devices.
