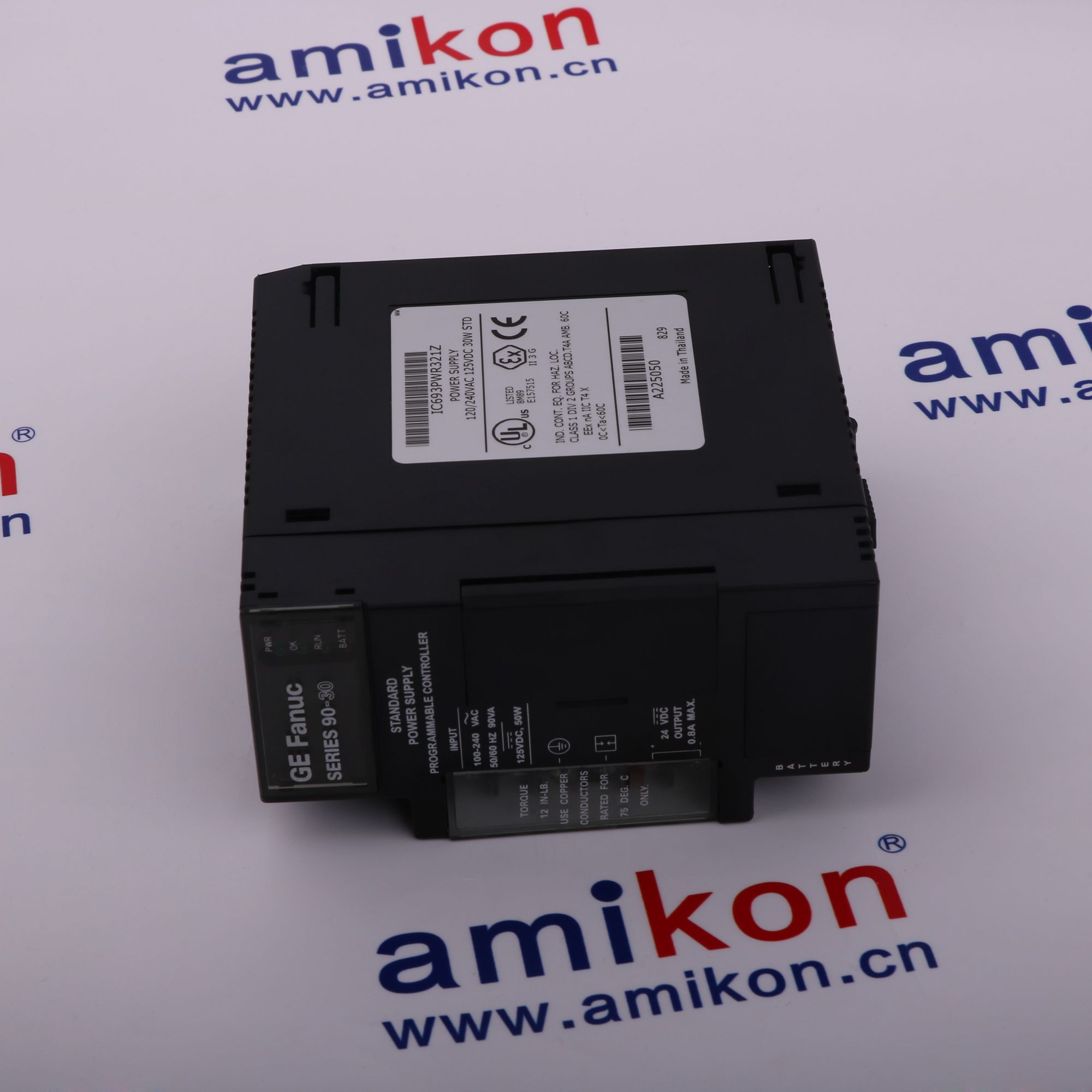

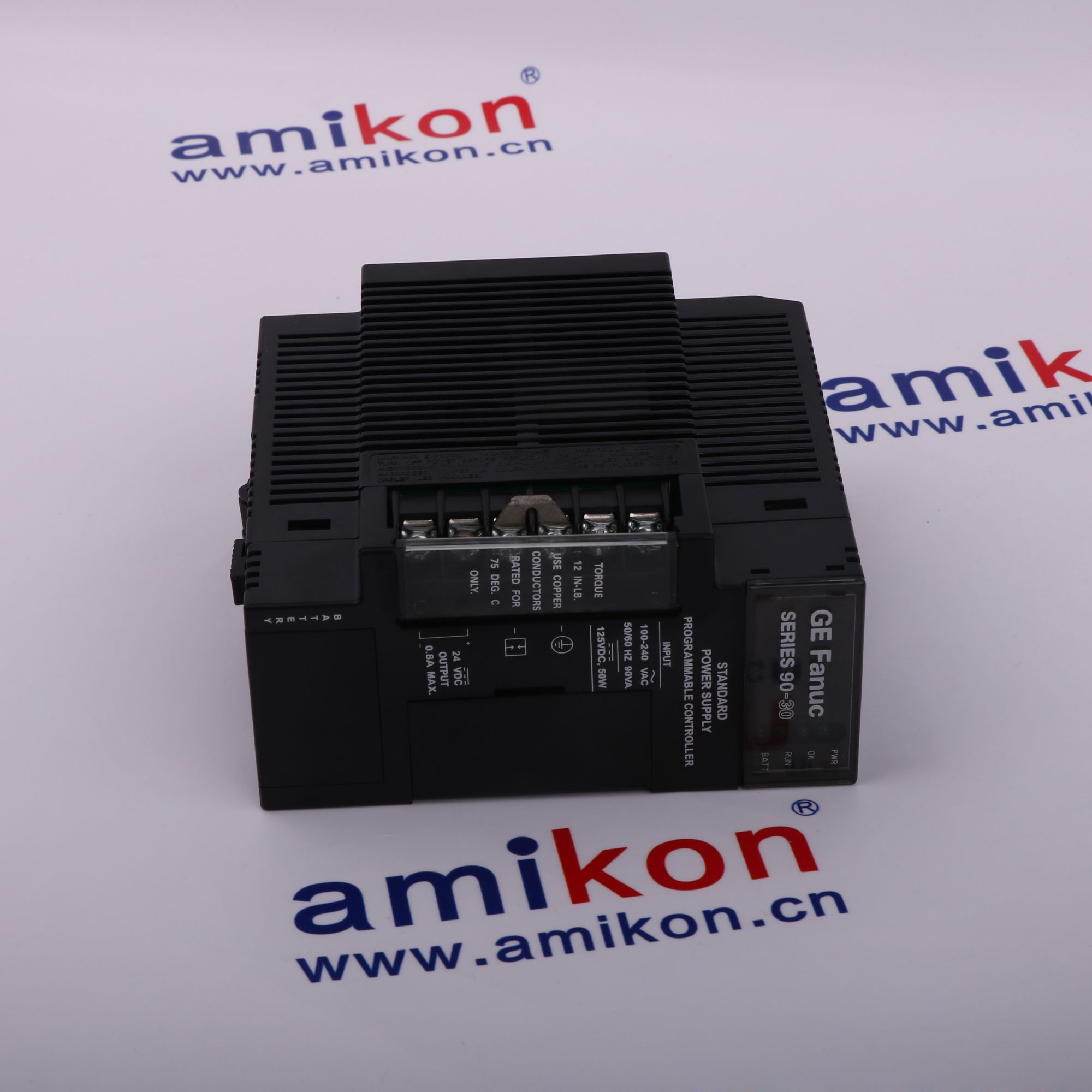

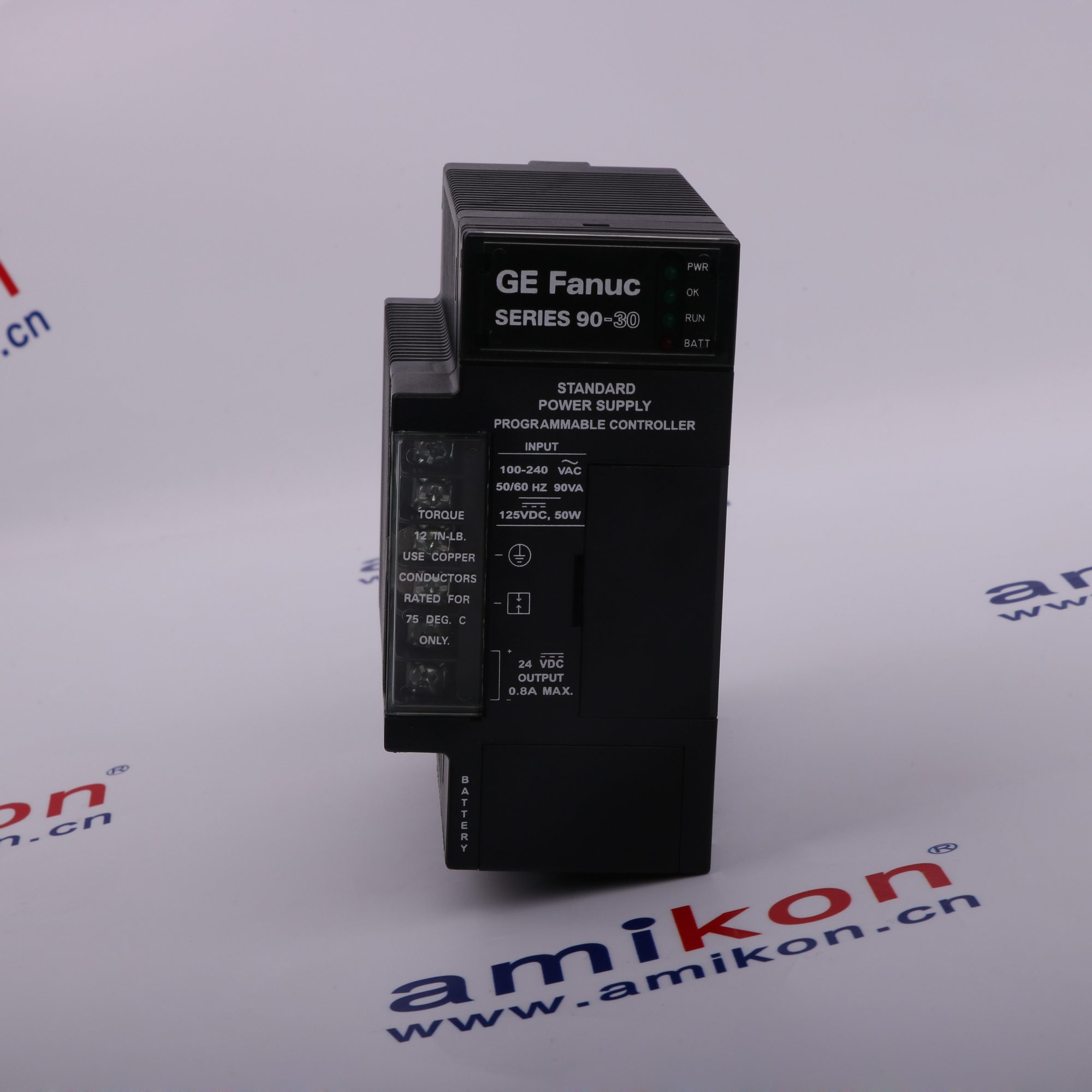

Technical specifications for IC693PWR321
-
Product ModelIC693PWR321
-
Product ParametersStandard Power Supply module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.8x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.55 kg
-
Product Lifecycle StatusDiscontinued/Obsolete
-
Inrush Current4A peak, 250 milliseconds maximum
-
Nominal Rated Voltage120/240 VAC or 125 VDC
-
Input Power90 VA with VAC Input; 50 W with VDC Input
-
Output Voltage5 VDC: 15 Watts, maximum 24 VDC Relay: 15 watts maximum 24 VDC Isolated: 20 watts maximum
-
Holdup Time20 milliseconds, minimum
Description
IC693PWR321
DISCONTINUED BY MANUFACTURER
POWER SUPPLY
SERIES 90-30
30 WATT
120-240 VAC / 125 VDC INPUT
24 VDC OUTPUT
RS-485 COMMUNICATION PORT
DISCONTINUED BY MANUFACTURER
POWER SUPPLY
SERIES 90-30
30 WATT
120-240 VAC / 125 VDC INPUT
24 VDC OUTPUT
RS-485 COMMUNICATION PORT
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Core Electrical Protections
Installation & Wiring
Features:
- Built-In Smart Switch Fusing
- Current Limiting Power Levels
- Auto-Ranging
The IC693PWR321 GEPower Supply Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693PWR321 Power Supply Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC693PWR321 module is fully compatible with any CPU model. The power supply module is certified by the cULus, and CE standards. It has been designed to work in a Class 1 Division 2 rated environment. The IC693PWR321 module comes with power supply limiting feature that protects the hardware immediately when there is a direct short. The power supply unit is equipped with 6 terminals for operator connections. It comes with an enhanced diagnostics feature that tracks all events and updates for the operators. A smart switch fusing is built inside the power supply device as a protection measure. For communication, the IC693PWR321 module is equipped with an RS-485 serial port. The serial port can be used to connect to different peripheral devices and a CPU/computer.
- Power generation equipment monitoring: Main control units of gas turbines, steam turbines and small power stations
- Power distribution control: Plant power system control and auxiliary equipment monitoring system
- Petrochemical and metallurgical: Boiler combustion control, oil and gas pipeline monitoring
- Transportation: Rail transit signal system or automated control of large logistics sorting centers
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The GE IC693PWR321 power supply module includes several critical protection functions designed to safeguard the PLC hardware from electrical faults and ensure stable system operation.
Overvoltage Protection: For the +5 VDC logic output, the protection circuit triggers when the voltage reaches between 6.4V and 7V. This prevents high-voltage spikes from damaging sensitive internal circuitry.
Short-Circuit Protection: The module features a current-limiting mechanism that senses short circuits internally. When a short is detected, the supply shuts down and will typically attempt to automatically reset and restart once the fault is removed.
Placement: Must be seated in the dedicated power supply slot on the far left of the rack.
Terminal Connections:
L1 (Hot): Top screw terminal for AC input.
L2 (Neutral): Second screw terminal from the top.
Ground: Connected at the designated jumpered area below the power inputs.
External 24V DC: A 24V DC positive output (max 0.8A) is available on the top of the two lower screws
FAQs
-
What is the IC693PWR321?
+It is a standard 30-watt power supply module designed for the GE Fanuc Series 90-30 PLC system. -
What are the input voltage requirements?
+It operates on 100 to 240 VAC or 125 VDC (input range of 85 to 264 VAC or 100 to 300 VDC). -
What outputs does IC693PWR321 provide?
+The unit provides three outputs: +5 VDC, +24 VDC "Relay" power (for Series 90-30 Output Relay modules), and an "Isolated" +24 VDC -
What is the difference between the IC693PWR330 and IC693PWR321?
+The IC693PWR321 is a Standard Power Supply while the IC693PWR330 is a High-capacity power supply. Both has load capacity of 30 Watts however, the high-capacity power supply can provide 30 Watt output to the +5VDC output. -
What is the purpose of the RS485 communication port?
+The RS485 communication port is used to connect the power supply to a desktop or laptop workstation, GE Fanuc Hand-Held programmer and other compatible serial devices.
