Technical specifications for IC693MDL645
-
Product ModelIC693MDL645
-
Product ParametersINPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.6x13x13.5cm
-
ManufacturerGeneral Electric
-
Weight0.3 kg
-
Rated Voltage24 volts DC
-
Input Voltage Range0 to +30 volts DC
-
Inputs per Module16
-
Isolation1500 volts between field side and logic side
-
Input Current7 mA
-
On-state Voltage11.5 to 30 volts DC
-
Off-state Voltage0 to +5 volts DC
-
On-state Current3.2 mA minimum
-
Off-state Current1.1 mA maximum
-
On response Time7 ms typical
Description
IC693MDL645
INPUT MODULE
SERIES 90-30
16 POINT
DISCRETE
24 VDC
POSITIVE/NEGATIVE LOGIC
LED INDICATORS
INPUT MODULE
SERIES 90-30
16 POINT
DISCRETE
24 VDC
POSITIVE/NEGATIVE LOGIC
LED INDICATORS
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Hardware Mounting
Features:
- AC and DC Power Types
- 8, 16, and 32 Contact Point Modules
- Multiple Input Voltage Ranges
The IC693MDL645 GE INPUT MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC693MDL645 INPUT MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

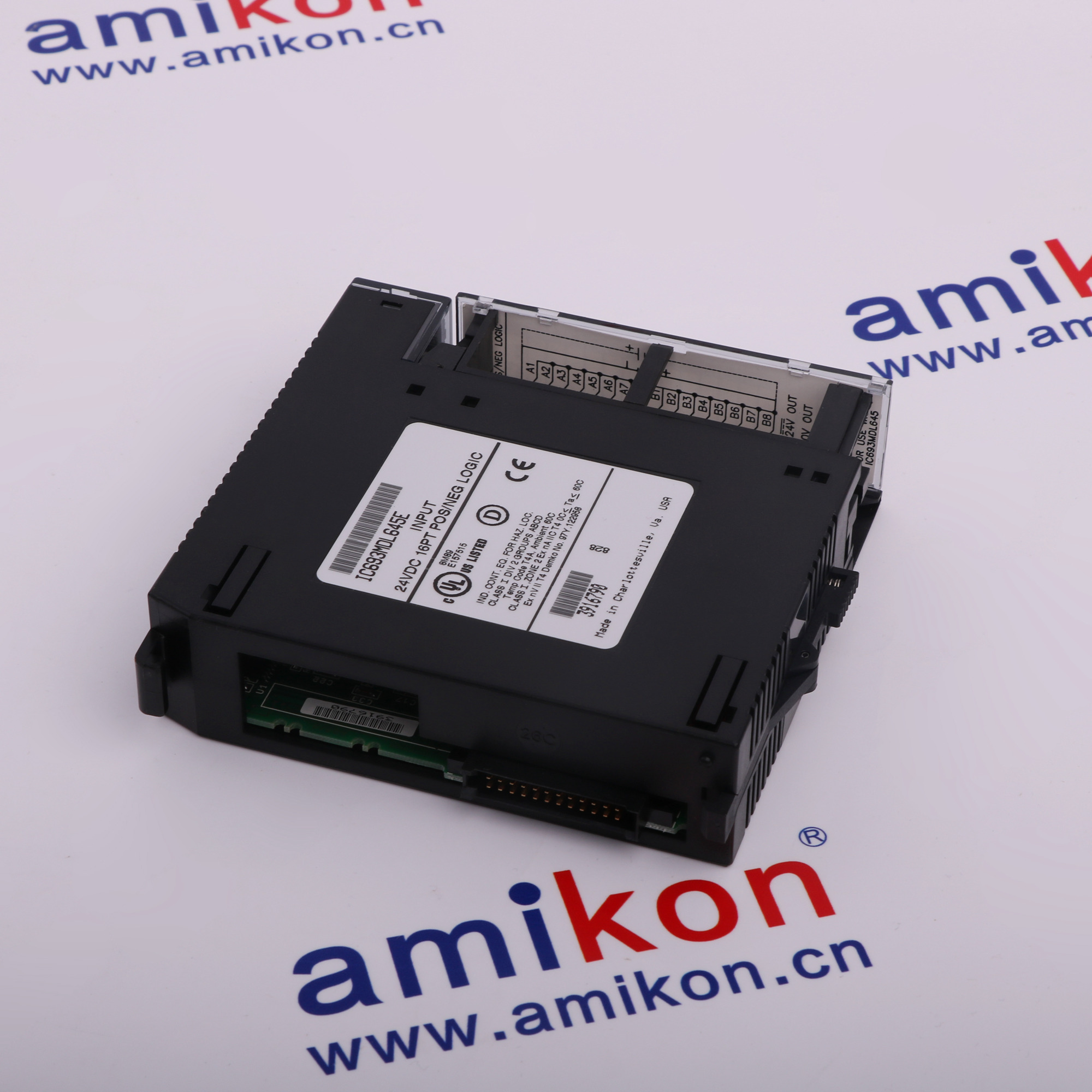

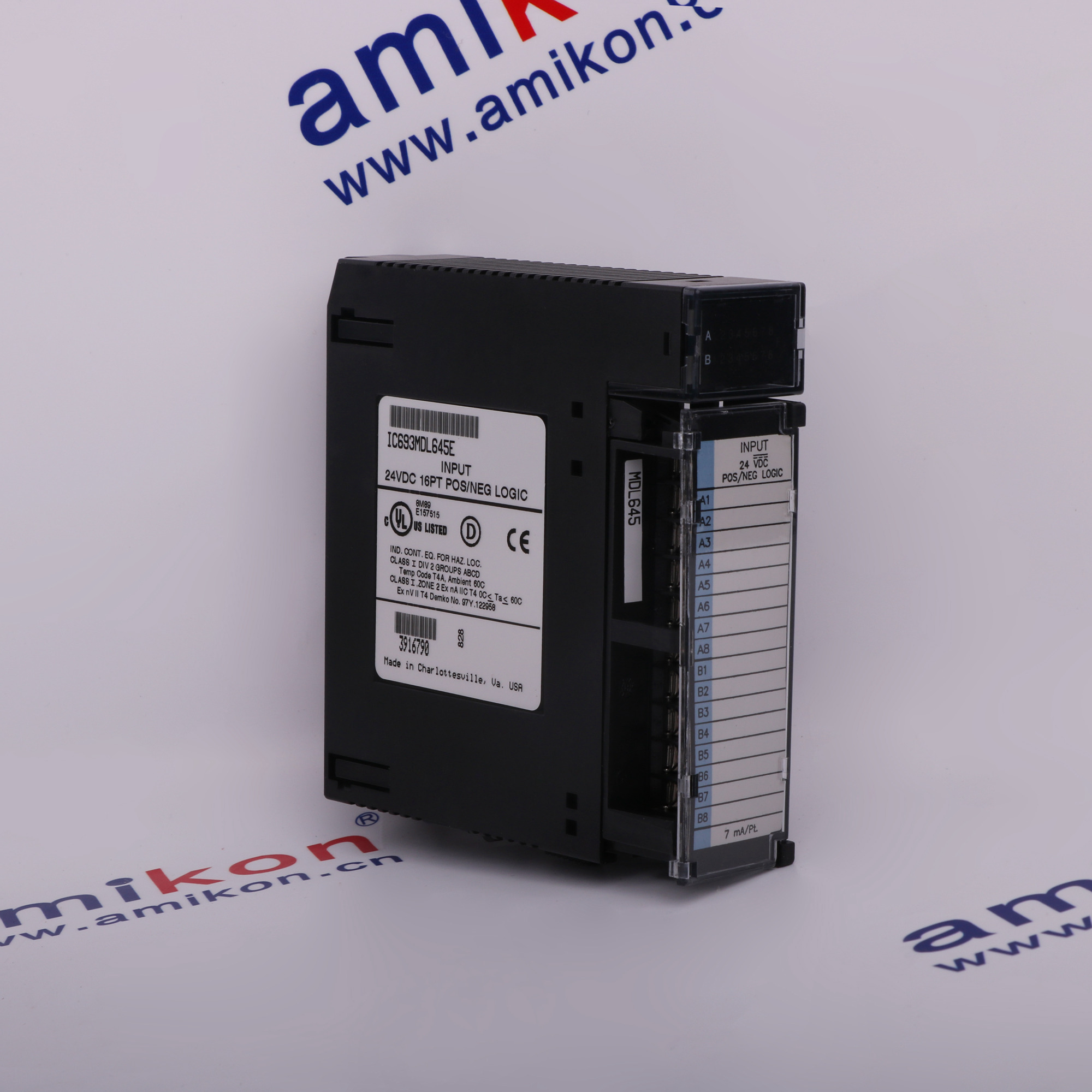

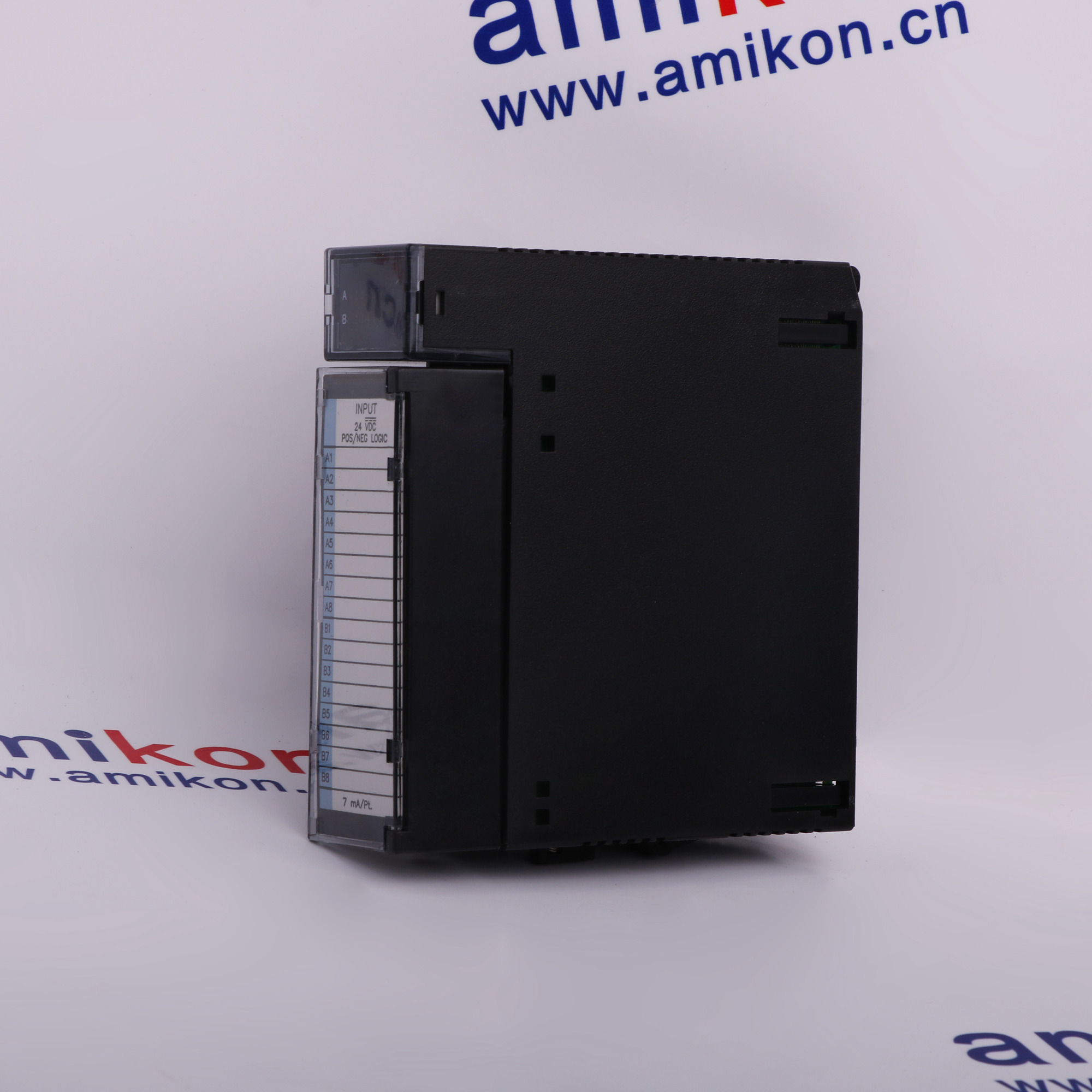

LED indicators which provide the ON/OFF status of each point are located at the top of themodule. This LED block has two horizontal rows with eight green LEDs in each row; the toprow labeled A1 through 8 (points 1 through 8) and the bottom row labeled B1 through 8 (points9 through 16). An insert goes between the inside and outside surface of the hinged door. Thesurface towards the inside of the module (when the hinged door is closed) has circuit wiringinformation, and circuit identification information can be recorded on the outside surface. Theoutside left edge of the insert is color-coded blue to indicate a low-voltage module. Thismodule can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
- Automotive Plants:Monitors chassis position with limit/proximity sensors on assembly lines
- Packaging Facilities:High-speed input from photo-eyes & pushbuttons for conveyor tracking
- Food & Beverage Processing:Bottling/canning line container placement & cycle timing
- Steel & Aluminum Mills:Reads rugged sensor & starter status for heavy machinery control
- Water Treatment & Power Plants:Valve position, motor status & manual override feedback
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Down: Ensure all power to the PLC rack is OFF before inserting the module to prevent electrical damage.
Alignment: Hold the module with the rear hook facing away. Tilt the module so the hook catches the top rail of the baseplate.
Seating: Firmly swing the bottom of the module into the baseplate until it clicks into the backplane connector.
Terminal Block: Secure the removable field wiring terminal block by tightening the top and bottom screws.
FAQs
-
What is the IC693MDL645?
+The GE Fanuc IC693MDL645 is a 16-point, 24V DC positive/negative logic input module designed for the Series 90-30 Programmable Logic Controller (PLC) system. -
What are the rated voltage and input range of IC693MDL645?
+This module is rated at 24 volts DC and operates within an input range of 0 to +30 volts DC. -
Does the IC693MDL645 require an external power supply?
+Yes, this module requires a 24 VDC power supply, which can be provided by the user's field power supply or an isolated 24 VDC backplane power supply. -
What is the input wiring configuration for IC693MDL645?
+Phone 1 is typically the common terminal (power common terminal), and terminal 10 is the +24 VDC power supply. The remaining terminals connect to the 16 input terminals. -
Is it compatible with other series?
+It is designed for the Series 90-30 PLC system and can be installed in any I/O slot of a 5-slot or 10-slot baseplate
