Technical specifications for IC660BBA104
-
Product ModelIC660BBA104
-
Product ParametersI/O MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.6x20.3x10.2cm
-
ManufacturerGeneral Electric
-
Weight1.4 kg
-
LEDs (I/O Block)Unit OK, I/O Enabled
-
Block to Block Isolation1500V for one minute
-
Group to Group Isolation1500V RMS
-
Heat Dissipation12 Watts maximum
-
Input resolution1µA
-
Input conversion time16.6ms to 400ms
-
Range4mA to 20mA
-
Overrange capacity0mA to 25mA
-
Channel to channel isolation1500V rms
-
Input Impedance100 Ohms +/-5%
-
Normal Mode Rejection-45 dB at 50, 60 Hz
Description
IC660BBA104
I/O MODULE
GENIUS BLOCK
CURRENT SOURCE ANALOG
4 INPUT / 2 OUTPUT
115 VAC / 125 VDC POWER
4-20 MA CURRENT INPUTS AND OUTPUTS
I/O MODULE
GENIUS BLOCK
CURRENT SOURCE ANALOG
4 INPUT / 2 OUTPUT
115 VAC / 125 VDC POWER
4-20 MA CURRENT INPUTS AND OUTPUTS
Information
Overview
Manuals
Technical notes
Product Applications
Block Mounting
Features:
- Six 4-to-20 mA analog circuits: 4 inputs and 2 outputs
- Isolated channels
- No user calibration required for operation
- Software configurable
- Advanced diagnostics
- Dedicated Bus Switching Module control
All circuits on the block support independent selection of linearscaling values. These values can be used to convert the internalvalues into engineering units suitable for the application.
The IC660BBA104 GE GENIUS I/O MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC660BBA104 GENIUS I/O MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC660BBA104 input channels specifically feature an accuracy of 0.1% of full scale reading at 25 Degree Celsius, resolution of 1 µA, user configurable conversion time of 16.6ms to 400ms and overrange capacity of 0 mA to 25 mA. Each of the input channels are designed with individual diagnostics such as Under / Overrange, High /Low Alarm, and Open Wire detection.
The IC660BBA104 output channels have an accuracy of 0.15% of full scale reading with resolution of 6 µA. Each channel has a typical update frequency of 6ms to 8ms with overrange capacity of 0-24 mA. Similar to the input channels, each of the output channels are capable of internal diagnostics such as Underrange, Overrange, and Feedback error.
- Turbine Control Systems:Gas/steam turbine monitoring: exhaust manifolds & steam casings
- Motion Control Systems:Precise current-source analog I/O for high-speed actuators/motors
- Water and Wastewater Equipment:4-20mA flow/pressure management for pumping & filtration
- Mining & Oil/Gas Rigs:Remote Genius blocks replace long-distance PLC wiring
- Safety-Critical Sections (GMR):Genius Modular Redundancy for SIL-rated process protection
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Genius I/O blocks are considered "open equipment" and thereforemust be installed within a protective enclosure. They should belocated in an area that is clean and free of airborne contaminants.There should be adequate cooling airflow.The block can be mounted right side up, or upside down. Leave atleast 2 inches of space between blocks. Mount the block by drillingtwo screw or bolt holes for 8-32 hardware. Position the block so thatthe notches in the upper and lower flanges line up with the mountingholes. Mount the block using 8-32 screws. Use star washers toprovide ground integrity
FAQs
-

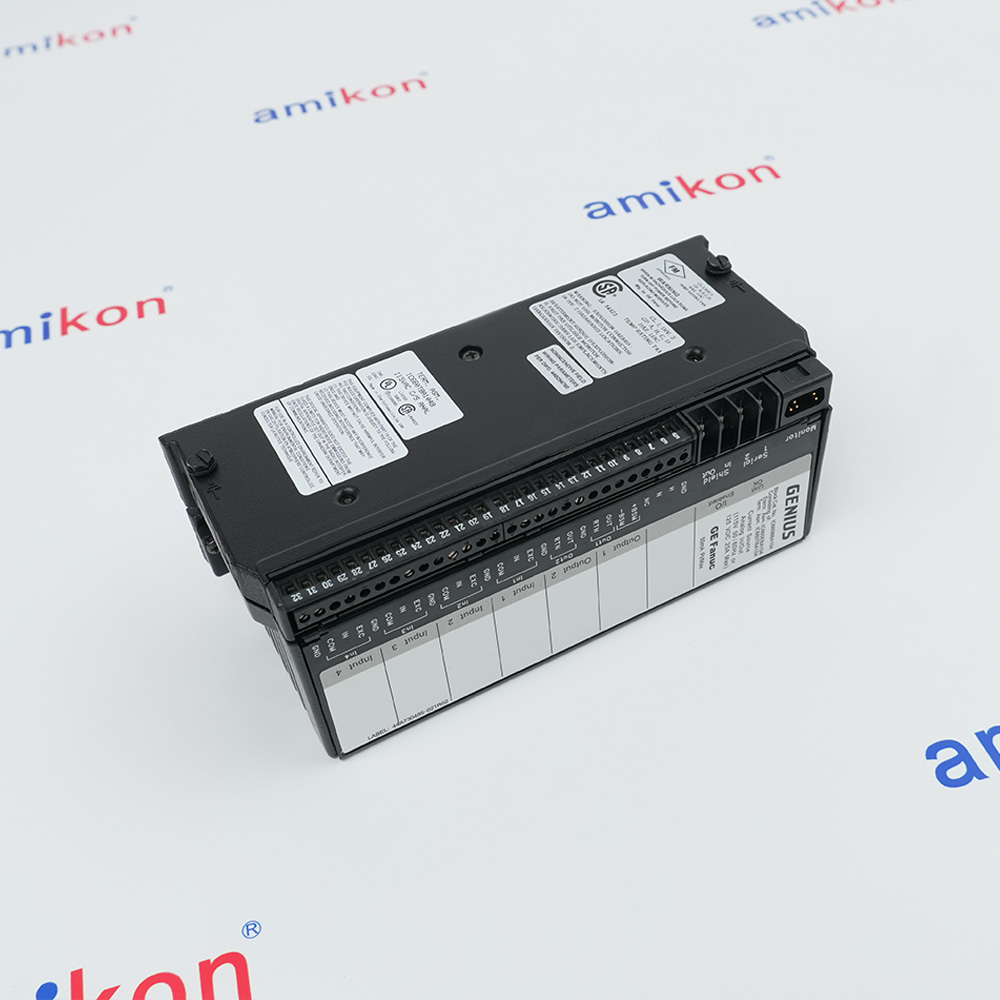

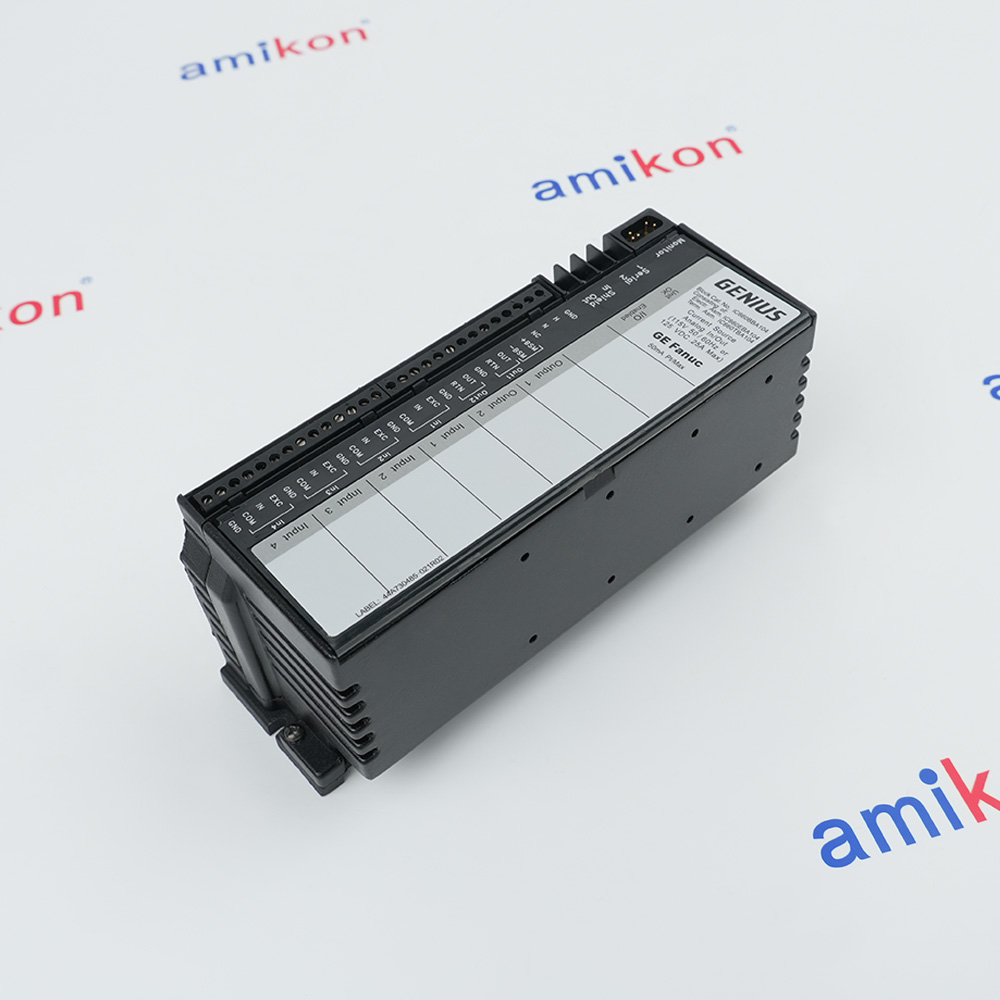

What is the IC660BBA104?
+The GE Fanuc IC660BBA104 is a Genius I/O 115 VAC/125 VDC Current-Source Analog Block. It features 4 analog inputs and 2 analog outputs, designed for 4-20 mA devices. -
What is the function of the IC660BBA104?
+It acts as an interface between a PLC controller and analog devices (4-20mA), supporting isolated power for all circuits. -
What are the power requirements?
+The block is powered by 115 VAC or 125 VDC. -
What is the difference between IC660BBA104 and IC660BBA024?
+They are identical except for the power supply; the 104 is 115 VAC/125 VDC, while the 024 is 24/48 VDC. -
Does this block require external power for inputs?
+No, the inputs are self-powered, and the block provides power to the 4-20mA loops.
