Technical specifications for IC660BBA105
-
Product ModelIC660BBA105
-
Product Parameters115Vac/125Vdc Analog Current Source 6 Outputs
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size8.5x9.8x22.5cm
-
ManufacturerGeneral Electric
-
Weight1.45 kg
-
Operating Voltage93-132 Volts AC/105-145 Volts DC
-
Supply voltage range115 VAC / 125 VDC
-
Terminal32
-
No. of OutputsSix (6) analog outputs
-
Output block6
-
Resolution6µA
-
Output Signals4-20 mA
-
Output range4-20 mA /0-24 mA
-
Heat Dissipation12 Watts
-
Block to Block Isolation1500V for one minute
Description

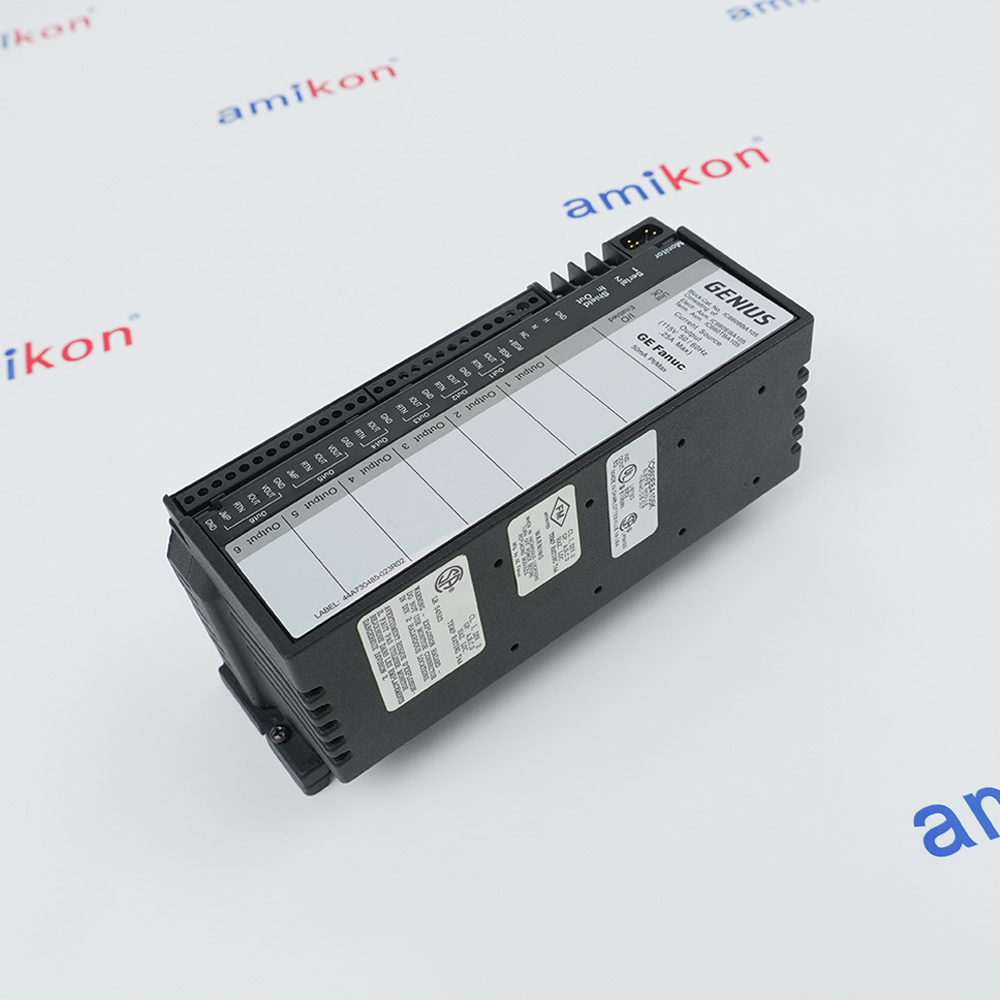

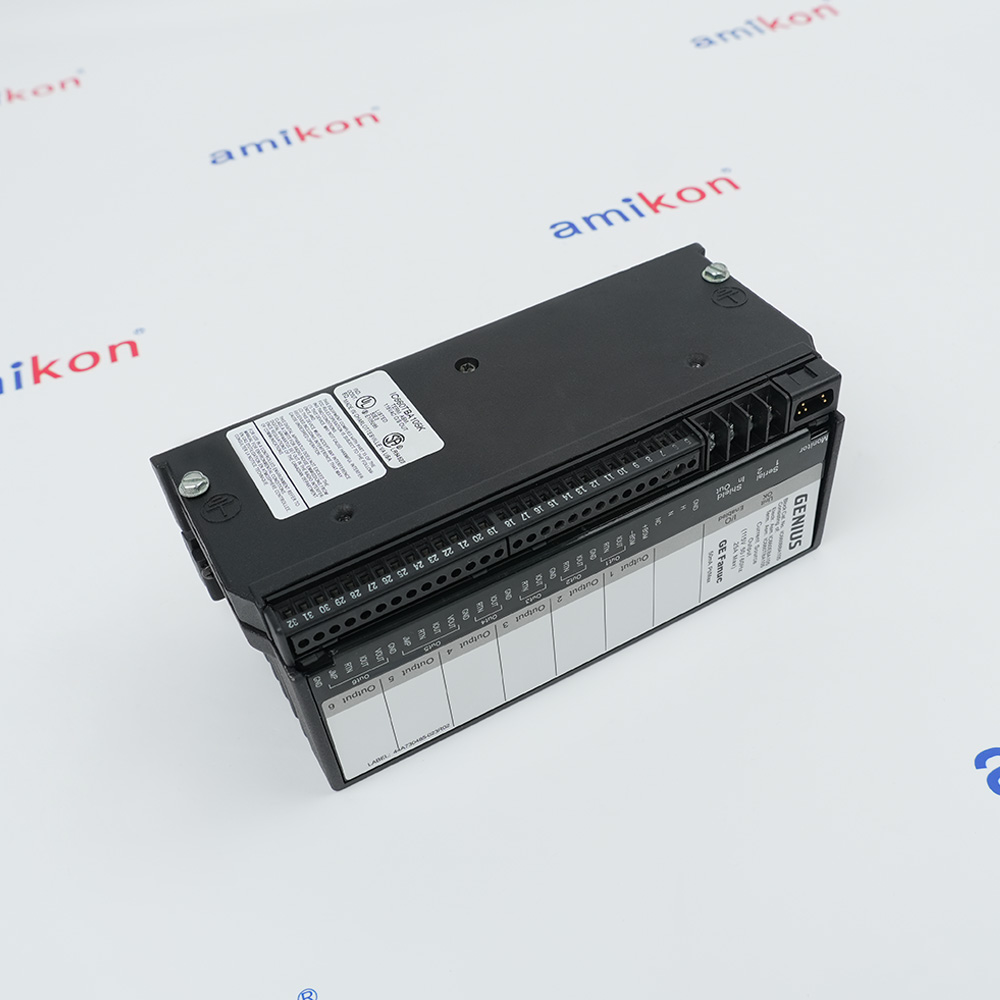

The IC660BBA105 is a Genius I/O Block component. This module is specifically an analog output module that operates at an input supply voltage of 115 VAC or 125 VDC. This module is a panel mounted device, secured through the provided mounting holes, fastened using 8-32 size screws and connected to ground using star washers. It can be installed to any enclosure, providing adequate air flow and protection to industrial contaminants.
The IC660BBA105 mainly features Six (6) analog input channels that delivers 4-20 mA signals. Each channel has configurable output hold feature which is an important safety related functionality, allowing the module to hold the current output value in the event of processor error or change in operating mode. Additionally, individual circuit scaling to engineering values can be set to provide a usable readout. It is also capable of sensing overrange and underrange situations as well output feedback error. Output channels of this module do not require calibration to be put into operation.
The IC660BBA105 mainly features Six (6) analog input channels that delivers 4-20 mA signals. Each channel has configurable output hold feature which is an important safety related functionality, allowing the module to hold the current output value in the event of processor error or change in operating mode. Additionally, individual circuit scaling to engineering values can be set to provide a usable readout. It is also capable of sensing overrange and underrange situations as well output feedback error. Output channels of this module do not require calibration to be put into operation.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Installation Instructions
Features:
- Six 4-to-20 mA analog output circuits
- No calibration required for operation
- Software configurable
- Advanced diagnostics
- Dedicated Bus Switching Module control
The IC660BBA105 has output resolution of 6µA with output update frequeny of 25 ms and accuracy of 0.15% of full-scale reading. It operates at output range of 0-24 mA and thermal drift of 35 PPM per degree C typical. Recommended wire size for terminating field signal wires are AWG #14 with minimum recommended size of AWG #20. For serial bus wiring, recommended wire size is AWG #12 wire (avg 3.3mm2 cross-section) for single wire connection and AWG #14 wires (each avg 2.1mm2 in cross-section). When 2 wires are needed in a single terminal. Minimum recommended wire size for serial bus is AWG #22.
The IC660BBA105 GE Block 115Vac/125Vdc Analog Current Source 6 Outputs may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC660BBA105 Block 115Vac/125Vdc Analog Current Source 6 Outputs Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Diagnostic capabilities include output over-range and under-range detection, feedback signal monitoring (identifying signals below 1.5 mA), and configurable fault reporting. The block can be set to hold the last output state or revert to a default state upon communication loss or CPU failure. Output feedback and feedback timeout parameters are user-configurable.
The IC660BBA105 supports CPU redundancy: if a redundant CPU configuration is present, the block continues operation under backup CPU control. A dedicated Bus Switching Module (BSM) output is provided for connection to compatible BSM devices.
Configuration and monitoring are performed via a Hand-Held Monitor (HHM), which displays output values as integers for each channel individually. The block is part of the GE Fanuc Genius I/O family, designated catalog number 6236BP10910.
- Process Control: Manages chemical, water, and food plants via current loops for flow/temperature/mixture
- Oil/Gas/Petrochemical: Controls valves, regulators, and positioners in refinery/pipeline environments
- Power/Utilities: Regulates turbine speeds, governor valves, and fuel systems via noise-resistant I/O
- Heavy Manufacturing: Drives VFDs and heating in steel, automotive, and paper mills
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Carefully inspect all shipping containers for damage. If anyequipment is damaged, notify the delivery service immediately. Savethe damaged shipping container for inspection by the deliveryservice. After unpacking the equipment, record all serial numbers.Save the shipping containers and packing material in case it isnecessary to transport or ship any part of the system.
Genius I/O blocks are considered "open equipment" and thereforemust be installed within a protective enclosure. They should belocated in an area that is clean and free of airborne contaminants.There should be adequate cooling airflow.The block can be mounted right side up, or upside down. Leave atleast 2 inches of space between blocks. Mount the block by drillingtwo screw or bolt holes for 8-32 hardware. Position the block so thatthe notches in the upper and lower flanges line up with the mountingholes. Mount the block using 8-32 screws. Use star washers toprovide ground integrity
Alternative Names
1C660BBA105
IC660B8A105
IC66OBBA1O5
1C66O88AIO5
IC660BBA1O5
IC66088A105
IC660BBAI05
IC6608BA105
IC66OBBA105
Technical notes
Each of the six output channels converts 12-bit digital signals into analog current signals. The standard output range is 4 mA to 20 mA, with an extended range of 0 mA to 24 mA available. Output channels 5 and 6 can also be configured for voltage applications. The block provides 6 μA resolution and achieves 0.15% accuracy of full-scale reading at 25 °C.
FAQs
-
What is the IC660BBA105 ?
+The GE IC660BBA105 is a stand-alone Genius I/O block featuring 6 current-sourcing analog outputs. -
What is the difference between the IC660BBA105 and the IC660EBA105?
+The IC660BBA105 is the complete Genius I/O block, while the IC660EBA105 is the internal Electronic Assembly used within the block. If your main block's electronics fail, the IC660EBA105 assembly can be used as a replacement -
What is the primary function of this module?
+It converts digital data from a controller into 6 independent analog output channels providing current-source signals. -
What is the signal resolution of the outputs?
+The block features a high-precision resolution of 6 µA
