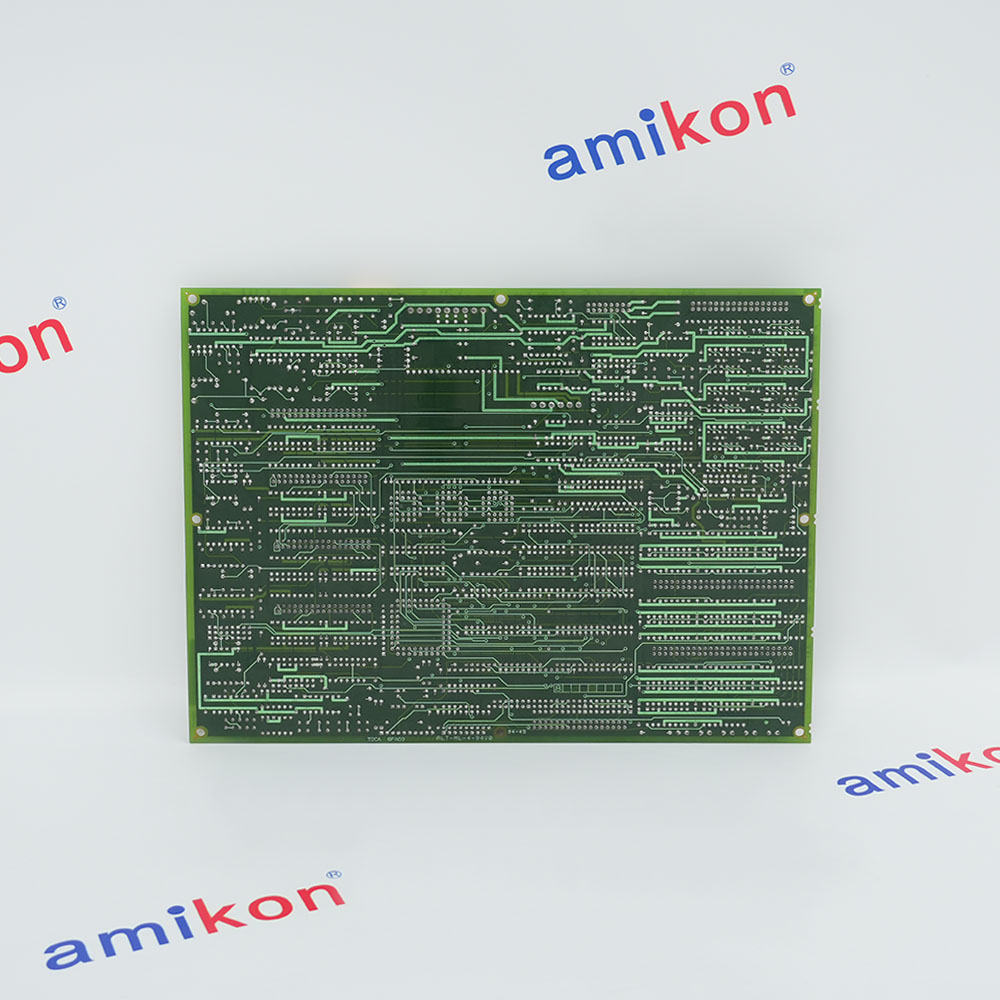

- DS200TCCAG1AJB
In Stock
Ships by Thursday, June 4
Fast Shipping Available
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DS200TCCAG1AJB
-
Product ModelDS200TCCAG1AJB
-
Product ParametersCommon Analog I/O Board
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.8x21.2x2cm
-
ManufacturerGeneral Electric
-
Weight0.65 kg
-
Power Supply24 VDC ±10%
-
Power ConsumptionLess than 5 W
-
Communication InterfaceCOREBUS via 3PL Connector
-
Communication ProtocolRS-485
-
Isolation Voltage1500 V
-
Voltage Inputs0–10 VDC, ±10 VDC
-
Operating Temperature-20°C to +70°C
Description
DS200TCCAG1AJB is a Common Analog I/O Board manufactured by General Electric as part of the Mark V Series used in gas turbine control systems.The CTBA,TBQA, and TBCA terminal boards installed in the "R5" core send analog signals to the Common Analog I/O Board (TCCA), which is housed there.420 mA inputs and outputs, RTD inputs, thermocouple inputs, shaft voltage inputs, and shaft current inputs are some of the signals that make up this group. Through the 3PL connector, the signals are written to the STCA board
Alternative Names
DS200TCCAG1AJ8
DS200TCCAG1A
DS2OOTCCAG1AJB
DS200TCCAGIAJB
DS200TCCAG1A JB
Information
Overview
Manuals
Engineering Considerations
Product Applications
Physical Mounting & Cabling
Features:
- Multi-Type Analog Signal Conditioning
- Data Bus Interface via 3PL Connector
- Improved Airflow Handling
- Three Hardware Jumpers for Configuration and Testing
- RTD Excitation and Signal Processing
- Thermocouple Cold Junction Compensation
The GE DS200TCCAG1AJB has multiple connectors for signal distribution. The 2PL connector on the GE DS200TCCAG1AJB receives power distribution from the TCPS board in the R5 core. The 3PL connector on the GE DS200TCCAG1AJB serves as the data bus between the TCCA, STCA, and core 5 TCCB boards. Conditioned signals are carried on 3PL for transferring to the COREBUS. The JAA connector on the GE DS200TCCAG1AJB possesses the 4-20 mA output signals to the CTBA terminal board.
The JBB connector on the GE DS200TCCAG1AJB possesses the shaft voltage and current signals and 4-20 mA input signals from the CTBA terminal board. The JCC and JDD connectors on the GE DS200TCCAG1AJB possess RTD input signals from the TBCA terminal board.
The DS200TCCAG1AJB GE Common Analog I/O Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE DS200TCCAG1AJB Common Analog I/O Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE DS200TCCAG1AJB drives 4-20 mA outputs to the CTBA terminal board using the JAA connector. These signals from the GE DS200TCCAG1AJB are typically utilized to power remote instruments for monitoring. The GE DS200TCCAG1AJBcontains circuitry for RTD signal processing. The GE DS200TCCAG1AJBprovides stimulation current to the RTDs. As temperature varies, the RTD resistance changes, causing the voltage on the RTD to change. The GE DS200TCCAG1AJB calibrates, measures, and scales the voltage signal. The GE DS200TCCAG1AJB reads RTD signals from the TBCA terminal board through the JCC and JDD connectors. The GE DS200TCCAG1AJB transmits these signals to the I/O Engine via the 3PL connector. I/O configuration constants are used to select the RTD type on the GE DS200TCCAG1A.
- Power Generation:Gas turbines: power gen control
- Oil & Gas:Pipeline/offshore compressors & pumps
- Industrial & District Heating:Cogeneration for plants & urban heating
- Marine & Propulsion:Shipboard power & turbine propulsion
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Verify Revisions: Ensure the replacement board's hardware revision match (Grade A) aligns with your system configuration requirements.
Align and Seat: Gently slide the TCCA board into its designated slot within the VME rack structure. Ensure it matches up perfectly with the backplane connectors, pushing it firmly into place without applying excessive force.
Ribbon Cable Interface: Connect the standard 50-pin ribbon connectors to their designated ports on the board, labeled JCC and JDD.
Technical notes

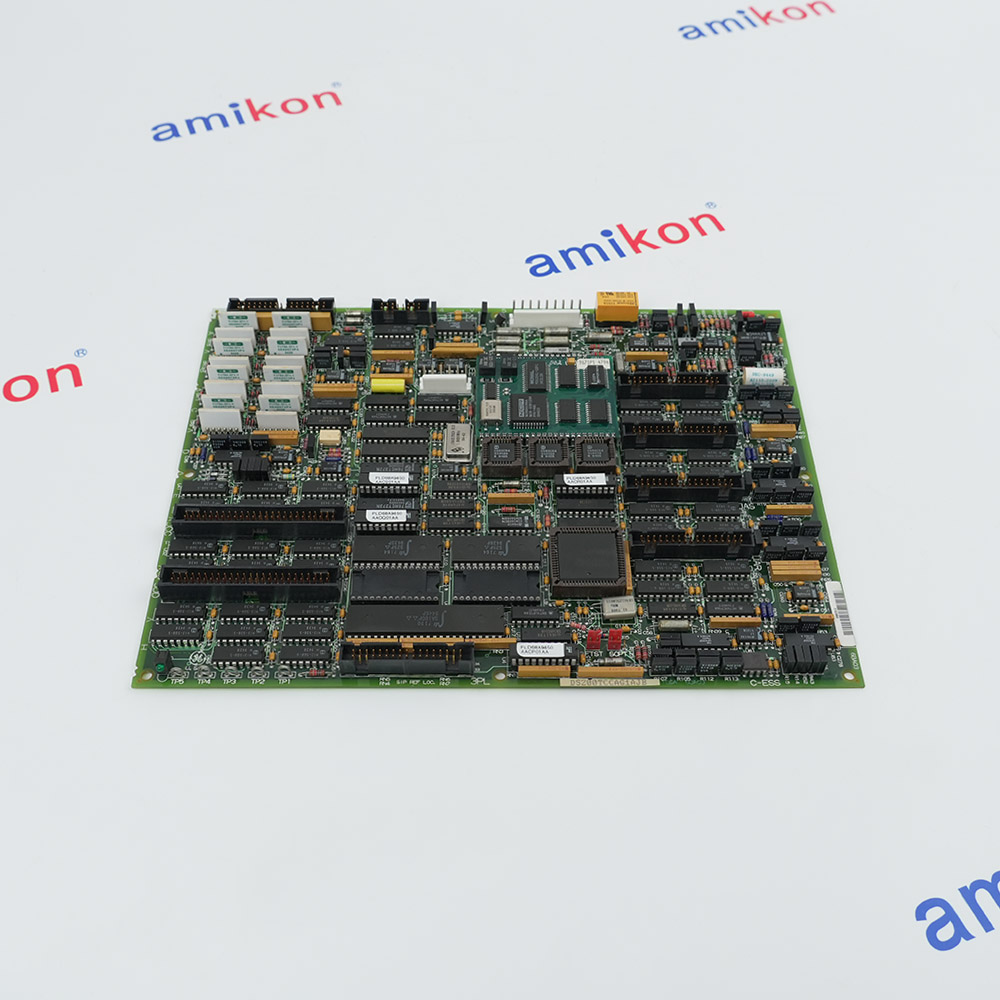

The GE I/O TC2000 Analog Board DS200TCCAG1AJB features one 80196 microprocessor and multiple PROM modules. It also contains one LED and 2 50-pin connectors. The LED is visible from the side view of the board. The IDs for the 50-pin connectors are JCC and JDD. Because the GE I/O TC2000 Analog Board DS200TCCAG1AJB is populated with a microprocessor, it is important that the board be kept at a cool temperature to enable the microprocessor to function accurately and also to prolong the life of the microprocessor. Excessive heat can damage a microprocessor and also lead to inaccurate processing.
FAQs
-
What is the DS200TCCAG1AJB?+The GE DS200TCCAG1A is a Common Analog I/O Board manufactured by General Electric for its Mark V Speedtronic Turbine Control System.
-
What core processor powers this board?+The board is equipped with a singular 80196 microprocessor alongside multiple PROM modules that house its operating firmware.
-
Where is DS200TCCAG1AJB physically located within the system?+The TCCA board is installed inside the R5 core of the Mark V turbine control drive.
-
Why is temperature regulation critical for the TCCA board?+Excessive ambient heat can cause inaccurate signal processing and permanently damage the 80196 microprocessor. Maintaining a cool operating environment significantly prolongs its service lifespan
