- DS215TCCAG1BZZ01A
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for DS215TCCAG1BZZ01A
-
Product ModelDS215TCCAG1BZZ01A
-
Product ParametersCommon Analog I/O Board
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28x21.4x2.5cm
-
ManufacturerGeneral Electric
-
Weight0.6 kg
-
Mounting OptionsDIN Rail
-
Operating Temperature-20°C to 70°C
-
Input Channels8 Analog Inputs
-
Output Resolution12-bit / 16-bit
-
Power Supply24V DC ±10%, < 5W
-
Isolation1500V
Description

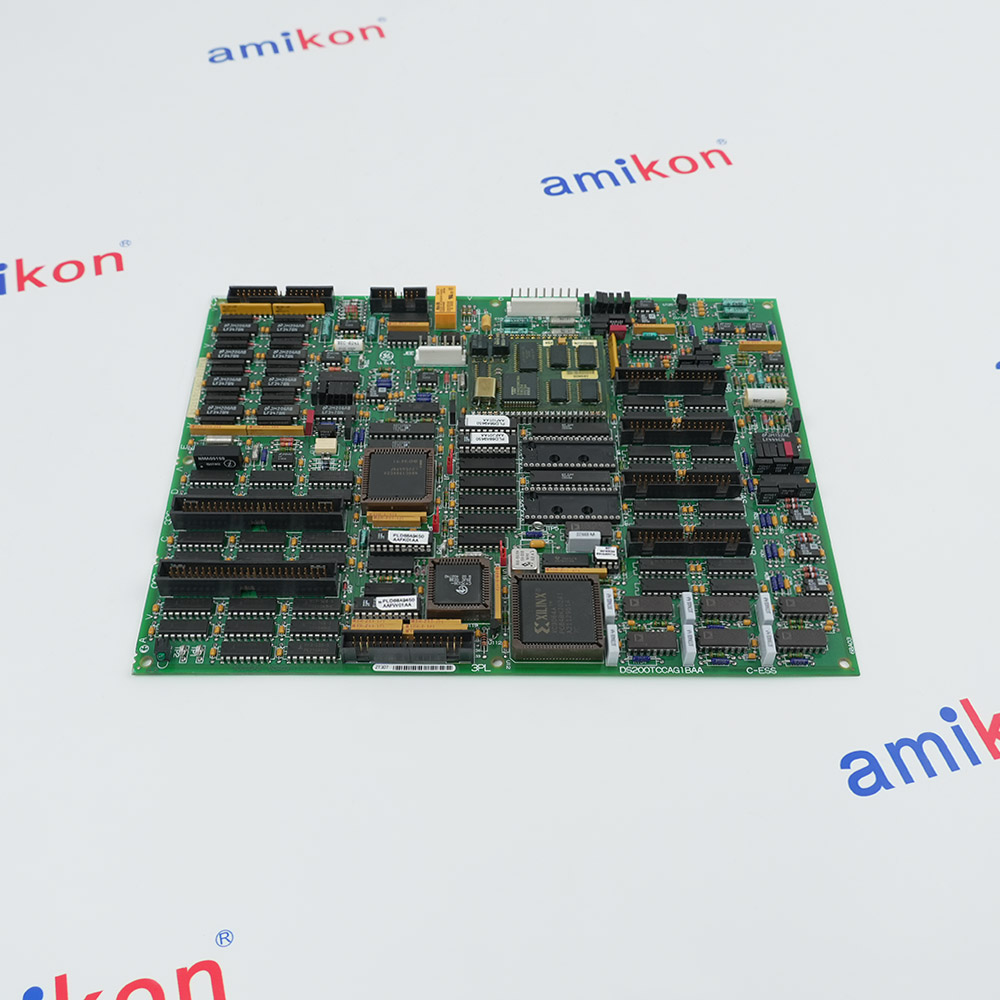

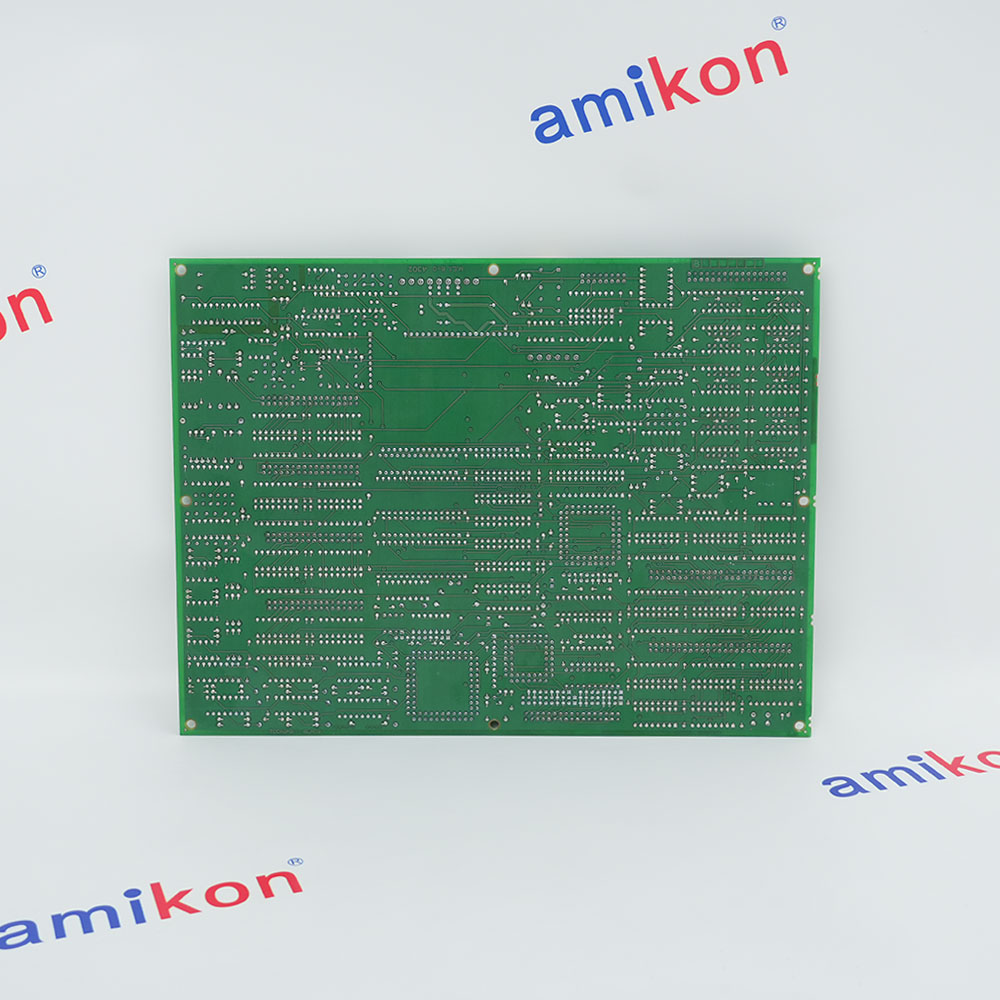

DS215TCCAG1BZZ01A is a Common Analog I/O Board manufactured and Designed by General Electric as part of the Mark V Series used in gas turbine control systems The Common Analog I/O Board (TCCA) in the core processes and conditions analog signals from the CTBA, TBQA, and TBCA terminal boards. These signals include 4-20 mA inputs and outputs, RTD and thermocouple inputs, as well as shaft voltage and current inputs.The processed signals are transmitted to the STCA board via the 3PL connector.
Alternative Names
DS215TCCAG1B
DS215TCCAG1BZZO1A
DS215TCCAG1BZZ0IA
DS215 TCCA G1BZZ01A
Information
Overview
Manuals
Engineering Considerations
Product Applications
Hardware Configuration & Jumper Settings
Features:
- 8 Analog Input Channels with 12-bit / 16-bit Resolution
- Voltage Input and Output Range (0-10V, ±10V)
- RS-485 Communication Protocol
- 1500V Isolation Protection
- 24V DC Power Supply with Low Power Consumption
The 3PL connector on the GE DS215TCCAG1BZZ01A carries conditioned signals for transfer to the COREBUS. The JAA connector on the GE DS215TCCAG1BZZ01A transmits 4-20 mA output signals to the CTBA terminal board. br />
The DS215TCCAG1BZZ01A GE Common Analog I/O Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE DS215TCCAG1BZZ01A Common Analog I/O Board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE DS215TCCAG1BZZ01A has three hardware jumpers. J1 on the GE DS215TCCAG1BZZ01A is used to enable or disable the serial RS232 port. JP2 on the GE DS215TCCAG1BZZ01A is used to disable the oscillator for card testing. JP3 on the GE DS215TCCAG1BZZ01A is used for factory tests.
The I/O configuration constants for the thermocouples, RTDs, mA inputs and outputs, and the shaft voltage and current settings for the GE DS215TCCAG1BZZ01A are entered in the I/O Configuration Editor located on the HMI. The GE DS215TCCAG1BZZ01A provides circuitry for 4-20 mA input signals. The GE DS215TCCAG1BZZ01A reads these signals from the CTBA terminal board via the JBB connector. The transducer current is dropped across a burden resistor. The resulting voltage drop is read by the GE DS215TCCAG1BZZ01A and transmitted to the I/O Engine through the 3PL connector.
- Power Generation Plants:Manages Frame 6/7/9 gas & steam turbines
- Oil and Gas Infrastructure:Drives LNG compressors & pipeline pumps
- Petrochemical and Chemical Processing:Prevents plant-wide shutdowns via cogen
- Marine Propulsion and Generation:Aero/heavy-duty turbine for ship/offshore grid
- Mining and Heavy Manufacturing:Independent microgrid for remote smelters/mills
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Match Hardware: Compare your replacement board's hardware revision and jumper blocks with the original unit.
Configure Jumpers: Manually shift any configurable jumper pins (e.g., input voltage vs. current selection) to replicate the active profile.
Input Defaults: Ensure channels requiring a 4-20mA current loop or ±10V/0-10V signal match the targeted instrumentation specifications.
Technical notes
The GE DS215TCCAG1BZZ01A has multiple connectors for signal distribution. The 2PL connector on the GE DS215TCCAG1BZZ01A distributes power from the TCPS board in the core. The 3PL connector on the GE DS215TCCAG1BZZ01A serves as the data bus between the TCCA, STCA, and TCCB boards in core 5.
FAQs
-
What is the DS215TCCAG1BZZ01A ?
+The GE DS215TCCAG1BZZ01A is a Common Analog I/O Board manufactured by General Electric as part of the legacy Mark V Speedtronic series. -
What signals does DS215TCCAG1BZZ01A process?
+The board is designed to process analog signals such as 4-20 mA inputs and outputs, thermocouple and RTD (Resistance Temperature Detector) inputs, as well as shaft voltage and current inputs. -
What specific inputs and outputs does it handle?
+It manages various field signals, including standard 4-20 mA inputs and outputs, Resistance Temperature Detector (RTD) signals, thermocouple data, and specialized shaft voltage and current inputs
