      IS200WROBH1A

      Need Help? Contact US!
      Call us: +86-18020776786
      Proper, Ready.

      Delivery time
      Please indicate your delivery time

      Product Information

      Product Describe
      IS200WROBH1A
      POWER DISTRIBUTION BOARD
      Simplex, Redundant or TMR

      Specifications

      • Product Model
        IS200WROBH1A
      • Product Parameters
        Power Distribution Board
      • Tariff Code
        8537101190
      • Country of origin
        USA
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        15.8x10x2.8cm
      • Manufacturer
        General Electric
      • weight
        0.1 kg
      • Fuse Quantity
        12 fuses
      • Fuse Rating
        3.15 A default
      • Power Sensing 
        24 VDC
      • DC Application Voltage
        24 / 48 / 125 VDC
      • AC Application Voltage
        120 / 240 VAC
      • Operating Temperature
        –40 °C … +70 °C
      • Storage Temperature
        –40 °C … +85 °C

      • Factory New

        These are new and current items that are procured from the manufacturer.

      • New No Package

        These parts are new. They have not been used, but their original packaging is no longer available.

      • New In Opened Package

        These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged.

      • New In Sealed Package

        Parts are new. They have not been used and still have their original package seal intact.

      • New in Original Package

        These parts are new. The packages were not originally sealed by their original manufacturer.

      Warranty Period & Disclaimer

      Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

      FAQs

      • Which I/O Redundancies are true for this IS200WROBH1A Board product?+
        This IS200WROBH1A Circuit Board has both TMR and Simplex I/O Pack Redundancies.
      • What is the IS200WROBH1A？+
        The GE IS200WROBH1A is a WROB Relay Fuse and Power Sensing Board designed for the Mark VIe control system.
      • What is the IS200WROBH1A purpose of the board?+
        It provides sensed and fused power distribution to relay outputs, often used in conjunction with the TDBS module for protection.
      • What are the IS200WROBH1A fuse specifications?+
        The board features 12 fuses, typically with a default rating of 3.15 Amps (500VAC/400VDC).
      • What systems does it work with?+
        It is part of the Mark VIe series, functioning in both simplex and Triple Modular Redundant (TMR) modes.
      Get a quick price fo IS200WROBH1A
      *Quantity
      *E-mail
      Company
      *Mobile
      *Content
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.
      whatsapp
      Inquiry

      Control system parts

      Required delivery time
      ask

      Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

      Product Applications
      • Industrial automation systems
      • Packaging machinery control
      • Material handling equipment control
      • Solutions for aluminium smelters
      • Hot rolling & Cold rolling
      • Iron- and steelmaking
      • Paint solutions
      This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
      What happens next
      Get the quote now Write Email to: INFO@AMIKON.CN
      Email confirmation You will get an email confirming that we have received your enquiry.
      Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.
      Your quote You will receive a comprehensive quote tailored to your specific needs.
      Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
      Delivery and payment
      Delivery
      Logistic partners UPS, FedEx and DHL
      International delivery available
      Same day dispatch from warehouse inventory
      Warranty
      All parts new original are covered by Amikon 12 month warranty

      Returns
      No hassle returns policy

      Dedicated customer support team

      Payment options
       We accept Bank transfers and the following methods of payment:

      For more information, please visit our dedicated payments page.
      Why Choose Amikon Limited?

      When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.

      • ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
      • ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
      • ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
      • ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
      • ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
      •

      Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.


      Product

      MORE INFORMATION

      Overview Manuals Technical notes Diagnostic and Monitoring Functions Need more info

      Features:

      • Mark VIe
      • Simplex, Redundant or TMR
      • POWER DISTRIBUTION BOARD

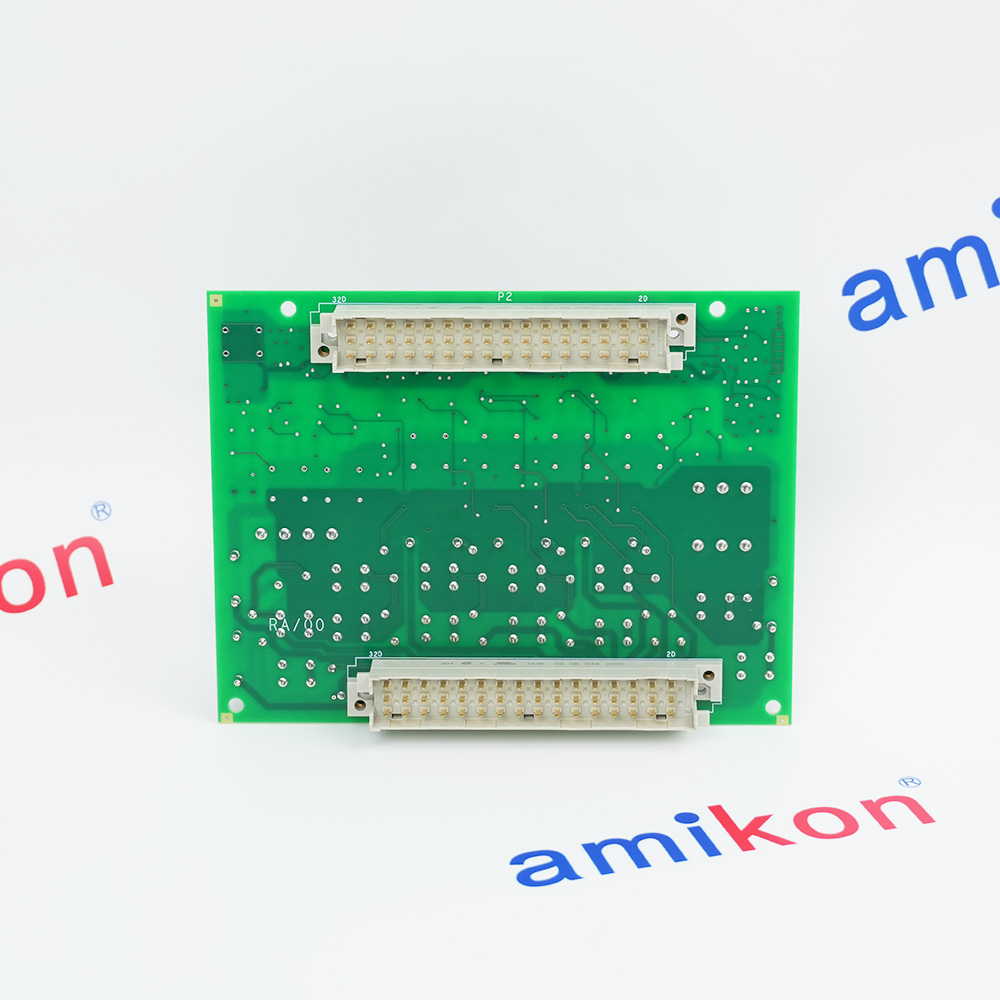

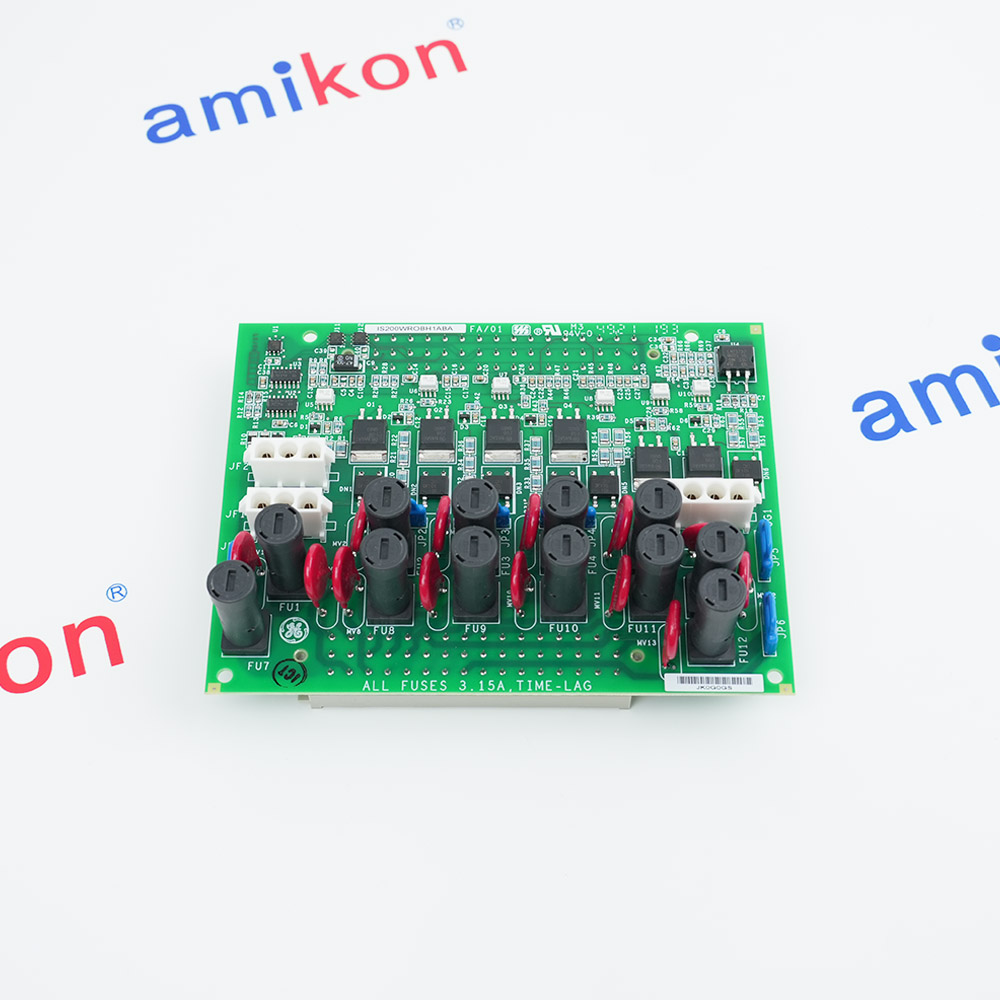

      The IS200WROBH1A board is a WROB Relay Fuse and Power Sensing Board; part of the Mark VIe Series produced by General Electric. This board is known as an option board that can be used with several other boards in the series, all of the boards are used in the PDIO Discrete Input/Output Module, and the boards which the WROB can attach to are the TDBS, SRLY, and the TDBT boards.

      The IS200WROBH1A GE Power Distribution Board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
      GE IS200WROBH1A Power Distribution Board Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      When the IS200WROBH1A board connects to the TDBS board it has the ability to turn the relay portion into a potential equivalent to that of the IS20TRLYH1B board. With this option, it provides sensed and fused power distribution to the first six initial relay outputs as well as dedicated power to the final relay outputs. This board will also have a default fuse value of three-point-fifteen amperes. When the board is used with the isolated voltage on the TDBS it will be used to detect different statuses of the fuses on the six fuse pairings on the board.

      While the IS200WROBH1A board is considered obsolete it can still be found in new and used surplus. If you have any questions regarding the availability of this board, please reach out to our sales team during normal business hours Monday through Friday to receive quotes on pricing, repairs, and shipping times.
      The IS200WROBH1A provides real-time feedback to the control system to identify failures before they cause operational downtime.

      Fuse Status Detection: When used with isolated voltage on the TDBS terminal board, the IS200WROBH1A can detect the state of fuse pairings.

      Voltage Sensing Feedback: It provides isolated voltage sensing for each fuse that is not polarity-sensitive. If a fuse opens while voltage is present, the board generates a diagnostic fault for the controller.

      Compatible Voltage Ranges: The sensing circuitry supports a wide range of applications, including 24 V, 48 V, and 125 VDC, as well as 120 V and 240 VAC.
