- IS220PIOAH1A
In Stock
Ships by Saturday, June 27
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IS220PIOAH1A
-
Product ModelIS220PIOAH1A
-
Product ParametersARCNET Interface I/O Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6x12.8x8.3cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Operating Temp0°C to +60°C (32°F to +140°F)
-
Storage Temp-40°C to +85°C (-40°F to +185°F)
-
Humidity5–95% (non-condensing)
-
Vibration5g (10–500 Hz)
-
Voltage Range11–30 VDC (sinking)
-
Operating Voltage24 VDC
-
Isolation1500 VAC
Description

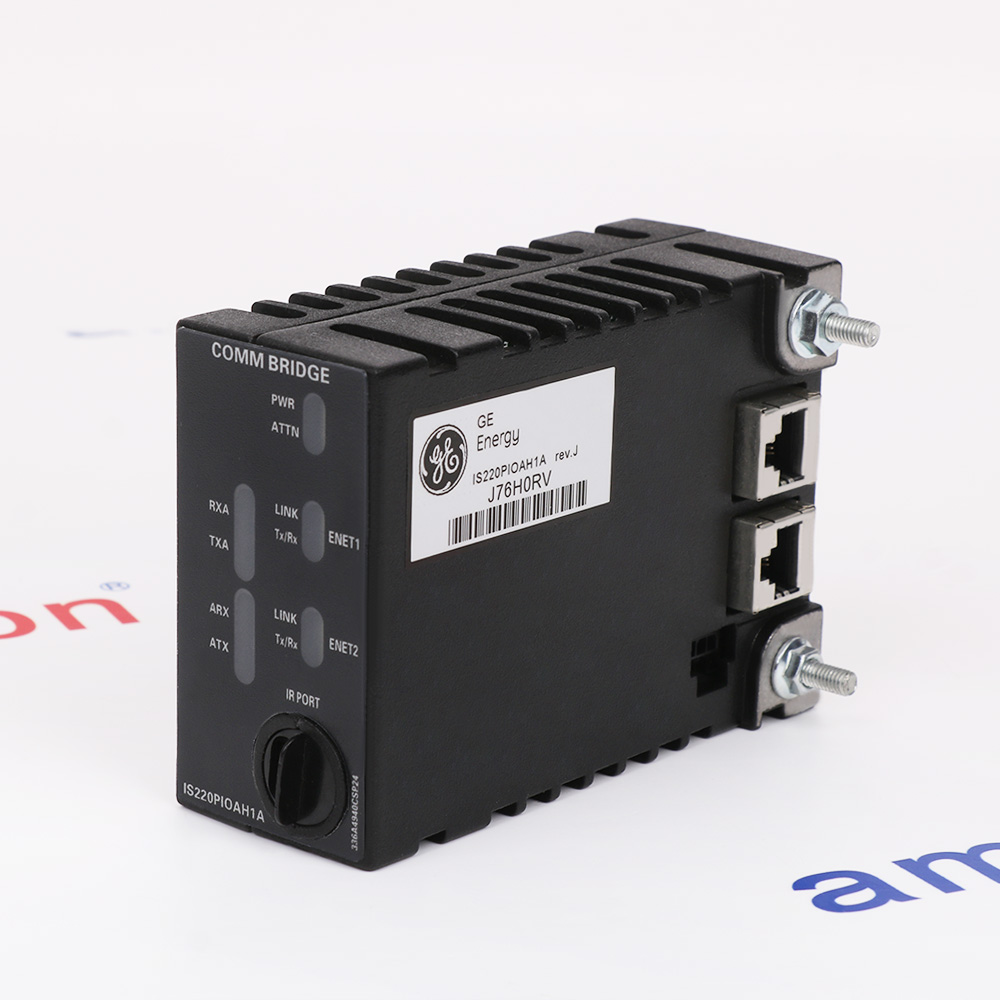

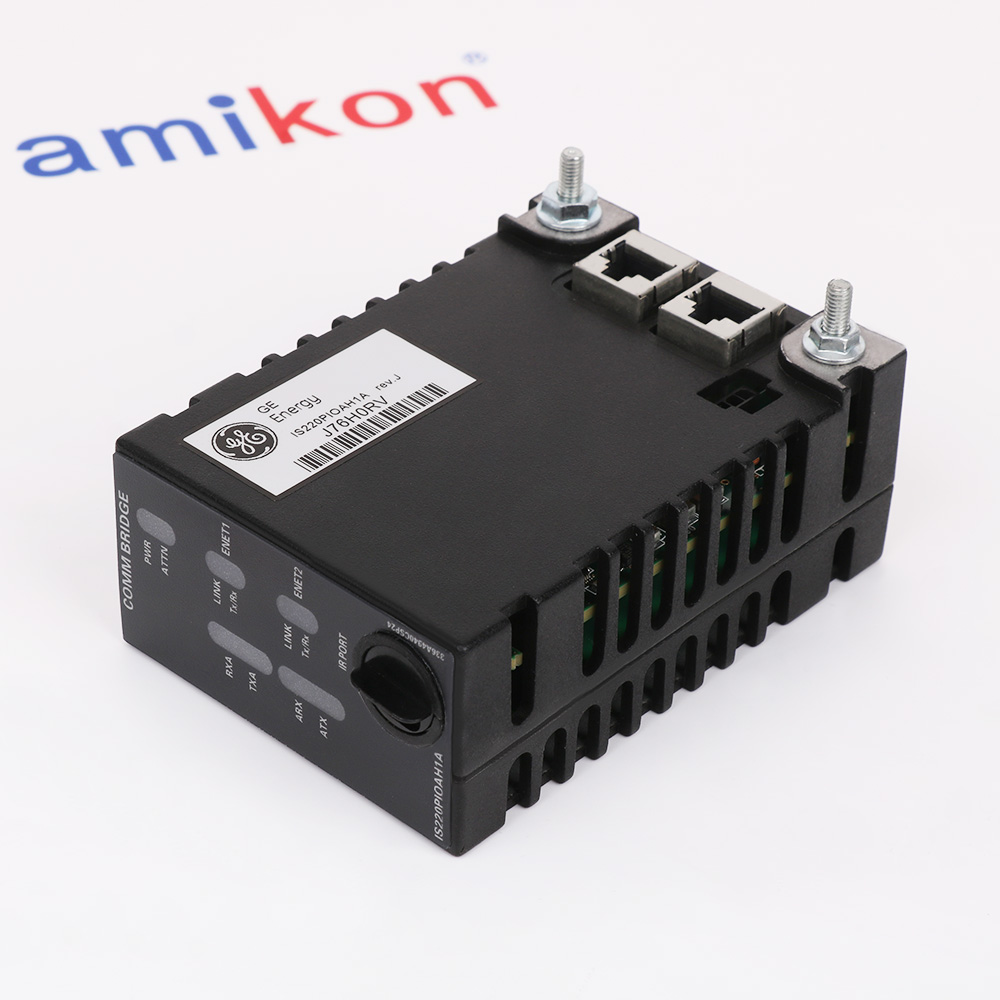

IS220PIOAH1A is an ARCNET Interface I/O Module manufactured and designed by General Electric as part of the Mark Vle Series used in distributed control systems.
The ARCNET I/O pack (PIOA) provides an interface for the excitation control. The I/O pack mounts to the JPDV terminal board through a 37-pin connector. The LAN connections are made to the JPDV. System input to the I/O pack is through dual RJ-45 Ethernet connectors and a 3-pin power input.
Visual diagnostics are provided through indicator LEDs. Excitation control ARCNET uses a single PIOA in the C core for simplex applications or a single PIOA in R and C cores for redundant applications
The ARCNET I/O pack (PIOA) provides an interface for the excitation control. The I/O pack mounts to the JPDV terminal board through a 37-pin connector. The LAN connections are made to the JPDV. System input to the I/O pack is through dual RJ-45 Ethernet connectors and a 3-pin power input.
Visual diagnostics are provided through indicator LEDs. Excitation control ARCNET uses a single PIOA in the C core for simplex applications or a single PIOA in R and C cores for redundant applications
Alternative Names
IS220PIOAHIA
IS220PI0AH1A
1S220PIOAH1A
IS22OPIOAH1A
1S22OPIOAH1A
1S22OP10AHIA
Information
Overview
Manuals
Mechanical & Mounting Integration
Product Applications
Connectivity & Network Management
Features:
- ARCNET Interface I/O Pack for Excitation Control
- Single RS-485 Channel with 32 Hz Frame Rate
- Dual RJ-45 Ethernet Connectors for System Input
- JPDV Terminal Board Mounting via 37-Pin Connector
- Soft-Start Power Management with Current Limit Protection
The IS220PIOAH1A GE ARCNET Interface I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS220PIOAH1A ARCNET Interface I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Direct Terminal Mounting: The unit must mount directly onto a compatible IS200JPDVG1A Power Distribution Interface Board via its integrated DC-37 pin connector. It does not utilize standard discrete wire terminal blocks.
Mechanical Alignment: Threaded studs adjacent to the network interfaces must line up precisely with the terminal board's core bracket. Engineers must eliminate right-angle or side-loading force on the high-density pin connections during installation.
- Gas & Steam Turbine Control:Startup, speed, fuel, gen sync for heavy turbines
- Wind Turbine Management:Pitch control & grid integration (Mark VI)
- Flame Detection Systems:335 Vdc output for TRPG flame sensors
- Heavy Industry:DCS/SCADA for manufacturing & process control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
ARCNET Frame Rate: Supports 1 RS-485 channel and processes at a 32 Hz frame rate
Dual Ethernet Ports: Built with two 100 MB Ethernet ports with independent connectors communicating back to the core controller board.
Processing Subsystem: Runs an internal 32-bit RISC CPU operating at 266 MHz managed by a secure QNX real-time operating system (RTOS).
Diagnostics & Interfacing: The faceplate features distinct status LEDs (Power, Attention, Ethernet Connection, and Active Status) alongside an infrared port transceiver. The IR port allows local engineers to perform low-level troubleshooting or configure host/functional names without interrupting network wiring.
Technical notes
The GE IS220PIOAH1A is an ARCNET Interface I/O Module manufactured by General Electric. It is a critical component of the Mark VIe Distributed Control System (DCS) and Speedtronic turbine control systems, functioning primarily as an excitation control bridge communications bridge.
FAQs
-
What is the IS220PIOAH1A？
+The GE IS220PIOAH1A is an ARCNET Interface I/O Module utilized within the General Electric Mark VIe distributed control system. -
What is the function of the IS220PIOAH1A?
+It acts as an ARCNET communication bridge that allows for excitation control and data acquisition. Depending on the system setup, it is configured in a simplex (single PIOA in the C core) or redundant (PIOA in both R and C cores) application. -
What do the LEDs on the faceplate indicate?
+The faceplate is equipped with visual diagnostic LEDs that communicate the status of the power input, Ethernet connections, attention requirements, and active operational states. -
How is the infrared (IR) port used?
+Located just below the indicator LEDs, the infrared port is a transceiver used for performing low-level diagnostics and setting or updating host and function names.
