Technical specifications for IS200TDBTH2ACD
-
Product ModelIS200TDBTH2ACD
-
Spare ModelIS200TDBTH2A
-
Product ParametersVIE CONTROLLER CARD
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size33x18.2x3.2cm
-
ManufacturerGeneral Electric
-
Weight0.75 kg
-
Discrete Contact Inputs24 channels
-
Relay Outputs12 form-C
-
Input Voltage Range16–32 V DC
-
Input Current Limiting2.5 mA
-
Relay Contact RatingUp to 5 A current
-
Operating Temperature-30°C to +65°C (-22°F to +149°F)
Description
The GE IS200TDBTH2ACD is a PDIO (Programmable Discrete Input/Output) terminal board for the GE Mark VIe Speedtronic turbine control system. It serves as the physical interface between field discrete devices and the Mark VIe distributed I/O system.
The terminal board connects to IS220PDIOH1A or IS220PDIOH1B discrete I/O packs, providing discrete input and output channels for turbine control and protection functions. The board accepts 24 V DC or 125 V DC discrete inputs and provides relay outputs for control of field devices.
The terminal board connects to IS220PDIOH1A or IS220PDIOH1B discrete I/O packs, providing discrete input and output channels for turbine control and protection functions. The board accepts 24 V DC or 125 V DC discrete inputs and provides relay outputs for control of field devices.
Alternative Names
IS200TDBTH2ACO
IS20OTDBTH2ACD
IS2O0TDBTH2ACD
1S200TDBTH2ACD
IS200TOBTH2ACD
Information
Overview
Manuals
Application Notes
Product Applications
Wiring Configuration
Features:
- Terminal Board
- DIN-rail mount
- PDIO I/O pack

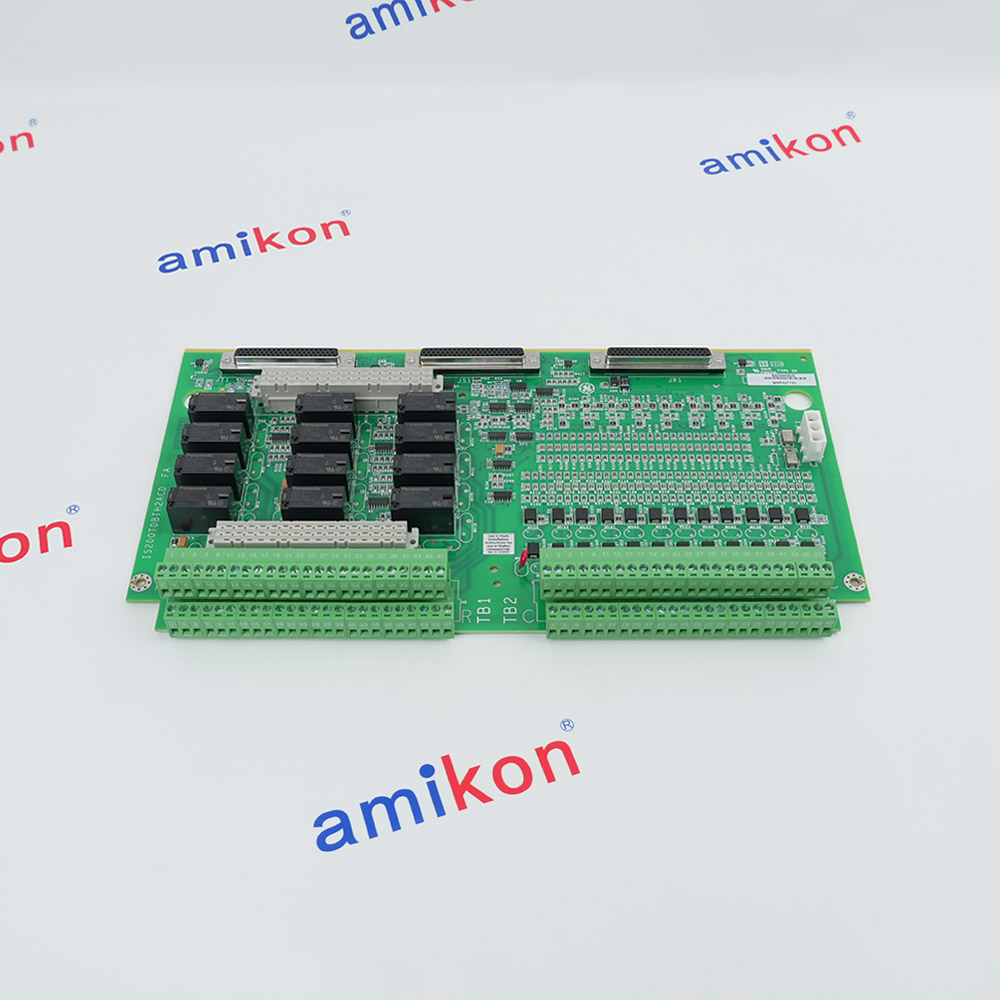

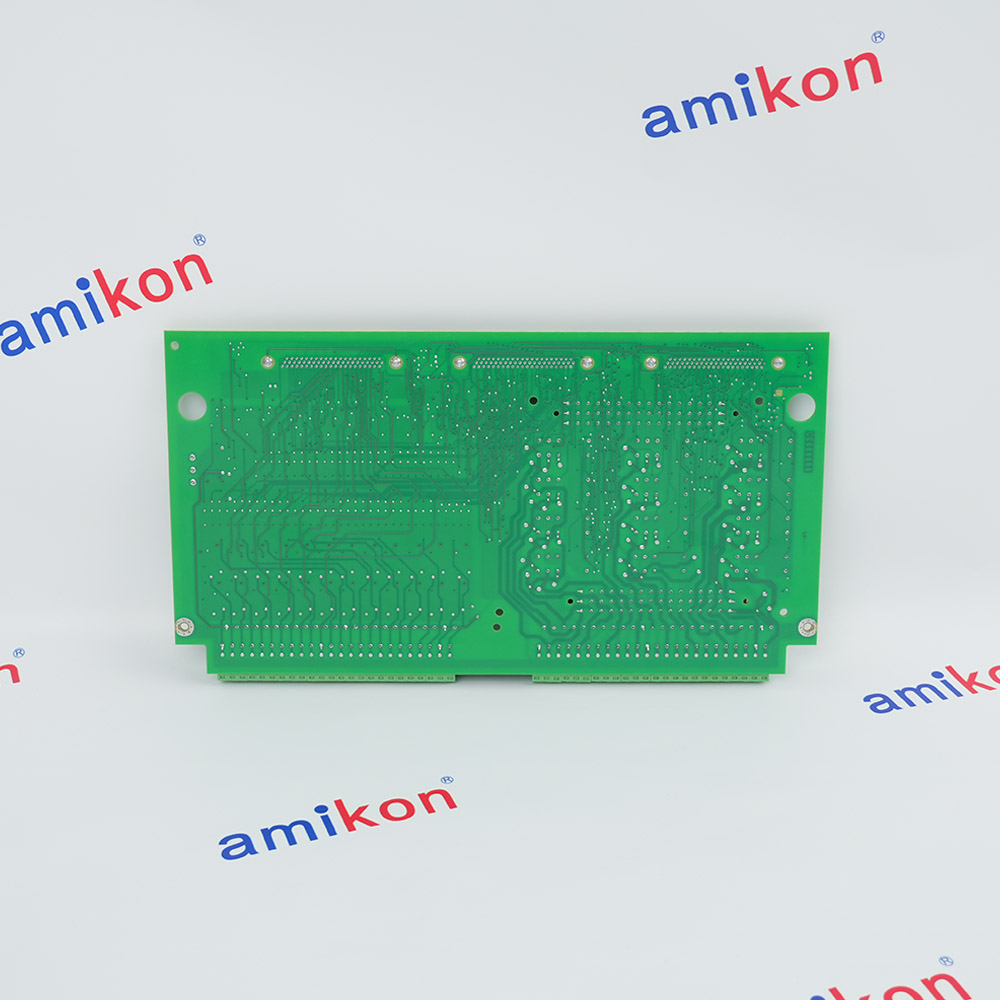

This board was created as a reasonably large gadget with a variety of electronic components, including two large terminal blocks with a succession of little silver metal terminals fashioned like cubes On the PCB's left side, there is a single spherical capacitor positioned between these two terminal blocks This board also has three connector ports, each of which has a large number of female connectors.
The IS200TDBTH2ACD GE Discrete Input/Output Terminal Board (TDBT) may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS200TDBTH2ACD Discrete Input/Output Terminal Board (TDBT) Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This board was created as a reasonably large gadget with a variety of electronic components, including two large terminal blocks with a succession of little silver metal terminals fashioned like cubes On the PCB's left side, there is a single spherical capacitor positioned between these two terminal blocks This board also has three connector ports, each of which has a large number of female connectors.
- Oil & Gas Refineries:Hazardous area: controls compressors & ESD flame/pressure switches
- Chemical Processing Plants:Isolated discrete signals protected against HF interference/surges
- Automotive Manufacturing:Mark VIe ecosystem: coordinates large-scale robotic assembly lines
- Electronics & Semiconductor Fabs:Massive automated assembly: minimizes strictly forbidden downtime
- Pharmaceutical Production:High-precision processing with legally mandated quality & safety interlocks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Wire Specifications: Each terminal can accept two 3.0 mm² (#12 AWG) wires with 300 V insulation. You may use spade or ring-type lugs, or terminate bare wires directly using the provided captive clamps.
Input Wetting Voltage: The board accepts 24 group-isolated contact inputs. These must be supplied with external wetting voltages of 24, 48, or 125 V DC.
Noise Suppression: Field wiring should be routed near the shield strips (located on the left side of the metal base) to utilize the board's built-in surge and high-frequency noise protection
Technical notes
The IS200TDBTH2ACD is certified for use in hazardous locations including Class I Division 2, Class I Zone 2, and ATEX Zone 2 environments when paired with the appropriate I/O pack. It carries UL, CSA, and ATEX certifications.
FAQs
-
What is the IS200TDBTH2ACD?
+The IS200TDBTH2ACD is a terminal board, often designated as a -
What is the primary function of this board?
+It acts as a terminal interface for digital signals (on/off states) between external sensors and the turbine control system. It provides 24 group-isolated contact inputs and 12 form-C relay outputs. -
Can it operate with a single I/O pack?
+No. The IS200TDBTH2A is designed for redundancy and cannot operate correctly with only a single PDIO I/O pack. It typically requires three PDIO packs for Triple Modular Redundant (TMR) configurations. -
What wetting voltages are supported?
+The board supports nominal external wetting voltages of 24 V DC, 48 V DC, or 125 V DC.
