PRODUCT DESCRIPTION

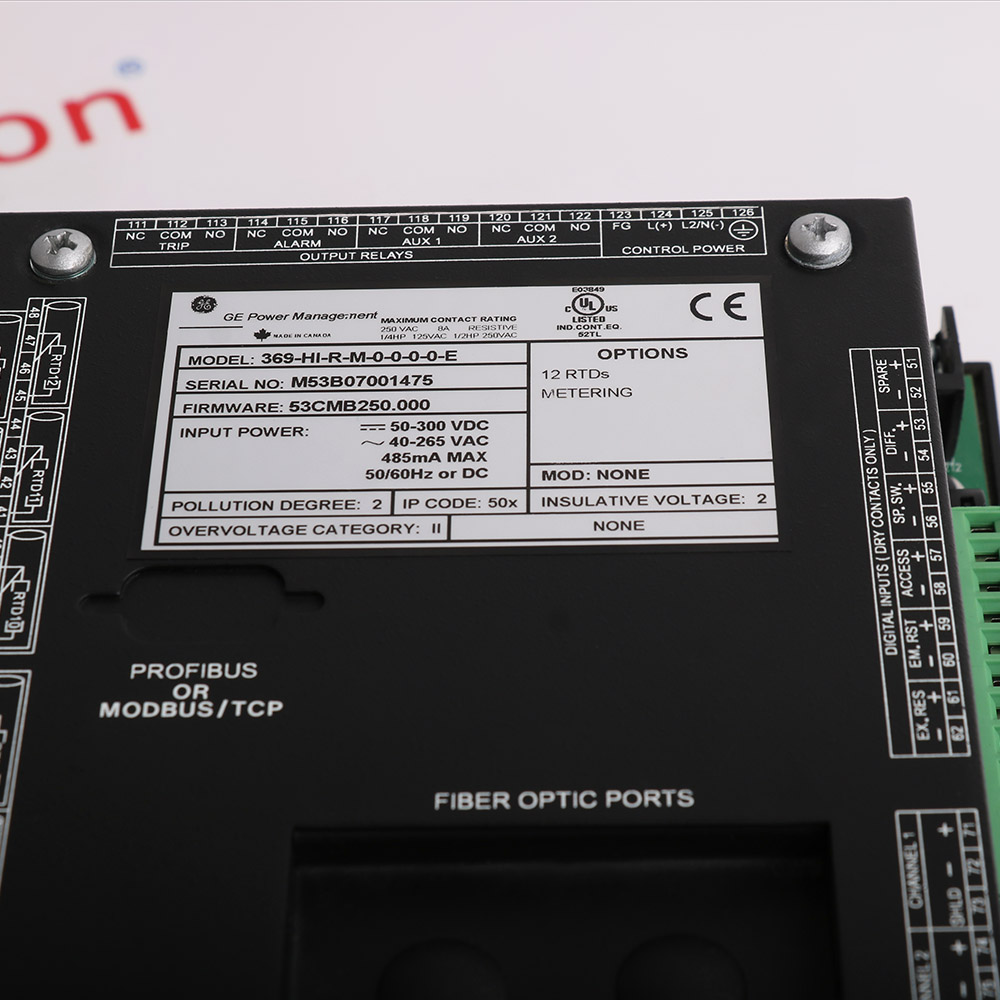

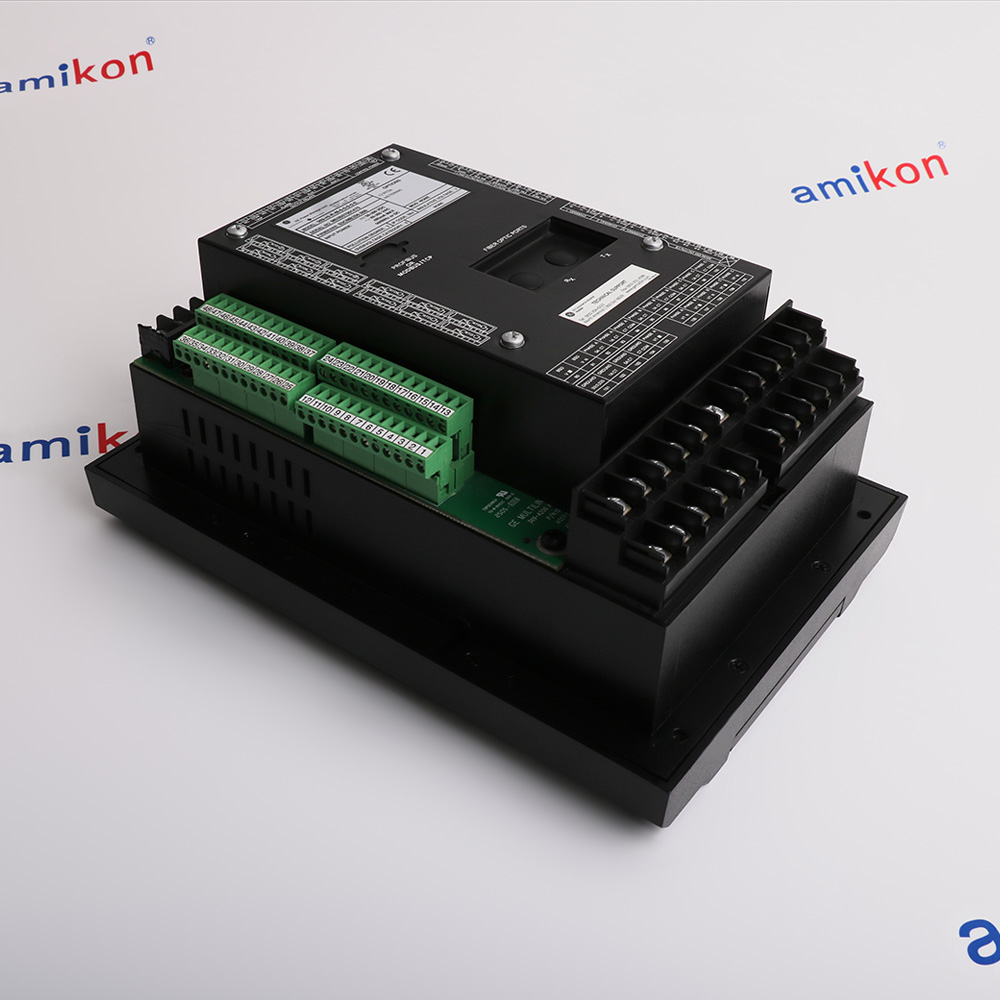

369-HI-R-M-0-0-0-0-E Motor Management Relay
GE 369-HI-R-M-0-0-0-0-E is a Multilin 369 motor management relay for compatible AC motor protection and monitoring. Its identifiable HI, R and M options denote the high control-supply range, RTD inputs and metering functions; remaining suffix positions must be checked on the supplied label.
The relay processes phase-current and temperature inputs to support the configured motor-protection functions. It provides programmable dry-contact inputs, metering and event information; CT ratios, RTD types, trip settings and communications must match the motor and installed protection design.
The relay processes phase-current and temperature inputs to support the configured motor-protection functions. It provides programmable dry-contact inputs, metering and event information; CT ratios, RTD types, trip settings and communications must match the motor and installed protection design.
BEFORE YOU BUY
Confirm the complete motor management relay
ACTUAL APPLICATIONS
Application context for 369-HI-R-M-0-0-0-0-E
369-HI-R-M-0-0-0-0-E supports protection and monitoring of compatible AC motors in industrial processes. Relevant fields include oil and gas production, water treatment and manufacturing. Suitability depends on motor characteristics, CT and RTD selection, control supply, protection settings and the options confirmed on the supplied relay label.
-
01 · OIL & GAS
Oil Refining and Gas Processing
Petroleum Refining Process OperationsNatural Gas Processing Operations -
02 · WATER & WASTEWATER
Water Treatment and Wastewater Processing
Municipal Water Treatment ProcessesIndustrial Wastewater Treatment Processes -
03 · INDUSTRIAL MANUFACTURING
Industrial Production and Materials Processing
Industrial Materials Processing ProductionContinuous Manufacturing Production Processes
Technical specifications for 369-HI-R-M-0-0-0-0-E
-
Product Model369-HI-R-M-0-0-0-0-E
-
Product ParametersMotor Management Relay
-
In stock7 units
-
ManufacturerGeneral Electric
-
HI control supply50-300 V DC or 60-265 V AC
-
Control supply frequency50/60 Hz or DC
-
Control power consumption20 VA nominal; 65 VA maximum
-
Phase CT secondary1 A or 5 A
-
Phase CT primary setting1 to 5000 A
-
Measured current frequency20 to 100 Hz
-
Current conversion interval1.04 ms per sample, true RMS
-
Digital inputs6 optically isolated dry contacts
-
Digital contact resistanceLess than 800 ohm
-
RTD input channels12, option R
-
RTD wire connection3-wire
-
RTD sensor typesPt100, Ni100, Ni120 and Cu10
-
RTD measuring range-40 to +200 ℃
-
RTD sensing current3 mA
-
Metering VT secondary240 V AC full scale, option M
View all additional
Alternative Names
369-HI-R-M-0-0-0-0-E
Multilin 369 Motor Management Relay
369 50-300 V DC or 60-265 V AC hi control supply
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 369-HI-R-M-0-0-0-0-E motor management relay
Integrate 369-HI-R-M-0-0-0-0-E as the documented motor management relay in its compatible Multilin 369 configuration. Match the complete product label, connection arrangement and installed hardware revision before making changes.
Compare hi control supply (50-300 V DC or 60-265 V AC) and control supply frequency (50/60 Hz or DC) with the engineering design. Check every applicable electrical and environmental limit in the supplied documentation; compatibility depends on the connected equipment and selected configuration.
Use the manufacturer's documented isolation, connection and configuration sequence for 369-HI-R-M-0-0-0-0-E. Validate the affected signals or communication paths at a controlled operating point, then retain the configuration and acceptance results with the asset record.
Features:
- HI control supply: 50-300 V DC or 60-265 V AC
- Control supply frequency: 50/60 Hz or DC
- Control power consumption: 20 VA nominal; 65 VA maximum
The 369-HI-R-M-0-0-0-0-E motor management relay requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 369-HI-R-M-0-0-0-0-E motor management relay
Verify the full 369-HI-R-M-0-0-0-0-E identity, the Multilin 369 role and the supplied hardware revision before exchange. Similar housings or related family numbers alone do not establish interchangeability.
Record the existing connectors, terminal allocation, grounding and configuration for 369-HI-R-M-0-0-0-0-E before removal. Isolate the affected equipment according to its documented procedure and retain the original settings needed to restore operation.
After fitting the verified motor management relay, restore the controlled configuration and inspect each affected connection. Compare operation with the documented control power consumption (20 VA nominal; 65 VA maximum) where applicable and keep the final functional-test record.
Features:
- HI control supply: 50-300 V DC or 60-265 V AC
- Control supply frequency: 50/60 Hz or DC
- Control power consumption: 20 VA nominal; 65 VA maximum
The 369-HI-R-M-0-0-0-0-E motor management relay requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 369-HI-R-M-0-0-0-0-E motor management relay must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size20.4 x 14 x 29.2 cm
-
Shipping weight3.60kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8536490090
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 369-HI-R-M-0-0-0-0-E
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does 369-HI-R-M-0-0-0-0-E provide in the Multilin 369 configuration?
GE 369-HI-R-M-0-0-0-0-E is a Multilin 369 motor management relay for compatible AC motor protection and monitoring. Its identifiable HI, R and M options denote the high control-supply range, RTD inputs and metering functions; remaining suffix positions must be checked on the supplied label. -
Which hi control supply is specified for 369-HI-R-M-0-0-0-0-E?
The applicable manufacturer data specifies hi control supply as 50-300 V DC or 60-265 V AC. -
What is the documented control supply frequency of 369-HI-R-M-0-0-0-0-E?
The applicable manufacturer data specifies control supply frequency as 50/60 Hz or DC. -
How is control power consumption rated on 369-HI-R-M-0-0-0-0-E?
The applicable manufacturer data specifies control power consumption as 20 VA nominal; 65 VA maximum. -
What phase ct secondary applies to 369-HI-R-M-0-0-0-0-E?
The applicable manufacturer data specifies phase ct secondary as 1 A or 5 A. -
Which value defines phase ct primary setting for 369-HI-R-M-0-0-0-0-E?
The applicable manufacturer data specifies phase ct primary setting as 1 to 5000 A. -
What should engineering use for the measured current frequency of 369-HI-R-M-0-0-0-0-E?
The applicable manufacturer data specifies measured current frequency as 20 to 100 Hz. -
What identifies an acceptable replacement for 369-HI-R-M-0-0-0-0-E?
Match the complete 369-HI-R-M-0-0-0-0-E label, compatible Multilin 369 configuration, connections and hardware revision, then perform the documented functional checks.
