Product Information
Product Describe

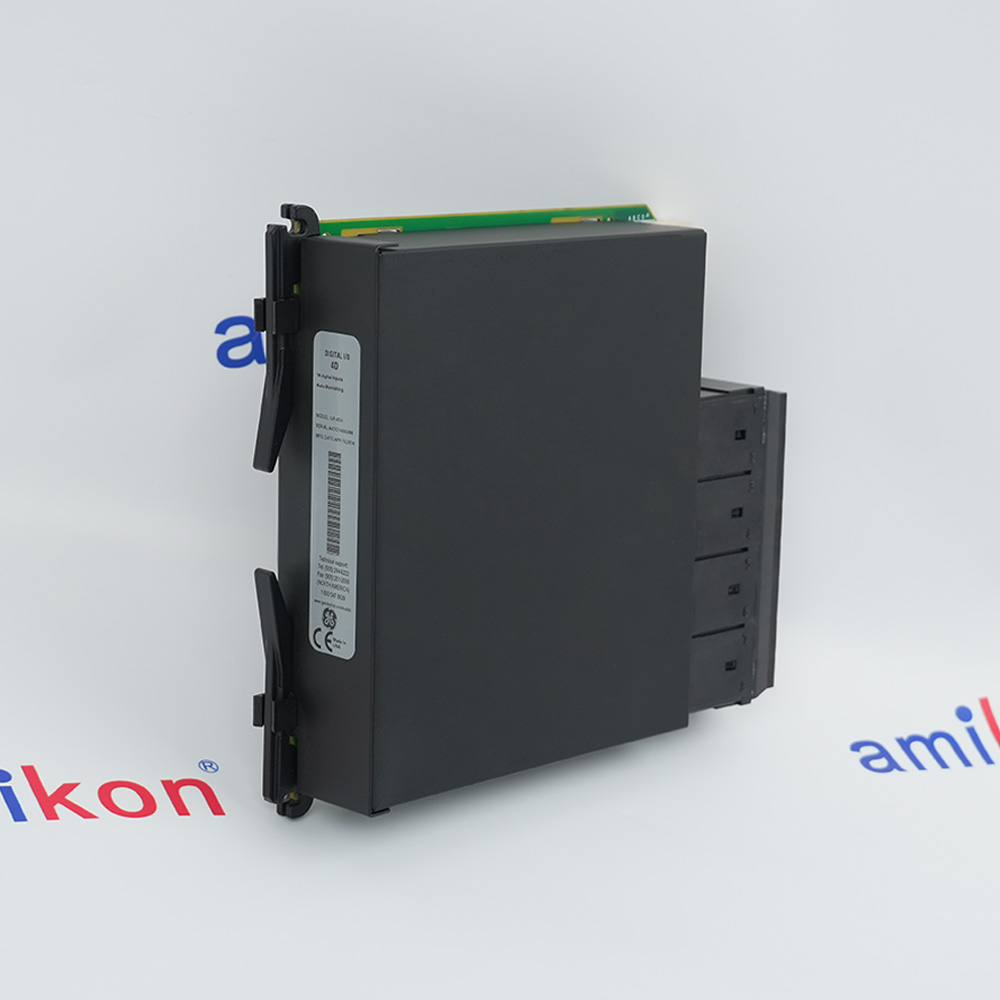

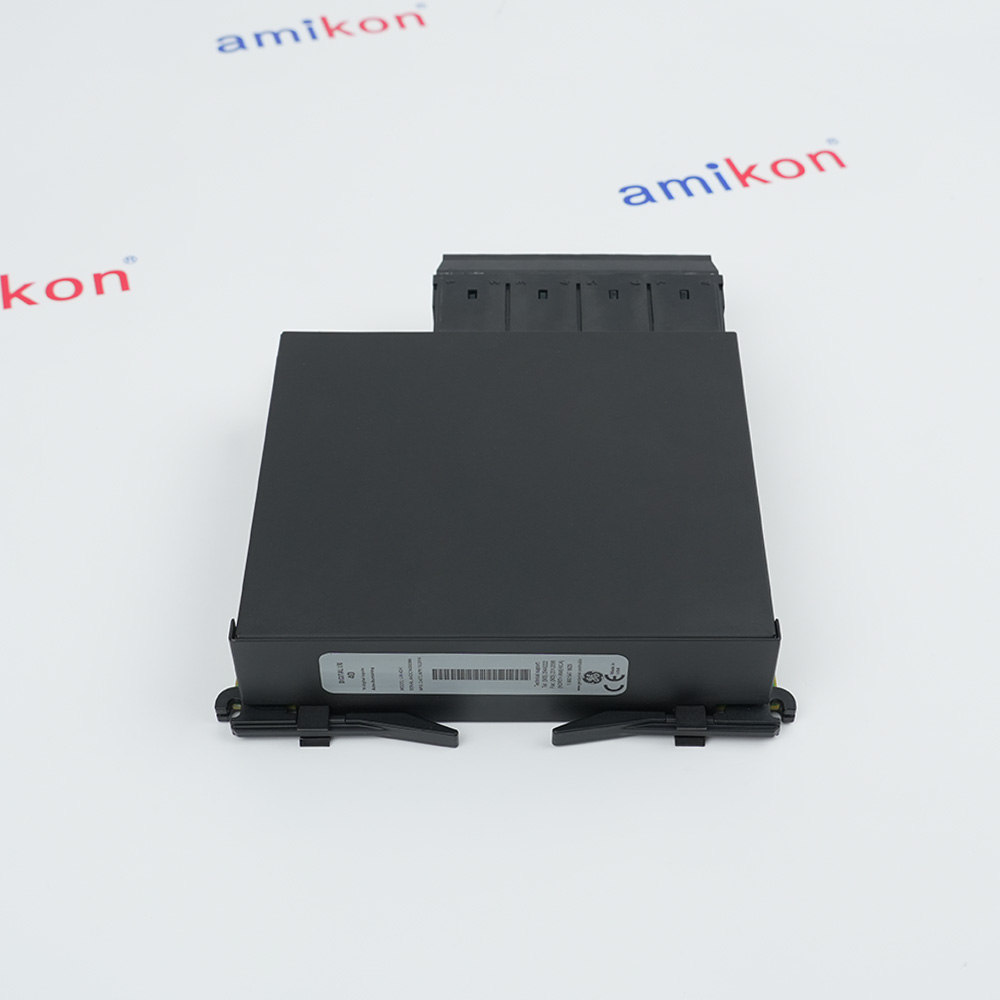

UR4DH
DIGITAL I/O MODULE
HORIZONTAL UNIT
16 DIGITAL INPUTS W/AUTO-BURNISHING
DIGITAL I/O MODULE
HORIZONTAL UNIT
16 DIGITAL INPUTS W/AUTO-BURNISHING
Technical specifications for UR 4DH
-
Product ModelUR 4DH
-
Spare ModelUR4DH
-
Product ParametersDIGITAL I/O MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x18.5x17.2cm
-
ManufacturerGeneral Electric
-
Weight1.2 kg
-
Number of Inputs16 Digital Inputs
-
Input Voltage Range24V DC to 250V AC
-
Input Current Rating5 mA
-
Response Time< 10 ms for state changes
-
Operating Temperature−40°C to +70°C
-
Storage Temperature−40°C to +85°C
-
Humidity5% to 95% non-condensing
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the UR-4DH?+The General Electric (GE) Multilin UR-4DH is a digital input/output (I/O) module for the Universal Relay (UR) family, a series of protection and control devices used for power system management.
-
What is the function of the UR-4DH module?+The UR-4DH is a digital I/O module that provides the Universal Relay with up to 96 contact inputs (rated up to 250V) and up to 64 contact outputs (e.g., Form-A, Form-C, Solid State Relay (SSR), or Latching).
-
Can the UR-4DH be hot-swapped?+Yes, modules within the UR family are designed for modular, plug-and-play installation, which allows for easier expansion or replacement, typically with hot-swappable capability.
-
What is the response time of the UR-4DH?+The response time of the digital outputs (Type A) is less than 4 milliseconds.
-
What is the input voltage range of the UR-4DH?+It supports a wide input voltage range, typically up to 250V DC or AC.
Get a quick price fo UR 4DH
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Hardware Installation Steps
Features:
- GE Multilin UR Series
- Digital I/O Module
- High-accuracy metering, diagnostics, and data logging
The Digital I/O Communications supplied by the module allow the relay to communicate with other relays and subation equipment digitally, removing the need for auxiliary connections and communication methods. This communication is both high-speed and secure, increasing the overall cyber security of the unit without it coming at the cost of communication rates. By including so many capabilities in one compact unit, the Universal Relays series reduces user costs over time.
The UR 4DH General Electric Digital I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
General Electric UR 4DH Digital I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The General Electric Multilin UR-4DH is a digital input/output (I/O) module for the GE Multilin UR (Universal Relay) Series, providing enhanced digital sensing and control capabilities for substation and power system applications. Provides up to 96 contact inputs, rated up to 250V AC/DC.Extends the I/O capabilities of the UR series relay to monitor and control auxiliary equipment
- Large Generators:Protects steam/gas/hydro turbines & combined-cycle units
- Industrial Motors:High-HP motors for pumps, conveyors, fans & compressors
- Power Transformers:Primary/backup protection for distribution & step-up transformers
- Switchgear & Busbars:Complex busbar protection for LV to EHV systems
- Capacitor Banks:Control & protection for power factor correction & stability
- Oil & Gas:Electrical protection for offshore rigs & compressor stations
- Mining & Metals:Heavy-duty feeder/motor protection in hazardous mining
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Accessing the Compartment: Loosen the screw on the hinged faceplate of the main UR relay to access the internal module slots.
Module Removal/Insertion: Apply pressure to the push pins and gently slide the UR-4DH module out or into its designated slot. Modules must be replaced by those of a similar type.
Wiring: Connect digital inputs (rated up to 250V AC/DC) and outputs (Form-A, Form-C, or SSR) according to the specific wiring diagram found in the relay's manual.
