          PRODUCT DESCRIPTION

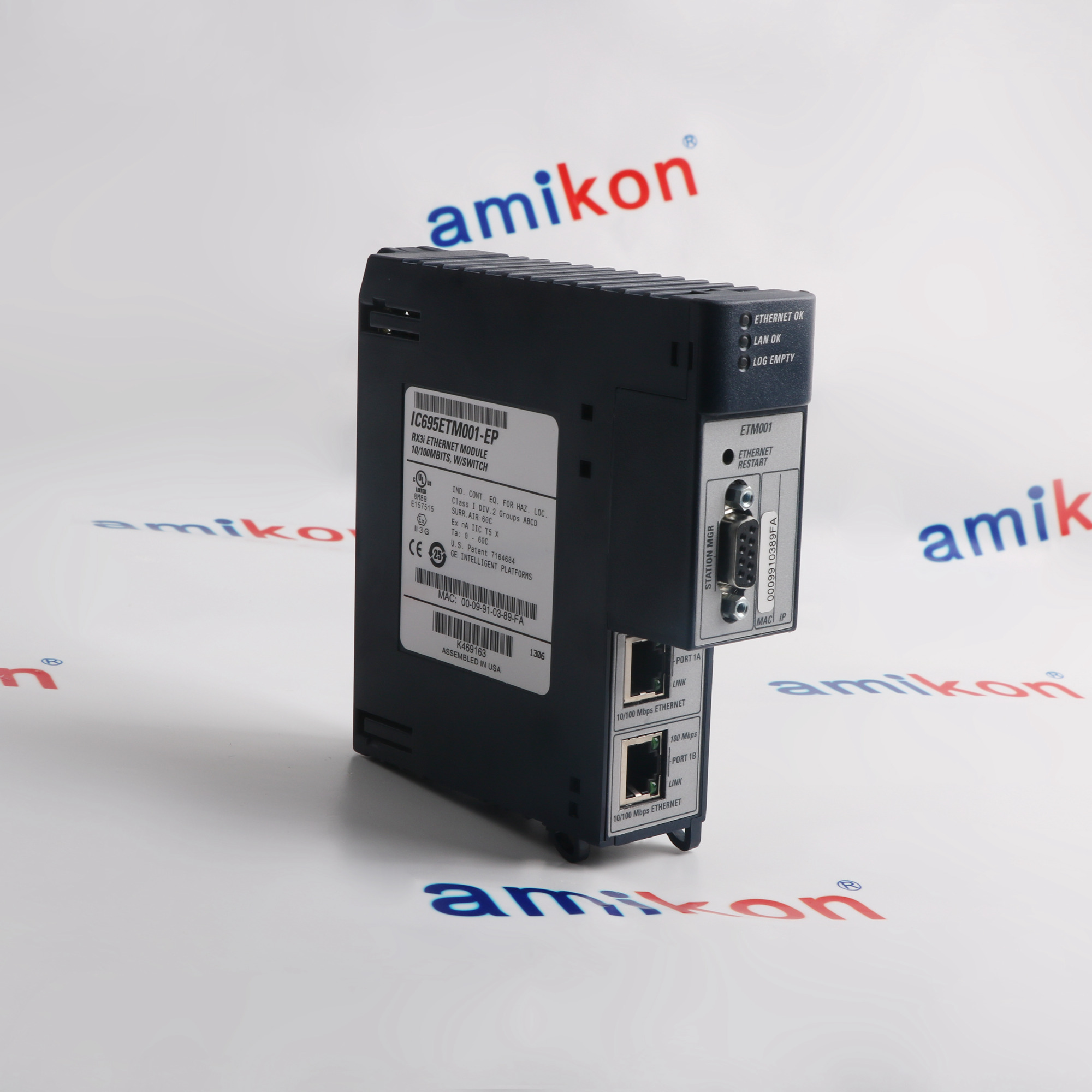

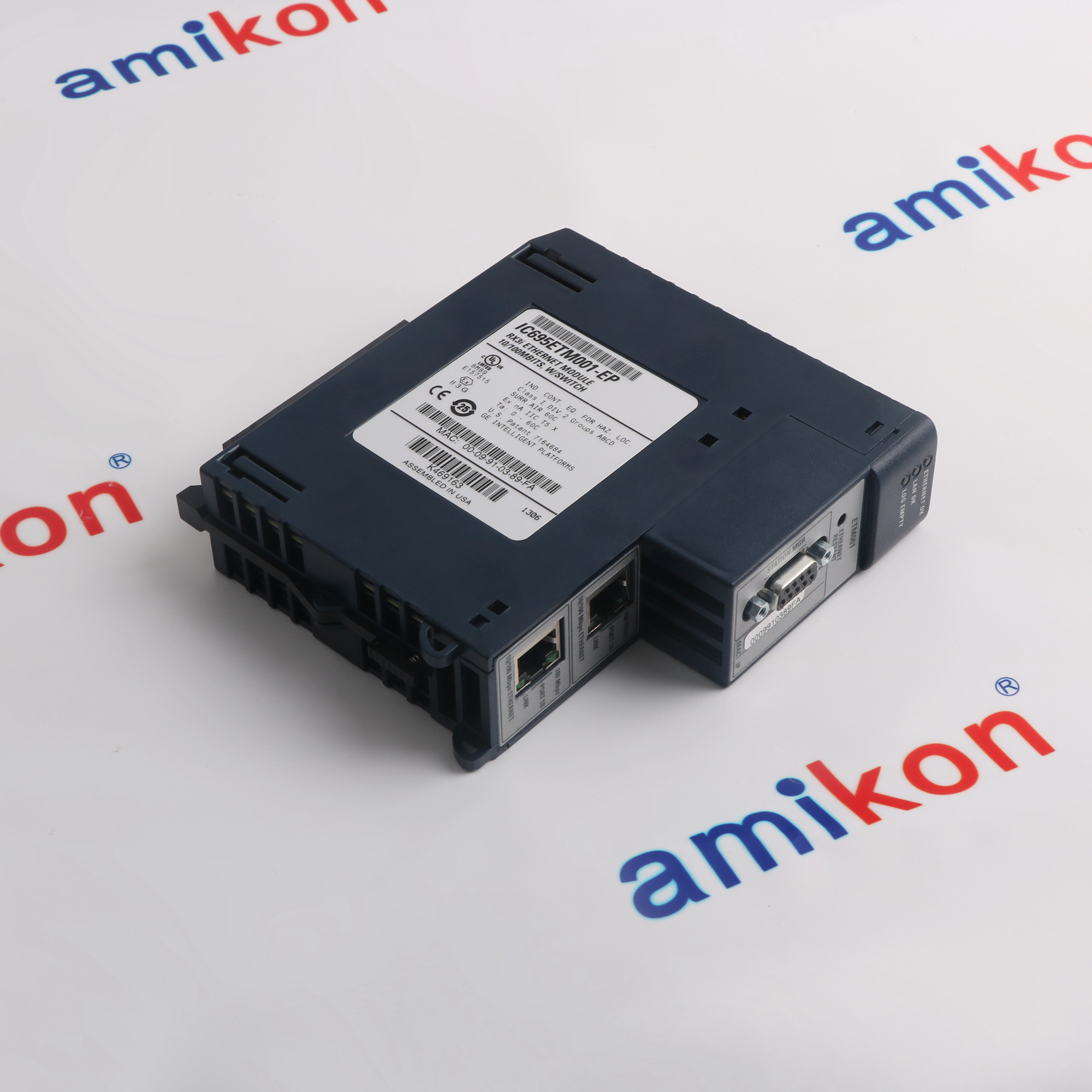

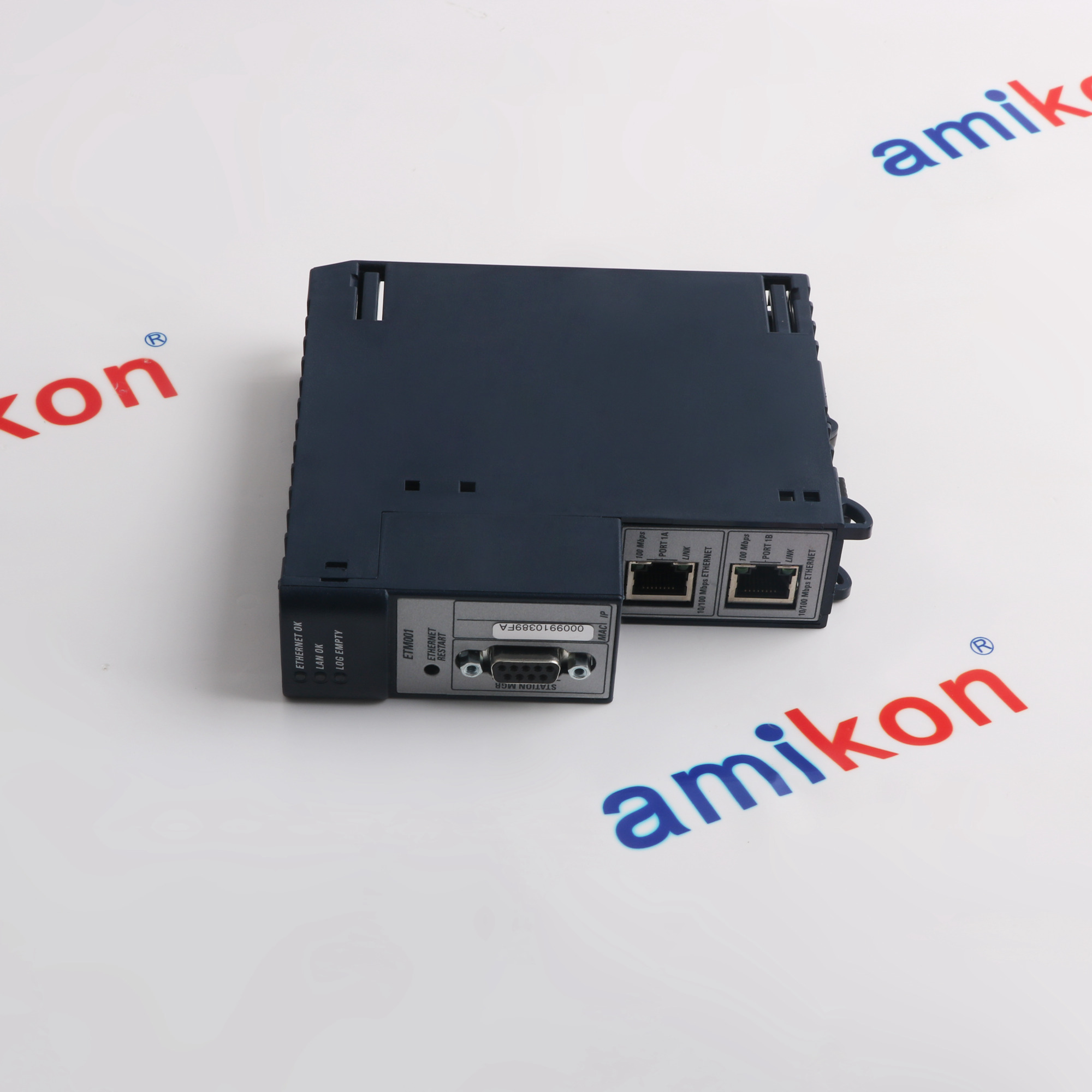

          IC695ETM001 IC695ETM001-LDAB Ethernet Network Interface Module

          Emerson IC695ETM001 IC695ETM001-LDAB is an Ethernet network interface module in the PACSystems RX3i ETM001 family. It serves compatible installed control equipment in the documented system configuration.

          The module connects a compatible RX3i controller to Ethernet using two auto-sensing 10/100 ports and one network identity. Its integrated switch supports daisy-chain wiring, and a separate RS-232 port provides Station Manager access. Firmware, redundant addressing and controller services depend on the supported RX3i configuration.
          BEFORE YOU BUY

          Confirm the complete ethernet network interface module

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Application context for IC695ETM001 IC695ETM001-LDAB

          IC695ETM001 IC695ETM001-LDAB is an Ethernet network interface module for PACSystems RX3i ETM001. Relevant settings include water and wastewater, industrial manufacturing, chemical processing. Connections and hardware execution must match the installed equipment.
          • 01 · WATER & WASTEWATER

            Water Supply and Wastewater Treatment

            Municipal Water Supply ControlIndustrial Wastewater Treatment Processes
          • 02 · INDUSTRIAL MANUFACTURING

            Manufacturing and Industrial Production Automation

            Industrial Manufacturing Process AutomationAssembly Production Quality Control
          • 03 · CHEMICAL PROCESSING

            Chemical Manufacturing and Continuous Process Production

            Industrial Chemical Process ControlPetrochemical Processing and Production

          Technical specifications for IC695ETM001 IC695ETM001-LDAB

          • Product Model
            IC695ETM001 IC695ETM001-LDAB
          • Spare Model
            IC695ETM001-LDAB IC695ETM001
          • Product Parameters
            Ethernet Network Interface Module
          • In stock
            6 units
          • Manufacturer
            General Electric
          • Ethernet processor speed
            200 MHz
          • Ethernet link rates
            10/100 Mbit/s
          • Network connectors
            2 shielded 8-pin RJ45 sockets
          • IP address allocation
            1 interface IP address
          • Embedded network switch
            2-port auto-sensing switch
          • Station Manager connector
            9-pin female D-sub
          • Station Manager signalling
            RS-232 DCE
          • Station Manager bit rate
            1200–115200 bit/s
          • LAN standards
            IEEE 802.2 Class I and IEEE 802.3 CSMA/CD
          • Transport stack
            TCP/IP
          • Controller data services
            SRTP and EGD
          • Modbus services
            Modbus TCP client/server
          • Network crossover handling
            Automatic
          • Manual firmware restart
            Recessed Ethernet Restart button
          • SNTP CPU requirement
            CPU release 5.00 or later
          View all additional
          Ask for Quote

          Alternative Names

          IC695ETM001 IC695ETM001-LDAB PACSystems RX3i ETM001 Ethernet Network Interface Module Two-port 10/100 RX3i network interface
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          SYSTEM INTEGRATION

          Integrate IC695ETM001 IC695ETM001-LDAB ethernet network interface module

          Match IC695ETM001 IC695ETM001-LDAB to the documented PACSystems RX3i ETM001 arrangement. Confirm the supplied execution, connections and required companion equipment before integration.
          The module connects a compatible RX3i controller to Ethernet using two auto-sensing 10/100 ports and one network identity. Its integrated switch supports daisy-chain wiring, and a separate RS-232 port provides Station Manager access. Firmware, redundant addressing and controller services depend on the supported RX3i configuration.
          Use the controlled PACSystems RX3i ETM001 drawings and project records for IC695ETM001 IC695ETM001-LDAB. Validate the affected circuits, communications and configured functions before returning the equipment to service.

          Features:

          • Ethernet processor speed: 200 MHz
          • Ethernet link rates: 10/100 Mbit/s
          • Network connectors: 2 shielded 8-pin RJ45 sockets
          The IC695ETM001 IC695ETM001-LDAB ethernet network interface module requires appropriate configuration before system integration and commissioning.
          INTERCHANGEABILITY

          Verify IC695ETM001 IC695ETM001-LDAB ethernet network interface module

          Compare the complete IC695ETM001 IC695ETM001-LDAB identifier and its installed PACSystems RX3i ETM001 role before replacement. Similar housings or matching base numbers do not establish interchangeability.
          Record the ethernet network interface module connections, jumper selections and accepted configuration. Preserve the relevant project backup and isolate the affected circuits under the site procedure.
          After fitting the verified IC695ETM001 IC695ETM001-LDAB, restore the approved settings and test the affected PACSystems RX3i ETM001 functions. Retain the incoming-part identity and acceptance results with the equipment record.

          Features:

          • Ethernet processor speed: 200 MHz
          • Ethernet link rates: 10/100 Mbit/s
          • Network connectors: 2 shielded 8-pin RJ45 sockets
          The IC695ETM001 IC695ETM001-LDAB ethernet network interface module requires replacement verification against the complete installed configuration and current manufacturer documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.

          Features:

          • Verify document identity before procurement or installation
          • Match the complete order to the manufacturer document scope
          • Accessories are supplied only when listed in the quotation
          Documentation for the IC695ETM001 IC695ETM001-LDAB ethernet network interface module must be checked for document applicability before installation or commissioning.
