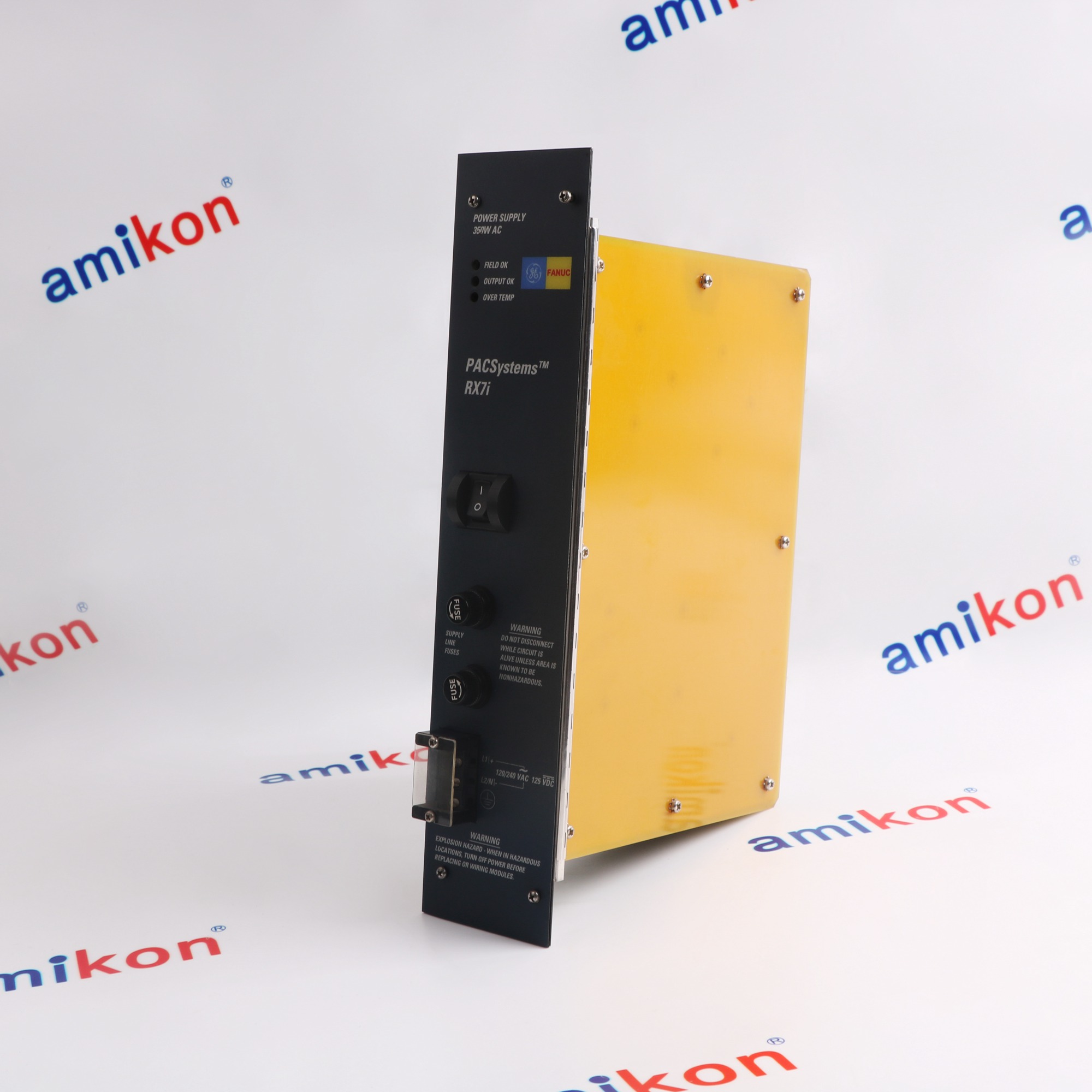

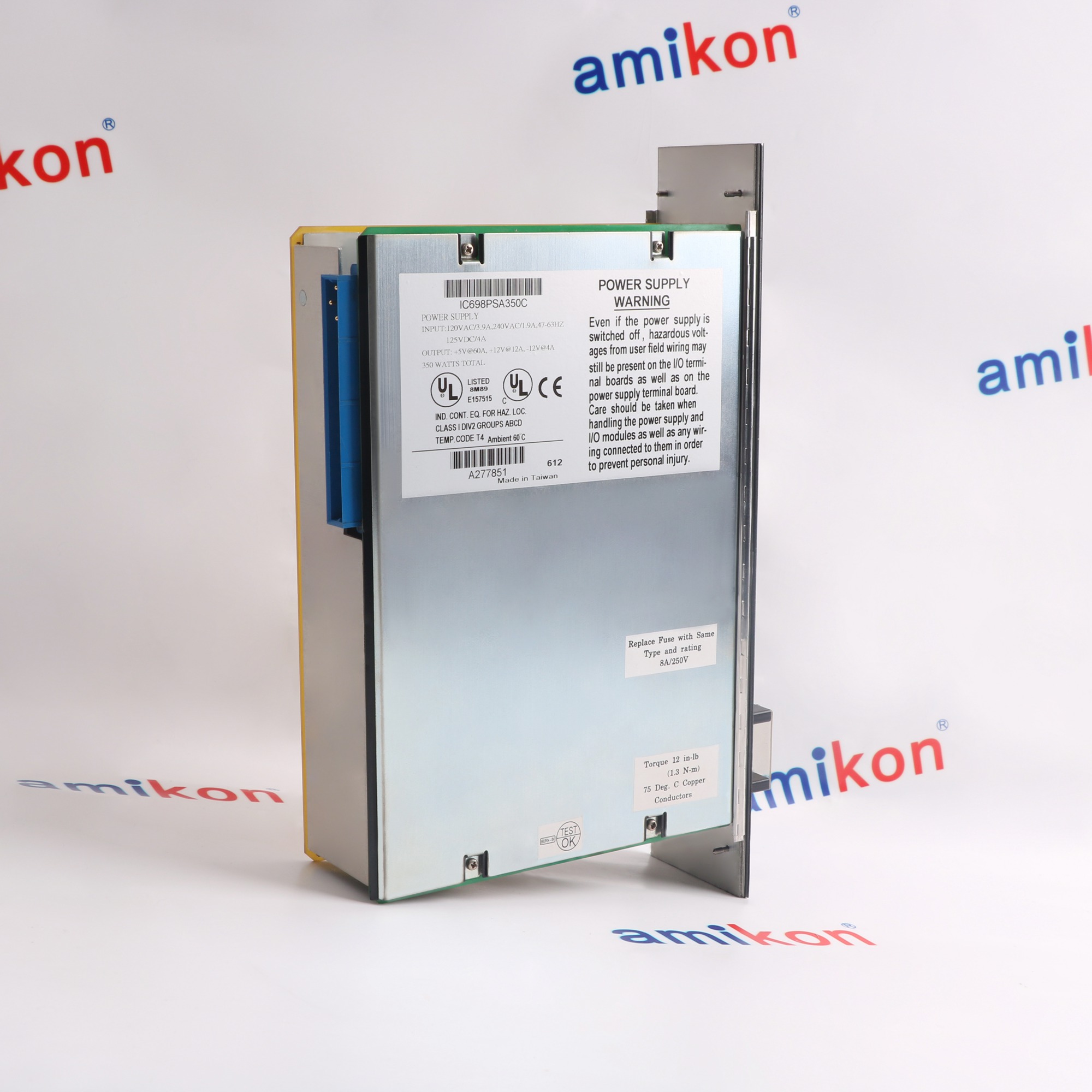

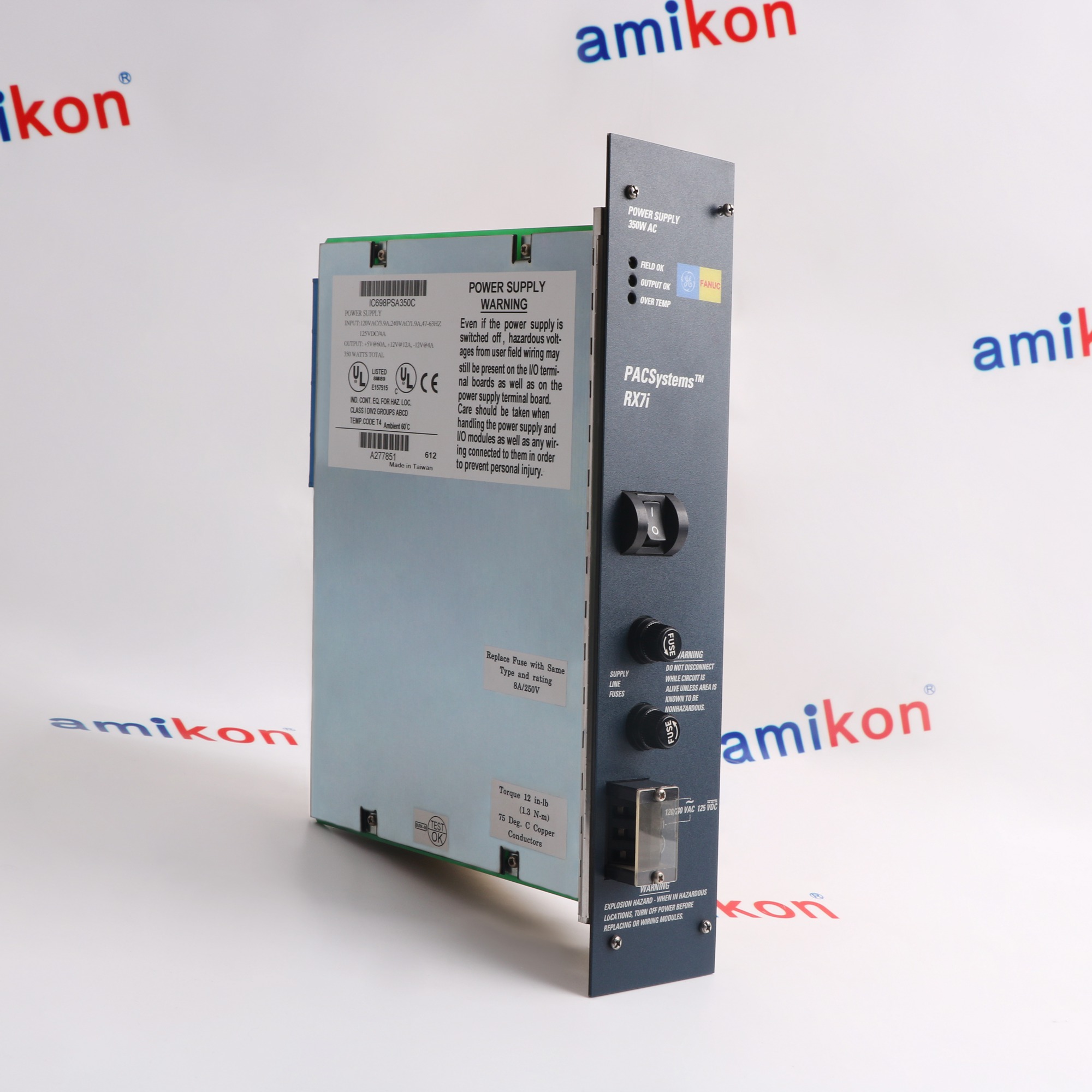

Technical specifications for IC698PSA350
-
Product ModelIC698PSA350
-
Product ParametersPower Supply module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.3x18.5x29.1cm
-
ManufacturerGeneral Electric
-
Weight2.02 kg
-
Output Power350 Watts on total Three (3) outputs
-
Input Power125 Watts, typical; 150 Watts, maximum
-
Input Power437 watts (typical); 500 watts (maximum)
-
DC Output+5 VDC: 4.875 to 5.25 volts, 0 to 60 amps; +12 VDC: 11.64 to 12.6 volts, 0 to 12 amps; –12 VDC: –12.6 to –11.64 volts, 0 to 4 amps
-
Output Current5.1 VDC: 0-60 Amperes +12 VDC: 0-12 Amperes - 12VDC: 0-4 Ampere
-
Isolation, input to all outputs250 VAC continuous; 1500 VAC for 1 minute
-
Ride Through Time15 milliseconds minimum (from loss of AC input)
-
Overcurrent Limit+5 VDC output: 66A (typical); +12 VDC output: 15A (typical); –12 VDC output: 4.6A (typical)
-
Wiring TerminalsInput Terminals: AWG #16 (1.3 mm2) GND Terminals: #12 AWG (3.3 mm2)
Description
Series:PACSystem RX7i
Manufacturer:GE Fanuc
Part Number:IC698PSA350
Nominal Rated Voltage:120/240 VAC, 125 VDC
Part Number:IC698PSA350
Power:100 watts
Input Voltage Range:85 to 264 VAC; 100-150VDC
AC Input Frequency:47-63 Hz
Temperature:0-60 degrees celsius
Ride through time:15 ms
Holdup time:5 ms
Slot Assignment:Slot 0
Product lifecycle:Active
GND Wire:12 AWG
Isolation:1500 Volts DC
Output Voltage:5.1 VDC; +12 VDC; - 12VDC
Manufacturer:GE Fanuc
Part Number:IC698PSA350
Nominal Rated Voltage:120/240 VAC, 125 VDC
Part Number:IC698PSA350
Power:100 watts
Input Voltage Range:85 to 264 VAC; 100-150VDC
AC Input Frequency:47-63 Hz
Temperature:0-60 degrees celsius
Ride through time:15 ms
Holdup time:5 ms
Slot Assignment:Slot 0
Product lifecycle:Active
GND Wire:12 AWG
Isolation:1500 Volts DC
Output Voltage:5.1 VDC; +12 VDC; - 12VDC
