PRODUCT DESCRIPTION

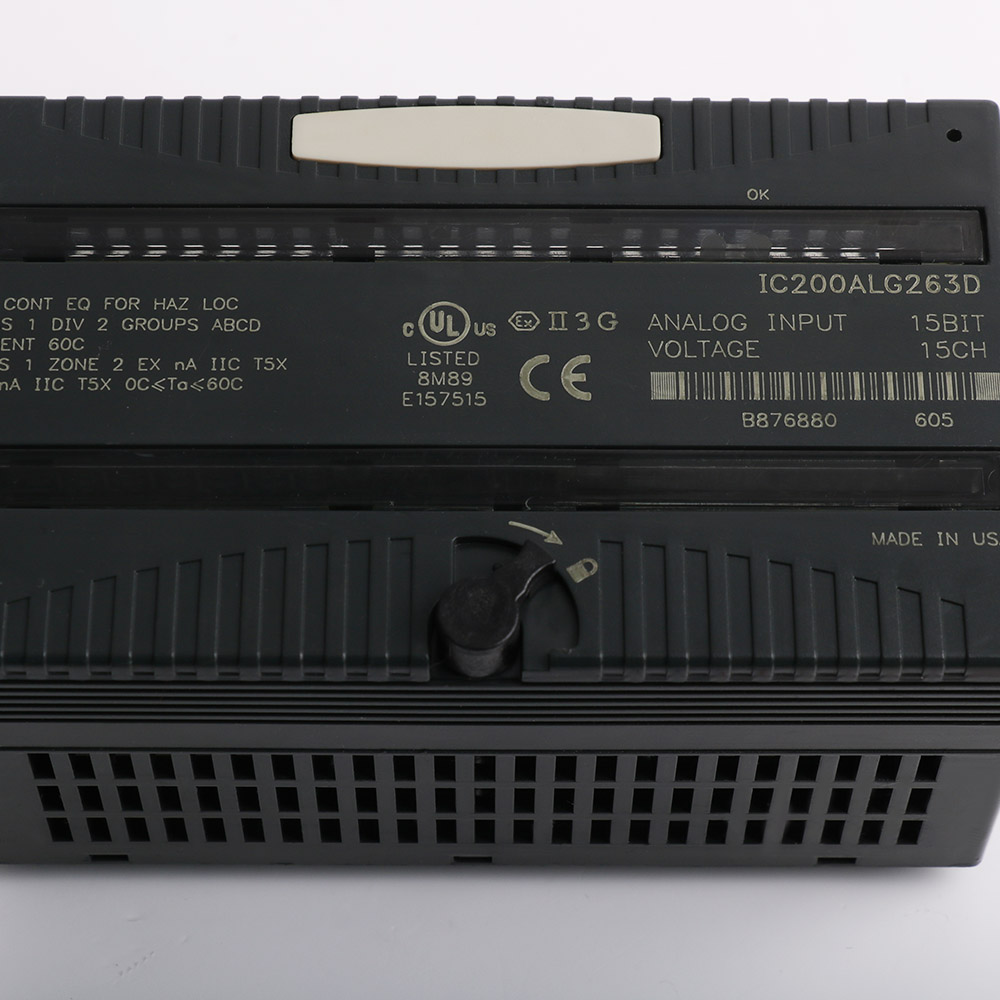

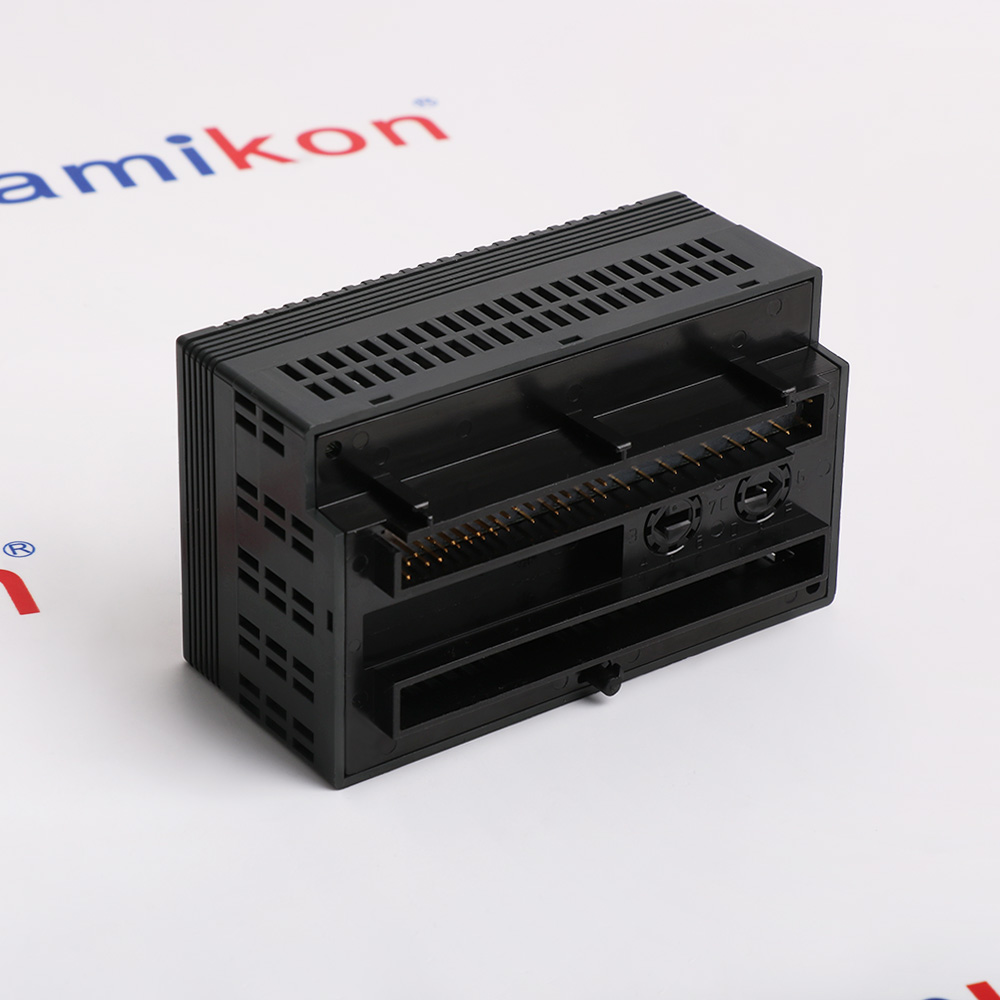

IC200ALG263 Fifteen-channel analog voltage input module
GE IC200ALG263 is a Fifteen-channel analog voltage input module in the VersaMax modular I/O family. Analog input channels: 15 single-ended, one group. Input return arrangement: Common return. Converter resolution: 15 bit.
The manufacturer manual documents the module or carrier connection and service limits. Input voltage range: −10 to +10 V. Minimum input impedance: 100 kΩ. Before installation, match the complete catalog and revision, backplane position, terminal assignments and project configuration to the installed assembly.
The manufacturer manual documents the module or carrier connection and service limits. Input voltage range: −10 to +10 V. Minimum input impedance: 100 kΩ. Before installation, match the complete catalog and revision, backplane position, terminal assignments and project configuration to the installed assembly.
BEFORE YOU BUY
Confirm the complete fifteen-channel analog voltage input module
ACTUAL APPLICATIONS
Application context for IC200ALG263
IC200ALG263 supports the documented VersaMax Fifteen-channel analog voltage input module role in the application areas below. Match the complete article and installed revision to the manual before field use.
-
01 · TEXTILES
Textile Preparation and Finishing
Textile and Apparel ManufacturingTechnical Fibers and Nonwovens -
02 · TRANSPORTATION
Airport Utility and Baggage Operations
Airport Utility ServicesBaggage and Cargo Services -
03 · AGRICULTURE
Crop Handling and Grain Processing
Crop HandlingGrain and Feed Industries
Technical specifications for IC200ALG263
-
Product ModelIC200ALG263
-
Product ParametersFifteen-channel analog voltage input module
-
In stock1 unit
-
ManufacturerGeneral Electric
-
Analog input channels15 single-ended, one group
-
Input return arrangementCommon return
-
Converter resolution15 bit
-
Input voltage range−10 to +10 V
-
Minimum input impedance100 kΩ
-
Backplane 5 V draw150 mA maximum
-
External module supplyNone required
-
Input-to-logic isolation250 V AC continuous; 1500 V AC for 1 minute
-
Accuracy at 25 °C±0.3% full scale typical; ±0.5% maximum
-
Accuracy at 0–60 °C±1% full scale maximum
-
Voltage resolution0.3125 mV per count
-
Input filter corner frequency32 Hz ±20%
-
Module update rate7.5 ms
-
Internal fault monitoringInternal power loss and A/D conversion malfunction
-
Module input data15 words
View all additional
Alternative Names
IC200ALG263
GE VersaMax Fifteen-channel analog voltage input module
IC200ALG263 Fifteen-channel analog voltage input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate IC200ALG263 fifteen-channel analog voltage input module
The IC200ALG263 belongs to the VersaMax modular I/O range. The GE Fanuc GFK-1504K manual identifies the base article as IC200ALG263 and documents analog input channels as 15 single-ended, one group. Confirm the CPU or network interface, available carrier position and correct field connection before installing it.
Follow the OEM wiring and module specification pages for the article. Input return arrangement is Common return; converter resolution is 15 bit. Compare power, signal or terminal ratings with the existing installation and use the exact revision on the new nameplate.
At commissioning, check the module power and status indicators, validate each connected channel or terminal against the approved project, and record the installed revision, slot and tested behavior for later maintenance.
Features:
- 15 single-ended voltage inputs
- Common return arrangement
- 15-bit resolution
The IC200ALG263 fifteen-channel analog voltage input module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify IC200ALG263 fifteen-channel analog voltage input module
Match the complete IC200ALG263 order code and revision to the installed VersaMax article. The GFK-1504K source identifies base article IC200ALG263; do not infer that another revision or a similarly shaped module has the same fit, firmware behavior or approved function.
Before removal, capture the carrier position, nameplate, terminal numbering, wiring and configuration. Compare the new article with the documented analog input channels (15 single-ended, one group) and input return arrangement (Common return); retain any required external supply and grounding arrangement.
After exchange, confirm recognition by the CPU or network interface, inspect status indicators, test all affected field points with known values or conditions, and save the final project and service record.
Features:
- A/D diagnostic monitoring
- Common return arrangement
- 15 single-ended voltage inputs
The IC200ALG263 fifteen-channel analog voltage input module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the IC200ALG263 fifteen-channel analog voltage input module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size10.8 × 5.8 × 6.5 cm
-
Shipping weight0.10 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about IC200ALG263
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How can IC200ALG263 be checked against an installed VersaMax assembly?
Compare the full IC200ALG263 marking, revision, carrier or slot and field wiring with the installed unit and the applicable OEM manual before ordering. -
Can another suffix of IC200ALG263 replace IC200ALG263?
A shared base code does not establish revision interchangeability. Check the installed label, module compatibility notes and project version before substitution. -
What should maintenance record before removing IC200ALG263?
Record the nameplate, slot or carrier position, terminal assignments, external power and controller configuration; photograph the existing connections. -
How should the replacement IC200ALG263 be tested?
Confirm recognition and status, then test every affected point or analog channel against a known condition or signal and record results. -
Which document should an engineer use for IC200ALG263?
Use the manufacturer GFK-1504K VersaMax manual section for IC200ALG263, then verify the specific suffix on the installed nameplate and later release notes. -
What information helps a distributor quote IC200ALG263?
Provide the full catalog and suffix, quantity, required condition, destination and any matching label or carrier photos. -
How should incoming IC200ALG263 be inspected?
Check the full label and revision, housing, contacts and ordered accessories against the quotation before moving the installed component. -
Where does IC200ALG263 connect in a VersaMax station?
The Fifteen-channel analog voltage input module belongs in a compatible VersaMax modular I/O assembly; verify the documented carrier and CPU or network interface arrangement.
