Technical specifications for IC200ALG620
-
Product ModelIC200ALG620
-
Product Parameters4-channel Resistance Temperature Detector (RTD) input module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size11x5.8x6.5cm
-
ManufacturerGeneral Electric
-
Weight0.15 kg
-
Channels Four3-wire and/or 4-wire RTDs
-
Group to groupNot applicable
-
Channel to channel50VDC
-
Backplane currentconsumption5V output: 125mA maximum. 3.3V output: 125mA
-
Normal mode rejection60dB, at 50/60 Hz, 100% span
-
Common mode rejection120 dB at 50/60Hz, 100 ohm imbalance
-
Common mode voltage3V maximum
-
Normal mode voltage5V maximum
-
Digital Resolution15 bits plus sign
-
Operating temperaturerange0 to 60 Degrees C ambient
Description

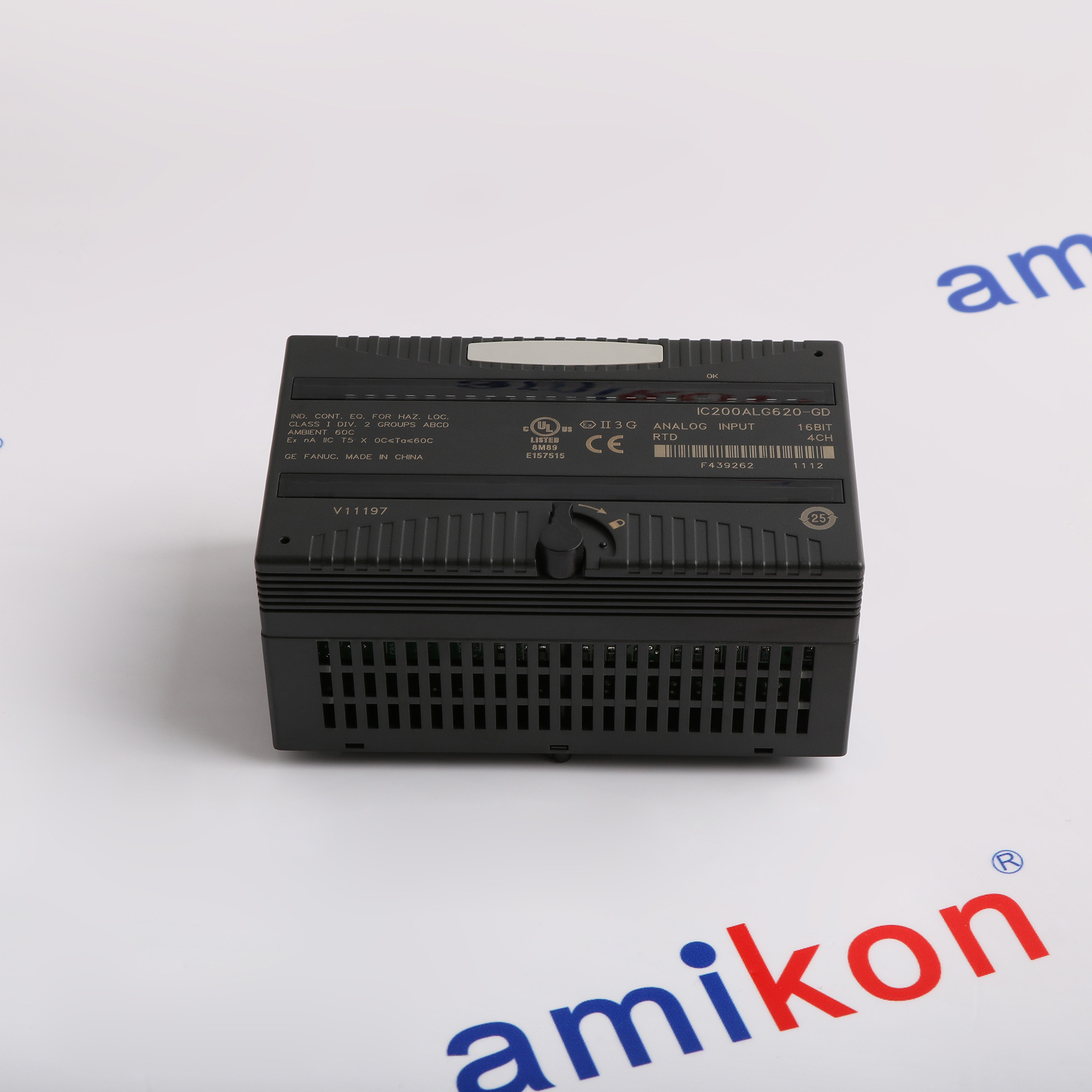

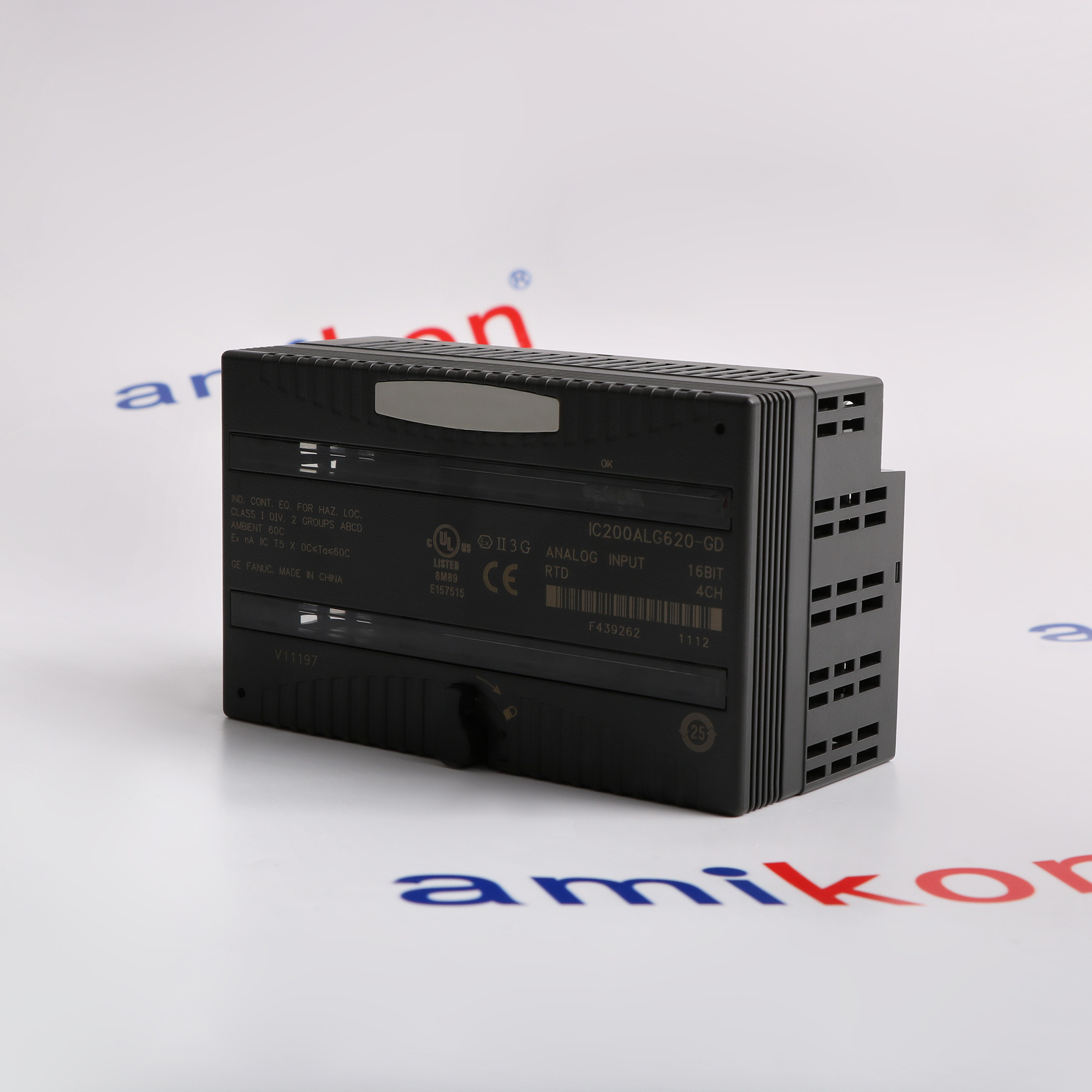

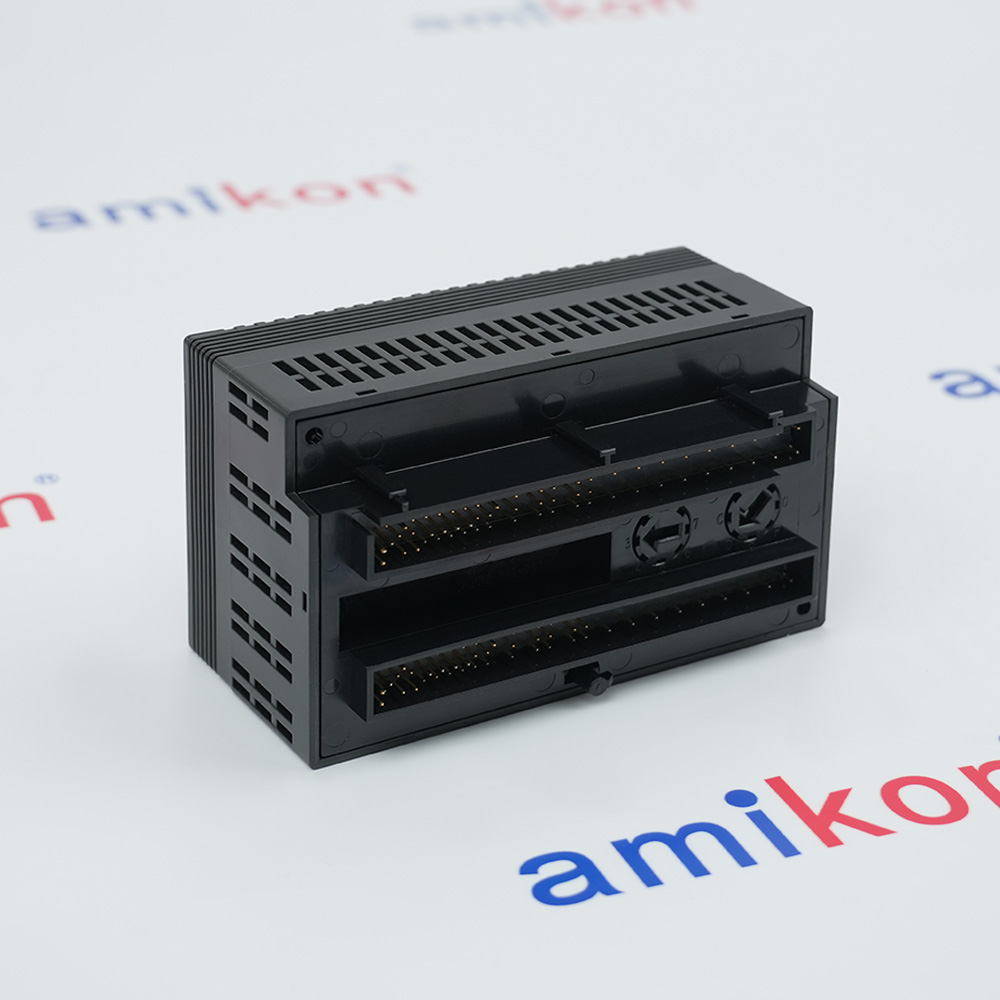

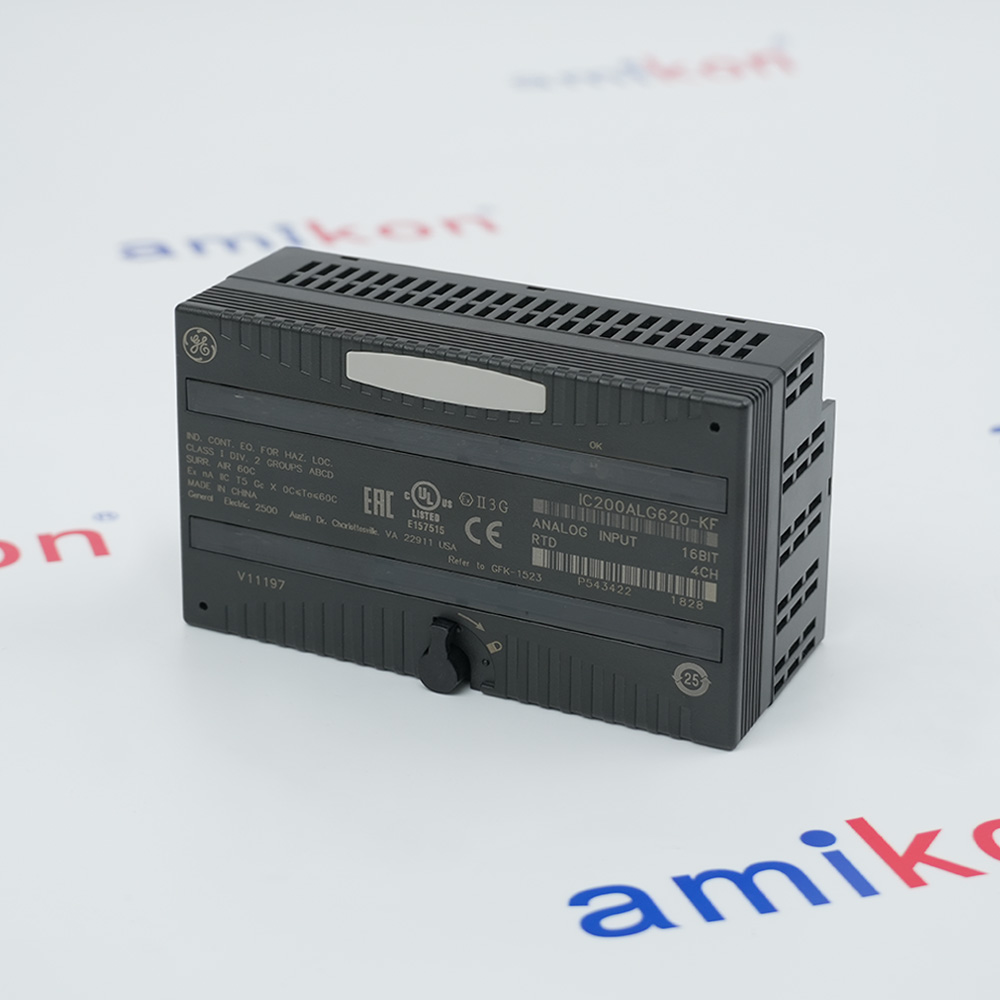

The IC200ALG620 is a 4-channel Resistance Temperature Detector (RTD) input module from VersaMax I/O series formerly produced by GE Intelligent Platforms, now under Emerson Automation. This module has Four (4) RTD inputs, compatible with 3-wire or 4-wire RTD devices, supporting different types of RTD sensors such as Platinum 25, 100, and 1000 ohm; CoppThe IC200ALG620 is a 4-channel Resistance Temperature Detector (RTD) input module from VersaMax I/O series formerly produced by GE Intelligent Platforms, now under Emerson Automation.
This module has Four (4) RTD inputs, compatible with 3-wire or 4-wire RTD devices, supporting different types of RTD sensors such as Platinum 25, 100, and 1000 ohm; Copper 10, 50, and 100 ohm; Nickel 100 and 120 ohm; and Nickel / Iron 604 ohms and direct measurement of Resistance values including 0-500 Ohms and 0 - 3000 ohms. This module has conversion resolution of 16 bits. el 100 and 120 ohm; and Nickel / Iron 604 ohms. This module has conversion resolution of 16 bits.
This module has Four (4) RTD inputs, compatible with 3-wire or 4-wire RTD devices, supporting different types of RTD sensors such as Platinum 25, 100, and 1000 ohm; Copper 10, 50, and 100 ohm; Nickel 100 and 120 ohm; and Nickel / Iron 604 ohms and direct measurement of Resistance values including 0-500 Ohms and 0 - 3000 ohms. This module has conversion resolution of 16 bits. el 100 and 120 ohm; and Nickel / Iron 604 ohms. This module has conversion resolution of 16 bits.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Preinstallation Check
Features:
- 4-Channel 16-Bit RTD Input
- 3-Wire and 4-Wire RTD Compatibility
- Selectable Measurement Units and Ranges
- Automatic A/D Calibration
The IC200ALG620 accepts inputs from four independent 3-wire and/or 4-wire platinum, nickel, nickel/iron, or copper RTDs, offering flexible sensor compatibility for a wide range of temperature measurement applications. The IC200ALG620 supports selectable resistance measurements in tenths of ohms, tenths of degrees Fahrenheit, or tenths of degrees Celsius, with selectable resistance ranges of 0–500 ohms and 0–3000 ohms. Each channel of the IC200ALG620 can be individually configured for active or inactive operation, and each input channel can have a different RTD type selected to match the installed sensor.
The IC200ALG620 GE 4-channel Resistance Temperature Detector (RTD) input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200ALG620 4-channel Resistance Temperature Detector (RTD) input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE IC200ALG620 utilizes 16-bit analog-to-digital conversion to provide precise temperature measurements with a typical accuracy of ±0.1% of full scale. The module performs continuous input diagnostics, including open RTD detection, overrange and underrange monitoring, and hardware status reporting. These diagnostic functions allow maintenance personnel to quickly identify wiring faults or sensor failures while maintaining reliable process operation.
The GE IC200ALG620 receives operating power directly from the VersaMax backplane, eliminating the need for an external power supply. Optical isolation between the field wiring and the controller backplane improves immunity to electrical noise and enhances system reliability in industrial environments. The module is designed for installation on standard VersaMax carrier bases and integrates seamlessly with GE VersaMax PLCs and PACSystems controllers.
- Chemical/Petrochemical: Monitors reactors, pipelines, and columns where high accuracy ensures safety and product quality
- Food/Beverage: Used in pasteurization, brewing, and baking requiring strict temperature adherence
- HVAC/Environmental: Monitors ambient, duct, and fluid temperatures via platinum/nickel/copper RTDs in building management
- Power/Machinery: Tracks bearing/winding temps in motors, turbines, and generators to prevent thermal damage
- OEM Machine Control: Embedded into manufacturing machinery for continuous analog feedback in thermal loops
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Carefully inspect all shipping containers for damage. If any equipment isdamaged, notify the delivery service immediately. Save the damagedshipping container for inspection by the delivery service. After unpackingthe equipment, record all serial numbers. Save the shipping containersand packing material in case it is necessary to transport or ship any partof the system.
Alternative Names
1C200ALG620
IC2O0ALG620
1C2OOALG62O
IC2OOALG62O
IC200ALG62O
IC20OALG620
Technical notes
The excitationcurrent for the RTDs is provided by the module, which automaticallymatches the excitation current to each configured RTD type.The module accepts inputs from four independent 3-wire and/or4-wire platinum, nickel, nickel/iron, or copper RTDs.
FAQs
-
What are the supported RTD sensors by the IC200ALG620?
+The IC200ALG620 supports a variety of RTD sensors specifically, Platinum 25, 100, and 1000 ohm; Copper 10, 50, and 100 ohm; Nickel 100 and 120 ohm; and Nickel / Iron 604 ohms. -
Does the IC200ALG620 support resistance measurement?
+Yes. This module accepts 0-500 Ohms and 0-3000 Ohms input resistance values. -
What is the update rate of the channels?
+The update rate depends on the line frequency configuration: approximately 210 ms per channel at 60 Hz, and 230 ms per channel at 50 Hz. -
What diagnostics and alarms are built-in?
+The module reports high/low alarms, open wires, input shorts, under/over-range values, wiring faults, and non-volatile memory errors.
