Technical specifications for IC200MDL940F
-
Product ModelIC200MDL940F
-
Spare ModelIC200MDL940
-
Product ParametersOUTPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size11x6x6.6cm
-
ManufacturerGeneral Electric
-
Weight0.2 kg
-
Lifecycle StatusActive
-
Output Voltage0-125 VDC, 5/24/125 VDC nominal; 0-265 VAC (47-63 Hz),120/240 VAC nominal
-
Number of Points16
-
Channel to Channel IsolationYes
-
Load Current per Point2.0 A for 5-265 VAC, 2.0 A for 5-30 VDC,0.2 A for 31-125 VDC
-
Input and Output ResponseTime- On/Off (ms)10.0/10.0
-
Points per CommonIsolated points
-
External Power Supply0-125 VDC, 5/24/125 VDC nominal; 0-265VAC (47-63 Hz), 120/240 VAC nominal
-
5V Backplane CurrentConsumption (mA)490 maximum
Description
IC200MDL940
OUTPUT MODULE
VERSAMAX
DISCRETE
RELAY OUTPUT
5/24/125 VDC / 120/240 VAC
2 AMP PER POINT
16 POINT
ISOLATED FORM A
OUTPUT MODULE
VERSAMAX
DISCRETE
RELAY OUTPUT
5/24/125 VDC / 120/240 VAC
2 AMP PER POINT
16 POINT
ISOLATED FORM A
Information
Overview
Manuals
Technical notes
Product Applications
Wiring and Installation
Features:
- Relay Output Module
- VersaMax I/O series
- 20 cycles per minute

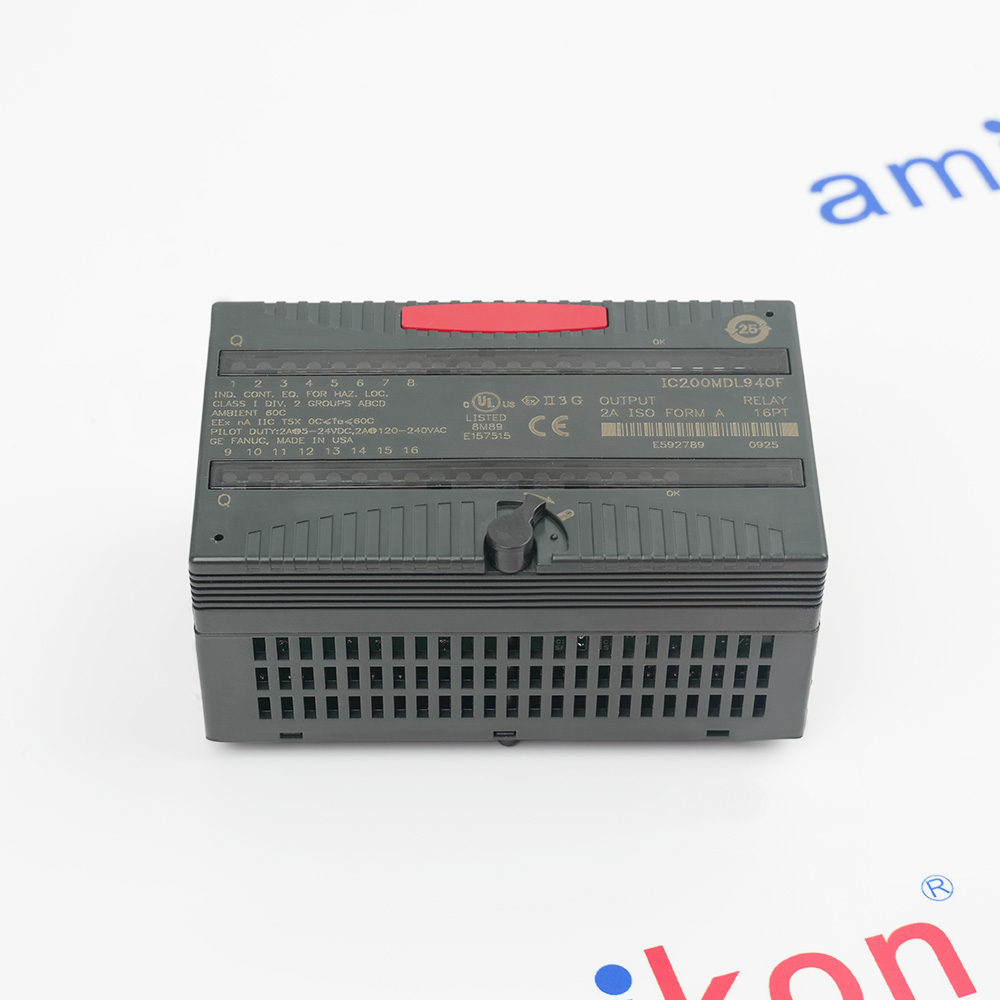

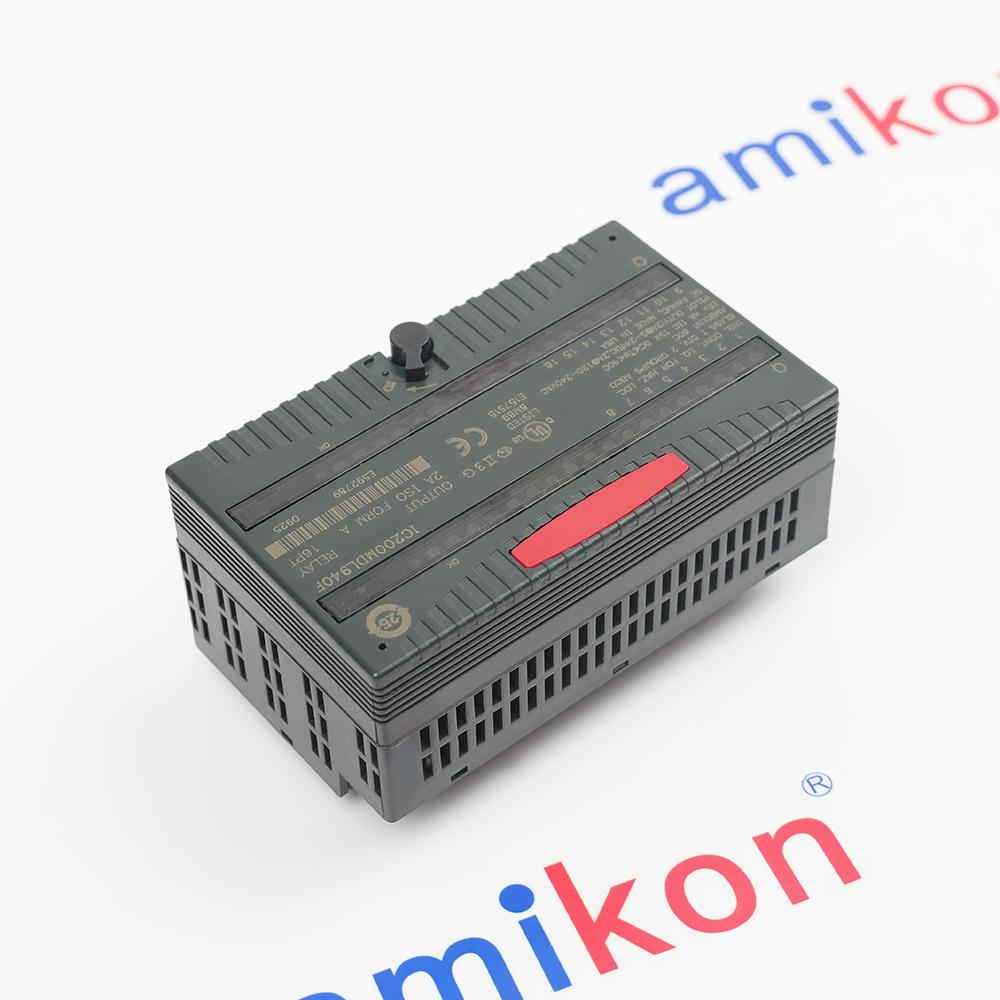

The IC200MDL940F is a relay output module that is part of the VersaMax I/O platform of Emerson Automation, formerly by GE Fanuc. This module comes with Sixteen (16) individually isolated Normally Open (N.O.) of Form A relay output contacts rated 0 to 125VDC, 5/24/125VDC nominal output voltage and 0 to 265VAC (47 to 63Hz), 120/240VAC nominal output voltage with output contact rating of 2.0 Amperes. With the built-in channel to channel isolation, each contact outputs can be wired to different voltage sources to energize the corresponding electrical devices wired to an output channel. The module’s embedded relay is a fixed coil, moving armature type with contacts made of silver alloy.
The IC200MDL940F GE 16-Point relay output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200MDL940F 16-Point relay output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This module can be used to energize output devices such as relay coils, solenoid actuated instruments, pilot lamps and other instruments. It does not come with snubber circuits or internal protection fuses however, external protection may be installed accordingly by the user. This module does not exhibit an output leakage current as the contact output are at an Open state when not activated. In addition, the response time of each output channel are both 10 ms specifically for Open to Close and Close to Open contact changeover. The maximum switching frequency of each output contact is 20 cycle per minute when used with inductive loads. Each output channel are provided with individual channel status indicator for depicting the operational state of each. The IC200MDL940 has maximum backplane current draw of 490mA and requires an external power supply rated 0 to 125VDC, 5/24/125VDC nominal and 0 to 265VAC (47 to 63Hz), with 120/240VAC nominal supply voltage.
- Industrial Process Control:High-reliability machinery & process control
- Relay Coil Operation:Energizes interposing relays, contactors & starters
- Solenoid Actuation:Solenoid valves, actuators & pneumatic instruments
- Pilot Lamp/Indicator Control:Drives pilot lamps & HMI indicators
- Mixed Voltage Systems:Isolated relays for mixed voltage sources
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Compatibility: Uses VersaMax interposing disconnect bases (IC200CHS101 or IC200CHS102).
Output Groups: 16 points divided into two isolated groups of eight.
Protection: The module does not have internal fuses or snubbers. External protection is required.
Connections: Follow the terminal mapping diagram printed on the module side or in the manual to connect field power and loads, ensuring load current does not exceed specifications for the intended voltage.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is the IC200MDL940F ？
+The GE Fanuc/Emerson IC200MDL940 is a 16-point, isolated Form A (Normally Open) relay output module designed for the VersaMax PLC series. -
What IC200MDL940F voltage can the outputs handle?
+The outputs support 0-125V DC (5/24/125V nominal) and 0-265V AC (47-63 Hz, 120/240V nominal). -
What IC200MDL940F type of relay is used?
+The module uses a fixed coil, moving armature relay with silver alloy contacts. -
What IC200MDL940F carriers are compatible?
+The IC200MDL940 is compatible with IC200CHS101 and IC200CHS102 (interposing) disconnect carriers. -
Is this product brand new?
+Yes, GE IC200MDL940F is brand new, original, unused, and factory sealed -
Do you provide warranty as standard?
+We provide a full 12-month warranty for the IC200MDL940F . So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.
