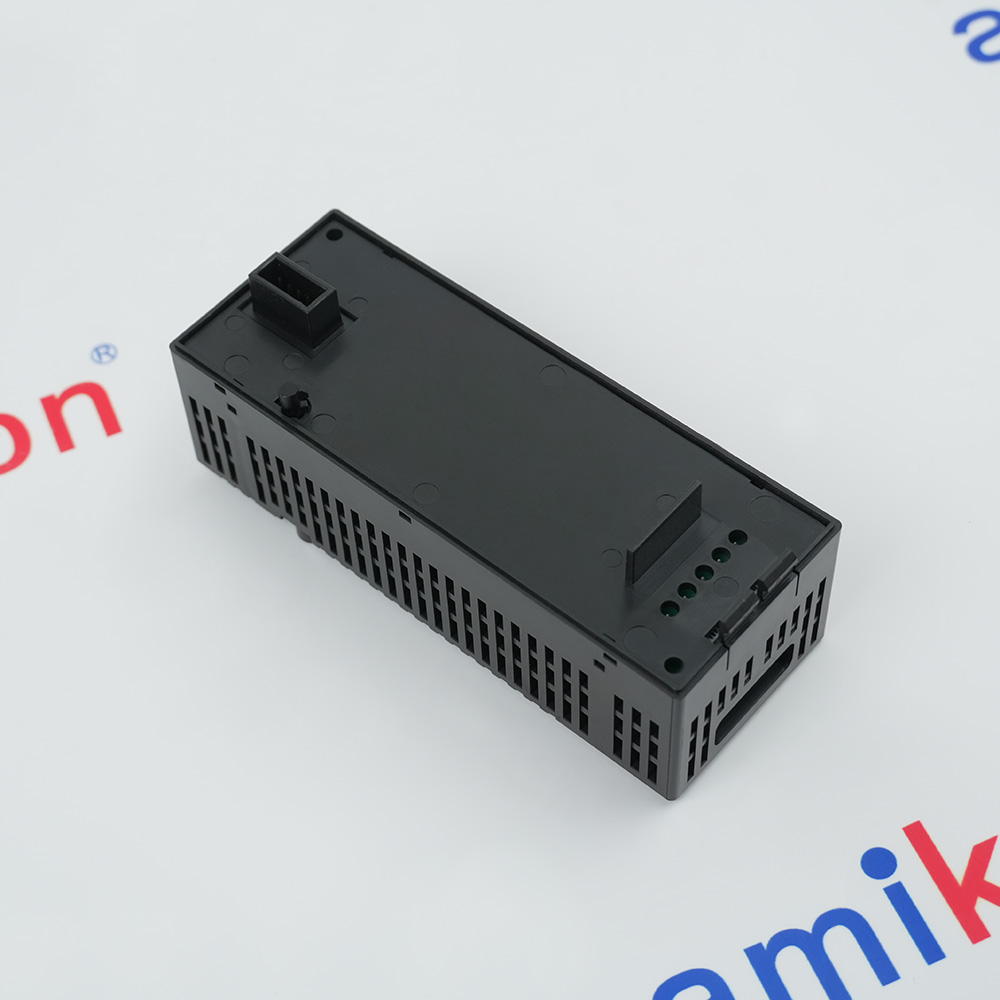

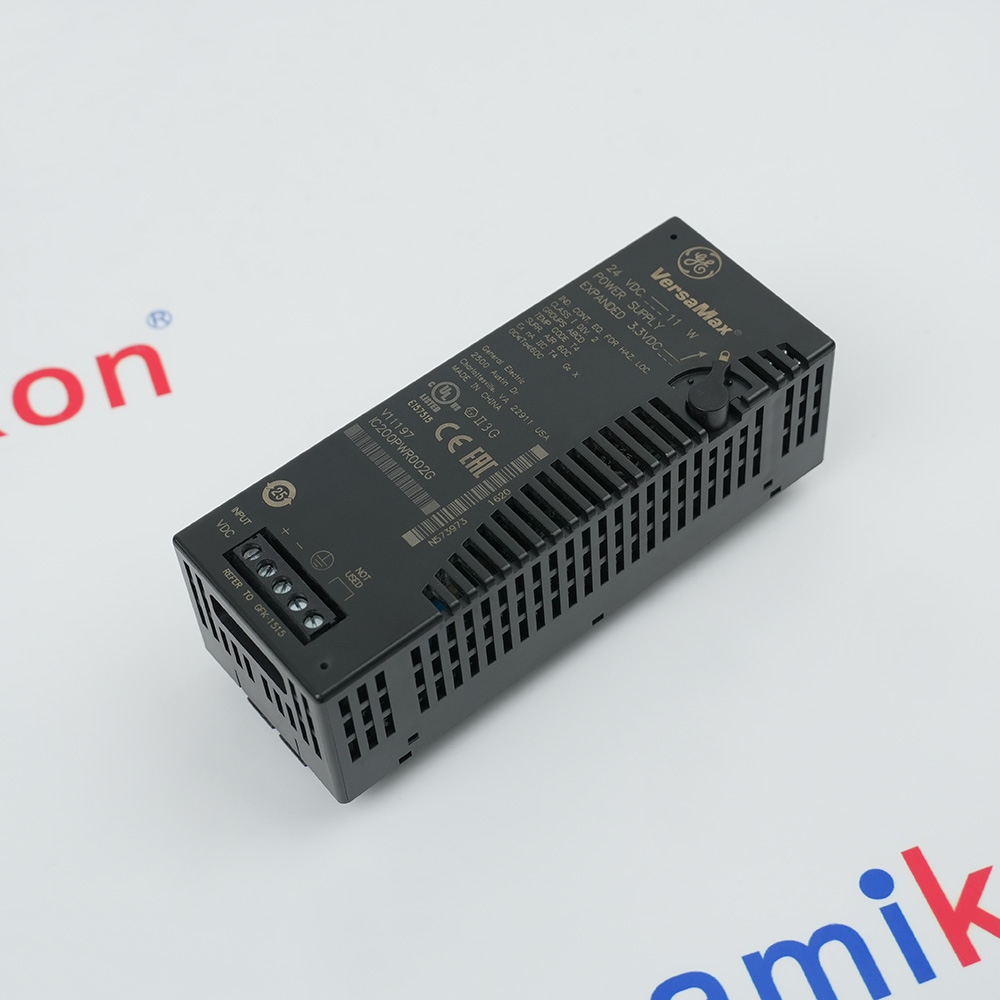

- IC200PWR002G
In Stock
Ships by Monday, June 22
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IC200PWR002G
-
Product ModelIC200PWR002G
-
Product Parameters24VDC 11-watt power supply unit
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12.6x4.8x4.8cm
-
ManufacturerGeneral Electric
-
Weight0.12 kg
-
Input Voltage18 to 30 VDC, 24VDC nominal
-
Input Power11W
-
Holdup Time10ms
-
Inrush Current20A at 24VDC25A at 30 VDC
-
Output Voltage5VDC, 3.3VDC
-
Operating Temperature-20°C to +60°C (-4°F to +140°F)
-
Storage Temperature-40°C to +85°C (-40°F to +185°F)
-
Relative Humidity5% to 95%, non-condensing
Description
The GE IC200PWR002G 24 VDC 11-Watt Power Supply Unit is a dedicated VersaMax power module engineered to provide reliable operating power for VersaMax PLC installations. The module accepts a nominal 24 VDC input and converts it into regulated internal system power for CPUs, communication modules, and I/O devices connected to the VersaMax backplane. Its compact form factor allows efficient integration into control panels where space optimization is important.
The power supply is installed directly onto a VersaMax carrier and distributes power through the system architecture without requiring additional wiring between modules. This simplifies installation, reduces panel wiring complexity, and improves system maintainability. The 11-watt output capacity is suitable for a wide range of VersaMax CPU and I/O configurations commonly found in industrial automation applications.
The power supply is installed directly onto a VersaMax carrier and distributes power through the system architecture without requiring additional wiring between modules. This simplifies installation, reduces panel wiring complexity, and improves system maintainability. The 11-watt output capacity is suitable for a wide range of VersaMax CPU and I/O configurations commonly found in industrial automation applications.
Revisions
Revision Part #
Also known as
Alternative Names
1C200PWR002
IC20OPWR002
1C2OOPWROO2
IC2O0PWR002
IC200PWR0O2
IC2OOPWROO2
IC200PWRO02
Information
Overview
Manuals
Engineering Considerations
Product Applications
Mechanical Mounting Constraints
Features:
- 24 VDC input operation
- 11-watt power output capacity
- Supplies VersaMax backplane power
- LED power status indication
- DIN rail compatible installation
24VDC Expanded 3.3V Power Supply IC200PWR002 provides backplane power forCPU, NIU, and I/O modules. It supplies up to 1.5 Amps output current via 3.3 volt and 5volt outputs, with up to 1.0 Amp on the 3.3 Volt output. Module backplane currentconsumption is summarized in appendix C.When mounted on the CPU or NIU module, it serves as the main power supply for thestation. It can also be used as a supplemental power supply when mounted on a PowerSupply Booster Carrier. Refer to the Power Supply Booster Carrier section of chapter 4 formore information.
The IC200PWR002G GE VersaMax power supply module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200PWR002G VersaMax power supply module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Grounding & Floating: The DC- terminal is internally grounded to the frame and earth ground. Therefore, a floating power supply configuration is not possible.
Wiring Requirements: When field wiring, you must ensure that the DC- is solidly tied to the frame ground and earth ground to reduce noise and maintain safety.
Mounting: Can be installed directly with the Central Processing Unit/Network Interface Unit as a main power supply or on a booster carrier to act as supplementary power.
- Skid-Mounted Compressor Packages:Monitors temp/pressure/vibration for compact compressors
- Water Booster Pump Skids:Power station for municipal/industrial pump arrays
- Chemical Dosing and Metering Skids:5V/3.3V rails for precision analog I/O
- Industrial Ovens & Proofers:Backplane power for RTD/thermocouple thermal logging
- Clean-in-Place (CIP) Skids:Valve/pump/chemical sequencing for sanitization
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Specifications: Mount all VersaMax modules onto a unified piece of unpainted, conductive 7.5mm x 35mm DIN rail that is at least 1mm thick.
Placement Alignment: Align the power supply module directly to the right side of the VersaMax CPU or Network Interface Unit (NIU). Alternatively, snap it onto a Booster Carrier to distribute power to expanded sub-racks.
Clearance Requirements: Maintain at least 50mm (2 inches) of open ambient airspace above, below, and on the sides of the assembly rack for natural ventilation.
Technical notes
The IC200PWR002G is a Power supply module that is part of the VersaMax product family, currently under Emerson Automation, formerly produced by GE Intelligent Platforms. This power supply module is a 24 VDC expanded power supply with input supply voltage of 18-30 VDC. It has an output voltage of 5 VDC and 3.3 VDC and total output current of 1.5 A, maximum specifically, 1.0 A, maximum at 3.3 VDC and 1.5 A, maximum at 5 VDC output.
