PRODUCT DESCRIPTION

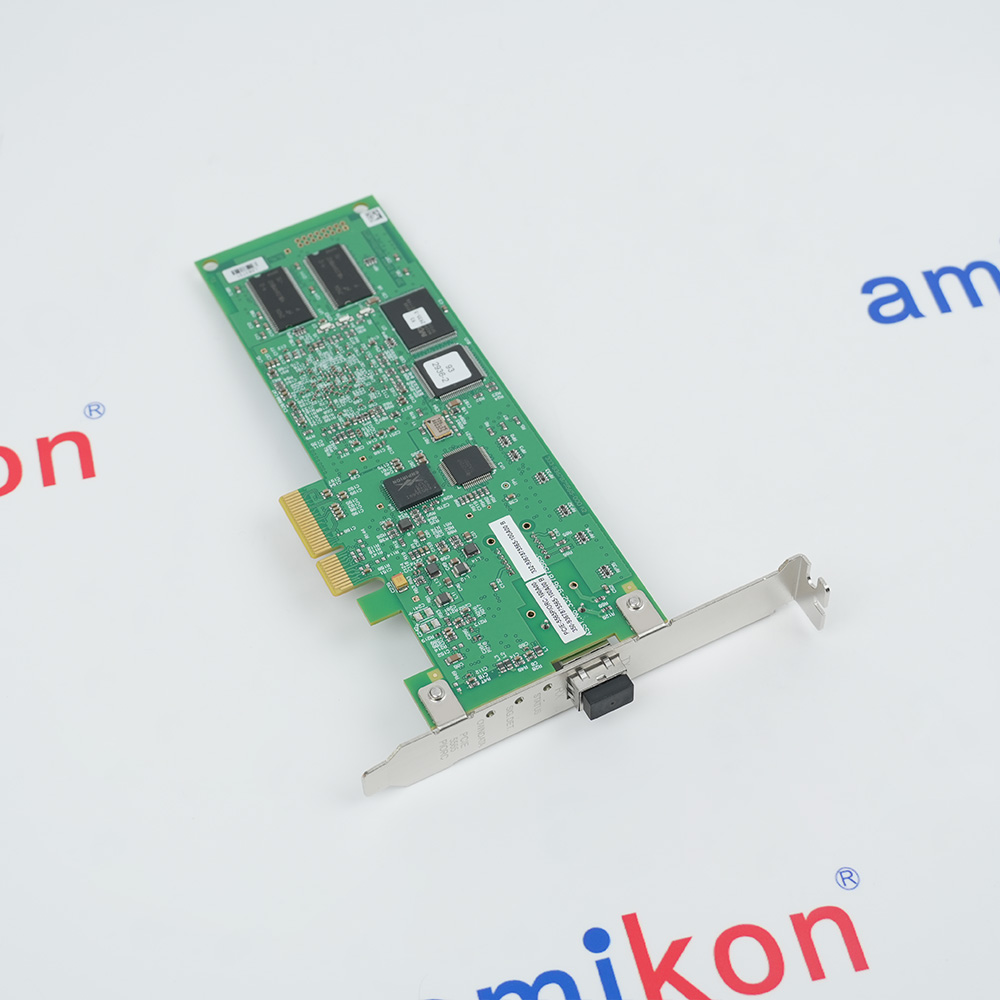

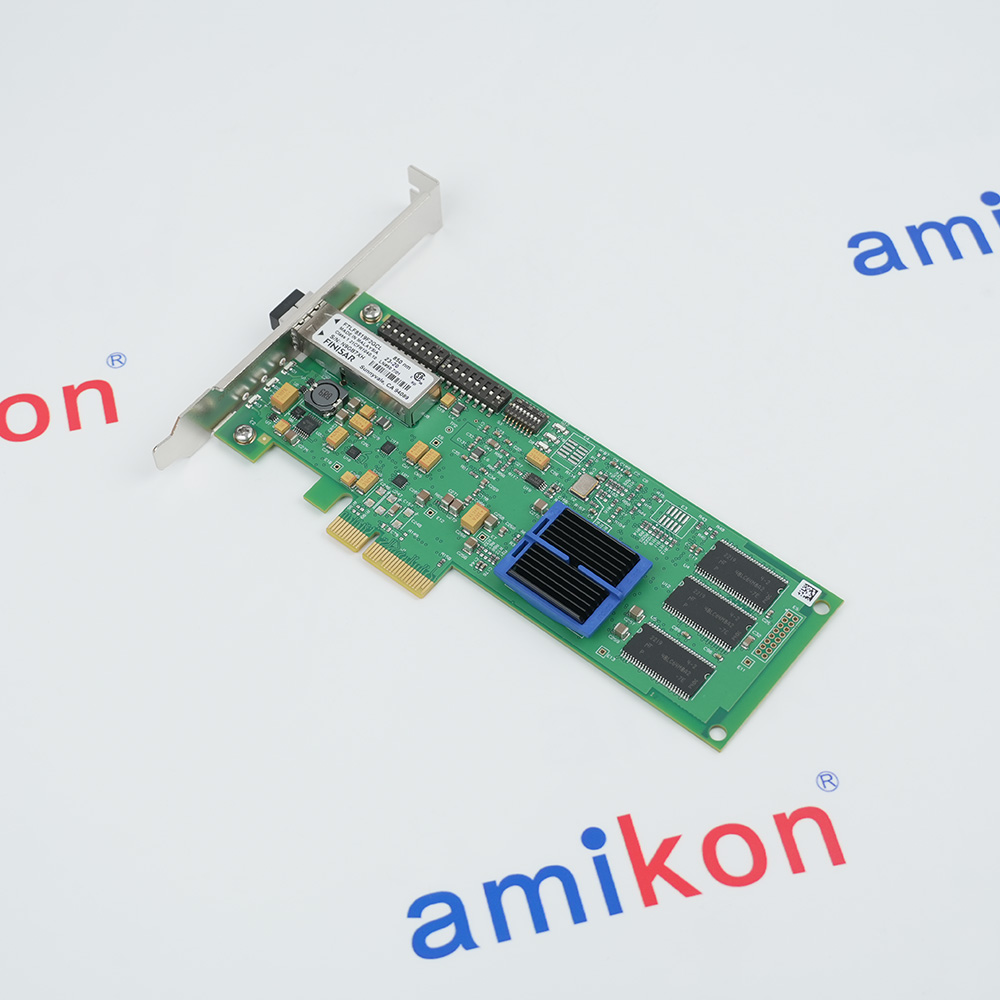

Reflective Memory PCIe card
PCIE-5565PIORC-100A00 is the 128 MByte, multimode-fiber version of GE Intelligent Platforms' low-profile PCI Express Reflective Memory node card. It shares memory data across a deterministic fiber-optic network, allowing participating computer systems to exchange updates without processor involvement in the network transfer.
Select the complete ordering code when matching memory capacity, optical transmission and the computer's slot arrangement. The original datasheet specifies a short bracket with a tall-bracket kit, while integration also requires suitable cooling and supported software. Confirm the supplied accessories and current support requirements before replacement.
Select the complete ordering code when matching memory capacity, optical transmission and the computer's slot arrangement. The original datasheet specifies a short bracket with a tall-bracket kit, while integration also requires suitable cooling and supported software. Confirm the supplied accessories and current support requirements before replacement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Shared-memory links for test and simulation systems
GE's original family datasheet identifies these application areas. The scenarios explain the Reflective Memory card's role; they do not claim that this exact ordering code was installed in a named project.
-
01 · SIMULATION
Aircraft simulator networks
In a distributed aircraft simulator, a Reflective Memory node card shares changing data between participating computers through the fiber-optic network. Its deterministic transfer behavior supports tightly timed communication; the host, memory option and network configuration must suit the simulator design. -
02 · ENGINE TESTING
Engine test-stand data exchange
Within an engine test stand, the card can form a shared-memory link among acquisition and processing computers. Updates are distributed over the Reflective Memory network, helping separate subsystems exchange test data without implementing each transfer as a processor-managed network transaction. -
03 · PROCESS CONTROL
Aluminum rolling-mill systems
The manufacturer lists aluminum rolling mills as a family application. In a suitable distributed control installation, the card provides shared data between networked computers. Its role is data exchange, not direct field-sensor termination or independent machine-safety control.
Technical specifications for PCIE-5565PIORC-100A00
-
Product ModelPCIE-5565PIORC-100A00
-
Product ParametersReflective Memory PCIe card
-
In stock1 unit
-
ManufacturerGeneral Electric
-
Onboard SDRAM128 MByte (100A00 option)
-
Optical transmissionMultimode fiber (100A00 option)
-
Form factorLow-profile PCI Express
-
PCIe interfaceFour lanes at 2.5 Gbit/s
-
Maximum network nodes256
-
Serial link speed2.12 Gbaud
-
Non-redundant transfer rate43 to 170 MByte/s, dependent on access size
-
Redundant transfer rate20 to 87 MByte/s, dependent on access size
-
Operating temperature0 to +65 degrees C with forced-air cooling
-
Storage temperature-40 to +85 degrees C
-
Relative humidity20 to 80%, non-condensing
-
Supply requirements+12 VDC (+/-5%): 0.7 A maximum; +3.3 VDC: 0.6 A maximum
-
Cooling airflow300 LFM
-
Mounting bracket specificationShort bracket; tall-bracket kit listed in original ordering specification
View all additional
Alternative Names
GE PCIE-5565PIORC 128 MByte
100A00 Reflective Memory Node Card
PCIE-5565PIORC Multimode PCIe Card
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
REFLECTIVE MEMORY PCIE CARD
Match the memory, optical link and host platform
The GFA-1813A ordering table identifies PCIE-5565PIORC-100A00 with 128 MByte memory and multimode transmission. The separately listed 200A00 option has 256 MByte memory. Match the complete ordering code rather than using the family name as proof of an identical configuration.
The low-profile PCI Express card is specified with a short bracket and a tall-bracket kit for standard-height slots. The datasheet gives four PCIe lanes at 2.5 Gbit/s and requires forced-air cooling. Confirm the actual host slot, bracket, airflow and supplied accessories against the system documentation.
Reflective Memory distributes memory writes over the fiber-optic network to participating nodes. Verify the host driver and operating-system release, network layout and optical configuration before commissioning. The historical datasheet's operating-system list is not a guarantee that every current software release is supported.
Features:
- Match 128 MByte memory and multimode optics
- Check PCIe slot, bracket and forced-air cooling
- Verify driver support for the actual host software
The PCIE-5565PIORC-100A00 Reflective Memory node card requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
For a like-for-like spare, retain the full PCIE-5565PIORC-100A00 identity and check memory capacity, multimode optics, bracket arrangement and the host driver. A similar Reflective Memory family name does not establish an unconditional hardware or software replacement.
Abaco's official PCIE-5565PIORC page states that the product entered Restricted Production Phase on May 4, 2023. This is the published RPP status, not a confirmed discontinuation date. Obtain current availability and support information for the required ordering option before planning a replacement.
No exact drop-in successor was established in the reviewed sources. A migration to another card needs documented compatibility with the network, memory map, optical links, host platform and application software; do not assume that matching transfer speed alone makes an alternative interchangeable.
Features:
- Preserve the 100A00 memory and optical option
- Distinguish Restricted Production Phase from end of life
- Validate hardware and software changes for any alternative
The PCIE-5565PIORC-100A00 Reflective Memory node card requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the PCIE-5565PIORC-100A00 Reflective Memory node card must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacking dimensions require confirmation
-
Shipping weightShipping weight requires confirmation
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about PCIE-5565PIORC-100A00
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How much memory does the 100A00 version have?
The original ordering table specifies 128 MByte for PCIE-5565PIORC-100A00. The 200A00 option is separately listed with 256 MByte. -
Is this ordering option multimode or single-mode?
The 100A00 row specifies multimode transmission. Do not infer that a different optical option is fitted from general family-level descriptions. -
Can it fit both low-profile and standard-height PCIe slots?
The datasheet specifies a short bracket for low-profile slots and a tall-bracket kit for standard slots. Verify the actual host slot and which bracket accessories accompany the offered unit. -
What does the maximum 170 MByte/s transfer rate represent?
The original datasheet gives 43 MByte/s for single-longword accesses up to 170 MByte/s for 64-byte bursts in non-redundant mode. It is not a guaranteed rate for every access pattern or system configuration. -
Does the card need forced-air cooling?
Yes. The published operating range of 0 to +65 degrees C is stated with forced-air cooling, and the cooling requirement is 300 LFM. -
Which host software needs checking before installation?
Match the card's driver to the actual operating-system release and host architecture. The 2012 datasheet lists Windows XP, Windows 7, Linux and VxWorks, but that historical list does not verify every current version. -
Does Restricted Production Phase mean the card is discontinued?
The official Abaco page identifies entry into Restricted Production Phase on May 4, 2023. It does not present that date as an end-of-life date or approve a specific drop-in successor.
