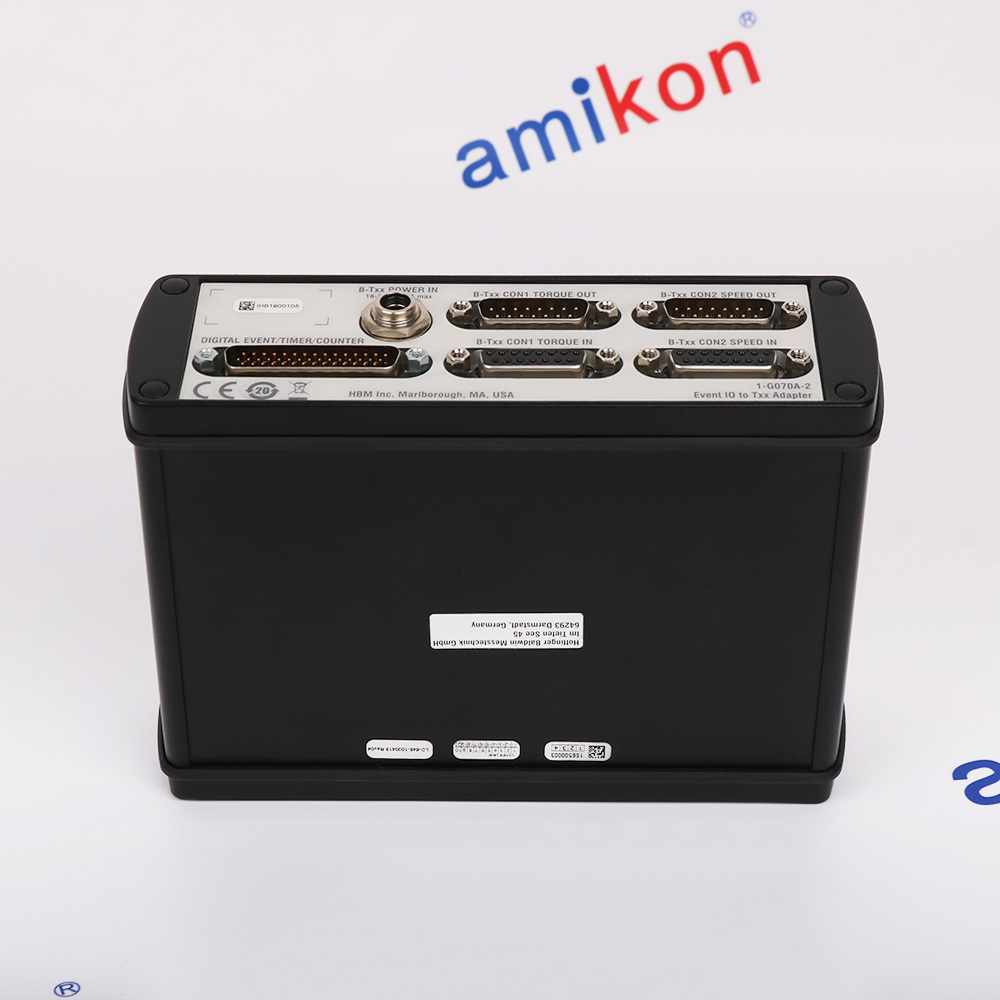

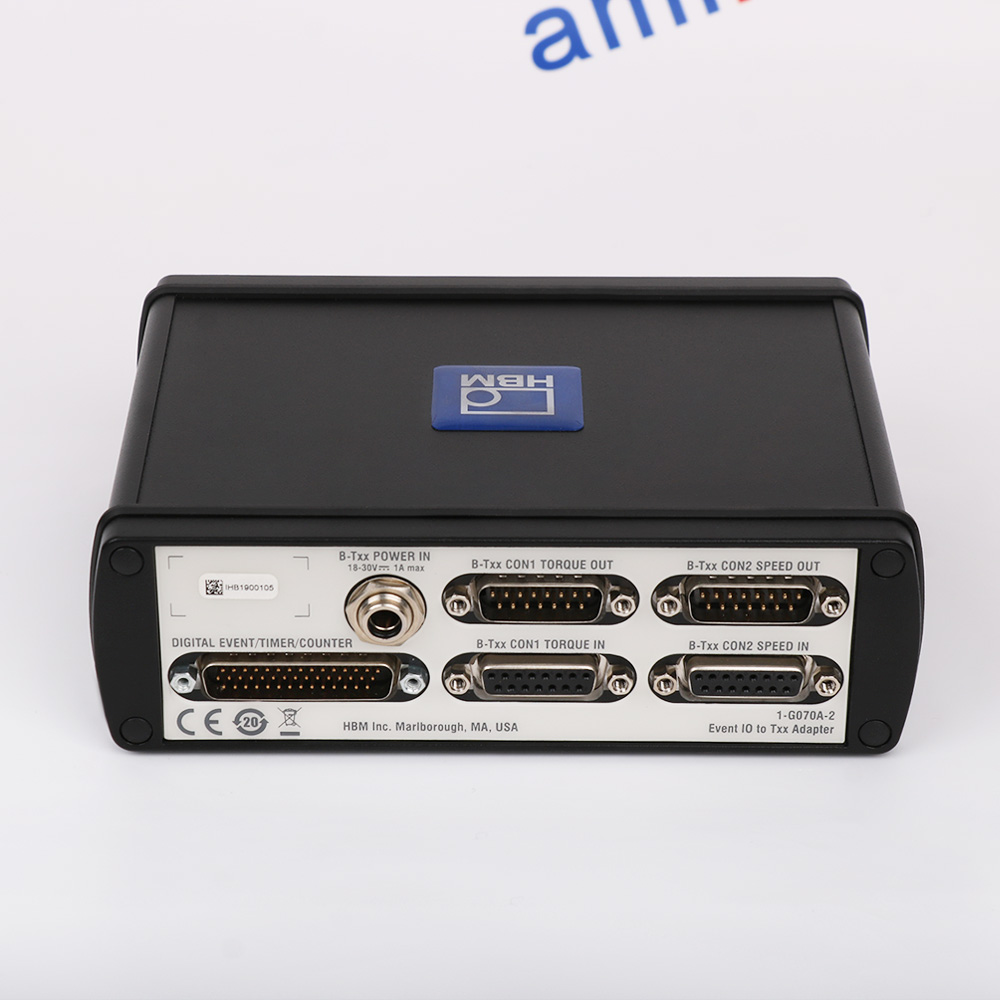

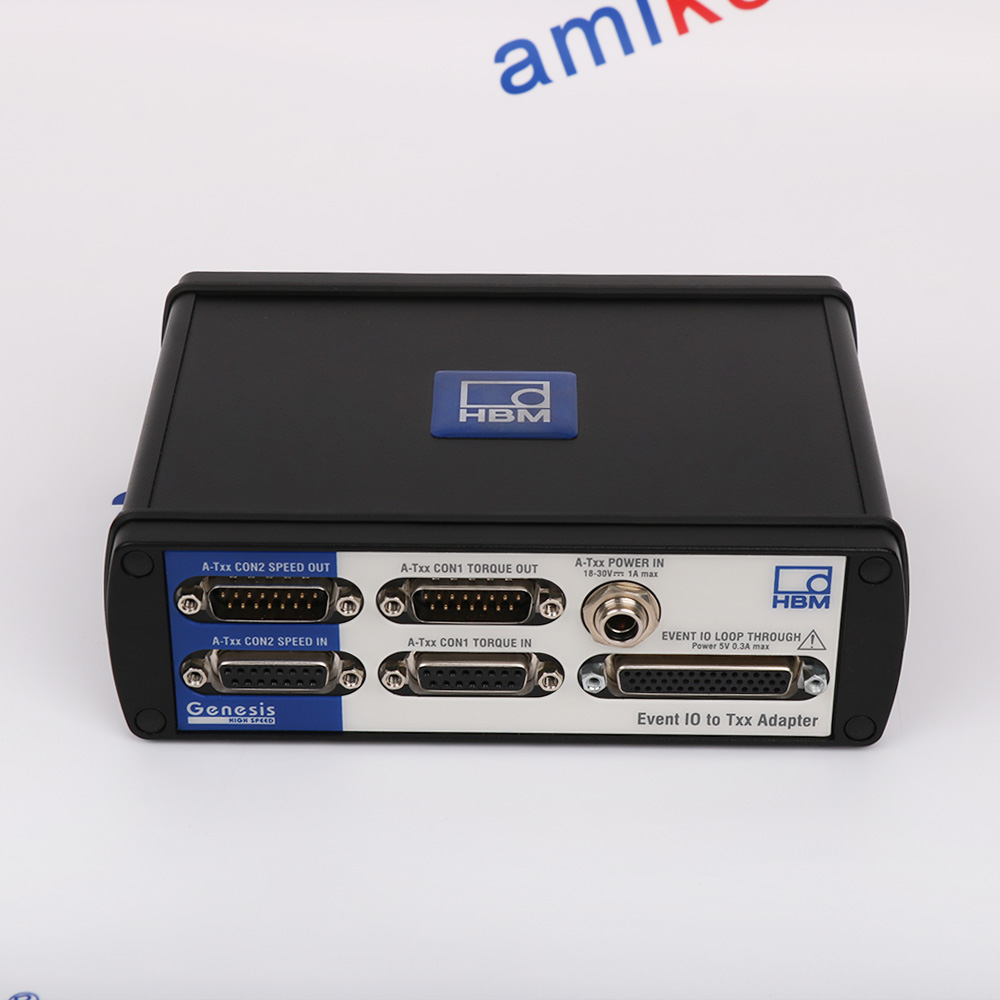

- G070A 1-G070A-2
In Stock
Ships by Friday, June 5
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for G070A 1-G070A-2
-
Product ModelG070A 1-G070A-2
-
Spare Model1-G070A-2
-
Product ParametersTorque/RPM adapter
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size17.2x13x5.5cm
-
ManufacturerHBM
-
Weight0.75 kg
-
Frequency Response0-100Hz (±3dB)
-
Accuracy±0.5% of full scale
-
Linearity±0.1%
-
Zero Drift±0.05%/°C
-
Propagation delay16 ns (typical)
-
Input buffersAM26LV32C
-
Output voltage- 0.3 V to + 6 V
-
Output current± 25 mA
-
Maximum signal frequency30 MHz
Description
The Torque/RPM adapter enables the connection ofHBM’s T12, T40B or similar torque transducers toGEN DAQ mainframes. The use of differential signalsimproves the immunity to external disturbanceespecially when using long cables in electricallynoisy environments.
For easy connectivity oftransducers the adapter can optionally route powerover the transducer cables, this avoids the need ofseparate power cables. This power input is separatelyconnected to the adapter per transducer.
Whenever a test cell control system requires parallelaccess to the torque and/or speed signals, the adapterreconditions the incoming signals and outputs allinput signals as RS422 differential signals.All outputs come with low latency to support real-timesafety monitoring applications
For easy connectivity oftransducers the adapter can optionally route powerover the transducer cables, this avoids the need ofseparate power cables. This power input is separatelyconnected to the adapter per transducer.
Whenever a test cell control system requires parallelaccess to the torque and/or speed signals, the adapterreconditions the incoming signals and outputs allinput signals as RS422 differential signals.All outputs come with low latency to support real-timesafety monitoring applications
Alternative Names
G070A
1-G070A-2
G07OA 1-GO7OA-2
GO7OA 1-G070A-2
G070A I-G070A-2
G070A 1-G070A-Z
Information
Overview
Manuals
Engineering Considerations
Product Applications
Software Configuration
Features:
- Connect up to two torque transducers
- Connect to T12/T40B using standard cables
- RS422 differential input signals for highestimmunity
- Connect to GEN DAQ mainframe using standardcable
- Dual signal output for dual use with test cell controlsystem
- Low latency outputs
- Power T12/T40B from adapter (Power supply notincluded)
- Connect to binary, frequency or ABz based sensorsusing RS422 signals
The HBM G070A 1-G070A-2 uses differential signals. The use of differential signals on the HBM G070A 1-G070A-2 improves immunity to external disturbance. This improvement on the HBM G070A 1-G070A-2 is especially beneficial when using long cables in electrically noisy environments.
The HBM G070A 1-G070A-2 connects to T12/T40B transducers using standard cables. The HBM G070A 1-G070A-2 connects to GEN DAQ mainframes using standard cables. The HBM G070A 1-G070A-2 is compatible with GEN3i/GEN3iA, GEN3t, GEN7i/GEN7iA, and GEN7tA/GEN7tB mainframes.
The G070A 1-G070A-2 HBM Torque/RPM adapter may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HBM G070A 1-G070A-2 Torque/RPM adapter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The HBM G070A 1-G070A-2 can optionally route power over the transducer cables. This power routing on the HBM G070A 1-G070A-2 avoids the need for separate power cables. The power input on the HBM G070A 1-G070A-2 is separately connected per transducer. The power supply is not included with the HBM G070A 1-G070A-2.
The HBM G070A 1-G070A-2 provides dual signal outputs. The HBM G070A 1-G070A-2 reconditions incoming signals and outputs all input signals as RS422 differential signals. The outputs on the HBM G070A 1-G070A-2 come with low latency. The low latency on the HBM G070A 1-G070A-2 supports real-time safety monitoring. The dual outputs on the HBM G070A 1-G070A-2 enable dual use with test cell control systems.
- Wind Turbine Generator Testing:Simulated wind torque vs generator outpu
- Hydroelectric Component Validation:Scaled turbine speed/torque under variable flow
- Auxiliary Power Unit (APU) Testing:High-speed shafts under variable load
- Actuator and Pump Validation:Torque response & positioning speed
- Large Industrial Pump & Compressor Test Beds:Power vs speed/torque for flow efficiency
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Acquisition Setup: Use Perception software with the e-power suite option enabled to configure your system.
Sensor Database: Open the sensor database and select your specific HBM sensor. For non-HBM sensors, you can duplicate a preconfigured setup and adjust parameters like measurement range, center frequency, and pulses per revolution.
Channel Assignment: In the e-power suite, map the digital torque and speed channels to the newly created sensors and input your span values.
Technical notes
Each of the torque and speed inputs are directlyconnected to the GEN DAQ high resolution Timer/Counter channels. The speed input supportsdirection and reference pulse to enable rotationalangle measurement. The torque input supportsshunt to optimize accuracy.In addition to HBM torque sensors, the adapterallows use with any binary, frequency or ABz basedsensor.
FAQs
-
Which torque transducers are compatible with the G070A?+The adapter is designed to directly connect HBM's T12 and T40B torque transducers, though it can also accommodate any binary, frequency, or A/B/Z based sensor
-
Can the adapter power the torque transducers?+Yes. The adapter can optionally route power over the transducer cables, eliminating the need for separate transducer power cables.
-
How does the G070A protect against electrical noise?+It uses RS422 differential signaling, significantly improving immunity to external disturbances and electromagnetic interference, even when running long cables in noisy test-cell environments
-
Does the adapter allow for real-time parallel access to test cell systems?+Yes. Whenever a test cell control system needs to monitor torque and speed simultaneously, the adapter reconditions incoming signals and outputs all signals in an RS422 differential format to your main system.
